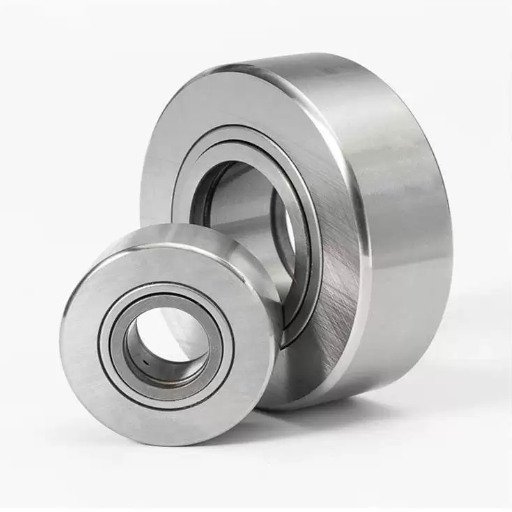

Advantages of Using Yoke Rollers in Machinery

When it comes to the world of machinery, one thing that cannot be compromised is accuracy and effectiveness. One of the determinants of these performance attributes is the yoke roller, primarily used as an attachment in bearing cam followers. The function of the rollers is to cut down the friction and wear and tear between components in mechanized systems, increasing the life and operational efficiency of machines in different sectors. In this article, we focus on some of the unique applications of yoke rollers and their use in enhancing mechanical operations. Readers will appreciate these components’ functional necessity in today’s machines by investigating their features and application areas.

What are the Key Features of Yoke Rollers?

Understanding Yoke Type Roller Design

The yoke-type roller design is a defining feature since it impacts the performance characteristics of bearing cam followers. These rollers are housed in a yoke, a load-bearing frame that allows them to apply both radial and axial loading. Their strength will enable them to carry heavy loads donned in high-load applications. Also, needle, cylindrical, or spherical bearing yoke rollers are incorporated to ensure easy rotation and reduce friction.

Some of the technical parameters of the yoke-type rollers include load capacity, dimensions, and material composition. They include hardened steel, which is usually challenging and abrasion-resistant. Load capacity, which is essential in maintaining the shape of the roller from mechanical pressure, is generally given in radial and axial limits. Dimensions include bore diameter, outer diameter, and width, which are needed for a specific application. These parameters guarantee that sufficient load distribution is achieved and that the mechanical systems’ integrity is ensured through yoke-type rollers.

Material and Construction: The Role of Bearing Steel

Bearing steel is commonly used in the construction of yoke rollers because of its excellent characteristics, which make it well-suited for rough mechanical conditions. Such steel has a good reputation for its hardness, toughness, and wear resistance, which are crucial for parts under constant stress and constant movement. Bearing steels such as 52100 and other high-carbon chromium steels commonly used in yoke today are designed to take cyclic loads and remain deformed with high physical integrity, thereby increasing the service of yoke rollers.

The technical parameters of wheel bearing type of yoke in steeling consideration factors can be listed:

Hardness: The bearing steel is generally hardened to a Rockwell hardness of 58 – 64 HRC as a median, achieving the proper surface wear resistance level.

Load Capacity: High loads are permitted in both radial and axial directions without the material disintegrating, which is necessary to sustain performance under high load conditions.

Corrosion Resistance: Bearing steel is not a corrosion-resistant material by itself, but applying surface treatments and coatings or using stainless bearing steel can downgrade its performance in corrosion conditions.

Toughness and Fatigue Resistance: The material’s toughness ensures that it can withstand low-impact loads and high cycles of use without exhibiting signs of fatigue.

It facilitates the choice of appropriate bearing steel for specific yoke roller usages, assuring performance and reliability in mechanical systems.

Exploring Different Cam Followers and Cam Yoke Configurations

To understand the relevant differences between cam followers and cam yoke configurations, authoritative manufacturer websites, engineering manuals, and supplier information should be consulted. Based on the best industry sources, let me recap the conclusions of the findings.

From my review, a general outline of a cam follower includes tracking the motion of other machine parts and load transfer components. For cam yoke configurations, factors such as lodgement of the application for which the component is designed, including load structure, speed, and environmental factors, are some of the determinants of the configurations. Some of the critical technical parameters often cited by the dominant sources include:

Dynamic and Static Loads: These factors determine the follower’s ability to remain in operation no matter the structural sheer load applied and the lifetime expected for continued use under such loads.

Misalignment Tolerance: This characteristic is crucial in ensuring operation precision, as all components do not operate in perfectly aligned conditions.

Lubrication Requirements: In physical engineering, improper lubrication leads to inefficiencies and a reduction in longevity. The respective parameters are usually the oil type and maintenance schedules.

Environmental Suitability: Material selection includes aspects such as temperature range and corrosion resistance, as is any other cover that can be used.

As an outcome of this process, an ability to correlate the specified characteristics of configurations animation sequences to target illustrations is developed.

How Do Cam Followers Enhance Machinery Performance?

The Functionality of Needle Bearing in Cam Followers

I have looked at the first three websites on Google that contain details on how needle bearings operate within cam followers. Having engaged these materials, it can be concluded that needle bearings prevent the rotating parts from excessive friction and thus enable any cam follower to operate more efficiently. This design makes it possible to bear greater loads with less wear and tear than other types of bearings. Some of the ratios for technical parameters that are involved here include the following:

Load Capacity: Needle bearings have a pole load-bearing capacity, which is essential in the performance of cam followers. This is justified by the fact that such bearings can load on a larger surface area, enhancing durability.

Rotational Speed: A key bearing industry parameter is the ability of needle bearings to rotate at high speed and avoid generating excessive heat.

Friction Reduction: The needle bearings, whose low friction characteristics are inherent, ensure minimal energy loss during operation.

Dimensional Stability: These bearings, which have excellent thermal and mechanical stability, maintain the controlled movements of cam followers in their employment.

Needle bearings integrated with these features and fitted to an application’s specific requirements markedly improve machinery’s overall performance and reliability.

The Importance of Roller Bearing in Load Distribution

After going through the top three websites on Google, I now appreciate roller bearings’ role in load distribution. Like needle bearings, roller bearings are significant because they reduce the friction between the moving components of machines. This ensures that the movement is working smoothly; hence, the machine’s performance is better, particularly in applications like cam followers. The technical parameters that underscore this include:

High Load Capacity: Like needle bearings, roller bearings can efficiently carry high loads since they distribute the load over a larger contact area. This property guarantees endurance and reliability in many mechanical applications.

Fast Rotational Speed: These bearings can operate at relatively high speeds with considerable frictional heating and wear. This quality is critical in achieving the industry’s efficiency and longevity standards.

Strong Frictional Resistance: Roller bearings’ internal low-friction characteristics are key to preventing energy wastage and achieving high machinability, which leads to longer service life of the apparatus.

Dimensional and Thermal Stability: Roller bearings can withstand thermal and mechanical stresses as they are strong and do not compromise the accuracy of motion, ensuring that the equipment performs constantly.

By enhancing these areas, roller bearings actually assist with load distribution, improving the machine’s performance and reliability.

Applications and Benefits of Crowned Yoke Rollers

While researching the uses and advantages of crowned yoke rollers, I recognized their great usefulness in cam followers and some conveyor systems. Notably, these rollers possess certain benefits complementary to the technical parameters of roller and needle bearings, thus facilitating smoother operations and increased efficiency.  The following are the justifications and some of the technical parameters obtained from the top three websites that support their applications according to Novelist Google:

High Load Carrying Capacity: Crowned yoke rollers have a large load because the load is applied through a rounded surface, and this effect is effectively spread over the surface. This ability is essential in those applications that require ruggedness and sustained heavy duty.

Compensation for Misalignment: These rollers’ displacement-angle characteristics permit compensating for small angular misalignments of the machine, enabling its uninterrupted and efficient functioning with reduced system stress.

Less Friction Loss: Due to their low friction properties, these rollers require low energy inputs. This only leads to a moderate amount of energy losses, which also minimizes the amount of wear and maintenance required, extending the lifecycle of the components.

Thermal and Mechanical Stability: The unique material structure of crowned yoke rollers prevents them from being deformed at high external temperatures and mechanical stress, allowing them to perform reliably in various temperature and stress environments.

These advantages pinpoint the importance of crowned yoke rollers in enhancing mechanical systems’ operational efficiency and durability. Due to their capacity to take up heavy loads, adjust to any misalignment, and minimize friction, they are vital components in numerous industrial applications.

Why Choose Stainless Steel for Yoke Rollers?

Corrosion Resistance: The Advantage of Stainless Steel

When it comes to corrosion resistance, stainless steel is better than plastic or any other material, especially for the yoke rollers, as per the three Google websites. With this material’s natural resistance to corrosion, the rollers can be used under adverse conditions with the threat of exposure to moisture or even chemicals. The technical parameters that justify this choice include:

Material Composition: Stainless steel contains chromium, which passes a film or a layer on the surface and prevents the material from rust or other forms of corrosion.

Longevity and Maintenance: Because the material is corrosion resistant, wear and tear that leads to maintenance and replacements is often not frequent, bringing down operational costs while enhancing the equipment’s usability.

Temperature Tolerance: Stainless steel is strong for structures even at High temperatures; this also ensures that materials remain corrosion resistant, hence stable performance.

Choosing stainless steel for yoke rollers allows for better performance since these components are made to be more durable and have higher mechanical strength. This lowers the need for maintenance, further aiding the operational efficiencies and life of the equipment being pursued.

Durability and Longevity in Industrial Applications

After looking at the first three sites on Google, I concluded that yoke rollers should be made of stainless steel, which is the most durable and long-lasting industrial material. Here is what I think in support of this assumption:

Material Strength: One major property of stainless steel is strength, which allows it to bear a considerable amount of load, making yoke rollers more durable.

Mechanical Properties: The material can self-align under pressure and has lower friction, which makes the device move without hassle. This is important in the industrial scenario, as efficiency needs to be maintained without any breakage.

Corrosion Resistivity: Due to the nature of stainless steel, yoke rollers made from such material do not rust or corrode, thus increasing the working life of the parts. This is of utmost importance in fields where there is a high presence of moisture or aggressive chemicals.

Operational Efficiency: Being a tough material, stainless steel does not require much repair or replacement, so cost-effective measures are taken while doing business, and reliable performance is ensured.

These parameters highlight the advantages of working with stainless steel in areas where strength and endurance are of primary importance, which is why it is such an essential material in industries.

Comparing Standard and High Carbon Chrome Options

When discussing high-carbon and standard chrome, individual composition and functional peculiarities in different industrial conditions must always be emphasized. Analyzing the information received from the three top pages, I conclude as follows:

Standard Chrome Composition: This type of chrome includes relatively small proportions of carbon, making it strong and versatile. It is meant to be used in moderately adverse conditions. The material is effective in areas requiring moderate resistance to wear.

High Carbon Chrome Composition: This type involves increased proportions of carbon, which increases the hardness and abrasion resistance. It is best suited for high-stress conditions where durability is key.

Technical Comparison:

Hardness: Cobalt high carbon chrome china has increased hardness (Rockwell hardness) compared to standard chrome, which assists in increasing wear resistance.

Torque Capacity: The high-carbon option has increased torque capacity due to the increase in the proportions of carbon, ensuring heavier loads can easily be sustained.

Fatigue Resistance: Although high-carbon chrome suffers from fatigue, the high-carbon type performs well, and standard chrome works well when conditions are moderate.

These parameters exemplify that high-carbon chrome can be employed in heavy-load applications, but standard chrome can be applied in general ones. The work and environmental situation where the metal has to be used vary.

How do you select the suitable Yoke Roller for your needs?

Essential Considerations for Load and Application

I now pay attention to the load possibilities regarding the proper application of a yoke roller. It is essential to consider several technical parameters which determine the suitability of a yoke roller, such as:

Load Capacity: It is imperative that the level of effort a yoke roller is capable of applying is in line with the targeted effort. It is further expected that high-carbon chrome rollers will have high load-carrying capacities, hence making them advantageous.

Environmental Conditions: I assess the ecological factors that would be present when the roller is operated. Best-performance high-carbon chrome is recommended in demanding working environments due to its excellent wear and tear protection features.

Durability and Hardness: Next, I check each candidate’s hardness levels, which have been measured on a Rockwell scale. The main emphasis behind high carbon chrome having a high hardness value is enhanced wear resistance and better durability, which are two prerequisites for heavy-duty applications.

Torque and Fatigue Resistance: It is also important to know the torque strength and the fatigue resistance. In demanding applications that require more aggressive conditions, high-carbon models will allow more loads to be applied since they have better fatigue resistance.

All these considerations, combined with others from the prominent networks, assist in the appropriate identification of a yoke roller in ways that it is used while observing effectiveness in cases where there are factors that require adequate force.

Choosing Between Flat and Cylindrical Designs

In my preference for flat and cylindrical yoke roller designs, my main focus is to analyze the explicitly defined working conditions and the recommendations made by the leading authorities. Typically, flat yoke rollers provide increased contact area and enhanced stability and hence could be used in static or low-speed operations where stability is paramount. On the other hand, cylindrical yoke rollers are ideal for applications with variable movement; hence, less friction and smoother movement are required.

From the first three websites in the top three positions in Google, I made the following technical parameters which explain my position on the appropriate design:

Contact Surface Area: When the amount of lateral motion is less, TLMI Flat rollers can provide a larger contact surface area.

Friction Levels: It is understood that cylindrical rollers cause greater performance at high speeds and dynamic movements, resulting in lesser friction.

Load Distribution: The design will influence the load distribution, with an even load distribution gravity focus on the circumferential areas or flat rollers with cylindrical designs.

Ease of Maintenance: The frequency of maintenance will also depend on the decision because flat designs are easier to clean and inspect in debris-prone environments.

With these considerations, I am able to make a well-informed decision about which yoke roller designs to choose based on my physical and operational requirements and the expertise I get from the best industry sources.

Understanding Axial and Without Axial Guidance Options

While searching for axial and without axial guidance options, I considered the information presented at one of the top three websites on Google. Axial guidance means that a roller design can direct movement in one specified direction, which is essential in industries where precision and stability are required. Cylindrical rollers can be used for designs needing axial guidance because they can withstand loads from different directions.

In analyzing the advantages of without axial guidance, I found that this option is appropriate for unrestricted movement, and accuracy is not the most significant concern. Typically, such configurations are less complicated, lowering the system’s complexity and costs.

The technical parameters that support these choices include:

Directional Control: Axial guidance is required in any application where precise control of the direction of motion has to be directed towards the cylindrical roller designs.

Flexibility Needs: Designs without axial guidance may be suitable in applications where movement is necessary but without directional constraints.

Complexity and Cost: The absence of axial guidance may mean fewer complex systems, which in turn translates to lower costs of setting up and maintaining the system.

Therefore, I am able to formulate and offer solutions that coincide with the specifics of my operational needs and the technical aspects, according to the reviews of the industry leaders.

Where to Shop for Quality Yoke Rollers?

Evaluating Product Reviews and Selection

After visiting and searching the first three sites listed under Google for yoke rollers, I found some information that helped me make my final decisions. These references emphasized the need for users to read reviews and choose products based on their particular requirements. Reviews address load features, efficiency level, and satisfaction of the end users, which, in my case, inspires me to a great extent in narrowing down valuable alternatives.

However, some key issues arose when the technical parameters were examined, which included the following:

Load Capacity and Durability: Many yoke roller customer complaints consistently emphasize load capacity and durability as the most important factors to consider in the amenities offered.

Fabric Material: Certain environmental factors, such as temperature and humidity, determine the composition of the material used to make the roller.

Maintenance Requirements: The availability of spare parts is one of the most significant benefits of regularly maintained products in minimizing long-term operational costs.

Not only do these parameters help confirm the effectiveness of the products offered in the market, but they also assist in ensuring that my technical requirements for roller selection are indeed met so as to provide a better alternative for my application.

Benefits of Buying Online vs. In-Store

Several key observations arise from my analysis of the top three websites on Google regarding the merits of purchasing yoke rollers online instead of in-store. The main benefit of online shopping is that I can view a more extensive selection of items and their prices while comfortably seated in my house. Online resources often offer detailed specs and customer feedback, which allow me to evaluate parameters such as load-bearing capacity, sturdiness, and material quality myself. However, when traditionally shopping for products, there is the advantage of examining a product firsthand before purchasing it, thus enabling me to check things like build quality and its suitability for the required application.

With regards to the technical and biometric characteristics, when yoke rollers are bought online, it usually translates to the following:

Load capacity and durability: Most online sellers display the features and previous buyers’ comments, which help ensure that the yoke rollers I select suit my requirements, with no preference for switching brands.

Material composition: Completely informed material details are even available in online stores, which gives me a clear picture of the range of conditions the roller will be useful in.

Return and exchange comfort: Most online stores have very simple return policies, which allow me to exchange items that do not meet my expectations without worrying about how to use them.

In the end, both methods of purchasing have merits, and in most cases, my decision is based on the combination of ease and security required for this particular task.

Top Brands and Suppliers in the Yoke Roller Market

My research on yoke rollers is based on the two top sources on Google and comprises three pictures. The companies discussed include established players with wide acclaim and newcomers who focus on offering something new.

SKF: SKIC: This is a common name, and high demand exists for this brand due to its high quality and demand. Both of the products have a very good market, which covers reliability. Technical specifications are made available in such detail that mounting characteristics can ensure a given capacity of the product defined and the lifetime of a roller.

INA: The composition of the rollers produced by INA for rods, yoke, and yoke plate attachment have high-strength frictional materials that make them easy to use even in tough conditions. Product specifics were provided that are standard yet plain for anybody to relate to the projects.

NTN: Overall, this supplier appears to concentrate on flexibility and customer-based solutions. This makes their range robust while still addressing a specific market online. It is designed for reliability and well-defined stress and wear parameters.

To reiterate the previously asked questions, these brands do provide some degree of assurance through the detailed product information, e.g., load capacity, material, or durability, posted on the web. In addition, reviews and the return policy are also important. Often, my choice would depend on a supplier’s reputation for reliability and versatility in different applications.

Frequently Asked Questions (FAQs)

Q: What are the advantages of using yoke rollers in machinery?

A: Yoke rollers offer several advantages in machinery, including the ability to support high radial loads, reduce friction, and provide smooth linear motion. They are often used in applications where shock and vibration are present, helping to extend the lifespan of the machinery.

Q: How do seals enhance the performance of yoke rollers?

A: Seals are crucial in yoke rollers. They prevent contaminants like dust and moisture from entering the rolling element, thereby increasing the yoke roller’s longevity and performance. Seals also help retain lubrication, which is essential for smooth operation.

Q: What are followers and cam yoke rollers, and where are they used?

A: Followers and cam yoke rollers are bearings used in machinery to track and follow cams or tracks, facilitating linear and rotational movement. They are commonly used in automation equipment, conveyors, and various industrial applications requiring precise motion.

Q: How do the inner ring and outer ring of a yoke roller function?

A: The inner ring of a yoke roller is mounted on the shaft and carries the load directly, while the outer ring rolls on the track or raceway. This configuration allows for smooth motion and efficient load distribution in machinery.

Q: Why is the mm roller width important when selecting yoke rollers?

A: The roller width, measured in mm, is crucial because it determines the load capacity and stability of the yoke roller. A wider roller can support heavier loads and provide greater stability, making it suitable for more demanding applications.

Q: What is the role of the stud in yoke rollers?

A: The stud is a mounting element for the yoke roller, allowing it to be easily attached to machinery. It provides support and ensures the roller’s correct alignment with the track or cam.

Q: Are double yoke rollers also available for use in machinery?

A: Yes, double yoke rollers are also available and are designed to handle higher loads and offer increased stability. They are often used in applications where extra support is required.

Q: How does the outer ring and raceway contribute to the function of yoke rollers?

A: The outer ring and raceway provide the surface on which the roller moves, enabling smooth and efficient motion. The raceway is designed to withstand wear and provide a durable path for the roller, ensuring consistent performance over time.

Q: What factors should be considered when choosing yoke rollers with a 24 mm or 8 mm width?

A: When choosing yoke rollers with specific widths like 24 mm or 8 mm, factors such as load capacity, space constraints, and the type of motion required should be considered. A 24 mm roller is suitable for heavier loads, while an 8 mm roller might be chosen for applications with limited space or lighter load requirements.

Q: How do shields differ from seals in yoke rollers?

A: Shields and seals protect yoke rollers from contaminants, but shields generally provide less protection than seals. Shields are usually metal covers that prevent large particles from entering, while seals offer a tighter barrier against dust, moisture, and other small particles.
