Ball Bearing vs Sleeve Bearing: Which Cooling Fan Bearing Type is Right for You?

When selecting a cooling fan for your application, the choice of bearing type is a critical factor that impacts performance, reliability, and longevity. The two primary bearing types commonly used in cooling fans are sleeve bearings and ball bearings, each with distinct characteristics that suit them in different environments and use cases. This article provides a detailed comparison of sleeve bearings and ball bearings, analyzing factors such as operational efficiency, cost, maintenance, noise levels, and environmental suitability. By understanding the advantages and limitations of each type, you can make an informed decision that aligns with your specific cooling requirements.

What are the main differences between sleeve bearings and ball bearings?

How do sleeve bearings and ball bearings reduce friction?

Bearing friction is reduced as a result of a bearing slide motion activated by sleeve movement. This is made possible with the presence of lubrication that exists between the shaft and the bearing surface. The lubrication employed overrides normal contact, thus drastically diminishing abrasion.

• Coefficient of Friction: Nearly anywhere from 0.01 to 0.05 depending upon how the bearings are lubricated and the materials used.
• Load Capacity: Even though their optimum speeds are low, sleeve bearings function well under heavy loads.
• Operating Speed: While it depends on the lubrication used and the material, most applications are acceptable below 3,000 RPM.

On the contrary, Ball bearings replace lubricant friction with rolling elements (balls) positioned between their two rings. This covering together with ball bearing construction helps to change but friction remains – from sliding to rolling friction; the more favorable types.

• Coefficient of Friction: Still lower than sleeve bearings, ball bearings’ coefficient is usually around 0.001 to 0.005. For some applications, this is sufficient and probably too much resistance.
• Load Capacity: As they are made to provide support to radial and axial loads, ball bearings are inferior to sleeve bearings in the amount of weight they can sustain.
• Operating Speed: Ball bearings can withstand higher speeds and are mostly made to exceed 10,000 RPM.

The fact that both types of bearing were made to the issue of friction reduction greatly indicates that they are highly dependent factors posed by load, speed as well as environmental conditions the application is subjected to.

What are the structural differences between these bearing types?

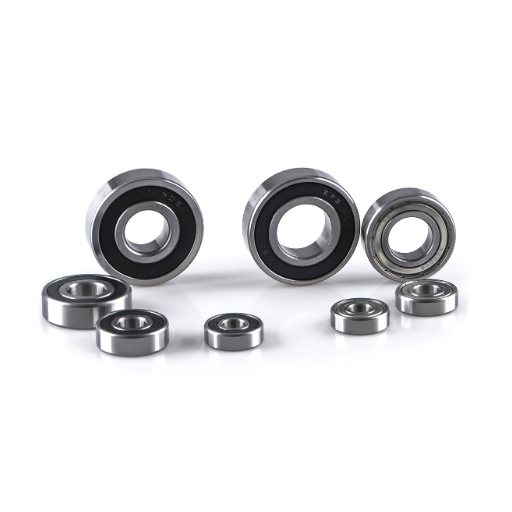

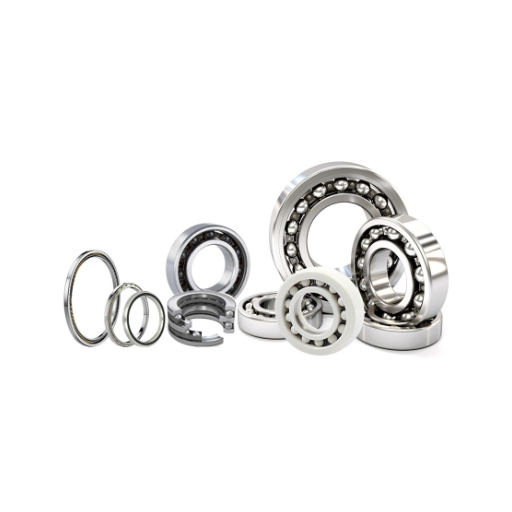

The main difference, as expected, is in design and construction. Ball bearings are made up of circular elements (balls) that are kept in place by cages or retainers. These elements are separated by precision machined inner and outer ‘races’. Compared to their sleeve counterparts, which look like thick metal pipes, ball bearings require complex spherical shapes that require a high-speed power source.

• Rolling Elements: Spherical balls reduce point contact and friction.
• Material: Usually, steel or power ceramics that are more durable under high-speed conditions.
• Lubrication: Specific grease is required to reduce contact wear from rotation.

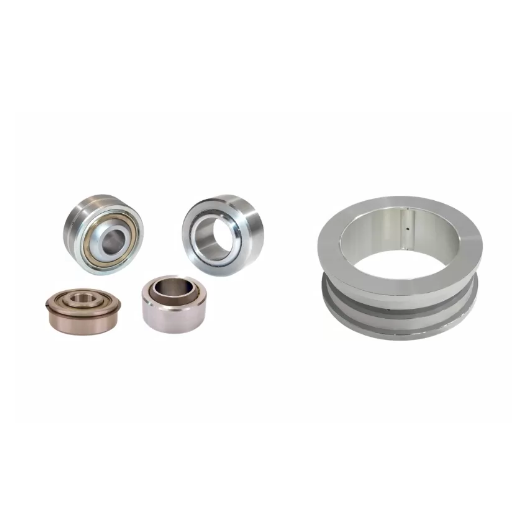

Contrary to sleeve bearings that look like pipes, as the name ‘bushings’ suggests, sleeves incorporate sliding motion instead of rolling elements. Their simplicity permits higher load capacities, but performance in high-speed environments is limited.

• Surface Contact: Full sliding contact to the shaft, which can accommodate a greater load.
• Material Composition: Self-lubricating but dependent on external factors to reduce friction.
• Load Capacity: Higher due to larger contact area, but suited for low speed compared to sleeves.

These structural differences align with the environmental and operational demands of their respective applications, ensuring optimal performance in varying conditions.

Which bearing type offers better performance for cooling fans?

How do sleeve bearings and ball bearings handle high speeds?

In terms of high-speed functionality, ball bearings tend to outperform sleeve bearings because of their less friction and sophisticated rolling parts. Thier rolling parts have the least contact area possible to increase the efficiency over heighten the rotational speeds.

• Speed Capabilities (Ball Bearings): Ball bearings are usually rated for spindle speeds greater than 10,000 RPM depending on the design and material. Ball bearings are stable and durable on continuous high-speed operations.
• Speed Capabilities (Sleeve Bearings): These components are meant to function at lower speeds mainly under 3000 RPM. Their functionality relies heavily on lubrication conditions and serves very little when there is excess speed or force.

This notoriety is most advanced in components such as cooling fans in high-performance computers after which an unrestrained airflow is needed in a buoyed and dependable manner.

Which bearing type is better for handling radial loads in cooling fans?

When it comes to radial loads for cooling fans, ball bearings are typically the best option. This can be attributed to the fact that ball bearings, unlike others such as sleeve bearings, can effectively distribute the load across their rolling elements which helps decrease actual contact and friction when being subjected to radial forces.

• Load carrying capacity： This is achieved due to their structural design. It also takes into consideration the rolling contact mechanism as well since it is easier for ball bearings to support radial loads compared to sleeve bearings.
• Operational speed range： They also remain effective within a wider scope of speeds which allows for efficient operation at higher speeds of over 3000 RPM.
• Durability under stress： Under continuous radial loads, ball bearings sustain reduced wear, which makes them great for active cooling fan systems where performance is paramount.

While sleeve bearings are effective at slower, less strenuous tasks, radial SOSN of skeletal structures that require strong, sustainable performance over prolonged periods causes them to wear easily.

What are the lubrication requirements for each bearing type?

About lubrication, I will pay attention to the differences in operating conditions for sleeve bearings and ball bearings.

• Sleeve Bearings: These bearings support slowly rotating pieces under a not very high load. Less frequent lubrication is always aided by oil-impregnated materials or external sources, which need constant supervision to prevent friction and damage. Sleeve bearings tend to use SAE 30 and higher oils to aid the required hydrodynamic lubrication film thus volumetric flow rate and speed remain low.
• Ball Bearings: These parts tend to operate autonomously, thus allowing more demanding working conditions. Self-lubricating bearings don’t require frequent maintenance and support minimal, high-quality lubrication to aid the lower friction and reduce the wear during fast shell rotations that exceed 3000 RPM. Oils with higher viscosity, such as ISO VG 32 and VG 46 are often needed since they help withstand the temperature produced during rapid rotations and guarantee a continuous constancy in inline performance.

These combined lubrication strategies ensure each part operates efficiently and meets the mechanical requirements for their given design.

How do sleeve bearings and ball bearings compare in terms of durability and lifespan?

Which bearing type typically has a longer service life?

In terms of service life, rolling element bearings have a longer life as compared to sleeve bearings, under proper operating conditions. This life is a result of their rolling contact mechanics, which reduces friction and wear for properly lubricated units. Ball bearings withstanding variable loads, higher speeds, and low tolerance to wear perform particularly well.

• Dynamic Load Rating: C. For ball bearings, it is easier when they need to withstand higher loads in motion as these features improve their life in aggressive covers.
• Operating Speed Limits: The speed of rotation for ball bearings can go higher, which results in lesser heat and wear accumulation.
• Lubrication Intervals: With proper intervals of lubrication, the sealed designs allow ball bearings to perform over longer periods.

On the other hand, sleeve bearings withstanding low speed or high impact applications which are not evenly distributed, can tend to be more durable. Their environmental dependency often requires more maintenance, something which makes their life cycle restricted in comparison to ball bearings.

How do environmental factors affect the longevity of each bearing type?

Both sleeve and ball bearings face environmental distress; therefore, their operational lifetime is bound to be affected. I think temperature extremes, dampness, and contaminants pose the biggest threats.

• Operating temperature: Excessive heat can compromise lubrication for both types of bearings resulting in a greater deal of friction and wear. Ball bearings are better equipped to manage higher ranges due to their sealed composition and superior lubricant quality.
• Dirt and debris: Both elevations in dirt and even dust can compromise both sleeve and ball bearings. However, ball bearings do manage dirt to a greater extent as compared to sleeve bearings which lack adequate lubrication and are more prone to damage.
• Moisture: Ball bearings with stainless steel or ceramic parts tend to work well in corrosion-prone conditions. Sleeve-bearing compositions depend on softer elements and are more likely to face moisture-based damage.

The modification and selection of lubricant, seals, and even bearing materials can help ensure a longer service life for both sleeves and ball bearings.

What are the cost considerations when choosing between sleeve and ball bearings?

Which bearing type is generally more affordable?

Looking at cost, sleeve bearings are cheaper than ball bearings because sleeve bearings are designed more simply, have fewer parts, and are usually made of cheaper materials such as bronze or certain polymers. They are also cheaper to mass-produce, further driving down their cost per piece.

• Load Capacity: Due to ball bearings’ advanced design, they can endure greater radial and axial loads, making their higher price Justifiable in some high-engineering applications.
• Maintenance Requirements: While sleeve bearings have a longer service life, they are, for everything, more lubrication and maintenance work on top of what is required.
• Operating Speed: Sleeve bearings cannot withstand rapid rotation while ball bearings can function in high-speed environments with subsequent low levels of friction.
• Environmental Resistance: Depending on application, ball bearings with corrosion-resistant materials may offer improved longevity and hence cut replacement costs.

Evaluating these guarantee factors ensures that the most economical choice is selected against each specified operational factor.

How do maintenance costs compare between sleeve and ball bearings?

In my observation of the maintenance costs regarding sleeve and ball bearings, it appears that sleeve bearings have a higher maintenance cost since their lubrication systems are more complex. Re-lubrication or oil replacement, for example, increases expenses over the long term. In contrast, this is not the case for ball bearings, especially for the sealed or shielded ones, as most of these designs pay less attention to maintenance because they provide lubrication for a longer period.

• Lubrication Intervals: Sleeve bearings are serviced more frequently for lubrication when compared to some ball bearings equipped with self-lubrication.
• Load and Speed: The range of applications where sleeve bearings are used is limited since these have the propensity to wear out quickly if the speed and load are high.

These factors explain the differences in maintenance costs as well as highlight the issue of choosing the proper bearing type depending on how it is used.

When should you choose ball bearings over sleeve bearings?

What advantages do ball bearings offer for high-speed and high-load applications?

In my opinion, the use of ball bearings in high-speed and high-load conditions is highly beneficial owing to their frictional radial, and axial force handling capabilities. Ball bearings possess an optimal coefficient of friction which is low, around 0.001 – 0.005 in best-case scenarios, which allows them to rotate faster without much friction. Ball bearings are built with hardened steel or ceramic balls that roll in a raceway which allows for a reduction in area of contact and therefore rotation at much higher speeds than sleeve bearings and with less wear.

Moreover, ball bearings are built to exhibit precision while also managing greater weight while rotating at more than 10,000 rotations per minute depending on the material and lubrication. The dynamic load rating for the load capacity of ball bearings is significantly greater than deeply grove or angular contact ball bearings. These parameters also enable use within difficult industrial conditions such as in electric motors, turbines, and internal combustion automotive transmissions.

In addition, modern forms are constructed with materials that resist extreme temperatures, working alongside new lubrication systems that improve performance in difficult conditions and ensure prolonged functionality. These factors greatly influence the choice to use ball bearings over sleeve bearings.

Why are ball bearings often preferred in precision machinery?

Rotary machines are one place where ball bearing is preferred because minimizes friction and maintains accurate rotation of the machine’s components. They can handle both axial and radial loads. Finally, under extreme conditions, they operate exactly as expected.

• Rotational Speed: Their contact area and lubrication systems are specially designed to ensure ball bearings function efficiently at speeds exceeding 10,000 RPM.
• Load Capacity: Deep groove and angular contact configurations also function as deep radial bearings, which provide significant axial and radial force.
• Material Properties: Today’s advanced ball bearings can withstand extreme environments due to the incorporation of high-grade steels and ceramic hybrids.
• Durability: The wear-free lubrication systems and sealed bearings increase the service life of the ball bearings by reducing deterioration over time.

These factors justify their widespread usage in precision machinery where reliability, efficiency, and accuracy are vital.

Frequently Asked Questions (FAQs)

Q: What are the main types of bearings used in cooling fans?

A: The two main types of bearings used in cooling fans are sleeve bearings and ball bearings. Sleeve bearings, also known as plain bearings or journal bearings, consist of a cylindrical sleeve that surrounds the rotating shaft. Ball bearings, on the other hand, use small metal balls between the shaft and the bearing housing to reduce friction.

Q: How do sleeve bearings operate compared to ball bearings?

A: Sleeve bearings operate by creating a thin film of lubricant between the rotating shaft and the bearing housing. This design makes them quieter and typically less expensive than ball bearings. Ball bearings use small metal balls to reduce friction, which can make them more durable and suitable for high-speed applications.

Q: What are the advantages of sleeve-bearing fans?

A: Sleeve-bearing fans are generally quieter, have a lower initial cost, and are suitable for horizontal mounting. They also have fewer moving parts, which can make them more reliable in certain conditions. Sleeve bearings are typically made of materials that can absorb lubricant, which can help extend their lifespan.

Q: What are the advantages of ball-bearing fans?

A: Ball-bearing fans often have a longer lifespan, especially in vertical orientations. They can operate at higher speeds and temperatures and generally have lower friction compared to sleeve bearings. Ball bearings can carry both radial and axial loads, making them suitable for a wider range of applications.

Q: Are sleeve bearings or ball bearings better for high-speed applications?

A: Ball bearings are generally more suitable for high-speed applications. They have lower friction and can handle higher rotational speeds better than sleeve bearings. This makes ball-bearing fans a preferred choice for applications requiring high RPMs or continuous operation.

Q: Which type of bearing is more durable?

A: Ball bearings are typically more durable than sleeve bearings, especially in challenging environments or when used in vertical orientations. However, sleeve bearings can be very durable in horizontal applications and when properly lubricated. The durability of both types depends on factors such as operating conditions, maintenance, and quality of manufacturing.

Q: How do maintenance requirements differ between sleeve bearings vs ball bearings?

A: Sleeve bearings generally require less maintenance than ball bearings. They are self-lubricating and don’t typically need regular lubrication. Ball bearings, while more durable, may need periodic lubrication to maintain optimal performance. However, many modern ball-bearing fans come with sealed bearings that don’t require maintenance.

Q: What factors should I consider when choosing the right bearing type for my cooling fan?

A: When choosing between sleeve and ball bearings, consider factors such as noise level requirements, expected lifespan, operating speed, mounting orientation, environmental conditions, and budget. Sleeve bearings may be preferable for quiet operation and lower cost, while ball bearings might be better for high-speed, long-life, or vertically mounted applications.
