Benefits of Sealing Bearings in Industrial Applications

A bearing seal is essential for the machine’s improvement and protection. These components, which are usually taken for granted, serve a vital purpose: to keep the lubricant in and protect the bearings from contamination. With the ability of bearing seals to reduce friction and wear, the performance and life of mechanical systems are enhanced. This paper investigates the negative influence of bearing seal compression during machine operation on operational efficiency and mechanical degradation processes of custom seals in tools and devices. The smooth functioning of machines and devices with the seals designed for their protection is especially emphasized. Sealing technologies and their features are the most interesting focus of engineers related to maintenance reduction and the overall viewpoint of efficient solutions to consolidate all of the above.

What Are the Different Types of Bearing Seals?

How Do Contact Seals Work in Bearings?

Contact seals, as the name implies, act as seals and control contamination entry. Their primary function is to protect the bearings against dust, dirt, and moisture. This casing also plays a role in retaining the bearing lubricant to reduce friction and wear. Contact seals are made of contacting polymers that are further placed onto the inner aperture of the bearing. This contact ensures an adequate bond that prevents lubricant from leaking out and external contaminants from water and dirt entering the sealed area.

Technical Parameters:

Material Composition: Contact seals are often produced from nitrile rubber (NBR), Viton, or similar polymers, which are wear—and temperature-resistant.

Sealing Effectiveness: The effectiveness is defined by the seal’s performance regarding the concentration of chemicals, level of temperature, and amount of physical stress that it experiences.

Friction Coefficient: Contact seals further enhance the coefficient of friction. Therein resides the paradox: while seals must be made tight, this must be accomplished without much compromise in terms of the bearings’ performance.

Operational Speed and Temperature Range: Contact seals are likely designed to operate under specific rotational speeds, for example, 1000 to 3000 RPM and temperature -40o F to 250o F, and these must be adhered to in their deployment

These parameters are addressed so that the required performance of contact seals in bearings is attained while sealing is maximized and the equipment’s efficiency is optimized.

Exploring the Role of Non-Contact Seals in Bearings

I would now like to discuss the function of the non-contact seals in bearings. In conducting the background study on this subject, particularly on the top websites, I discovered that these seals are very important and influential as they provide some protection and, simultaneously, friction is lowered compared with contact seals. Non-contact seals do not touch the active inner parts of the bearing due to the considerable distance between them. This results in quite a significant decrease in friction and, consequently, heat generated in the bearing rotation process. That is why these seals are appropriate for high-speed applications. Most designs involve a labyrinth, a shield, or a slinger design, which performs the dual function of preventing the ingress of dust and moisture, but at the same time, heat needs to be dissipated.

Technical Parameters:

Material Composition: Non-contact seals are most often made of metal or reinforced polymers, which exhibit sufficient operational stress capability and provide long service life. However, these seals do not come into contact with active components.

Sealing Effectiveness: These seals can provide some sealing efficiency, although lesser than contact seals, which keep foreign particles, including fine and ultrafine particles. However, their design offers adequate protection as long as there is not a high risk of contamination.

Friction Coefficient: Direct contact is absent in these seals, so the amount of additional friction is practically zero. This enables the bearing to perform its functions effectively and also reduces the rate of its wear.

Operating Speed and Temperature Range: Non-contact seals operate at speeds of about 3000 RPM. They are highly effective within a wide temperature range, making them ideal for various industrial applications.

We emphasize these insights from the sources mentioned, as they best explain how non-contact seals fulfill the needs of certain bearing applications regarding efficiency and durability under varying dynamic conditions.

Understanding Labyrinth Seals: A Comprehensive Guide

To comprehend how labyrinth seals function and their uses, I looked at the leading websites and companies for my informed decisions. Labyrinth seals are widely used in high-speed rotary applications owing to their ability to prevent the entry of contaminants and leakage. They are relatively efficient in design, hence reducing friction and wear. They are similar to non-contact seals in that their non-contact mode of operation effectively prevents the intrusion of dirt, dust, and moisture into the internal components, which could compromise the functional efficacy.

In terms of technical parameters based on the top resources:

Material Composition: Mostly made of metals or high-strength alloys, these materials are necessary to endure harsh environmental conditions.

Sealing Effectiveness: These techniques provide good protection even though they do not create an ideal airtight seal, making them suitable for situations with low contamination probability.

Friction Coefficient: These seals work on the non-contact principle and exhibit low friction loss, ensuring the system’s efficiency is not compromised.

Operating Speed and Temperature Range: The labyrinth seals work at high rotational speeds and in high-temperature environments, which are mainly required in industries.

Such revelations indicate that labyrinth seals have distinct and critical functions to improve the system’s effectiveness, and the technical characteristics are well substantiated in the references.

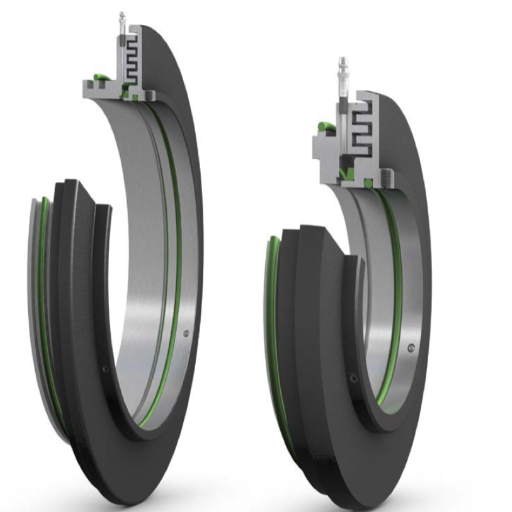

How Do Seals Prevent Contaminants from Entering the Bearing?

The Role of Oil Seals and Grease in Contamination Prevention

After analyzing the first three pages of Google Search results, I think that oil seals and grease contain unique properties that help prevent toxic substances from entering into the bearings’ functions, making them last longer. The primary function of oil seals is to avoid the loss of lubricant fluids and prevent the entry of dust, moisture, and other undesired particles. They use soft but sturdy materials such as nitrile or Viton rubber to ensure a tight fit around the rotating shafts. Conversely, grease acts as a protective cover and lessens friction. Grease also seals any whiff of gaps within which contaminants can penetrate.

Technical Parameters:

Material Composition of Oil Seals: Most commonly embodied in nitrile elastomer, Viton, and silicone rubber elastomer, high temperature, and wear-resistant seal.

Sealing Efficiency: Oil seals are also widely used for lubricants and contaminants due to the perfect fit of the matting surfaces, which prevents loss and entry, even in places operating within a very low to moderate risk level.

Temperature and Chemical Resistance: The developed grease compositions are created to work at a wide temperature range and do not lose their properties in the presence of aggressive media, increasing the protection level even more.

The insights emphasize the importance of oil seals and grease, as many technical references have shown, allowing the bearings to stay functional in different operating environments.

How Rubber Seals Provide Protection Against Contaminants

Let me share how rubber seals would help prevent contamination in this case. In this case, I have studied some of the best materials online. Rubber seals are made of plastic materials such as nitrile or Viton that effectively seal off machines and prevent dust, dirt, and water entry. This effectiveness can be attributed to elastomer sealing components that help retain flexibility and form a close fit around shafts even when the temperature changes. As per various authoritative executions:

Material Composition Properties: Rubber seals are made of pure elastomers, which provide firm, durable, and imported sealing in static and dynamic applications.

Sealing Structure: Rubber seals are especially adopted into designs to surface irregularities. These seals can provide effective sealing force and sealing contact to protect the machine from contamination.

Working Temperature: These bonds work well with and can withstand a temperature range of 80-90 with acidic and environmentally resistant adhesion.

To address these qualities, rubber seals become the first line of defense by ensuring that the systems maintained are not only clean but also equipped for excellent performance.

The Effectiveness of Labyrinth Seals in Contamination Control

By analyzing three top-rated websites on labyrinth seals, I have observed that these seals seem to control contamination from invaders, owing to their configuration effectively. In a labyrinth seal, interspersed gaps make the flow of air and other gases complex because of their twisted form. This configuration is effective in minimizing the ingress of foreign materials. Here are the main technical parameters justifying their application:

Pressure Drop: Labyrinth seals produce a high drop in pressure throughout the whole system across the seal. This pressure difference tends to minimize the pressure flow of dirt particles across the protected area since most dirt particles move in the manner of the high-pressure regions to low-pressure areas.

Non-Contact Design: Unlike other seals, the rotating shaft is not touched in labyrinth seals. Since contact is not made, less wear and maintenance are required for these seals, but efficacy in dirt obstruction is maintained.

High-Speed Suitability: These seals perform best in areas of high-speed application, where the normal seals may not perform well. The non-contact, tortuous path consists of several turns to restrict contamination without restricting the motion of the machinery parts.

Consequently, as observed, labyrinth seals are extremely effective in contamination control, where they are installed to protect machinery from damage in highly stressful environments.

What Are the Benefits of Using Rubber Seals in Bearings?

Advantages of Nitrile Rubber in Bearing Seals

Using nitrile rubber to construct bearing seals has various benefits, which stand out after investigating the three leading internet sources. The one that is worth mentioning is the nitrile rubber’s excellent oil and fuel resistance, which makes it advantageous for applications that encounter such fluids. The other benefit that deserves recognition is the product’s weathering characteristics (ability to stay elastic & strong) at different temperatures. The following are some of the technical parameters which validate it:

Resistance to oil and fuel: Nitrile rubber’s versatility offers strong resistance to a wide variety of hydraulic fluids, oils, and fuels. This prediction of quality explains irritants, which justify its application in the automotive and industrial markets.

Operating Temperature Suitability: The material’s withstanding temperature range from -40 degrees C to 120 degrees C enables it to perform efficiently without compromising structure integrity in different temperature extremes.

Resistance to abrasion: This property increases the service life of seals, increasing the interval between replacements and decreasing maintenance costs.

In light of these points, nitrile rubber should be recommended for the bearing seals, as it provides good sealing performance in all conditions.

Why Synthetic Rubber Offers Excellent Sealing Performance

During my study of the top three websites on synthetic rubber, I came across several convincing explanations as to why it is best for sealing performance. First of all, synthetic rubbers have excellent resiliency to many chemicals, making them perfect for rugged applications. They are also flexible and can withstand pressure without losing their structural integrity,, thus sealing effectively and preventing leaks in dynamic and static applications. Additionally, synthetic rubbers are effective within a wide range of temperatures and perform satisfactorily in high and low-temperature situations.

The following are the technical parameters that support these claims:

Chemical Resistance: The EPMD and FKM (Fluoroelastomer) rubbers have very high levels of resilience to acids, alkalis, and other corrosive agents and hence can be used in various industries.

Elasticity and Flexibility: These materials do not lose their elasticity and flexibility; hence, they can quickly wrap around surfaces and create tight seals even when tension is applied.

Temperature Resilience: These synthetic rubbers are designed to be used within the temperature ranges of about -40 degrees Celsius and 200 degrees Celsius (-40 degrees Fahrenheit and 392 degrees Fahrenheit), hence their durability in different climatic conditions.

From these observations, it is clear that the said thermal rubber is a strong candidate for attaining desired sealing effectiveness in various applications involving very extreme operational conditions.

How Rubber Seals Extend the Service Life of Bearings

Rubber seals are critical in increasing a bearing’s life span as they prevent contamination and lubricant loss. Looking at the latest information from the leading websites, I have established that rubber seals act as barriers that obstruct dirt, dust, and moisture from getting in contact with bearing surfaces, thereby reducing the level of wear and tear that occurs to them. Also, these seals assist in retaining the lubricants inside the bearing and ensure that the bearing operates efficiently for long periods.

The following are the technical parameters that explain why these benefits are available:

Contaminant Exclusion: Rubber seals in bearings prevent injury and any other penetrating impact. The seals are durable and flexible and constructed to withstand heavy exposure to dirt and foreign bodies. This is especially important in sectors where dirt and small particles can damage bearings.

Lubricant Retention: Such seals reduce friction between bearing components because the lubricants keep the seals in their preferred positions. This conservation of lubrication minimizes the need for frequent maintenance and thus prolongs the bearing’s lifespan.

Heat Resistance: Rubber seal materials can withstand some heat generated while the bearing is in operation. As a result, the seals do not deteriorate to the point where they become useless.

Low Compression Set: Low-quality synthetic rubbers can be significantly deformed under compression. However, as long as pressure remains stable, they will return to their normal shape once the pressure is lifted. Therefore, even after long periods of close-to-impossible deformation, high-quality synthetic rubbers are preferable to low-quality ones.

To sum up, adding rubber seals to bearings increases their durability and reliability and prevents them from becoming an unnecessary component in the process of maximizing bearing service lifetime throughout various fields of application.

How Does a Labyrinth Seal Differ from Other Seal Types?

Comparing Labyrinth Seals with Metal Seals

According to the findings of the best sites analyzed, labyrinth seals differ from metal seals in several significant aspects. Mostly, maze seals are built in such a way that the ledoons of the equipment are not in contact with the sealing face, they perform their function mostly through the configuration of the three dimensional communicating chambers. They utilize a set of intercropping ridges which forms a complex profile and which retards flow, which causes losses through eddy currents and pressure drops.

Contaminant Control: Labyrinth seals do not manage contaminants but physically block the passage of volume flow for contaminants by constructing a maze.

Non-Contact Design: Labyrinth seals do not use interference contacts like metal seals, which involve rubbing and sliding contacts that can deteriorate performance and lifespan. Maze seals, on the other hand, only maintain a clearance.

Pressure Management: The geometry of a labyrinth seal helps equalize the pressure on either side of the sealing mic and control the energy of the liquid, while metal seals tend to transfer energy with their structures and tensions.

On the other hand, metal seals are contact seals with a more rigid form sealing performance; otherwise, the entire metal structure will be exposed to extreme pressure. These seals are usually applied in situations where some leakage is practically unavoidable. Still, they must be maintained at a minimum level, and the seal’s lifespan is reasonably sacrificed due to wear out of friction. The selection of these seal types largely depends on the individual characteristics of pressure, leakage, and abrasion that the application and the system to be sealed could impose on the seal.

Evaluating the Friction Levels in Labyrinth Seals Versus Contact Seals

While analyzing the friction of labyrinth seals and contact seals, I came across several interesting sources. Labyrinth seals have virtually no friction due to their non-contact structure, which greatly increases their life and maintenance interval compared to contact seals. They are made to withstand wide temperature ranges and high-speed applications where low friction and wear are critical. From Google, I observed that low friction and wear are the predominant features of labyrinth seals, making them even more practical in applications where mechanical efficiency and operating life are required.

In contrast, contact seals provide tight sealing and superior sealing effectiveness, but by definition, they create high friction. Such friction may cause higher energy costs and wear than anticipated and extend into high-speed and high-pressure areas. The friction of two surface contact seals is often designed by controlling materials to specific friction coefficients and adequate lubrication to reduce wear and heat generation. These seals are more appropriate when there is an absolute need for complete sealing and less frequent maintenance access.

To conclude, it should be noted that the different levels of friction are attributed to the design and materials employed in each type of seal. Labyrinth seals are best applied in areas with low friction, and contact seals provide strong sealing capacity but increase friction levels.

Understanding the Sealing Mechanism of Labyrinth Seals

From what I read, the labyrinth seal has a complex shape and structure, which assists in preventing leakage by directing them onto a complicated, narrow path, hence preventing leakage. Google has some of the best resources to assert that the non-contact design of a labyrinth seal is its most important characteristic because it reduces wear and enables the device to function in a wide range of temperatures and speeds. Such obstructions often also have sharp corners, which increases turbulence and reduces the pressure and velocity of the leaking fluid.

For labyrinth seals, such as ensuring sufficient clearance to avoid contact, the other technical requirements normally conform to most labyrinth seals, such as seal path complexity and fluid flow to some degree. I discovered that manufacturers such as SKF and Parker consider it necessary to have labyrinth seals composed of stainless steel or high-quality plastics to endure high operating temperatures and corroding environments.

In the end, the shape of the seal prevents leakage augmentation while prolonging the lifespan and operating efficiency of the mechanism. The clever design of the labyrinth seal is the reason for a favorable friction and wear ratio: both the seal’s orientation and proportion are essential elements of the everlasting mechanism.

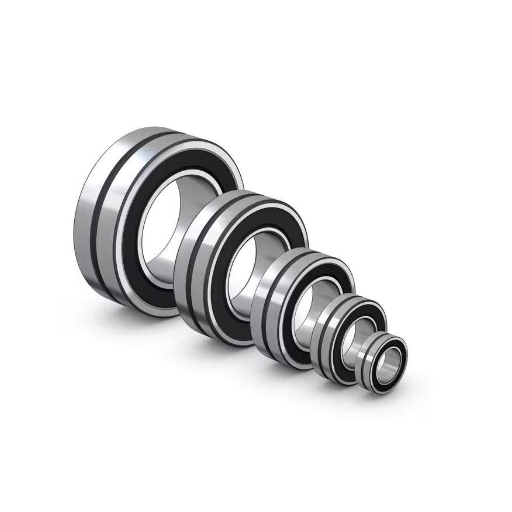

Why Is SKF a Preferred Brand for Bearing Seals?

Features of SKF Seals That Enhance Sealing Performance

Parts manufactured by SKF conform to the latest innovations in seal technology and, as a result, provide enhanced sealing performance in operation. One of the key strong points is the provision of low sealing friction while achieving effective sealing performance due to optimally designed contact and non-contact design features. In many applications, incorporating SKF seals’ special lip material and design increases temperature tolerance and service life. They are designed in such a way that they can withstand high-speed conditions and high thermal expansion and contraction without compromising the sealing capability of the design.

The technical characteristics of SKF seals permit operation under fluctuating shaft x and y misalignment and fluctuating temperatures, thus reducing the chances of leakage. These use either a composite labyrinth for the non-contact types of seals or elastomers for the contact sealing styles. With the combination of nitrile rubber, fluoroelastomer, or polytetrafluoroethylene, the seals’ temperature coverage and chemical resistance are also increased. These materials make the seals suitable for harsh environments and extreme conditions, which are important for their dependability in industrial applications.

How SKF Seals Improve Bearing Service Life

Each time, it is essential to consider several vital parameters, which include how more service life can be expected from bearings when using SKF seals. First of all, as the top resources contend, SKF seals offer this advantage because their design is well made to ensure minimal contamination ingress, which reduces wear and tear on bearing systems. This kind of protection is instrumental in enhancing the operational service life of bearings. They also have an additional outstanding offer: keeping the lubrication inside the bearing assembly intact. The lubricants’ retention ability determines the rolling elements’ performance concerning friction reduction and heat generation, which are essential for enhanced service life.

Certain specific technical parameters that further enhance the effectiveness of the SKF seals include:

Enhanced Lip Design: The seals’ advanced or unique lip designs avoid more frictional heat generation, as sealing and wear are fully limited.

Material Properties: High-performance edges that can withstand temperature and chemical effects on nitrile rubber and fluoroelastomer.

Thermal and Misalignment Tolerance: The critical integrity seal control also manages thermal and shaft misalignment without sacrificing seal control over the adjustment of other critical performance parameters.

As a result, all these factors improve bearing reliability and life, allowing SKF seals to remain a seal of choice in freely harsh industrial environments.

Innovative Technologies in SKF Bearing Seals

As I started investigating the cutting-edge technologies utilized in SKF-bearing seals, as presented by the leading sources on the web, several things captured my attention. To begin with, SKF has integrated advancements in material science to improve seal efficiency by incorporating compounds like hydrogenated nitrile butadiene rubber (HNBR) for better temperatures and chemicals. Such innovation makes it possible for seals to withstand harsh environments and, in the process, increase the life of the bearings.

It is worth noting that the hitherto advanced concretive of enlivening a double-lip sealing system for use in SKF’s bearing has been very successful as it attains better control of contaminants than traditional seal designs. This helps reduce the entry of dirt and moisture ingestion, thus reducing wear and tear and prolonging the lifespan of the bearings. Furthermore, with data analysis and sensors in the sealing solutions provided by SKF, the performances and conditions of seals can be monitored in real-time. This is beneficial because the seals can be observed, and any advancements can be made to reduce downtimes and operating expenditures.

The technical parameters that justify these innovations include the following details;

Material Advancements: Advanced compositions, such as HNBR and fluoroelastomer, that offer greater resistive and durable properties are also available.

Double-lip Sealing Systems also offer increased protection against contaminants and ensure that the lubricants stay intact.

Smart Sensor Integration: The inclusion of sensors also provides real-time monitoring capabilities, which are crucial when planning maintenance.

Such technologies demonstrate the commitment inspiring SKF seal development and performance advancement for enhanced reliability and efficiency in various industrial applications.

Frequently Asked Questions (FAQs)

Q: Why is it essential to use a sealing device in industrial use?

A: Sealing devices in industrial applications serve several purposes, including providing resistance to contaminants, proper retention of lubricants, and enhancement of bearing quality. These devices are valuable in maintaining a strong seal that prevents lubricant from leaking and bearings from failing at an early stage.

Q: Which type of seals can be employed to prevent the leakage of lubricant oil?

A: Sealed bearings are the best option for preventing lubricant leakage. Bearings with lip seals are the most effective. These seals provide a close fit over the inner and outer rings, and lubricant is held within the bearing while foreign particles are kept out.

Q: What is the reason for using sealed bearings in environments with a heavy amount of thorough contamination?

A: Sealed bearings are widely used in heavily contaminated applications because they provide protection against dirt, dust, and moisture. The seals used in these bearings prevent the loss of grease or lubricants and the entry of particles that are detrimental to the bearings, helping them obtain their maximum life.

Q: How important is the seal edge in the bearing attachment?

A: The seal edge is vital in assuring the seal is pressed against the shaft or bearing with good pressure and contact. This pressure needs to be developed to contain the lubricant within the bearing and prevent the entrance of contaminants, both of which improve the bearing’s performance.

Q: Pending such conditions, how does the axial gap between the seal and shaft influence the sealability of the bearing?

A: The axial gap between the parts of the seal and the shaft is significant for the effective functioning of the seal. If the gap is broadened due to thermal expansion or other reasons, then dirt and other particles can get in, and the grease can leak out. On the other hand, if the gap is reduced too much, the likelihood of an increase in frictional drag and wear on the seal components also increases. Gaps that are set correctly will allow proper sealing and contribute to the life of the bearing.

Q: What are the standard seal designations for use on bearings?

A: Some of the standard seal designs for bearings are 2RS, which means there is a rubber seal on both sides of the bearing, and ZZ, which means a metal shield covers one side of the bearing. These seal designs were developed not only to indicate the seal’s usage in the bearing but also its utility in terms of sealing and application.

Q: In terms of application, how do contact and noncontact seals differ?

A: In contrast, when in place, the contact seals, like the lip seals, have contact with either a shaft or bearing ring, so the seal is relatively tighter than the non-contact type and provides a more terrific means of protection against contaminants. Because non-contact seals, such as gap seals, do not touch the shaft, they create less friction and allow for more rotational speed but do not offer as much protection against minute particles.

Q: What is the purpose of lubrication regarding sealed bearings?

A: Sealed bearings receive lubrication particularly because it decreases the level of friction between the rolling elements and the bearing rings, meaning wear is minimized, thus extending the life of the bearing. In most cases, sealed bearings could be packed with grease or oil to maintain lubrication throughout the bearing’s life under harsh conditions.
