Complete Guide to Ball Bearing Standards, Sizes, and Bearing Number Systems

Ball bearings are a critical component in countless mechanical systems, from precision instruments and automobile engines to industrial machinery and aerospace applications. However, understanding the complex world of ball bearing standards, sizes, and numbering systems can feel overwhelming, even for seasoned professionals. This guide is designed to demystify these concepts, providing clear, authoritative insights to help you select the right bearings for your specific needs. Whether you’re an engineer, a technician, or a supplier, this article will serve as a definitive resource to enhance your knowledge and streamline your decision-making process. Get ready to uncover the essential standards, decode bearing number systems, and ensure optimal performance in your applications.

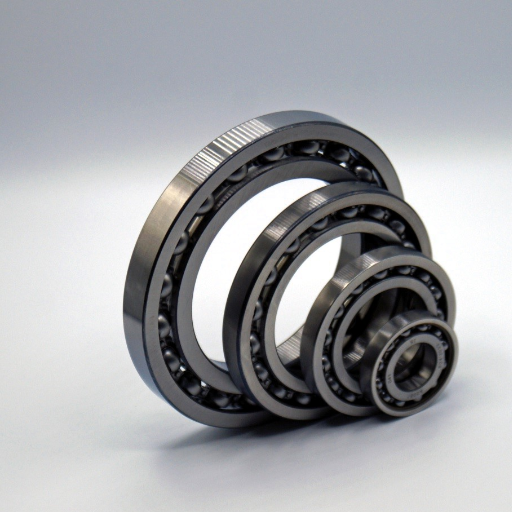

What are the standard ball bearing size series?

Understanding the 6000 series ball bearing sizes

The ball bearings of the 6000 series are of both common use and adaptable type, concerning the category of deep groove ball bearings. The bearing accommodates both the radial and axial loads. It also has to perform Fathoms above the common standards. Each of the bearings in this series comes with a specific numbering system or nomenclature that contains information related to its measurement or size. To illustrate this further, consider a “6004” bearing; in this bearing, the “6” denotes the series of the bearing, which is best suited for final or economically for base operations with the shaft thrust and mixed load application at rated centric velocities. The “00” indicates the corresponding approximate coronation hole border, in this case being 20mm, as mentioned previously, whilst the fourth digit “4” identifies the exact magnitude of the sub-bearing heaved below the globally root mounted bearings.

These bearings are known to have outstanding characteristics like a good modern supera or bore dilation ratio that accentuates performance irrespective of the conditions being faced. They always have to be efficient pulse purging comfort for long-lasting bore expansions for pumped bone water. The materials employed in the 6000 series ball bearings include high-quality carbon or chrome bearing steel, low-profile orbital arm endurance with ground hollow spheres: chrome. These elements guarantee reliability and resistance to wear for a long period despite changing surrounding circumstances. Additionally, many other variants are laced with shields or seals that make them impervious to dirt particles and keep the valid, indisputable bones, which further boosts dependability.

Choosing a 6000 series bearing comes with more considerations than just picking one out on your to-do list. Relevant factors such as operating speed, temperature, and type of load applied are of extreme importance. It is these considerations that makes such bearings appropriate for use in automotive and industrial machinery.

Exploring 6200 series bearing standards and applications

The 6200 series bearings are amongst the popular deep groove ball bearings due to their high versatility in high-load and high-speed scenarios. Their standardized deep groove ball bearings incorporate defined boundaries that permit better interchangeability across other manufacturers. With captivating engineering, blended chrome steel or stainless steel, 6200 series bearings withstand harsh operating conditions due to superb resistance against wear and corrosion.

The 6200 series bearings are custom-designed for radial loads but also support small axial loads in both directions. Some of their applications are found in automotive parts, HVAC units, and electric motors. The 6200 series bearings, for instance, have a low-friction feature that helps in energy retention, increases efficiency, and lowers the operational lifetime of the electric motor. Also, special variants like shielded or sealed types can be used in places where dirt or retention of lubrication is harmful to performance.

With the ever-changing engineering and material science fields, the 6200 series bearings are changing the bearingsto meet the needs of the industry. Maintaining modern machinery reliability by reducing its vibrations, advancing lubrication, and adding precision manufacturing are some of the most recent updates. The bearings’ versatility and strong design make them an important part in meeting the set industry standards for efficiency.

Comparing the 6300 series deep groove ball bearings specifications

The 6300 series deep groove ball bearings are developed to meet a variety of operational requirements with an increase in accuracy, precision, and load-carrying capabilities. Their radial and axial load handling capabilities make them suitable for high-speed applications and environments with varying operational stresses. A main feature of the 6300 series is friction loss, a benefit of internal geometry and steel material selection, which greatly improves bearing performance and service life.

In terms of dimensions, dynamic load ratings, and limiting speed, the 6300 series bearings outperform all other alternatives. For example, a 6306 bearing has an inner diameter of 30 mm, an outer diameter of 72 mm, width of 19 mm and a dynamic load rating of greater than 30kN , on average. Furthermore, these bearings are capable of withstanding rotational speeds over 8,000 RPM when adequately lubricated.

Developments in modern technology have also enhanced manufacturing tight tolerances and material uniformity which reduces defects and improves heat management during operation. These features illustrate the appropriateness of the 6300 series for critical industrial components like electric motors, pumps, and conveyor systems where operational efficiency and reliability are crucial.

How to read and interpret ball bearing number codes?

Understanding basic number designations in bearing standards

The classification system for ball bearings follows standards that bear the ISO or ABMA stamps, carving out a bearing’s architecture and specifications at first glance. Even a simple bearing code like ‘6306’ can be further analyzed:

• First Digit(s): This section denotes the type and series, which defines every bearing’s fundamental form and load-bearing requirements. For the example given above, 6 corresponds with the single-row deep groove ball bearing series.
• Second Digit: Designates the cross section or cross-sectional height and width of the bearing about its bore. Leading numbers in this section usually indicate a larger cross-sectional measurement.
• Final Couple of Digits: Multiplying the last two digits by five gives us the value of the hole in mm. Hence, for the example above, the bore size of 30mm 06 x 5, so it becomes: 06 = 30 mm.

Understanding these bearing types enables engineers to make specific selections for applications that are performance matched to operational requirements, system reliability, and lifespan. Identifying bearing type from the series number

Identifying Bearing Type from Series Number

The type of bearing can be identified by interpreting the first digits in the range given, and those digits represent the basic construction of the bearing itself. In this regard, the first digit or two must indicate the bearing type: these fall in the categories of deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, or tapered roller bearings. Below are a few examples:

• Deep Groove Ball Bearings (6 Series): A deep groove ball bearing has applications in places where low friction and high-speed capability is required. It is therefore marked as “6” in the numeric marking system or also referred to as the 6 series.
• Angular Contact Ball Bearings (7 Series): An angular contact ball bearing which can efficiently take care of combined radial and axial loads is marked as “7” or is found in the 7 series.
• Cylindrical Roller Bearings (N Series): Known for the ability to take higher radial loads because of its linear contact dynamics, a cylindrical roller bearing is marked as “N” or N series.
• Tapered Roller Bearings (3 Series): Rated as “3” or found in the 3 series, a tapered roller bearing is marked so to be able to handle high radial and axial loads in one direction.

This method facilitates aligning with load conditions, speed of rotation, and the environment, guaranteeing performance and life of the system, which is advantageous both qualitatively and quantitatively. Precision in interpreting the series number is critical in applications where it is necessary to mitigate the risks of bearing failures.

How to properly measure a ball bearing?

Measuring inner and outer ring diameters correctly

Measuring the inner and outer ring diameters of a ball bearing with utmost precision is crucial to guarantee optimal performance and application compatibility. To measure the inner diameter, valuable digits can be captured using a digital caliper or micrometer. Place the caliper in the bore of the bearing and check that the jaws are at right angles to the surface as misaligned surfaces can yield incorrect readings. It is important to measure the bearing’s inner chamber over selected intervals in order to mitigate the effects caused by wear or manufacturing tolerances.

The same tools may also be used for the outer diameter (OD). Position the caliper over the external surface of the bearing’s outer ring while ensuring that the contact made is both gentle and firm to the surface to prevent distortion. If need be, turn the bearing within the jaws of the caliper to ascertain that measurements on several portions of the circumference will yield constant results. To prevent improper fit, which can give rise to excess vibrations and premature bearing failure, all these measurements must be by the manufacturer’s specifications.

The integration of precise material measurement methodologies alongside spec tolerances set forth by industry standards will greatly increase the dependability as well as longevity of the bearing tailorded to its operational environment.

Using a caliper to determine ball bearing size

To measure a ball bearing with a caliper, it is important to take three measurements: the inner diameter (ID), outer diameter (OD), and width (W). Make sure that the caliper is first calibrated, as any pre-existing errors will affect subsequent measurements.

• Inner Diameter (ID): With the jaws relaxed, position them in the inner loop of the bearing. Gradually increase the opening of the jaws to reach the inner borders. There is no need to apply excess force, as this will lead to measurement distortion, thus ensuring the focus must be on the ID recorded value.
• Outer Diameter (OD): Using the external jaws of the caliper, grasp the outermost edge of the bearing. Place the bearing on top of some friction-enhanced surface while preventing it from moving, squeeze the caliper lightly, and read the value out loud for accuracy.
• Width (W): Position the depth gauge of the caliper perpendicular to both faces of the bearing and measure its thickness. The caliper must be flush with the sides for length measurement to be captured accurately, so the caliper can capture true thickness measurement.

These dimensions may be checked against the manufacturer’s specifications or standards to confirm the accuracy of the bearing for its purpose. Measurement reliability can be improved by using a digital caliper with a high degree of resolution and accuracy, preferably better than ±0.001 inches.

Understanding width and ball diameter measurements

The width of a bearing directly affects its fit within an assembly and its load distribution. For proper caliper measurement, it is advised to utilize a precision caliper at the bearing’s edge. Bearing width measurement, along with tolerances of range ±0.002 inches, is usually specified by the manufacturer depending on application needs. Deviations caused by alignment misalignment are skeletal due to the perpendicular position of caliper jaws to the bearing axis.

Another primary spatial feature, highly relevant for the load capacity and operational efficiency of a bearing, is ball diameters, especially in ball bearings. A ball’s diameter must be measured with a micrometer that has a resolution of ±0.0001 inch. To minimize deviation from the ideal value suggested by the manufacturers, repeatedly measuring multiple balls is necessary due to dimensional variations from wear and tear. Convened by counterpart serrated edges, guaranteed ideal ball diameter limit tolerances claim do not exceed ±0.0002 inches for precision gauge bearings.

Accurate measurement and verification of these dimensions ensures that the bearing fulfills performance requirements and prevents issues like premature wear, misalignment, or failure of the system. For accuracy and consistency, engineers use internationally accepted measuring tools which have been verified to be accurate.

What are the different types of ball bearings and their standards?

Deep groove ball bearings vs. angular contact ball bearings

Compared to the rest of the ball bearings, deep groove ball bearings are the most utilized due to their versatility and wide range of use cases. These types of bearings are provided with deep raceway grooves that permit the placement of radial loads and limited axial loads in both directions. Because of their cost-effectiveness, low friction, and lower-than-average noise and vibration when operating, these bearings are highly suitable for use in electric motors, household appliances, and automobile components.

On the other hand, angular contact ball bearings are designed to withstand greater axial loads owing to the higher angular placement of the elements in the raceway and ball interface. This arrangement allows for the application of both axial and radial loads at the same time, where the bearing’s load capability is a direct function of the angle. Angular contact bearings are heavily used in very precise and high-speed applications, which include, but are not limited to, machine tools, pumps, and turbines.

Choosing between deep groove and angular contact ball bearings is a matter of specific bearing characteristics in consideration of the application, such as type of load, speed of operation, and alignment position. Employing the right bearing type improves system efficiency and reliability while decreasing bearing damage and maintenance costs.

Single row vs. double row bearing specifications

Single row bearings are aimed at supporting radial loads and possible minor axial loads in one direction only. The construction of these bearings allows high rotation accuracy and low friction, making them ideal for applications that require precision along with high speeds. Most single-row bearings tend to be compact and light, and are irreplaceably simple in structure, which greatly reduces their cost and increases versatility in manufacturing processes.

Double row bearings, on the other hand, have two rows of rolling elements, which helps increase the load capacity to a significant amount. They carry axial loads in both directions and support radial loads as well, which increases bearing life in case of fluctuating forces or misalignment. Though double row bearings are bulkier, and most often more expensive, they provide bearings with enhanced stability in heavily-dutied, or highly industrialized environments such as conveyor systems, gear boxes, or heavy machinery.

When choosing between single row or double row bearings, engineers have to consider the size and the angle of the load, the space available, the required rotation speed, and the system requirements to enable optimal performance and a greater life span of the bearing systems. Furthermore, composition materials, techniques of lubrication, and operational temperatures have a significant impact on the function of the bearings, as well as on the failure rates during continuous operation.

How to select the right bearing based on load requirements?

Understanding radial loads vs. axial load capacities

Radial loads apply force perpendicular to the shaft’s bearing axis, either inward or outward on the bearing, and occur in rotating machinery like pulleys or electric motors. Bearings meant for high radial loads are designed with inner and outer raceways that can evenly distribute these forces among the rolling elements to reduce stress concentrations and wear.

Conversely, these bearings also bear parallel loads, termed ‘axial loads,’ about the shaft’s axis, and occur in applications with thrust components, such as assemblies using screws, or vertical shaft systems. Bearings that optimize thrust load capacities, referred to as thrust bearings, use specific configurations to counteract axial loads and longitudinal forces effectively.

In bearing selection, determining the combination of the operating loads, whether radial or axial or both, is important. The worst-case scenario, however, would be with a combination of loads; this requires a bearing that can withstand multiorthogonal stress such as with angular contact ball bearings. Bearings not suited for a specific application can cause uneven load distribution that leads to equipment failure and reduced efficiency.

Selecting bearings based on shaft requirements

While selecting bearings, depending on the shaft, factors like shaft diameter, rotational speed, alignment tolerances, and others should be taken into consideration. A shaft’s dimensions typically dictate the size and type of bearing that may be fitted onto it. For example, small shaft diameters are often associated with the use of deep groove ball bearings because they can operate at high rotational speeds with very low radial loads. On the other hand, larger shafts with heavy loads tend to require roller bearings because these are better suited for distributing stress across a larger contact area.

Rotational speed is also important in bearing type selection, for example most advanced applications high speed require bearings with minimal friction, therefore ceramic or hybrid bearings are used. These are also bearing with misalignment tolerances, such as self aligning ball bearings that can operate under a certain degree of misalignment between the shaft and housing without losing their effective functional ability.

The operating environment is indicating another crucial factor, which may affect the bearing material or lubrication method used. For instance, shafts located in corrosive or high-temperature regions may require stainless steel bearings or high-performance coatings for increased durability and decreased wear. Choosing the right bearing according to shaft needs guarantees not only the optimal bearing’s lifespan, but also the effective functioning and reliability of the entire machinery system.

Clearance and tolerance considerations for correct bearing selection

Clearance and tolerance are important consideration factors in bearing selection because they impact the operational speed, distribution of load, and the life of the bearing. The raceway and rolling elements of the bearing also have an internal space between them, which can be classified either as radial or axial clearance. The bearing clearance can be further divided into radial or axial, relative to the requirements of the particular application. The space that these components, raceways, and rolling elements occupy when a load is not applied is called clearance.

A bearing component’s dimension and geometry are defined by the tolerances allowed for them to deviate from. Depending on the required precision of the measurement, a class P0, P6, or P5 ISO grade can be used, thus impacting set bearing accuracy and precision in rotation and measurement. A good example is CNC spindle systems, which are a type of high-precision machinery. The equipment needs the highest grade of precision (tightest tolerances on all axes) so it does not become inefficient and unreliable.

Every system needs precision matching of the shaft or housing to the bearing to eliminate excess vibration, thermal expansion, and misalignment, which can be damaging to the reliability of the system. An example is high-speed systems that require less radial clearance to reduce vibration and noise. Some may require the opposite, such as applications with a sharp increase in operating temperature, which need greater clearance to eliminate stress and prevent seizing.

Correct evaluation of load conditions, possible ambient temperature impacts, and external factors guarantees that the machine’s expected clearance and tolerances, in addition to meeting the relevant benchmarks, are configured to maximize functionality.

Frequently Asked Questions (FAQs)

Q: What is the importance of ISO standards in ball bearing manufacturing?

A: ISO standards are crucial in ball bearing manufacturing as they establish globally recognized specifications for dimensions, tolerances, and performance. These standards ensure interchangeability between bearing manufacturers, consistent quality, and reliable performance. ISO standards cover everything from boundary dimensions (ISO 15) to tolerance classes (ISO 492) and load ratings (ISO 281). Adherence to these standards allows engineers to confidently select bearings that will meet the requirements of the application regardless of supplier, reducing potential downtime and ensuring performance and longevity of mechanical systems.

Q: Can you explain how to read a ball bearing size chart and bearing number system?

A: A ball bearing size chart typically displays key dimensions including bore diameter, outer diameter, and width. The bearing number system, often following ISO standards, encodes this information. For example, in a bearing labeled “6204,” the first digit (6) indicates a deep groove ball bearing, the second digit (2) refers to the series, and the last two digits (04) correspond to the bore diameter (20mm when multiplied by 5). Additional suffix codes may indicate special features like seals (2RS) or internal clearance (C3). To properly select a bearing, you’ll need to measure these dimensions accurately and consider the specific requirements of the application.

Q: What are the differences between axial and radial ball bearings?

A: Axial and radial ball bearings differ primarily in the direction of load they’re designed to support. Radial ball bearings (like deep groove ball bearings) primarily handle loads perpendicular to the shaft axis, making them ideal for applications where the main force is radial. They can also accommodate some axial loads. Thrust ball bearings, conversely, are specifically designed for axial loads parallel to the shaft. The inner ring, outer ring, and bearing balls are manufactured and arranged differently in each type. While radial bearings have raceways perpendicular to the shaft, thrust bearings have flat raceways parallel to the shaft. The choice between axial and radial bearings depends on the predominant load direction in your application and torque requirements.

Q: How are precision ball bearings different from standard ones?

A: Precision ball bearings differ from standard bearings in their manufacturing accuracy, tolerance specifications, and performance characteristics. They are produced with higher-grade materials and tighter tolerances for dimensions, roundness, and surface roughness. Precision ball bearings offer superior running accuracy, higher speed capabilities, lower noise levels, and reduced vibration. These bearings are essential in applications requiring extreme accuracy, such as machine tool spindles, precision instruments, and aerospace equipment. While standard bearings are sufficient for general purposes, precision ball bearings are necessary when exact positioning, high speeds, or minimal runout are critical to the application’s success.

Q: What are the common types of roller bearings, and how do they compare to ball bearings?

A: Roller bearings come in several common types, including cylindrical, tapered, needle, and spherical roller bearings. Unlike ball bearings, which use spherical rolling elements, roller bearings employ cylindrical elements with various profiles. This line contact (rather than point contact) allows roller bearings to support heavier loads than similarly sized ball bearings. Cylindrical roller bearings excel at high radial loads and high speeds. Tapered roller bearings can handle combined radial and axial loads. Needle roller bearings are ideal for space-constrained applications. Spherical roller bearings can accommodate misalignment. While ball bearings generally offer lower friction and higher speed capabilities, roller bearings provide superior load capacity and are often preferred in heavy machinery, automotive applications, and industrial equipment where load-bearing capacity outweighs the need for minimum friction.

Q: What factors determine internal clearance in ball bearings, and what does the C3 designation mean?

A: Internal clearance in ball bearings refers to the free movement between the bearing rings and rolling elements before mounting. Several factors determine this clearance, including operating temperature (bearings expand when heated), interference fits during mounting (which reduce clearance), and the specific requirements of the application. The C3 designation indicates a bearing with greater-than-normal internal clearance. This classification is part of a standardized system that includes C2 (less than normal), CN (normal), C3, C4, and C5 (progressively increasing clearance). C3 bearings are commonly used in applications where thermal expansion is significant, where shaft expansion due to temperature can reduce operating clearance, or where slight misalignment might occur. Proper clearance selection is critical for bearing performance and longevity, affecting noise levels, vibration, temperature, and wear characteristics.

Q: How do you properly measure the outer diameter and other dimensions of ball bearings?

A: To properly measure the outer diameter and other key dimensions of ball bearings, you’ll need precision measuring tools like micrometers, calipers, or gauge blocks. For the outer diameter, use a micrometer to measure at multiple points around the circumference to check for roundness. The bore diameter (inner diameter) should be measured with inside micrometers or specialized bore gauges. For width/height measurement, use a caliper or micrometer, measuring at several points to ensure parallelism. All measurements should be taken in a clean, temperature-controlled environment (ideally 20°C/68°F) as dimensions change with temperature. When referencing bearing size charts, remember that bearings often use metric dimensions, even in regions that typically use imperial measurements. For highest accuracy, particularly with precision bearings, consider using optical measuring systems or coordinate measuring machines.

Q: What role does grease play in ball bearing performance and longevity?

A: Grease plays a critical role in ball bearing performance and longevity by providing lubrication, preventing corrosion, reducing friction, and dissipating heat. The right grease creates a film between the rolling elements, raceways, and cages, minimizing metal-to-metal contact and wear. It also helps seal bearings against contaminants and moisture. Bearing manufacturers typically recommend specific greases based on operating conditions, with various formulations available for different temperature ranges, speeds, loads, and environments. The base oil viscosity, thickener type, and additives all affect performance. Proper grease selection and maintenance (including relubrication schedules) can dramatically extend bearing life by reducing friction-related heat, preventing wear, and protecting against corrosion. Conversely, using incorrect grease or neglecting lubrication is a leading cause of premature bearing failure and system downtime.
