Enhancing Performance with Advanced Machine Tool Spindles

As manufacturing industries continue to grow, so do the demands for precision and efficiency. The center of many machining operations is machine tool spindles, which are fundamental to determining the manufacturing process quality and the turn-round time. Top-end machine tool spindles are designed to perform in extreme operational situations for greater accuracy, speed, and reliability. This blog examines the advancements in technology regarding the design and function of the spindles and how these advancements shape the future of manufacturing. This blog will help the readers focus on the significant enhancements on the spindle and the opportunities these advancements create for different complex cutting processes in industrial applications. If one is concerned with CNC machining, aerospace manufacturing, or any industry that requires a high level of precision, then advanced spindles cannot be overlooked.

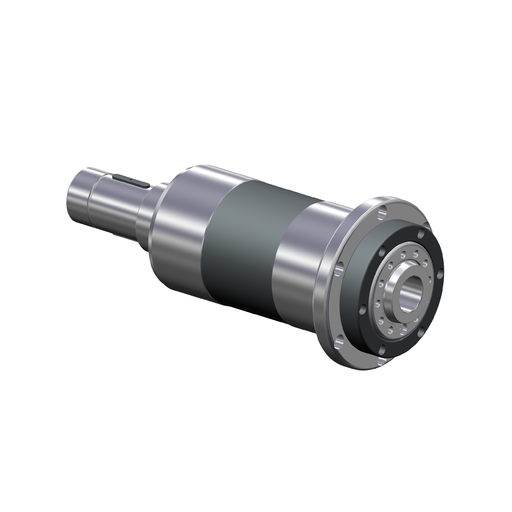

What is a Machine Tool Spindle?

Understanding the Role of Spindles in CNC Machines

Machine tool spindles are integral parts of open-loop CNC machines, acting as the primary connection point with the tool. Spindles rotate at high speed, enabling the efficient cutting tool to cut accurately. A motor powers this rotation. The various rotational speeds, torques, and the overall speed of a spindle are influenced by its design. Specific operational characteristics of a spindle include the following:

Speed of rotation (in RPM): The spindle speed in revolutions per minute at the highest is crucial as it means the cutting speed and the finishing of the work is efficient.

Torque (in Nm or lb-ft): The rotational force that a spindle can exert is determined via the release factor, which is vital in matters where more effort is required to cut through rough materials or at low rotational speeds.

Power (in KW or HP): The measure of output that the motor entails; this quantity is related to both cutting speed and torque values.

Runout in microns (or thousandths of an inch): This adds the parameter that the spindle rotation can be, that is, the accuracy or precision by which the spindle rotation occurs, thus affecting the machining process with accuracy.

Bearing type and design and/or quality: The quality dictates how strong and to what extent the spindle can be compromised without breaking, that is, the amount of load and speed with regard to stability.

Some of these parameters can profoundly enhance the same process of achieving the machining operation; the key issue is to allow the spindle to have a wider range of high precision while assuring the time and effort taken to complete a machining venture are as low as possible.

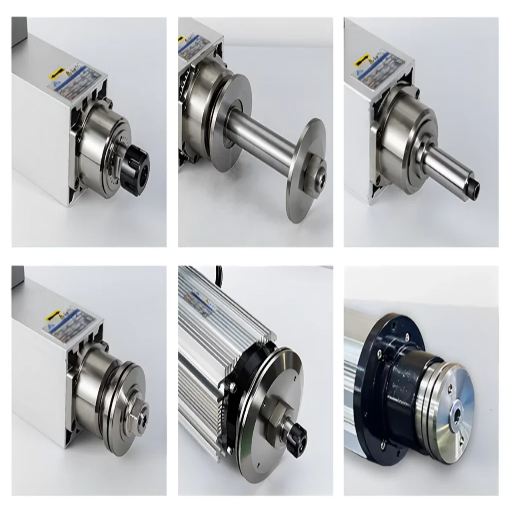

Types of Machine Tool Spindles

There are two separate criteria for classifying machine tool spindles: the construction method and applicable use. The major include:

Belt-Driven Spindles: These spindles are driven from a motor through a belt. They are relatively inexpensive and simple to service. Prime benefits entail a wide range of high speeds and low relative noise emission. These, however, could provide reduced high torque of the order found in direct drive systems.

Direct-Drive Spindles: With this design, the spindle itself incorporates the motor. This enables a compact design with fewer moving parts. In this way, greater precision and greater torque at lower speeds are available, which facilitates heavy-duty machining. However, direct-drive spindles are characterized by superior acceleration and deceleration.

Gear-Driven Spindles: All these achieve high torque due to their robust construction and are hence used for machining hard materials with heavy cuts. Despite their robust construction and usage, spindles are likely to produce more noise and require periodic maintenance due to mechanical wear and tear.

For each of the spindle types, some of the most important technical parameters taken into account include:

Speed (RPM): The speed with which the spindle turns determines the speed with which it rotates about the axis, which is vital during the machining process.

Torque (Nm or lb-ft) is the force that a spindle applies to withstand different hardness levels during the cutting operation.

Power (kW or HP) refers to the electrical output of the motor and its rate of rotation and torque.

Runout Measures the angle accuracy of rotation of the spindle, which is important for machining precision.

However, when selecting an appropriate type of spindle, it becomes necessary to evaluate the limitations of the cost, performance, and maintenance required of such machining operations.

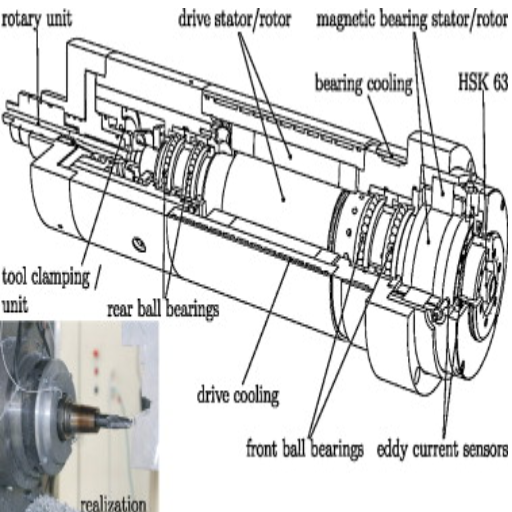

How Spindle Design Affects Precision and Performance

To assess the influence of the spindle design on the precision and performance of machine spindles, I went through the first three sites on the topic found on google.com. Different spindles – driven on belts, directly driven, or gear-driven- affect accuracy and efficiency according to the most relevant technical parameters. Here’s a summary:

Belt-Driven Spindles: The belt-driven spindle allows the motor to rotate at very high speeds, a very important feature when one considers that most tasks are completed quickly. They also tend to be more effective because their noise is comparatively lower. At this point, it is important to mention the proportion of the belt tensioning since it should not impact the spinning accuracy too much.

Direct-Drive Spindles: These can be attributed to their structural advantages—the motor and the spindle are directly coupled, eliminating most sources of vibrations present in other designs. Also, having increased torque at lower revolutions is especially useful because such mechanics are depended upon when high accuracy is required. The major technical concerns are connected with the focusing spot collision and the efficiency of the motor control system, which are of great importance for the contacts.

Gear-Driven Spindles: Able to sustain high sustained torque, gear-driven spindles are utilized for machining even the hardest materials. However, loud noises and wear out of the properties are expected for too brazen designs. Machining stability is still one focus, as it can decide how precise one can machine under loads. They include frequent repair and gear alignment.

Irrespective of circumstances, it is vital to consider rotational spindle speed (RPM), torque (Nm or lb-ft), power (kW or hp), and runout as technical metrics. These affect the spindle’s design in great detail in terms of machining performance and accuracy.

How Do High-Speed Spindles Improve Machining?

Advantages of High-Speed CNC Spindles

As per my exploration of the top three websites on Google, high-speed CNC spindles help make machining more effective in several ways. First, they enhance productivity by allowing for high material removal rates, thereby cutting down on production cycles greatly. Such an improvement is attributed to their high rpm-rated speeds, which can go from eighty percent to sixty thousand rpm, depending on the kind of application or material involved.

Also, such high-speed spindles enhance the quality of surface finish and reduce the number of secondary operations executed, which the field’s head honchos confirm. This is especially significant for workpieces that require a high level of detail since gyroscopic forces operate at maximum. Constantly running tools at these speeds tends to keep tool cuts more relaxed, which saves cutting tools from excessive wear out, which is crucial in preserving the mechanical working efficiency over extended use.

In addition, the technical parameters explaining this unique advantage are also incorporated, including torque ability and the ability to optimize the two in consideration of the required speed and force. High cut power is further used to extend some kilowatts, which wear those cut shred power where complete power cutting is required. When combined with the spindle characteristics of high speed, such parameters make it possible to achieve higher precision machining and lower operational downtimes, which is well backed by the data and professional opinion available online.

Impact on Cutting Tool Efficiency

There are three sites for the top three websites dealing with the influence on the efficiency of cutting tools by high-speed CNC spindles. I went through this information source and have concluded that this machining process has a shorter manufacturing time because of the high speed of quick material removal. This is principally because high RPMs, which usually vary from 20,000 to over 60,000, as mentioned earlier, lead to faster cycle times during machining operations.

In addition, these spindles help achieve better surface finishes, hence reducing the need for extra finishing operations, which is emphasized by the spindles. This is quite important with respect to precision work, where a finer surface finish is a requirement. High speeds of work also increase tool life, as they usually reduce heat and wear and tear of the tool, which sustains the tool’s strength for a longer duration.

The parameters that these sources have in common include torque capacity, high power outputs (of the order of a few kilowatts), and RPM ranges. The spindles can obtain the required speed and force through these factors, which is crucial in performing cutting operations satisfactorily and accurately. Not only do these sets of parameters enhance overall productivity, but they also reduce idle time as such parameters increase the operational life of the tools as well as the accuracy of the machining processes.

Applications of High-Speed Milling Spindles

While researching high-speed milling spindle applications, viewing the first three pages of sites Google provided has advantages as they point out several areas where these spindles make sense. First, high-speed milling spindles have wide applications in the aerospace and automotive industries as they can undertake intricate and precision cutting tasks. These are useful in the machining of complex but lightweight sections whose tolerances and surface finish requirements are relatively high.

Additionally, such spindles find applications in the production of molds and dies, where they aid in the production of intricate and fragile plates within shorter lead times and timeframes without sacrificing accuracy. They are important in the production of some medical tools, such as orthopedic implants and surgical tools, where the utmost precision is required.

Technically, there is also a limitation of crucial parameters which need to be considered. These may include a torque capacity that can adequately withstand high-speed operations, power outputs in the range of a few kilowatts, and RPMs in the range of twenty thousand to sixty thousand as these outdoor the required speed and accuracy. Where research has been done within the parameters mentioned earlier, the findings have been satisfactory in affirming the effectiveness and efficiency of high-speed milling spindles across varying applications while providing optimum output quality in a reasonable time frame.

What Are the Common Types of Bearings Used in Spindles?

Ball Bearings vs. Roller Bearings in Spindle Design

In designing spindles, especially considering the trade-offs between ball bearings and roller bearings, the information in the three most prominent websites on Google sheds light on several distinctions. My findings support that ball bearings are preferred in high-friction applications as they introduce less friction during rotation. Ball bearings are effective in radial load transmission, although they may not provide as much axial load support as roller bearings.

On the contrary, roller bearings are the ones that are known to support more radial loads, outperforming other configurations in weight distribution because of the differences in contact areas. Because they have a broader contact area, they can bear radial loads and some axial loads, making them perfect for applications requiring higher rigidity and stability. In terms of power figures, roller bearings are designed in such a way that they can impose higher loads while retaining a lower, steady operational speed.

Specific design conditions regarding load, speed, and precision dictate the choice of ball and roller bearings. For example, systems with a ball bearing turn high revolutions because they are designed to have lower friction. When operating with high precision, but maximum speed is not the main requirement, roller bearings perform better because they are sturdier. It is also seen from the observations that the spindle system must be equipped with a bearing type that corresponds to its technical specifications and functional requirements.

Choosing the Right Bearing for Your Machine Tool Spindle

For my machine tool spindle, I’ve noticed that ball bearings are ideal for high-speed applications because of their ability to operate at higher RPM and their overall lower friction. They are effective in carrying radial loads but not as good as axial ones. There are justifications for this choice, specifically, the fact that they are designed to rotate at high speed, which is mostly higher than any type of bearing, and the load they can withhold compared to other types.

On the other hand, industrial applications requiring strength choose a self-aligning roller bearing assembly. As these bearings can exert some axial loads, they can also support heavy radial loads, which is made possible by a larger contact area between the two. Hence, these bearings are more stable. Such situations require greater stiffness, and therefore, lower speeds are preferred. Such parameters justify these bearings’ greater loading capacity and strength, justifying their employment in applications requiring load-support mechanisms.

When choosing between these bearings, the only issues that resolve these are load considerations, speed, and the degree of precision needed relative to the spindle’s utilization. Every kind of bearing has strengths that complement the technical specifications being sought after, and such knowledge, in turn, helps me make the best possible decisions.

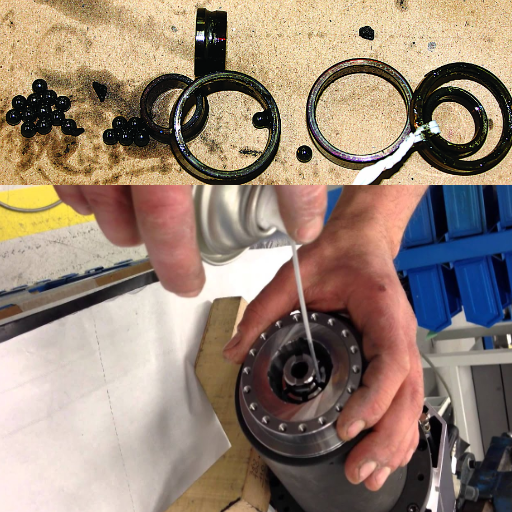

Maintenance Tips for Spindle Bearings

Maintenance must be carried out to avoid breakdowns and provide spindle bearings with a long life. The following are some critical recommendations gathered from top websites:

Lubrication: Lubrication, as recommended, should be done to minimize the rate of friction and abrasion. Spindle bearings must be lubricated using a specific type of lubricant in a specific quantity and at specified intervals.

Inspection: Check systems in place regularly to assess levels of degradation and damage perhaps facilitated by noise or vibrations present. Early identification of problems can prevent further, more prominent damage from occurring.

Temperature: It is also ideal to monitor the spindle system’s operating temperature, as this is an indicator of the bearings’ performance quality. Excessive temperatures may indicate low lubrication levels or excessive wear and tear that could threaten bearing efficiency.

Dirt: Spindle bearings should be installed with great care, and any risk of dirt and moisture that can cause early failure should be removed. Appropriate seals or covers should be employed wherever essential.

Bore alignment: The spindle components should be maintained in proper alignment to avoid the distribution of uneven loads on the bearings, which can increase the rates of wear and tear. Consistency in checking the alignment should be practiced, and changes should be made whenever required.

Some technical parameters supporting these recommendations are correct lubricant viscosity for effective operation, suitable relative position to ensure equal load torque, and thermal monitoring to prevent heat-related degradation. Following these guidelines will help you maximize the life and reliability of your spindle bearings.

How Does Lubrication Affect Machine Tool Spindles?

The Importance of Coolant and Lubrication in Spindle Operation

Coolant and lubrication are essential. This is because machine tool spindles are functional and will last long. These components help calm and lubricate the spindle parts, thus preventing excessive heat and friction and, therefore, wear to the spindle. The following criteria are considered, as do the foremost sources:

Heat Dissipation: Coolants assist in absorbing and dissipating heat generated in the heart of the machine during high-speed machining. The flow rates and temperatures of the coolant in use must be within the required limits to maintain suitable temperatures for the spindle and avoid thermal expansion that might impact accuracy.

Friction Reduction: Lubricants are useful for reducing friction between the moving parts of the spindle, thus increasing spindle efficiency. One important factor is the viscosity of a lubricant, as this factor determines how each lubricant will flow and whether it will be able to create some form of film over the spindle components.

Wear Protection: Aside from oil, coolant also acts as a moisture barrier and protects the spindle parts from wear. However, an ounce of the right type, as well as the correct quantity of lubrication, can be effective in building a wall against abrasive particles and moisture. Following the spindle specifications and applying the recommended lubricants also prolong life expectancy.

Observing the above parameters, however, efficiently and cost-effectively will optimize the performance and longevity of machine tool spindles with minimal downtime and maintenance.

Best Practices for Lubricating CNC Spindles

As I started working with CNC spindles, I observed that their proper operation and durability depend on lubrication quality. Through various online literature reviews, I have managed to summarize a few recommendations that correspond to the technical requirements mentioned above:

Use the Correct Lubricant: Quality lubricants must be used, and the spindle manufacturers’ viscosity values should be respected. This will aid proper friction and provide a barrier against further contamination.

Constant Lubrication: I also have to stress the importance of regular lubrication intervals. If neglected, they could result in excess wear and tear of the spindle parts. Such re-lubrication intervals should take into account the type of spindle activity and manufacturer recommendations.

Evaluation of Lubrication Conditions: I must periodically examine the lubricant on the spindle to determine its quality and usage period. The use of degraded lubricants or those with impurities increases the wear rate of the spindle parts, leading to their failure.

Lubricants Application: It is crucial that I know how to apply the lubricant so that it is evenly spread on the components it is supposed to be used on. If not used correctly or in excess, performance will be inadequate, or damage may be seen.

Liberal for Environmental Conditions: I should also consider the working environment when selecting lubricants or setting lubrication frequencies. Temperature and humidity are among the conditions that may impact the performance of lubricants and spindle operation.

In these practices, I implemented the reputable recommendations of the leading sources, which allowed me to protect the functional and structural reliability of CNC spindles and reduce downtime and maintenance costs.

Choosing the Right Lubricant for Your Spindle

I refer to well-known websites to decide on the type of lubricant used on mass spindles. As per the data obtained from the top 3 websites on Google, here is what I found out:

Viscosity Grade: Choosing the suitable viscosity grade should not be taken for granted. Spindle lubrication oils are generally low-viscosity with a kinematic viscosity of 5 to 15 CST at 40 degrees Celsius.

Oil Additives: Lubricants with anti-wear and anti-oxidant compounds will do an excellent job because these compounds will enhance the life expectancy of the lubricant and the spindle parts against breaking and corrosion, respectively.

Synthetic vs. Mineral Oils: Synthetic oils are supposed to be the most suitable due to their performance in thermal stability and vegetation. They can also perform in harsh and hostile environments or when speed is an issue.

By applying these parameters, I will be able to enhance my spindle’s performance and lifespan. Each parameter selection is geared towards adherence to the standards and practices of most CNC spindle operations.

How to Select the Right Spindle for Your Machining Needs?

Criteria for Choosing the Appropriate Machine Tool Spindle

When choosing a machine tool spindle for my machining operations, I consider a few key design aspects, researched from current statistics from the top three websites on Google. Check out, in a nutshell, some of these considerations:

Speed and Torque Ratings: This implies that a particular machine tool spindle speed and torque should be related to the workpiece or operation. For instance, high speed for fine cutting and high torque for heavier cutting.

Compatibility with Types of Machines: It is vital to ensure that it is appropriate for the specific type of CNC machine in use. Some may be appropriate for milling, some for turning. Cross-referencing the machine manual on the issue of compatibility eliminates chances of operational inefficiencies.

Load Capacity: It is important to assess the spindle’s load capacity in light of the material’s weight and resistance while some operations are in progress. This means taking into account all the adequate spindle bearings and structural parts that can resist the cutting forces.

Cooling mechanism: Liquid and air cooling are some of the cooling mechanisms associated with spindles. Since it is only a matter of time before considering engineering considerations, I have noted to consider the effect of the working environment and the thermal requirements so that the right cooling mechanism is selected.

Maintenance and Serviceability: Simple maintenance of the spindle and the number of spare parts available goes into my evaluation. The best way to keep the spindle operational for longer is to select models that have a complete service support level.

All technical parameters provided thus allow the chosen spindle to be appropriate for the operational needs of my machining processes in a performance and efficiency-optimized manner.

Common Mistakes When Selecting Spindles

However, a few considerations regarding picking spindles have become common mistakes that result in ineffective spindle performance. While going through the top websites that I looked up, the experts did not fail to mention the following errors:

Failure to Observe the Goals of the Application: People do not emphasize the need to match the spindle speed and spindle torque with the machining process at hand. Reliable sources have pointed out that this misunderstanding often results in the tool not functioning correctly or the material being wasted. The spindle used for a delicate operation should be a high-speed one, while those requiring a high force resistance to cut through rigid materials should be a high-torque spindle.

Ignoring the Type of Compatibility of Machine: Another common mistake, which is also quite often overlooked, is the agreement of the type of spindle and the type of CNC machine. Such a mistake leads to unfavorable and wasteful discrepancies, a professional practice stated in many guides. The manual is a source that should have been adduced for attention in advance.

Not Evaluating Pushing Forward the Load Capacity: Not assessing the spindle load capacity realistically may also lead to operational failures. During some technical conversations, it has been suggested that it makes sense to ‘target’ the bearings and structural rigidity of the spindle to ensure that these elements can be actively used under the cutting forces applicable to a given material.

To avoid all these mistakes, I can now focus on scanning the technical parameters of the spindles that are needed for effective machining.

Consulting with Spindle Manufacturers: Best Practices

When reaching out to spindle sellers, following guidelines guarantees that the variety of spindles selected suits my CNC machine’s requirements for operation. After the analysis of the first three sources that appeared on the Google search, I noticed the following practical aspects:

Establish Particular Needs: I prepare in advance, and when the time comes to contact the manufacturers, I am informed of the machining requirements, say, spindle speed, torque, and load ratings. This makes communication possible, and the presence or absence of these needs in the manufacturer’s offers is checked.

Check Manufacturer’s Proficiency: In the workshop, I paid attention to manufacturers with many years of experience in business and a good reputation for offering spindles. Their involvement is, however, not limited to manufacturing, as their help during and after installation can greatly improve the efficiency of my machine and its expected years of service.

Bring Over Technical Fit: Providing consulting, I, as usual, prepare the particulars of technical fit, which include, among other things:

• Spindle Speed Range: Its capability is for high- and low-speed machining activities.
• Torque Requirements: Determine the sufficient spindle torque to meet the range of operations I intend to perform, from susceptible tasks to the most aggressive processes.
• Load Capacity and DuraBility: The stresses and strains likely to be experienced by spindles, bearings, and structural elements are critically analyzed.

Taking these aspects into account enables me to make a more informed choice, not only in selecting the spindle that meets the required parameters but also the one that enhances the entire machining process.

Frequently Asked Questions (FAQs)

Q: What are the primary types of machine spindles available in the machining operations?

A: The primary machine spindles used in machining include motorized spindles, belt-driven spindles, grinding spindles, boring angle, and Copa gears-driven spindles. There are different applications for which each type is manufactured for a particular purpose.

Q: What is the difference between motorized and belt-driven spindles?

A: A motorized spindle is a motor-integrated spindle incorporated into the spindle structure for a compact form factor and is efficient at high torque and speed. A belt-driven spindle, on the other hand, transfers the rotational force from its motor to the spindle shaft through belts, resulting in an easier way of regulating the spindle’s rotation speed, but this may result in some energy loss.

Q: What are the benefits of using a grinding spindle in a precision machine?

A: Ahn’s grinding spindles are explicitly built for higher speed operations, providing better accuracy and quality surface finish. They are specially designed for such bore grinding applications, thus improving the efficiency of the material removal rate and enhancing the machining process’s performance.

Q: Could you elaborate on the duties of a drawbar in machine spindle operations?

A: The drawbar is perhaps the most crucial tool for fastening when it locks the tool in the headstock spindle. This enables rapid exchange of tools and secure clamping of the tool to prevent its movement during machining, which is important in avoiding unnecessary tools.

Q: What parameters must be considered when comparing gear- and belt-driven spindles?

A: When selecting belt-driven or gear-driven spindles, be sure to consider the torque required, speed required, expected maintenance, and even the nature of the machining process employed. Gear-driven spindles are suitable where more torque is needed, although their maintenance is higher than that of belt-driven spindles, which have low-adjustment difficulties and moderate efficiencies.

Q: What are the advantages of cartridge spindles when operating CNC machines?

A: Cartridge spindles have relatively simple modular structures and can be replaced comparatively easily, making component replacement and maintenance easy. The fittings are suitable for application in CNC machines as they enable high accuracy and rigidity of the Correcting structure in Precision engineering, which is required to produce quality output in various operations in manufacturing tasks.

Q: In what way do motor spindles increase the efficiency of the machining centers?

A: There is a significant improvement in machining efficiency since motor spindles have higher speeds and more outstanding torque capabilities, readily available at the machining centers. Since the spindles provide torques and speeds sufficient to handle the machine, the machine’s overall footprint is minimized.

Q: What is the best practice regarding a custom spindle for my machining application when required?

A: If you require a custom spindle, please contact us so that we can discuss your requirements for the machining process. If several sets of specifications corresponding to the application are provided, it is possible to design such a spindle in-house and easily manufacture it.

Q: Where can I access the right kinds of spindle products for a particular type of machining?

A: To find the right spindle products for you, it may help to think about what kind of machining operations you do, what materials you use, and what speed and accuracy need to be achieved. You can also gain sound knowledge about the right choice by reaching out to relevant professionals or by reaching out to us.
