Essential Guide: Choosing the Right Material for Electric Motor Shafts

Selecting the appropriate material for electric motor shafts is a critical decision in the design and engineering process. The material not only influences the structural integrity and durability of the motor but also directly impacts its efficiency, performance, and lifespan. Factors such as mechanical strength, thermal conductivity, resistance to fatigue, and cost must all be considered to ensure optimal functionality under operating conditions. This guide aims to provide a detailed framework for understanding the technical and practical considerations involved in material selection, empowering engineers and product designers to make informed choices that align with specific application requirements. Whether dealing with high-performance industrial motors or compact consumer applications, the selection process demands precision and a thorough grasp of the underlying material properties.

What are the most common materials used for electric motor shafts?

Carbon steel: The go-to material for motor shafts

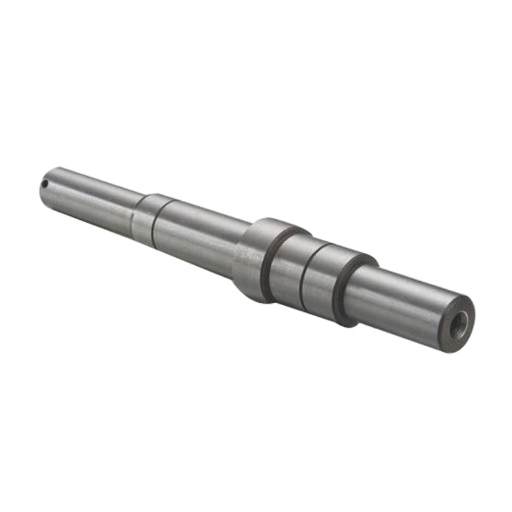

Electric motor shafts are generally made of carbon steel due to its superior mechanical properties, wide availability, and economical costs. Carbon steel also has strength, toughness, and machinability which makes it suitable for robust to standard applications.

• Tensile strength: Ranges from bidirectional 400 Megapascals (AISI 1018) to 700 Megapascals (AISI 1045), which guarantees sufficient room for load-bearing capacity.
• Yield Strength: A bottom line of 250 Megapascals for AISI 1018 and an upper end of 450 Megapascals for AISI 1045, showing adequate resistance to deformation under operating stresses.
• Hardness: Fluctuating within the 120-180 HB (Brinell Hardness) scope, heat treatment processes can boost the number for more enhanced wear resistance.
• Thermal Expansion Coefficient: Gravitationally predictable at round 12 x 10^-6 /°C, so there are no surprises with thermal behavior during operation

The aforementioned properties concurrently make certain that carbon steel motor shafts can withstand traveling loads, deformation, and fluctuating temperatures while a range of operating conditions are at their peak. In addition to this, the soft property of carbon steel makes it easy to work with guaranteeing precision manufacture gear that is tailor-made for a particular motor.

Stainless steel: When corrosion resistance matters

Stainless steel is widely employed in motor shafts where resistance to corrosion and oxidation is critical. This material is particularly advantageous in environments with high humidity, exposure to chemicals, or extreme temperature fluctuations, as it maintains structural integrity over extended periods.

• Chromium content: 10.5% chromium is the minimum amount required because it passively forms an oxide layer which makes corrosion resistance and surface damage self-healing.
• Yield strength: Mechanical stress is easily withstood without permanent deformation due to alloy yield strength ranging from 200 MPa to over 600 MPa.
• Thermal conductivity: Stainless steel, unlike carbon steel, offers lower conductivity of heat. 15 W/m·K is what normal room temperature boils down to. Although heat dissipation is lowered, it is considerably accepted.
• Machinability: Other types of stainless steel are not as flexible as 303 and 416, making the latter more appealing for machining.
• Operating temperature: Some grades, like 304 and 316, can go as far as 870 degrees Celsius, allowing stainless steel to maintain robustness and oxidation resistance at incredibly high temperatures. Such a wide array of temperatures enables constancy in mechanical performance.

These features make stainless steel optimal for its usage in industries where corrosion or chemicals may threaten other materials. By selecting the appropriate stainless steel grade, engineers can ensure both longevity and reliable performance of motor shafts.

Alloy steel: Balancing strength and machinability

Widely used in various industries, alloy steel is an adaptable material that provides high strength, good durability, and excellent machinability. The base iron and carbon material’s attributes are enhanced by including several alloying additives such as chromium, molybdenum, nickel, and vanadium. These elements improve the mechanisms and the materials’ abilities to handle wear, impact, and fatigue stresses.

• Tensile Strength: Alloy steel exhibits tensile strengths ranging from 700 MPa to over 1300 MPa, depending on the specific alloy composition and heat treatment applied.
• Hardness: The material can withstand deformation as well as surface wear with its typical hard resin value that ranges between 200 and 700 HB (Brinell Hardness).
• Machinability: Alloy steels can attain good machinability scores and are rated between 50 to 70% for free-cutting steels when adjusted compositions and heat treatments are done.
• Fatigue Strength: The endurance limits enable offering good fatigue strength which most times exceeds 50% of the tensile strength providing great cyclic stress resistance on stringent applications.
• Corrosion Resistance: While not to do so as stainless steel, adding chromium over 1% can increase, to some extent, the corrosion resistance of certain alloys.

These factors highlight the adaptability of the material which makes it possible for engineers to choose grades of steel that accurately balance strength and machinability for the application.

How do specific requirements affect motor shaft material selection?

Considering the motor’s intended application

In light of the motor’s intended use, there are a few key things that I pay attention to that ensure that the material chosen works with the performance requirements and operational conditions. Load requirements are certainly one of them as shafts with high torque or cyclic loading require materials with adequate tensile strength and fatigue life. For example, some alloy steels like 4140 or 4340 are used so often because their ultimate tensile strength (UTS) is between 95000 – and 150000 PSI.

Another factor that I check is environmental conditions in the form of moisture, chemicals, and extreme temperatures. In some cases, the motor may need to work in a corrosive environment which means that corrosion-resistant materials are necessary like stainless steel, which includes 316 or 17-4 PH.

Shaft materials that require extreme precision and stability also need a low thermal expansion coefficient. This is especially true for high-temperature environments. To satisfy such conditions, materials such as nickel alloys are a great option due to their thermal stability.

Last but certainly not least, design constraints such as weight and machinability matter. Based on the design type, one would prefer aluminum alloys for lightweight designs because of their strength-to-weight ratio. However, materials such as mild steel would be preferred if the shafts require advanced geometries because mild steel is much easier to machine.

Through the systematic examination of factors, I trim my focus on the application-specific requirements within the material selection for the motor shaft to ensure high efficacy and reliability.

Balancing strength, hardness, and corrosion resistance

An ideal combination of strength, hardness, and corrosion potential is achievable only when specific application details are focused on, particularly the concerns and expectations around the motor shaft. For instance, the material properties which include tensile strength, yield strength, hardness value, and corrosion resistance must meet the acceptable operational criteria.

• Strength: The alloyed steels (tempered, for instance, 4140 or 4340 steel) with a tensile strength between 850-1,130 MPa, would be suitable for the shafts that undergo intensive mechanical loads.
• Hardness: The Rockwell C scale ranges HRc 35-45 is ideal for motor shafts because it provides case-hardened materials that can endure great amounts of wear and resistance to deformation while also enabling rapid machining and hence is good. More wear-resistant materials can be created through processes like carburizing.
• Corrosion Resistance: Stainless steels such as 17-4PH or 316 would suit components for shafts that are used in harsh marine or chemical environments since they are oxidized readily. These stainless steels have a relatively high content of chromium and nickel which makes them strongly resistant to corrosion.

The rationale backing a particular material choice should stem from its intended application. As an example, for materials used in environments with high levels of moisture, increased corrosion resistance may be preferred even if the material has somewhat lower hardness. On the other hand, protective coatings such as anodization or zinc plating may be necessary for sugar-high-strength alloys with inadequate corrosion resistance to extend their service life. By logically balancing these critical factors with operational needs, the optimal material choice will most likely emerge.

Matching shaft material to the rotor and stator requirements

Material selection for the shaft correlates directly with the rotor and stator components of a system. Rotors and stators have a variety of designs that require consideration of their mechanical, thermal, and functional metrics.

• Mechanical Strength： The selected material for the shaft must have sufficient tensile and yield strength to sustain the torque, radial, and balance loads passed between the rotor and stator. In conditions of high mechanical stress, high-strength steels or titanium alloys are heavily relied upon.
• Corrosion Resistance： Operating environments with moisture, chemicals, or fluctuating temperatures necessitate materials such as stainless steel or coated alloys that resist corrosion to minimize material deterioration over time.
• Thermal Expansion Coefficient： The shaft is required to be thermally compatible with the rotor and stator concerning thermal expansion. There is a risk of mechanical misalignment or stress accumulation under certain conditions if the coefficient is significantly offset.
• Dynamic Balance： The material of the shaft is expected to be rather machinable such that the balance of rotation required between the rotor, and stator does not induce excessive vibrations or wear on the structures.
• Magnetic Properties： In many cases, non-magnetic materials like austenitic stainless steel tend to be used in electromagnetic applications either to avoid interference with the motor’s magnetic field or, if need be, magnetic alloys are used as it is preferred in the design.

By systematically aligning them with the design specifications, I would identify the most optimal shaft material to ensure seamless performance between the rotor and stator components.

What are the advantages of stainless steel for electric motor shafts?

Superior corrosion resistance in harsh environments

Stainless steel is ideal for use in electric motor shafts in extreme conditions, where moisture, chemicals, or temperature may cause harm, owing to its superior resistance to corrosion. This self-protection is caused primarily due to the high levels of chrome, typically over 10.5%, which can be found in stainless steel. An example of this phenomenon can be found in 316 stainless steel. This combination of alloys contains 16-18% chrome and 2-3% molybdenum which makes it resistant to chlorides and saline, thus making it suitable for marine or chemical environments.

• Yield Strength: Varies between 205 MPa in 304 stainless steel to 290 MPa in 316 stainless steel, ensuring adequate bearing without deformation.
• Operating Temperature Range: This alloy remains functional at -200 degrees Celsius to 870 degrees Celsius depending on the alloy.
• Pitting Resistance Equivalent Number (PREN): A score of 23-28 for PREN in 316 stainless steel indicates high resistance to localized pitting and corrosion which is especially useful in chloride-rich regions.

The use of these characteristics results in lower maintenance requirements and longer lifespans for electric motor shafts. This, in turn, guarantees reliability and improves the steel’s performance in difficult conditions. So the characteristics of stainless steel ensure durability.

316 stainless steel: The ultimate choice for corrosive applications

316 stainless steel is corrosion resistant, cutting edge components due to its outstanding unique combination of physical and chemical characteristics.

• Tensile Strength: Ranges from 515 to 720 MPa which indicates an excellent structural integrity while under stress.
• Yield Strength (0.2% offset): Ranged at approximately 205 MPa, which allows for bending and deformation under load without flexibility.
• Elongation at Break: Approximately 40% which allows for enhanced ductility for fabrication and forming purposes.
• Hardness: Measured at 95 Brinell hardness scale (HB) indicating great resilience against wear and abrasions.

These properties make it an ideal candidate for chemicals and marine surroundings, besides being exposed to aggressive chloride ions as the material has enhanced defense against corrosion loss. Proper selection of 316 stainless steel endured performance maintenance to maximum levels under extreme environmental loads. These conditions reduce the risk of structural failure and increase lifespan.

How does carbon steel compare to other shaft materials?

High strength and excellent machinability of 1045 and 4140 steels

Steels 4140 and 1045 are known for their strength and ease of machining, which lends them to numerous industrial uses. In matters of detail, it is clear that:

• 1045 Steel: This is a medium carbon steel with a tensile strength ranging between 570-700 MPa. It has good toughness as well as wear resistance. The hardness of this material in a normalized state is around HB 170-210, which is ample for most general machining and fabrication tasks. It is suited for the production of shafts, pins, and studs which require moderate strength with excellent ductile properties.
• 4140 Steel: A chromium-molybdenum alloy steel, 4140 has very high strength aye, with a tensile strength of approximately 930-1080 MPa in quenched and tempered condition. Higher hardness, must stronger fatigue strength, often around HB 197-260, make it preferable for heavy-duty applications such as drive shafts, components of gears, and other machinery with high stress. Chromium and molybdenum also improve wear and corrosion resistance compared to plain carbon steels.

When properly cared for, both types of steel can be easily machined. However, 4140 is significantly harder and has a higher stress tolerance than 1045 which leads to 4140 being more difficult to machine. The right type of steel should be selected depending on the required mechanical and environmental factors to maximize both the effectiveness and life cycle of the application.

Heat treatment options for improved hardness

The process of heat treatment is fundamental to changing the hardness, strength, or other mechanical properties of the different alloys such as 4140 and 1045. For the 4140 steel, one of the alternatives is to harden it by quenching and tempering it. The steel piece is heated to a range of temperature from 1500°F-1550°F, which is known as an austenitizing temperature, And then rapidly cooled in oil or water to enhance hardness and obtain a martensitic structure. After that, the process of tempering is done while increasing the temperature from 400°F to 1200° F (200 ° C to 650 ° C). Where the temperature is dependent on the desired materials’ toughness and hardness. For example, when that particular material is tempered at 400-700 °F, it greatly reduces the toughness of the material, but instead moves the material to ~HRC 54 -60. Whereas increasing tempering temperatures allows mitigates the steel’s brittleness.

1045 steel, similarly, can be heat treated the same way, but it is typically quenched at lower temperatures in the range of 1475°F-1550°F (800 ° C-845 °C), tempered at even lower ranges of 400°F-1150°F (200°C -620°C). Due to the lower alloy content in 1045, the final hardness is somewhat lower than that of 4140. Most of the time, it reaches HRC 45-55 depending on the temperature at which it is tempered.

Surface treatments such as induction hardening may also enhance both materials. For 4140, induction heating achieves local surface hardening to ~HRC 58-62, which is excellent for wear-resistant parts. 1045 can also achieve similar surface hardness (HRC 55) with proper induction heating, but its core properties are still not as strong as 4140’s.

A particular set of factors is selected based on the application needs, which include the operating temperature, stress environment, and the specific ratio of wear resistance to toughness. In conclusion, these processes guarantee optimal mechanical performance to meet stringent industrial requirements.

What role does heat treatment play in motor shaft performance?

Enhancing shaft hardness through induction hardening

Induction hardening creates a hard surface on motor shafts while keeping the core tough and ductile, increasing wear resistance and hardness. The process involves heating the surface layer of the shaft with an electromagnetic field followed by rapid cooling, usually through quenching. The result is high levels of surface hardness with a martensitic structure, fully preserving the material core.

Induction hardening for 4140 steel produces surface hardness perfect for high-stress, wear-resisting applications, achieving a surface hardness of about HRC 58-62. On the other hand, the surface hardness of 1045 dipped steel after induction hardening sits at HRC 55, although the core strength is considerably weaker than 4140. Some of the most important ones are:

• Heating Temperature: Always varies from 800°C and 1000°C. The grade of the shaft material and the desired hardness depth will determine the exact value.
• Quenching Medium and Rate: Oil or water quenches enable rapid cooling to ensure martensite formation during hardening.
• Hardened Depth: For electric motor shafts, hardening depth is generally fixed at a number between 2 to 6mm, dependent on the shaft’s load-bearing needs.
• Frequency of Induction Coil: 1 to 100 kHz is used for the larger shafts to ensure good uniformity at low and medium frequencies.

The induction hardening process improves shaft performance in difficult operational conditions by increasing durability and optimizing service life.

Nitriding: Improving surface properties of motor shafts

Nitriding is the thermochemical treatment process on the surface of steel or similar materials that imprint nitrogen for an alloy layer. As a result of its efficiency on the surface level for modification of toughness, it has come to be used broadly on motor shafts, as it increases surface hardness, wear, and fatigue resistance without affecting the core properties. Nitriding is performed at comparatively lower temperatures and at low levels of heat (500 °C to 600 °C) unlike other processes such as induction hardening, which reduces distortion and enables the maintenance of dimensional stability which is crucial for precision components like motor shafts.

• Processing Temperature: Maintained between 500°C and 600°C to facilitate nitrogen diffusion with minimal loss of material stability.
• Duration: Depending on the case depth requirements which often range from 0.2mm to 0.7mm for motor shafts, treatment cycles typically range from 10 to 72 hours.
• Atmosphere Composition: Unlike plasma nitriding which puts ionized gas in a controlled vacuum, gas nitriding employs a mixture of ammonia (NH3) and nitrogen gas to improve the absorption level of gas.
• Material Composition: The addition of other elements such as chromium, molybdenum, and aluminum results in steel alloys like 4140 and 34CrAlMo5, which have nitrides, and make it easier for steel to undergo nitriding.

These conditions enable the process of nitriding to establish the foundation of a surface layer that is hard and wear-resistant while making it durable to cyclic loading. Where minimal distortions are needed and long-term benefits, along with an increase in fatigue strength is required, this is optimal for motor shaft applications.

Frequently Asked Questions (FAQs)

Q: What are the essentials of motor shaft machining?

A: The essentials of motor shaft machining include selecting the right material, considering the specific requirements of the motor, employing proper machining techniques, and ensuring strict quality control. The choice of material and machining process heavily depends on the shaft’s intended application, load requirements, and operating environment.

Q: What type of material is mostly used for electric motor shafts?

A: Steel is used most commonly for electric motor shafts due to its strength, durability, and cost-effectiveness. Specific types include carbon steel, alloy steel, and stainless steel. The choice depends on factors such as load requirements, operating conditions, and corrosion resistance needs.

Q: Why is quality control in motor shaft production important?

A: Quality control in motor shaft production is crucial to ensure the shaft meets precise specifications, maintains proper balance, and has the required surface finish. This affects the overall performance, efficiency, and lifespan of the motor. Rigorous quality control helps prevent issues like vibration, misalignment, and premature wear.

Q: What are the advantages of motor shaft CNC machining?

A: Motor shaft CNC machining offers several advantages, including high precision, consistency in production, the ability to create complex geometries, and efficient material use. It allows for tighter tolerances, smoother surface finishes, and faster production times compared to traditional machining methods, which are crucial for modern motor production processes.

Q: How does the material choice affect an induction motor’s performance?

A: The material choice for an induction motor’s shaft significantly impacts its performance. The shaft material must have high strength to withstand torque and bending forces, good machinability for precise manufacturing, and appropriate magnetic properties. For instance, if the rotor is made of a magnetic material, the shaft might need to be non-magnetic to prevent interference with the motor’s magnetic field.

Q: Are there alternatives to steel for motor shafts?

A: Yes, alternatives to steel for motor shafts include aluminum, titanium, and composite materials. Aluminum might be used when a lightweight material is needed, titanium for high strength-to-weight ratio applications, and composites for specific environments where corrosion resistance is crucial. However, these materials are often more expensive and don’t always need to be used unless the application specifically demands their properties.

Q: What machining techniques are commonly used in motor shaft production?

A: Common machining techniques in motor shaft production include turning, grinding, milling, and polishing. Turning is used to achieve the basic cylindrical shape, grinding helps in achieving precise dimensions and surface finish, milling is used for keyways and other features, and polishing is applied to the surface of the shaft to smooth it and reduce friction. Advanced techniques like CNC machining are also widely used for complex designs and high precision.

Q: How does the choice of shaft material impact the overall machine design?

A: The choice of shaft material impacts the overall machine design in several ways. It affects the size and weight of the motor, the type of bearings required, the cooling system needed, and even the stator core design. For example, a stronger material might allow for a smaller diameter shaft, potentially reducing the overall size of the motor. The material’s thermal properties also influence heat dissipation, which is crucial in motor design.

Q: What considerations are important when choosing shaft materials for motors in marine environments?

A: When choosing shaft materials for motors in marine environments, corrosion resistance is paramount. Stainless steel or nickel alloys are often preferred due to their excellent resistance to saltwater corrosion. The material must also withstand high humidity and potential temperature fluctuations. Additionally, considerations such as strength, fatigue resistance, and compatibility with sealing systems are important to ensure long-term reliability in these challenging conditions.
