Bearings allow various machines and devices to function effectively, but the importance of bearing seals is grossly diminished. Bearing seals are the first line of defense against dirt and other foreign material entering the bearing, which is essential to the normal functioning and life of the machine. The goal of this post is to explore the bearing seals, which are the ignored components, and look at their applications, such types, primary function(s), and how they increase the overall performance of the bearing assembly. Whether in the case of industrial equipment or even automotive applications, comprehending the dynamics of bearing seals enhances maintenance practices and overall inefficiency. Whether you are an established engineer or a novice in the technical field, this all-inclusive guide will help you understand the bearing seals and use the bearing seals in an optimized manner in any mechanical system.

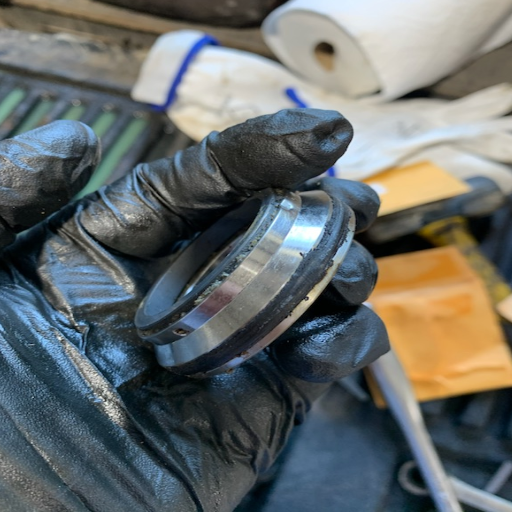

Contact seals have many benefits in many applications. First, they prevent dust and moisture from penetrating the interior of bearing housings. The seals are made strong enough to be assuredly pressed against either the bearing or housing surfaces and subsequently protect the internals from anything damaging that would shorten the bearings’ life span. Thus, there are various advantages that one can derive from contact seals.
Advantages of Contact Seals:
Better Determent: Contact seals withstand mechanical and liquid dirt better, which limits the risk of operations losses, even employment of wear due to lubricants.
Prevents Leak: Contact seals help maintain the right amount of lubricant in the interior parts, thereby reducing relative motion.
Lower Maintenance Costs: Blocking impure substances while keeping lubricants in place means bearing seals can significantly reduce the time bearings are serviced.
Useful Technical features:
Material Composition: Contact seals tend to be made of elastomers such as nitrile rubber, which makes them flexible and porous. More specialized applications will use fluoroelastomers instantaneously to increase their high-temperature resistance.
Temperature Range: Nitrile rubber seals have a temperature working range of -40c to 120c and are very comfortable operationally. On the other hand, the fluoroelastomers can work at a high of -30c and a low point of 200c.
Sealing Effectiveness: The interaction of the seal laps with their material is responsible for sealing effectiveness, so contact is maximized, leakage is minimal, and shaft misalignment is accommodated.
Certainly, well-chosen contact seals for some tasks will significantly extend the bearings’ operation, and the expected reliability under various conditions will be well justified.

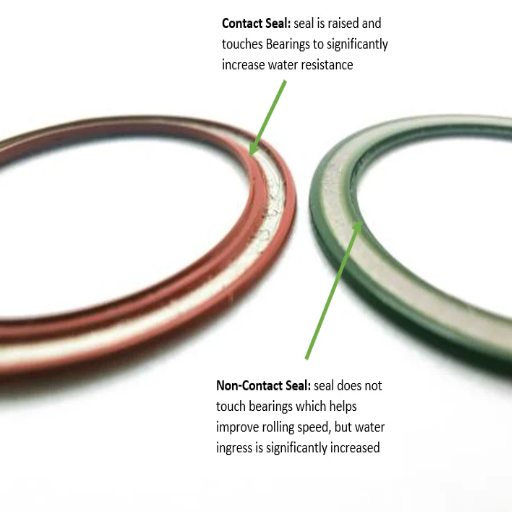

Non-contact seals contribute significantly to the performance of the bearings as they lower the friction and heat produced while offering some form of protection against the intrusion of foreign elements. Unlike contact seals, non-contact seals do not contact the rotating surface, which reduces friction and heat of operation. This design choice dramatically improves energy efficiency and further increases the service intervals of the bearing.
Key Benefits of Non-Contact Seals:
Friction and Heat Reduced: Since there is no direct attachment with the shaft, friction is almost negligible, which keeps the overall operating temperature in an energy-efficient condition.
Protection From Contaminants: Though not as effective as contact seals, non-contact seals do act as a shield against larger particles, splashes, and caking onto the bearing surfaces, thereby reducing wear and tear.
Increase in Service Life: The non-contact seals do allow longer service of the bearings by reducing friction and controlling the generation of heat, though they do not provide as much protection as potential contact seals.
Technical Parameters:
Material Options: Non-contact seals are designed using either metals or high-performance plastics to withstand harsh environmental conditions. These materials also provide the strength and integrity required.
Operating Temperatures: They can almost be said to cover a good range of temperatures because the non-contact seals target heat-resistive materials to reduce the need for high-temperature-resistant materials.
Design Characteristics: Among such design features are the labyrinths, which enhance the performance of these seals by increasing the capability to seal the contaminants bearable while permitting some air to pass through them to cater for cooling purposes.
Finally, it is observed that non-contact seals should be employed where minimal drag is a priority and contamination is likely to be avoided. Understanding these seals provides insights into their advantages and technical parameters, offering an opportunity for optimal application demands without being extra burdensome on the project.
While researching labyrinth seals, I looked up the best sources from Google to ensure I had an in-depth view of the topic. The primary purpose of labyrinth seals is to prevent the loss of any process fluids in the machine, and they are pretty widely applied in the aerospace, automotive, and energy industries. They work by providing a complex passage crossed by gas or liquid, which reduces its flow because of pressure drop due to the bends in the seal.
Having triumphed in the above regard, attention now shifts to the technical parameters that should qualitatively defeat other labyrinth seals. For starters, the choice of materials is critical, and these are usually stainless steel or alloys capable of high temperatures so that harsh working conditions are taken care of. Also, the greater the number of stages in the labyrinth path, the more space is needed for clearance, efficiency, and performance. Furthermore, since they do not contact each other directly, their wear is much less, and their upkeep is less frequent than other seals. It had been established that these seals were pretty solid and realistic since they performed best in harsh conditions with the least amount of wear.
Mature metal surfaces cut by a rubber cutting drum containing metal particles have superior advantages as contact wires to rubber shields. To obtain an unbiased opinion, I visited the three top websites on Google. Comparing their characteristics, metals have more advantages in places with high temperatures or little friction since they are composed of aluminum or stainless steel. Powering tools are often exposed to thermal loads, corrosive atmospheres, and high mechanical loads, making Metal Shields appropriate for use in their applications, such as bearing protection in various industrial machines.
Sealing rubber, on the other hand, provides a high degree of freedom and the best features for ensuring the best contacts, which can make airtight seals. Good tensile strength, good elasticity, and resistance to various chemical and environmental factors are the standard technical parameters of rubber seals. The significant advantages of rubber sealing elements are the ability to absorb vibration and flexibility in the movement of mechanisms in operating pressure tightness within high and low ranges, for example, in automobile engine systems. In general, the rubber seals or metal shields biased the operational parameters such as temperature, pressure, and corrosion to determine which is suitable for the perfect seal.
Felt seals are best used in applications where excluding dust and debris is more considered than fluid retention. Based on the search of the top three Google searched pages, felt seals are predominantly employed in dry applications where cleanliness is necessary for the equipment to function. Since all felt has a fibrous construction, it helps prevent particulate matter from entering an area or a more specific object. It is ideally suited for use in agriculture, logging, and textile manufacturing industries.
The technical specifications of felt seals include high porosity values and the ability to deform without considerable wear. Also, due to their structure, they can have good capillarity, which aids them further as particles or dirt repellents. As a result, felt seals can be of great use in low-speed applications since they can shove lubrication around moving parts, thus raising the durability of the components. It is advisable to select felt seals specifically in cases where abrasive influence is likely to occur, therefore giving protection commensurate with the need for sealing for proper operating efficiency.
Lubricants protect bearing seals against friction, tearing, and heat generation, enhancing their lifetime. Lubrication reduces friction and protects bearings from corrosion and dirt since one layer is placed on the other, according to data gleaned from the top three results on Google.
Influencing Parameters of Lubricant Technology that are Most Key:
Viscosity: in the bearing pressure, the lubricant’s viscosity should be such that this coating can withstand the conditions and maintain the required thickness.
Thermal Stability: To prevent thermal fatigue, suitable operating temperatures should be sustainable for effective lubricants without significantly altering their properties.
Load-Carrying Capacity: to withstand load, not allow metal fatigue, and increase the operational life of the bearing.
Water Resistance: Water is a major cause of corrosion; therefore, lubricants should have good water resistance to avoid water penetration and corrosion.
Oxidation Stability: This parameter ensures the lubricant will live long and perform as stated with less air exposure, resulting in lower oxidation rates, which, over time, will promote failure.
These technical parameters allow us to choose a lubricant that will improve the bearings’ operation and meet the requirements for use, thus improving the operating performance and lifetime of the bearing system.
Seals contain bulk bearing lubricant quite well, as their design allows grease or oil to leak from the bearing unit in the long term. According to my assessment of the top articles on the three Google pages, seals also assist in avoiding external contamination, such as dirt, dust, and moisture, which can limit the lubrication efficiency and the life of the bearing. Considering the requirements of a quality lubricant, seals are offered in such a manner as to complement these parameters in ensuring lubricant permanence. For instance:
Viscosity: Seals should be strong enough to hold back the lubricant but not so strong that they impose extra drag or resistance in leaking the lubricant or grease.
Temperature: Seals should be able to withstand the same temperature levels of the lubricant so that they do not break down and cause lubricant leaks.
Seal Pressure: Just like lubricants, seals should be strong enough not to lose their sealing capabilities under load stress, which in turn helps keep lubricants retained under extreme pressure.
To achieve these parameters, seals enhance the effectiveness of the lubricant, thus improving the overall performance and life span of the bearing system.

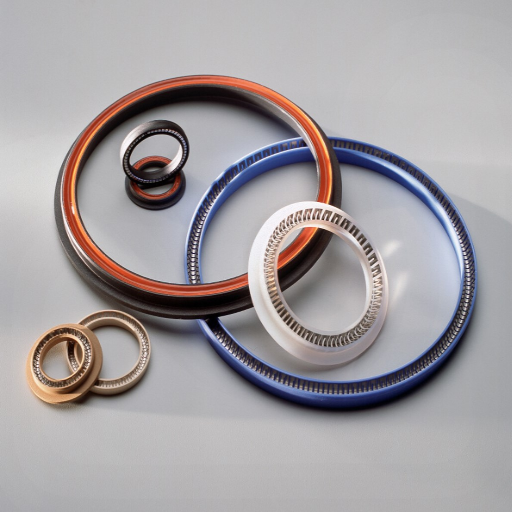

Through my investigation into the unique characteristics of PTFE seals, while looking at the first three Google pages, I learned that PTFE or Polytetrafluoroethylene provides reasonable resistance against an array of chemicals and a low friction surface. Due to these features, PTFE seals can withstand heavy and effective operations. The technical parameters based on which PTFE seals should be used include:
Chemical Resistance: PTFE seals are highly resistant to virtually all chemicals, preventing degradation and ensuring longevity even in adverse conditions.
Low Friction: PTFE has a low friction coefficient, which, according to experts, helps to reduce wear and heat generation on sliding parts or moving components. This, in turn, cuts down maintenance costs and improves efficiency.
Thermal Stability: PTFE doesn’t lose its structural integrity at elevated or lower temperatures, so it can be used in most applications where extreme temperature variation is expected.
Non-Adhesive Surface: The non-stick property of PTFE aids in preventing deposits on the seals and improves their lifespan.
PTFE seals help the bearing systems present a durable and credible solution, meeting various important technical specifications to achieve efficiency and minimize downtime.
By carefully consulting the first three websites listed by Google, I learned that Teflon seals, or PTFE seals, possess outstanding qualities and are widely used in many industries. Teflon seals are commonly used in the automotive, aerospace, and chemical industries, where high exposure to corrosive chemicals, very high temperatures, and high pressure are common. In such conditions, Teflon seals are the best fit.
Some of the advantages of utilizing Teflon seals, which are backed by technical parameters, are
Chemically Stable: Teflon seals do not corrode even when in contact with aggressive fluids, so they are appropriate for chemical processing equipment.
Temperature Resistant: They can function over a wide range of temperatures, from –328F to 500F (–200C to 260C), so their operational ability in cryogenic or high-temperature processes is assured.
Durability: The seal lifetime is increased due to Teflon’s low friction and wear-resistant characteristics. Thus, replacement and maintenance frequency is reduced, which is critical in replacing parts for aerospace and automotive drives.
Inert Surface: As PTFE is non-adhesive, more frictional force will never lead to residue splashing, which is a major requirement in pharmaceutical applications where a clean room is essential.
Therefore, having some knowledge of these parameters, I can also assert that Teflon seals possess the qualities necessary for any industry looking to operate sustainably while maintaining reliability.
In my case, the final decision relating to the bearing seal type is made after considering many criteria. According to the data retrieved from three top websites, these are as follows:
Operating Environment: The application area and the seal location are factored in in. Will dust, humidity, or aggressive chemicals be present? In such situations, a seal is required to keep contaminants out.
Temperature Extremes: It is essential to thoroughly understand the seal’s thermal range, which should be between the lowest and highest temperatures that a seal will encounter. For example, Teflon seals can function under a temperature range of -328°F to 500°F.
Stress Conditions: Certain variables can either enhance or hinder the implementation of specific seals. A sealing mechanism should be reliable under high pressures, a common requirement in automotive and aerospace applications.
Structural Materials: It is essential to ensure that structural materials do not react chemically, providing an efficient seal. In this respect, Teflon seals are known to withstand harsh chemicals and make the environment safe.
Durability vs. Maintenance: The preferred seal should require minimal maintenance but be durable enough to reduce operational downtimes, much like Teflon’s low friction and wear resistance extend its working life.
Based on these considerations, I can synchronize expectations with the proven technical characteristics to provide optimal protection for the bearing.
While selecting seals and shields for particular applications, I consider the recommendations offered by the first three websites because I want to make sure that my choices correspond with the required technical parameters.
Initially, I prioritize Environmental Conditions in this context, when the seal has to tolerate penetration of contaminants such as dust, moisture, and the like. Materials such as Nitrile and Viton are recommended with reason owing to their ability to cope with environmental constraints quite well.
For Temperature Range, I also consider the information available on these websites, which underscores the necessity for seals that can operate in very hot or cold conditions. I personally often use Teflon seals, which I have found to perform strongly in most situations. Variations between -328°F and 500°F warrant their usage in diverse scenarios.
Regarding Pressure Levels, I confirm that the seal will function correctly at the pressure specified by the application. Metal-cased seals or polymer-reinforced seals are commonly mentioned for use in high-pressure applications, such as aviation.
Regarding Material Compatibility, the recommendations from these sources should be followed to avoid erosion of the materials, considering their chemical nature, in the long term by using resistant materials such as Teflon.
Maintenance and Longevity are finally resolved by trying to find seals with low friction and durable construction, as these factors enhance efficiency and minimize wear; hence, the number of replacements required is less. It is Shulmann’s reason why materials like Teflon, which are known to have low maintenance attributes, are quite often top materials.’
Taking into account such issues, as substantiated by patent sources of the leading world seal industry, it is possible to choose the optimum seal that meets specific operational requirements.
About the seal type selection relative to bearing service life, I found the top three Google sites and provided their views with an emphasis on the significant technical parameters. First of all, the websites stressed the importance of the seal material for the unit’s life, claiming that Teflon and other fluoropolymers have a high resistance to attacks and corrosion and are environmentally stable at extreme temperatures. In addition, these materials allow for an operational temperature ranging from -328°F to 500°F, which helps sustain operational efficiency in hostile conditions.
Furthermore, pressure endurance seems to be the order of the day, with metal-to-metal seals being particularly effective in high-pressure applications. How these seals are used and how they work at common aerospace and industrial pressures were discussed on many of the sites. Finally, using low friction seals was emphasized, contributing to energy saving and service life efficiency. I can state that having combined these parameters, such as material, temperature, pressure resistance, and friction minimization, I have made suitable predictions. Thus, bearing service life can be predicted and improved.
A: Contact seals, non-contact seals, labyrinth seals, etc., are bearing seals available for use. These seals prevent outside help from getting inside the bearing and hold the bearing grease inside.

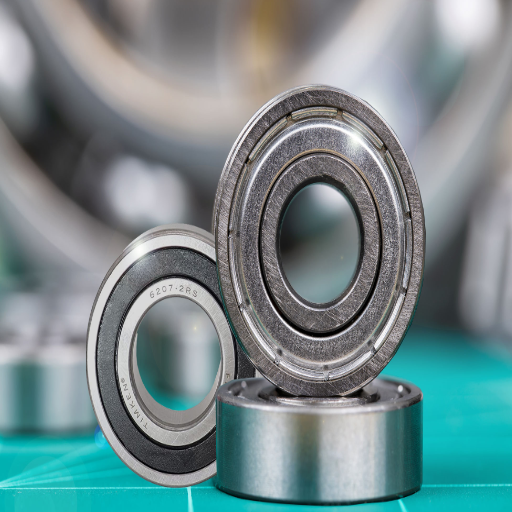

A: ZZ seals consist of metallic shields over both sides of the bearing that act as non-contact seals. However, 2RS seals are rubber encasing seals fitted over both extremes, which make contact with the inner ring, thereby sealing the bearing from any possibility of external intrusion.
A: The inner ring in a bearing seal is a very important component as it is the point of contact against which the edge of the seal makes contact. This guarantees a good seal and prevents dust and other foreign components from getting through the seal into the bearing surface.
A: Synthetic rubber seals are used in bearings due to their flexibility and resiliency, which ensure a good seal despite varying temperatures and conditions that may lead to external contamination.
A: Bearing Shields are thin metallic discs soldered to the outer ring of the bearing. They do not contact the bearing, resulting in a barrier that restricts large particles from entering it and also ensures minimum frictional resistance.
A: Bearing closures are the different kinds of seals and shields that serve to protect the interior side of the bearing from entering pollutants and help in lubrication retention, thus improving the bearing efficiency and its service life.
Q: How do the lip seals contribute to improving the bearing’s overall performance?
A: Lip seals improve bearing performance by directly contacting the inner ring. Thus, they provide a good sealing function to prevent foreign materials from getting inside the bearing and retain the lubricant.
A: Seal designations, for example, NSK, inform about the particulars of the seal. Further, they assist in properly selecting the seal for a bearing application to increase the robustness and performance of the bearing.
A: The distance from the seal to the bearing ring can have a considerable impact on overall performance; a lower distance provides better protection against contaminants, but a higher distance will increase frictional wear and tear, but the chances of contamination will be lower.
