Exploring the Purpose of a Bearing in Daily Applications

Most of us don’t pay too much attention to it, but bearings are essential in many machines and devices we use daily. From the wheels of your bicycle to the engines of industrial machines, bearings are the silent heroes that ensure smooth and efficient motion. They reduce friction between moving parts of machines, facilitating better performance, decreasing wear and tear of parts through extended lifespan, and reducing energy costs. The article is sure to fascinate as it provides all the information there is to know about bearings – their functions, types, and how they work at such high efficiency when it comes to reducing friction. In this article, the curious enthusiast, as well as the one who wants to know more about how these everyday inventions work, will find all there is to know about why bearings can be considered an essential part of today’s world.

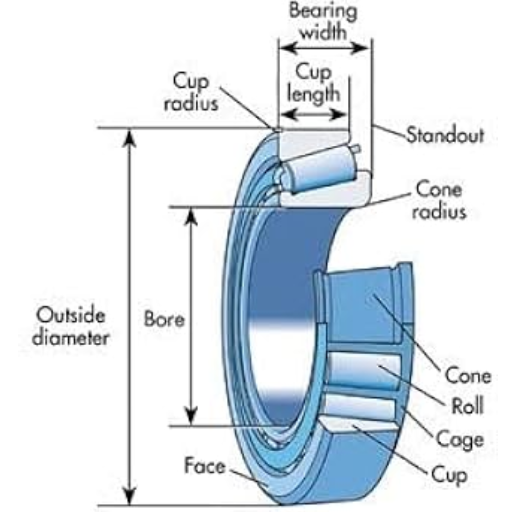

What is the primary purpose of bearings in mechanical systems?

How do bearings reduce friction in moving parts?

Bearing surfaces enable quite a smooth surface contact between two or more opposing moving components, almost always coated with a lubricant film, thus reducing the friction in the moving parts. Their primary purpose is to transform sliding friction into a rolling one, which is easier and more efficient. This is achieved through their design, where rolling components such as balls or rollers are mounted in an outer and inner race. Important parameters include:

Coefficient of Friction (µ): An advanced bearing system, such as lubricated ball bearings, has a significantly reduced component frictional range of 0.001 to 0.005, as opposed to the friction of 0.1 and above experienced in sliding surface contacts.

Load Capacity: Bearings can withstand dynamic and static loads measured in force (e.g., Newtons) to prevent operational stresses.

Rotational Speed (RPM): Some bearings specify the maximum speed at which they can tolerate rotation, referred to as RPM.

Lubrication Type: Adequate lubrication (application of oil or grease) also helps reduce friction.

This detailed engineering ensures the bearings maintain correct angular alignment with other machine parts while enhancing their durability and the mechanical system’s overall performance.

What role do bearings play in energy conservation?

Bearings assist in reducing friction between two moving parts and act as energy savers for mechanical systems. Since they help in transferring loads and aiding in reducing motion, the amount of energy needed to run machines is minimized, which includes the following technical parameters that assist with energy saving :

Friction: Bearing structures with low friction require less energy because beef friction structures are more effective. For example, in this case, hybrid ceramics in a ball bearing require less friction than a steel ball bearing.

Load: shafts and pinch bearings, when fitted in their proper positions, have radial and axial qualities, thus allowing the workings to conserve energy depending on routine use.

Working Temperatures: Normal values for bearing temperatures, which do not result from friction, help avoid waste caused by additional heat production. Quality lubrication and thermal insulation also facilitate this process.

Dynamics: These bearings are built with precise manufacturing processes to assist the circular dynamics in high-speed or frequent usage applications to save on energy.

Cumulatively, bearings lead to the desired result, which includes energy reduction, the sustainability of the mechanical system, and the cost of running it.

Why are bearings considered essential machine elements?

Bearings are critical functional components of machines since they ensure that moving parts do not have excessive friction between them; this enables smooth movement of moving parts, increases efficiency, and minimizes the wearing out of parts of a mechanical system. From a technical point of view, they bear some of the key parameters such as:

Load Capacity: Bearings are designed to bear radial, axial, or combined loads, which is particularly useful in enhancing the reliability and performance of the machine.

Rotational Accuracy: Bearings are designed to high tolerance levels to maintain confining position and vibration within assembled rates; therefore, they allow the equipment to be used on a high-speed or sensitive system without malfunctioning.

Durability: The quality of material used in the bearing and the right amount of lubricant used in the bearing will extend its service life, thus decreasing the costs incurred in maintenance and downtime.

Energy Efficiency: Bearings enhance energy consumption by providing minimum frictional forces, positively affecting productivity and the environment.

These attributes ensure that bearings are crucial in performing strong and efficient functions in various machines.

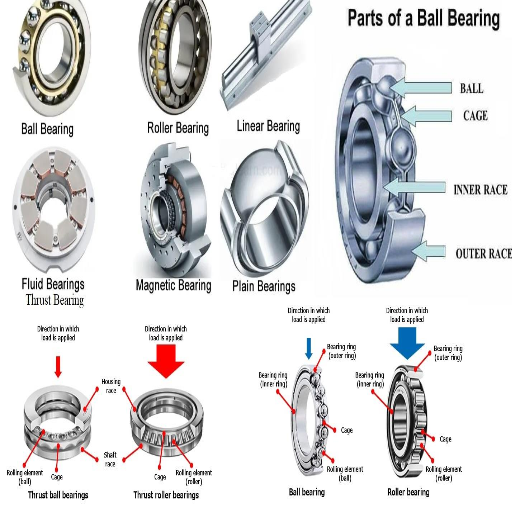

What are the main types of bearings and their applications?

How do ball bearings differ from roller bearings?

The main difference between ball and roller bearings is their design and how the load is applied. I have always believed that ball bearings contain spherical rolling elements, which are great for applying minimal force. They are designed to deal with lighter loads while allowing for high speeds. Ball bearings are also beneficial in low-torque applications, as the balls come into contact with the raceways only at a single point, relieving resistance.

On the contrary, roller bearings have cylindrical rolling elements, which means that the raceways contact the cylindrical elements in a line. This allows them to bear heavier weights and better manage radial forces than ball bearings; however, they do not work well at high speeds due to increased friction across the line contact.

Load Capacity: Ball bearings operate under low loads, whereas roller bearings are meant to tolerate high loads.

Contact Type: Ball bearings depend on the point contact, while roller bearings rely on the line contact.

Speed Support: Ball Bearings are designed for faster motion, but roller bearings are better at withstanding heavy loads at a slow speed.

Friction and Torque: A ball bearing will experience the least friction, which is ideal for motion-based applications—a roller bearing experiences more friction due to the line contact.

This differentiation allows each bearing type to be efficiently applied at the industrial level, depending on the load and speed range.

What are the unique features of plain bearings?

Plain bearings, referred to as bushings, are better characterized by their simple structure and capacity to take on excessive loads without much servicing. They differ from ball and roller bearings because they eliminate the rolling elements and incorporate sliding motion. A strong point of these bushing bearings is that they work well in heavy applications as long the load is consistent and doesn’t move too much or too fast.

Looking at the technical aspect of plain bearings, they tend to have many notable benefits, such as:

Load Capacity: A large contact area contributes significantly to a static load fatigue structure.

Material Versatility: They can be made of bronze plastic or composite materials, making it easy to tailor them for distinct jobs.

Low Maintenance: Many are self-lubricating, reducing the threat of wear and over-lubrication.

Wear Resistance: Made to operate constantly while less prone to spalling or fatigue in optimal conditions.

Such attributes are in high demand for industries such as construction, agriculture, and automotive wake them up and suck them up.

When are fluid bearings preferred over rolling element bearings?

Fluid bearings are preferred over rolling element bearings if an application needs high speed, fabulous accuracy, or can accept heavier loads. I prefer fluid bearings, especially when it is required to eliminate metal-to-metal contact since they can reduce friction and wear through the lubricating fluid film. Some of the technical parameters which contribute to this argument are:

Load Capacity: fluid bearings can carry higher loads as the pressurized lubricating film evenly distributes stress.

Speed Capability: Their ability to function at high speeds is due to their lack of direct contact with surfaces, which reduces heat generation and wear.

Vibration Dampening: Fluid bearings dampen vibration by coating surfaces with a fluid layer. This isolates the surfaces and improves operation, especially in delicate instruments and turbines.

Operating Life: When properly lubricated, fluid bearings have a longer lifespan than rolling element bearings, as they are not exposed to as much mechanical friction.

Noise Reduction: The lubrication gel enhances operation quietness and is thus suited for sensitive environments such as medical or aerospace applications.

After evaluating operating conditions or requirements such as load, speed, and environmental factors, it becomes clear why fluid bearings are suitable in such applications.

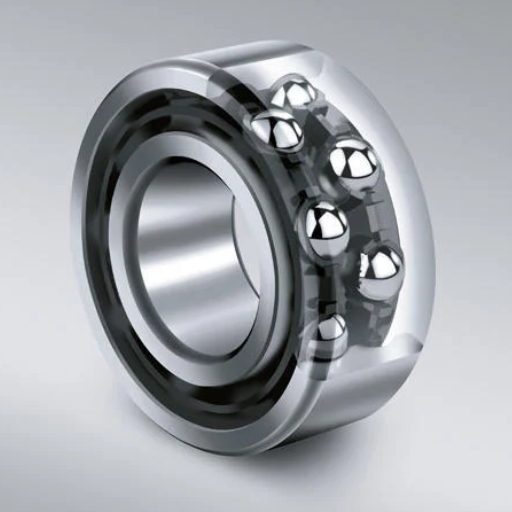

What factors influence the service life of bearings?

How does proper lubrication affect bearing longevity?

Proper lubrication extends the life of a bearing, and I can elaborate on this claim based on my understanding of technical parameters. First, lubrication prevents abrasive metal-to-metal contact inside bearing surfaces, reducing friction and wear. This is important to keep all operations going smoothly, especially in high-load regimes when surface fatigue is extreme. Lubrication also helps cool down components and parts, thus controlling temperature expansion and overheating, which may affect bearing operation.

In this regard, aspects that need to be taken into account are the following:

Viscosity: The kinematic viscosity of the appropriate lubricant should correspond to the speed and load at which it will work. Higher loads require higher viscosity, whereas high speeds require low viscosity to reduce fluid drag.

Operating Temperature Range: The lubricant should work adequately and not degrade. It should stay within the bearing’s operating temperature range (e.g., -30°C to 150°C for most applications).

Contaminant Resistance: Proper lubrication saves out dust and moisture, and protection against abrasive wear or corrosion is also included.

Re-lubrication Interval: Re-lubricating is a slowing factor, it can increase operating hours, can be limited by environmental conditions, and the speed of an application; it even depends on the particular application.

Bearing reliability is at a premium along with increasing performance needs, however adequate type, volume and maintenance of a lubricant can ensure increased bearing life.

What impact does load distribution have on bearing wear?

Load distribution significantly affects bearing wear, as uneven loads can damage the bearing’s parts more quickly. In my observation, when the load across all rolling elements is uniform, the stress concentration on the rolling elements is considerably reduced, reducing wear and prolonging the bearing’s life. On the contrary, when the load is not distributed uniformly due to misalignment, shaft bending, or non-uniform mounting, stress concentrations create, causing pitting, spalling, or complete failure.

However, some of the technical features which should be taken care of are the following:

Radial Load (Fr): The wear affects contact surfaces as high radial loads apply stress.

Axial Load (Fa): High axial loads, mainly outside the bearing’s rated bore, cause irregular wear of toroidal surfaces.

Contact Angle: It affects the orientation of the rolling elements and, hence, the load distribution.

Misalignment Tolerance: Bearing with correct alignment minimizes the occurrences of uneven load distribution.

Dynamic Load Rating (C): Load on the bearings should be maintained within dynamic load rating.

Appropriate mounting, alignment, maintenance, and respect for the bearing’s design limits and constraints help overcome the otherwise uneven load distribution and increase the component’s life.

How can environmental factors affect bearing performance?

Environmental factors can significantly influence bearing performance, Such as extremely hot or cold temperatures, which have an extreme effect on bearing performance. I have seen firsthand examples such as cross-contamination and moisture exposure, in which lubricant degradation occurs at very high temperatures or solidifies at freezing temperatures. Generally, Bearings have a specific operational temperature which They have been designed to work with; for example, -30 °F to 250 °F ranges appear on varying designs of bearings; it is astonishing to see how critical being able to maintain this range can be.

It is also very integral to the working of the bearing to be appropriately sealed and have outstanding filtration systems. This is because dirt, debris, and dust can all sneak up into the bearing units, causing them to corrode, which leads to premature wear. Additionally, water and moisture can be highly damaging to any unit as they can further lead to rust, especially when the bearing has no protective coating or is made of such unsuitable material. This problem has an easy solution: anticorrosion coatings and stainless steel are great options.

Dampening the surrounding vibrations can be highly effective, as they may alter the unit’s functioning, creating uneven wear. ISO 10816 One way this can be done is by setting tolerance levels on vibrations. This, in turn, can significantly boost reliability. In conjunction, all environmental factors should be able to cater to the desired goals with regular maintenance, sticking to technical specifications, and choosing suitable materials.

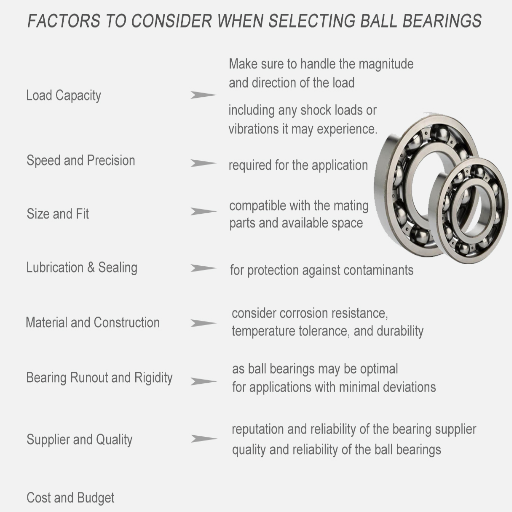

How do you select the correct bearing for a specific application?

What are the key considerations in bearing design and selection?

Regarding the property of a bearing, its selection can vary from application to application. For that, I have some criteria to ensure the performance and reliability are up to the mark. First, let me assess the type and magnitude of load that a bearing is placed to endure, be it radial-axial or a combination of both, along with the load requirements, as the bearing must withstand the forces present. Also important is the required speed, as each type and bearing design will have a maximum operating speed; for example, it is common knowledge that ball bearings will allow for faster rotation than roller bearings.

Now, I will move on to consider the working conditions, the temperature, humidity, the level of contamination, etc. If the application is for a high temperature, the reasonable option would be to look for bearings that use unique materials as lubricants that fit such high temperatures. Likewise, sealed or shielded bearings work better for dusty and wet environments to resist contamination. Even the precision and tolerance levels, such as the ISO tolerance grades, come in handy when there is a requirement for precise motion control.

Parameters like bearing life (which is indicated as L10 or B10 life), type of lubrication, clearance, or preload adjustment are basic. For instance, specific clearances must be respected to inhibit overheating or excess friction, whereas lubrication must be adequate to decrease wear and increase efficiency. At last, I take into consideration the installation space limitations and check whether the bearing dimensions correspond to the design contours of the application. Taking all these factors into consideration, I can find a bearing that will satisfy the engineering requirements as well as the operational requirements.

How do radial and axial loads influence bearing choice?

When choosing a bearing for an operation, radial and axial loads should be considered first since they are the most significant. Radial loads cross over the shaft, and axial loads are applied parallel to the shaft length. Based on the magnitude and direction of these forces, I select an appropriate bearing that effectively supports them. For example, deep groove ball bearings are practical for mainly radial load operations. In contrast, angular contact balls or tapered roller bearings can handle high axial or combined loads.

Bearing Load Rating – Traversing many types of loads without exceeding the bearing’s maximum radial and axial loads during its operation.

Contact angle – The total load on the bearing and the magnitude of the contact angle are directly proportional to each other.

Component rigidity – Proper balancing and adjusting of the preload or clearance can ensure that the bearing can fully rotate when mixed loads are exerted.

Cage strength and design: Depending on the situation, cages must be selected to withstand maximum loading under high rotational speeds.

Additionally, based on all of these technical parameters versus the operational needs, I assure you that the working bearing supports both load types and can work for a long time.

What role does bearing material play in performance?

Bearings are molded from different materials, and the bearing material considerably affects one’s strength, potential wear, and performance during a specific operation. Materials are devised for certain environmental stresses and temperatures, so they decide one’s optimal working capacity to a large extent. The properties of bearings that depend on the materials used include:

Load-bearing capacity: High-grade steel or ceramic materials strengthen the bearing against deformation, ensuring it can withstand heavy loads.

Wear resistance—Case-hardened or through-hardened steel can maximize the bearing’s lifetime span. This steel lessens friction and, therefore, reduces wear.

Corrosion resistance – When exposed to chemicals or moisture, the bearing will require stainless steel or coated materials to provide the necessary protection.

Thermal stability—Advanced alloys or ceramics can reduce the chances of degradation of the material and ensure the bearing’s performance below extraordinarily high or low temperatures.

Weight considerations: Ceramics in hybrid bearings reduce weight without sacrificing strength, which could benefit high-speed applications.

Choosing the right bearing material is critical, as it determines whether the bearing will be able to meet operational requirements or demands. Good bearing material also extends a bearing’s efficiency and lifespan.

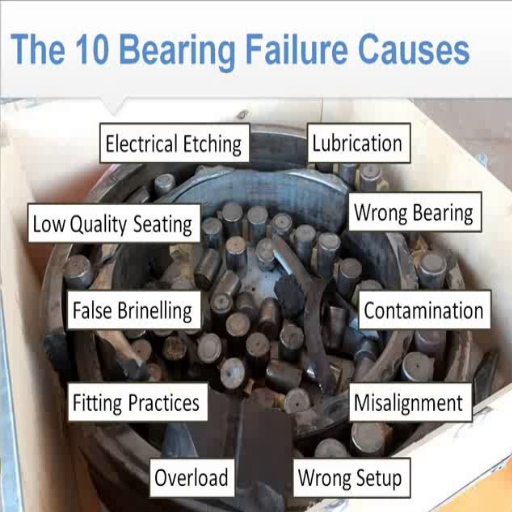

What are some common challenges in bearing maintenance?

How can proper lubrication practices extend bearing life?

It’s safe to say that all rolling bearings have a slender build and undergo a constant-wear process. So, what can bearing lubrication do to improve the performance of the bearings? Lubrication allows different rolling elements to roll off each other without friction and saves on dissipating heat caused by the rolling. Some key points to consider are:

What type of lubricant to pick- Depending on the speed and load of the application, either oil or grease could suffice the necessary viscosity required. E.g.:

• Slow operating speeds tend to require lubricants with a higher viscosity ratio.
• On the other hand, low-viscosity bearing lubricants are useful in high-speed operating conditions ((dN ratio is higher than 500,000)) to lower internal friction caused by fast movement.

Temperature—Depending on the bearing type, Different lubricants can work in multiple ranges. Broadly, there are two distinct categories of lubricants: high-temperature and low-temperature. For industrial applications, the average temperature that the lubricant allows is 120 degrees Celsius or higher.

Oil volume—Excessive bearing lubrication can increase heat generation due to excessive wear and tear. Conversely, inadequate lubrication could do more harm than good in the long run. Therefore, it is a requirement to adhere to the recommended levels specified by the manufacturers.

Re-lubrication intervals—Setting a schedule based on the machine’s working hours, speed, and conditions is essential. High-speed load applications usually require more frequent lubrication intervals.

Contamination—Whether dirt, dust, moisture, or any other form of contamination, the process and application should aim to eliminate it because it acts as a lubricant barrier, reducing effectiveness.

Intermeshing these processes and ensuring that the lubricant’s condition is in good standing to have maximum bearing in terms of reliability and longevity.

What are the signs of bearing failure, and how can they be prevented?

Early identification of bearing failure is essential to minimize the potential downtime and cost of repairs. Following are some of the most critical signs of deterioration and ways to prevent them:

Indicators of Bearing Failures:

Unusual Noise – Bearings should not be subjected to turning noise such as grinding, clicking, or squealing, as this indicates wear, misalignment, or contamination of the bearings.

Excessive Vibration—Vibrations tend to increase when there is excess vibration due to damage, wear, loose elements, or non-straight shafts. Vibration analysis can identify irregularities.

Elevated Temperature—There is a lack of proper lubrication or excessive load pressure, and the temperature constantly rises beyond the limit (for instance, 120 degrees Celsius or more in standard bearings).

Visible Damage—Some common signs that bearings become defective over time are cracks, pitting, or flaking on the bearing surface.

Lubricant Deterioration—Increasing temperature, discoloration, or debris in the lubricant suggests contamination or excessive friction.

Preventive Recommendations:

Correct Installation – Follow proper fits and mounting procedures to avoid high internal stresses during assembly.

Periodic Checks—Using an infrared thermometer and sensors, Define the official periodic inspection for noise, vibration, and heat.

Adequate Lubrication: Ensure that the total amount, positioning, or type of lubricant used is efficient and optimal at a specific temperature and speed.

Load Control – Avoid over-stressing the structure by not exceeding the component’s established dynamic load capacity (C) and limiting excessive radial or axial loads.

Pollution Prevention – Provide suitable gaskets and regularly clean the housings to prevent foreign materials, water, and other pollutants.

By reversing these circumstances and following maintenance guidelines, bearing degradation and life management could be tremendously enhanced, and smooth and better functionalities could be ensured.

How often should bearings be inspected and replaced?

Bearings are crucial components in machines and, as such, ought to be inspected regarding the operating conditions as well as the criticality of the application. In most standard industrial applications, the recommendations are to every five hundred to seven hundred hours of use or during routine maintenance schedules. High-speed or high-load applications may require such checks on a more regular basis.

Replacement intervals vary with the type of bearings used, the load they operate under, the viscosity of lubricant quality used, and the environment. On average, maintenance should occur whenever a bearing is nearing its L10 concerning life expected (the moment an identical bearing intends to have at least 90% still functioning).

Operating temperature: Maintain it within the copious range specific to the bearing type and lubricant.

Vibration levels: Use vibration sensors to measure them; higher than typical values indicate wear out or imbalance.

Lubrication quality: The amount is also essential, ensure that viscosity, contamination, and amount used is sufficient.

Adhering to such frequencies of inspection together with monitoring of the technical parameters to reduce the risk of downtime while getting the maximum bearing performance is possible.

Frequently Asked Questions (FAQs)

Q: What is the primary purpose of a bearing?

A: Bearing mainly provides support so that any part rotates or slides linearly with motion while delivering the load-bearing capacity to the part. A bearing is a mechanical component that allows two contact surfaces, generally in rotation or a shaft, and housing relative motion with each other with the least wear and energy consumption.

Q: How do bearings employ lubricant to perform their functions?

A: Bearings use lubricants to avoid wearing the moving parts, maintain a cool working temperature, and avoid rusting. The lubricant acts as a thin film layer between the bearing surfaces, enabling bearing rotation with lesser effort and improving the bearing life. Lubrication is one of the crucial aspects of a machine that lowers the wear and prevents contact between two moving surfaces.

Q: What are some typical bearings that are categorized under automotive bearings?

A: Automotive applications use various types of bearings, such as ball bearings, roller bearings, and tapered roller bearings. These bearings are used for wheels, transmissions, and engines. For example, wheel bearings assist in the rotation of the wheels, and tapered roller bearings are found in automotive differentials because they provide radial and thrust capacity.

Q: In what ways do bearings assist in the rotation of machinery components?

A: Bearings have a rotating component alongside a stationary housing. This alone aids in the machinery’s rotation, as the friction experienced is low. To assist with rotation, bearings have rolling elements, balls or rollers in some instances, and a thin film of lubricant in other sleeve bearings, which, when applied, frees rotation. Because they allow proper rotational movement, bearings increase power transfer and reduce energy across several mechanical and industrial fields.

Q: Are radial and thrust bearings the same, or is there a difference?

A: Radial bearings allow loads to be applied at an angle of 90 ˚ to the shaft’s axis, thereby allowing the shaft’s movement in the radial direction. Ball or cylindrical roller bearings are examples of this type of bearings. In contrast, thrust bearings support parallel loads or forces acting against the shaft. Rarely used roller thrust bearings are said to be more common in applications that are heavy-duty Duty Axial loads, such as a few components of automobiles.

Q: What is the role of bearings in machines regarding energy use and consumption?

A: Bearings help reduce energy losses by reducing friction in moving elements. With low-friction smooth rotation or linear motion functions, bearings help machines consume less energy to overcome inertial resistance. This efficiency leads to lower power requirements, reduced heat, and improved performance in various applications, from miniature devices to huge industrial apparatuses.

Q: What are the rolling bearing parts and their configurations?

A rolling bearing has the following parts: an outer ring, an inner ring, rolling elements (balls or rollers), and a cage. The outer ring is fixed into the housing, while the inner ring is typically mounted to a shaft set in rotation. Rolling elements are placed between the inner and outer rings, allowing them to rotate smoothly. A cage keeps rolling elements at an equal distance to minimize their contact.

Q: How does load support take place in different applications with bearings?

A: There are several ways through which bearings support the load based on the application and the type of bearing in use. For example, in cases where the radial bearing is implemented, the radial load is transferred to the shaft axis at an angle perpendicular to it. Still, the thrust bearing receives the axial load. Whereas some, such as tapered roller bearings, would be able to obtain axial and radial loads at the same time. The load-carrying capacity of the bearing is determined by its manufacture, construction, and dimension. In automotive wheels or Industrial bearings, for instance, bearings are essential parts that support the weight and working loads of equipment.
