How Ball Bearings Reduce Friction in Moving Parts

Friction is one of the most significant forces engineers must contend with when designing efficient mechanical systems. It causes energy loss, wear, and heat generation, directly affecting the performance and lifespan of moving components. This is where ball bearings come into play—an ingenious solution that has transformed the way machines operate. Ball bearings are not just ubiquitous in everything from bicycles to industrial machinery; they are fundamental to reducing friction and ensuring smooth motion. In this article, we’ll explore the science behind ball bearings, how they work to minimize friction, and the critical role they play in modern engineering.

What Are Ball Bearings and How Do They Function?

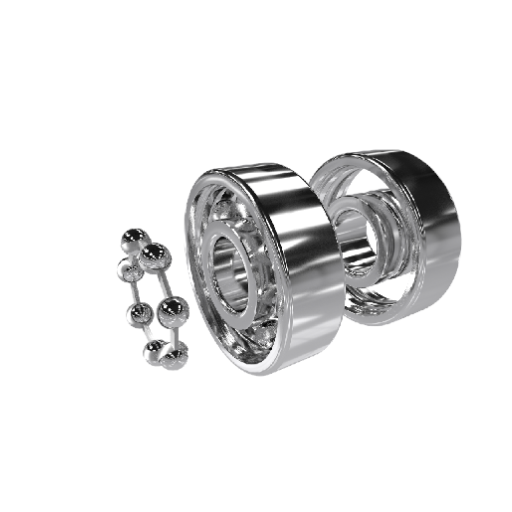

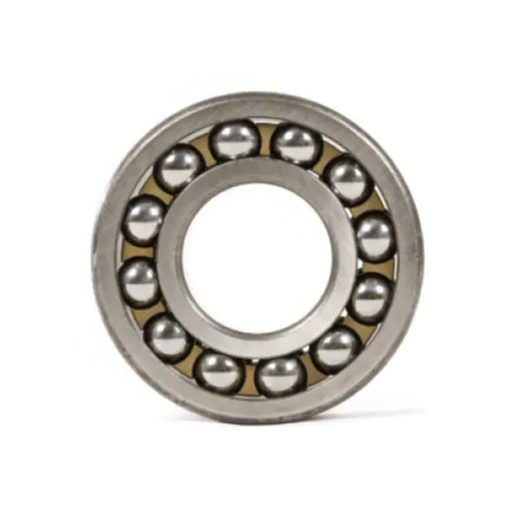

Understanding Ball Bearings and Their Components

Ball bearings are made skeletal aid in motion by carefully controlling the transference of force. Ball bearings are typically made out of four parts, these being: inner ring, outer ring, hardened steel/ceramic balls, and a cage or separator. The inner part, called the inner ring, and the outer part, the outer ring, are commonly composed of strudable materials such as chrome or stainless steel. Both serve as the raceways or tracks for the rolling elements. These rings have long contact surfaces which are smooth so that wear and friction rot is kept to a minimal level.

The balls themselves are the key to the bearing’s functionality. Friction is determined by the shape and the balls have a spherical shape which would greatly decrease the area of contact with the raceways when rotating. The cage that extemely spaces the balls apart allows smooth surfaces to be free from contact hence countering wear and noise related issues. With this setting, the bearings functions reache high performance while manage radial and axial loads depending on the design of the product.

Recent developments in ball bearing technology include the creation of hybrid bearings that use ceramic rolling elements. These bearings are lighter, more durable, and can withstand severe conditions, including high-speed and high-temperature environments. Furthermore, manufacturers have improved the lubrication techniques, often employing synthetic oils and advanced sealing methods to prolong the lifespan of ball bearings and reduce maintenance requirements. This confluence of engineering and design has made ball bearings crucial in many modern industries, including transportation and aerospace, which require precision and reliability.

The Role of Ball Bearings in Reducing Friction

Ball bearings have been designed to prevent loss of energy by friction caused between two moving parts. They turn sliding motion into rolling motion, which is less energy-consuming. The rolling elements, usually patterned in a circle within a raceway, allow the movement to be smooth and efficient while evenly distributing loads, limiting contact points, drag along the surface, and scrubbing of the surfaces. Research shows that ball bearings maintain minimal contact areas, achieving a remarkably low coefficient of friction, often less than 0.001 under optimal conditions.

Material science has markedly improved the ball bearings’ performance. Now they are made with high-grade stainless steel, ceramic, or hybrid materials to withstand all sorts of operational stresses. These changes greatly increased the durability, resistance to wear, and effectiveness of the bearings, especially in high-speed rotations. Moreover, the application of tight tolerances and optimized raceway geometries in precision engineering ensures that ball bearings will continue functioning perfectly under variable loads or high temperatures.

Also, new developments in lubrication techniques have made an important impact on the reduction of friction and wear. Today, ball bearings are most often subjected to synthetic lubricants with special additives that form protective surfaces that restrain contamination and oceanic currents. These procedures not only improve the system’s efficacy, but the system’s minimum operating life is also elevated, thereby enhancing productivity in aerospace, automotive, and manufacturing industries. Collectively, these technologies and engineering marvels increase the prominence of ball bearings in both the mitigation of energy waste and mechanical dependability in countless systems, ranging from vehicles and medical equipment to industrial machinery.

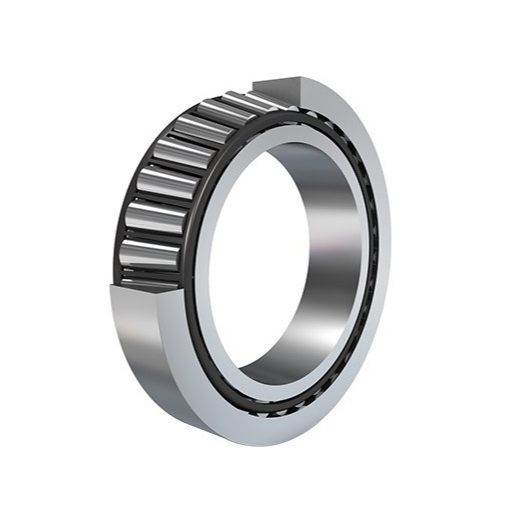

Ball Bearings Versus Roller Bearings

Each of the two types: ball bearings and roller bearings are used for different mechanical purposes. For example: Ball bearings use spherical rolling elements to lower friction and allow smooth movement while supporting both radial and axial load . Increasing speed and precision is easier with applications where there are high motors or aerospace equipment. However the load carrying capacity in comparison to roller bearing is relatively lower.

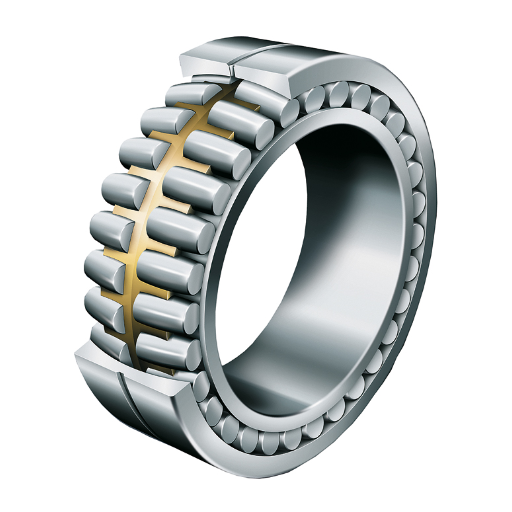

On the opposite end, roller bearings with cylindrical-shaped elements have a wider surface area for load distribution. This mechanism makes roller bearings better for applications using heavy radial loads moving at moderate speeds. Examples include: conveyor belts, heavy industrial machinery, and gearboxes. Roller bearings support greater durability and strength, but the larger surface area may create additional friction and heating when compared to ball bearings.

For optimizing the performance across various industries, both ball and roller bearings are improved with advancements in engineering and material science. Each type of bearing serves a purpose based on the specific rotating speed, load type and environment condition.

How Do Ball Bearings Reduce Friction in Machines?

The Science Behind Friction and Ball Bearings

The design of ball bearings allow for the usage of rolling motion instead of sliding motion which generates less friction energy. The spherical geometry of ball bearings also enables the load to be evenly distributed across the bearing’s inner and outer races.

The efficiency of ball bearings is further improved with the use of high-carbon chrome steel or ceramic due to their ability to withstand great stress while having low wear rates. In addition to those materials, oil or grease is added to the surface of the bearing to create a thin protective layer. This layer further reduces direct contact between metals and prevents excess heat from being generated.

Ball bearings also benefit from advancements in precision manufacturing. Ultra-fine machining and surface finishing, alongside other modern technologies, yield smoother surfaces that enhance reliability while rolling and improve overall dependability in varying conditions. All of these developments stress the importance ball bearings have in achieving smooth, optimized operation in mechanical systems.

Lubrication’s Role in Reducing Friction

Proper lubrication is essential for optimizing the life span and operational efficiency of any mechanical system by minimizing friction between moving parts. Furthermore, the application of a lubricant generates a thin film on the contact surfaces of different components, which reduces the actual contact area between the two pieces of hardware. This results in drastically lower friction coefficients. Reduction in metal contact not only prevents damage due to friction, but also substantially saves the heat produced by the operation within the components when maintaining thermal safety limits.

Modern lubricants are formulated with additives tailored to enhance performance under extreme temperature, pressure, or contamination. For instance, modern synthetic oils possess unparalleled thermal stability and a constant viscosity index over a wide range of operating conditions. In other cases, remaining solid like molybdenum disulfide or graphite are used as lubricants in vacuum environments and high temperature which fail liquid lube usability constraints.

Achieving the required outcomes relies heavily on the precise application of all lubricants. Reduced supervision and automatic lubrication application systems are gaining popularity in industrial contexts for exact relubrication of specific locations, further streamlining human input and minimizing waste. Alongside automatic condition monitoring systems, automation allowance real-time observation of lubrication levels, viscosity alteration, contaminant presence, and so forth, providing maintenance & enhancement whenever it is needed and freedom for mechanical systems to run without intervention.

Comparing Rolling Friction and Sliding Friction

Both rolling and sliding friction are limitations of resistance in mechanical systems, but differ in manner and effect on the work system’s performance and efficiency. Rolling friction happens when an object rolls over a surface, and the resistance is primarily because of deformation of the rolling object and the surface. It’s much lower than sliding friction because of shearing and the area of contact; it’s minimal. Energy loss on frictional interaction is less on rolling elements in bearings, and so one can observe greater efficiency.

Sliding friction occurs when two surfaces rub against each other. It is increased by surface material, its roughness, and the normal force. Because of surface contact area is greater, along with the energy required to overcome surface resistance being increased, more heat is generated. Increased heat production, along with a lack of lubrication, results in substantial wear and energy inefficiency.

One of the most prominent strides made in reducing sliding friction is through the application of specialized lubricants and coatings that penetrate surface irregularities and enhance material interactions. At the same time, rolling friction reduction focuses on modifying a material’s characteristics and surface features to minimize energy dissipation due to deformation. Both concepts are equally important in mechanical and industrial tasks, as the interplay between friction forces greatly affects the life cycle, energy usage, and efficiency of the mechanism.

Why Are Ball Bearings Essential in Moving Parts of a Machine?

Benefits of Using Ball Bearings in Machinery

Ball bearings provide low-friction solutions for both rotational and linear motion, which is why they serve as integral components in mechanical systems. Because of the nature of their design, ball bearings can reduce friction, wear, and overall resistance due to having less surface area in contact in comparison to the parts that are moving. As a consequence, less energy is consumed due to the motion, which promotes ‘energy efficiency’. Not to mention, ball bearings also mitigate the heat buildup while extending the operational life of machinery by reducing the destruction of material due to continuous motion.

Due to their capability of handling axial and radial loads at the same time, ball bearings excel above the rest. Components like turbines, engines, and even conveyors, which undergo constant stress, are further stabilized due to the dual capability of ball bearings to simultaneously absorb different forces. Precision manufacturing and advanced engineering practices focus on optimizing the design of ball bearings by applying grades of materials with high durability and low resistance to heavily applied workloads. Moreover, the existence of sealed or shielded bearing expansions protects against dust and moisture, unlike its predecessors.

The automotive, aerospace, and manufacturing sectors heavily depend on ball bearings to achieve rigorous performance and safety standards. As an example in automotive use, ball bearings improve vehicle fuel efficiency because they mitigate the friction in the drivetrain components. In aerospace, ball bearings facilitate stable operation of flight-critical systems under dire conditions. The incorporation of modern sealants and lubricants reduces maintenance, operating costs, and enhances performance. All of these things highlight the importance of ball bearings in achieving reliable and efficient high-performance machinery.

Increasing Efficiency and Performance of Machines

To increase the efficiency and performance of a machine, minimizing the dissipation of energy, wear and tear, and optimizing the operation is critical. The implementation of advanced materials and coatings for important components is an example of one good practice. For example, low friction coatings and lightweight composites fuel energy efficiency since moving parts have less resistance and exert less energy.

Another important aspect is the use of predictive maintenance with the aid of sensors and data analysis, which allows for real-time monitoring of machinery’s condition. Maintenance gives room for predictive analysis to limit possible failures beforehand, thus extending equipment lifespan while reducing downtime. Also, parts or equipment to be serviced are removed or repaired when needed, thus avoiding maintenance cycles or unplanned breakdowns that would hinder performance.

Utilizing intelligent automation and control systems also aids with efficient and reliable outcomes. Devices such as PLCs (programmable logic controllers) and AI-powered software optimize machine operations by dynamically recalibrating them relative to the environmental and workload conditions actively. These systems increase resource utilization and reduce human error, thus improving productivity and machine performance.

How Do Ball Bearings Help in High-Speed Applications?

Handling High Speeds and Loads with Ball Bearings

Ball bearings are essential in effective high-speed functioning due to their precise construction that allows them to handle large radial and axial loads with limited friction. Ball bearings are made of tough chrome steel or ceramic, which can withstand extreme operational stress and high rotational speeds. The contact between bearing’s rolling elements and the raceways is practically non-existent, ensuring that there is no thermal buildup, enabling smooth energy transfer, er which is vital in turbines, engines, and electric motors.

Precision-grade surface finishes, along with optimized geometries in modern wax and oil lubricated ball bearings, assist in reducing friction, vibration, and noise for smooth functioning at greater rpm values. Improved thermal stability ensures that wear and overheating are minimized during operation. The use of synthetic greases and oils assists in maintaining the functionality of the bearing under the most challenging conditions. The combination of oil-based lubricants and synthetic greases with modern surface engineering in ball bearings reduces the operating range for enhanced rpm values.

Also, advances in sealing methods like non-contact seals or shield designs further aid in protecting the bearings from contaminants, for dust, particles, or water. These characteristics guarantee extended lifespan and stable operation even under severe conditions. Ball bearings continue to best serve the great dependability, effectiveness, and strength in situations of intense weight, speed, and movement through the use of high-grade elements, modern manufacturing processes, sophisticated lubrication technologies, and reliable, efficient, innovative mechanics.

Design Features of Ball Bearings for High-Speed Use

The design of high-speed ball bearings seeks to deliver maximum efficiency and reliability as they operate under specific and extreme conditions. The following noteworthy features allow these bearings to overcome challenges like elevated rotational speeds, thermal strains, and dynamic loads:

• Material Selection: High-speed bearings are commonly made from materials with hybrid ceramics, which include silicon nitride rolling elements and steel races. During rotation, low ceramic materials possess centrifugal forces are present due to possessing greater thermal endurance and wear resistance.
• Optimized Geometry: The internal bone structure of high-speed ball bearings is manufactured to control the heat and friction generated. Grade manufacturing is set to precision class, enforcing tight clearance fits and uniform polish to surfaces, which enhances rotational precision while lowering vibration.
• Advanced Lubrication Systems: In high-speed situations, specially tailored lubricants like high-viscosity synthetic oils or grease fortified with low-volatility additives are most effective because of high temperatures and powerful centrifugal forces.
• Enhanced Cage Design: The cage or retainer assembly confines the rolling elements to prevent them from turning excessively to limit friction and heat. In high-speed applications, structural polymers or brass are machined to form low-weight cages that greatly improve lubricant and heat elimination.
• Thermal Management Solutions: Advanced venting configurations or external cooling systems increase thermal control. Proper thermal management ensures reliable operation at set speeds while preventing premature bearing failure. In the case of high-speed bearings, both active and passive cooling systems are employed.
• Preloading Techniques: Controlled preload within high-speed ball bearings increases structural rigidity and minimizes axial play to enhance load distribution and stability during rapid rotation. While these preloads must optimize behavior, excess bearing component deformation due to preloaded stresses must be avoided.

These custom features enable high-speed ball bearings to attain unrivaled precision alongside prolonged operational life, catering to the most advanced industrial applications such as aerospace propulsion systems, CNC machinery, and medical imaging devices.

Importance of Precision and Balance

The efficiency, safety, and reliability of high-speed ball bearings are critically impacted by low tolerance precision and balance. Precision is the accuracy with which parts are produced and the tolerance ranges that could create uneven load distribution, increase wear, vibration, and erosion over time. These energetic losses and wear consume the machine’s rotor energy is termed energy loss, and promote its smooth operation even in demanding regimes.

High-speed application requires extreme focus towards Balance, considering the force asymmetries high of the bearing’s construction will exert on the components. These forces extend beyond what is deemed acceptable. For instance, imbalance shaft misalignment can lead to exponential escalations in mechanical failure risk. Therefore, to counter these effects, suggestive dynamics are used, the dovetailing spherical mass balancing techniques during mass rotation, which minimizes the effect of bearing mass centroid on bearing rotation.

Every industry is experiencing an augmented speed of machine complexity, predominantly driven by technological systems, dependability on systems that enable continued rotation at precise balance, enduring extreme forces, precision differentiating between energy loss and consumption precision.

What Are the Best Practices for Maintaining Ball Bearings?

Routine Inspection and Maintenance of Ball Bearings

To fulfill industrial uses, routine maintenance should always start with keeping track of wear indicators such as unusual noises, heightened vibrations, and abnormal temperature increases, which may suggest overheating and misalignment. While these are already alarming, the routine check-up is already too late as it requires the bearing to be clean of dust and filth, which in turn, demands additional bearings to avoid being the sole victim of premature wear and tear. Note also that having bearings cleaned and damaged parts removed at set intervals, along with contamination prevention, goes a long way in slowing the rate of bearing damage over time.

Having sufficient lubricant for the moving parts is mandatory for accomplishing the task of maintenance. Balancing grease or oil ratios is to ensure that there is bound motion between surfaces and unrestricted motion at elevated speeds. While not optimal, the lack of grease still aggravates the deterioration of the bearing. Without optimal lubrication, moving parts begin to operate at a blistering pace and wear out in no time, The chosen lubricant should match the type of load-bearing, motion speed, and surrounding temperature. Keeping these hostile moving molecules from damaging the integrity of a bearing also requires ensuring that the seals in charge of preventing these substances are strong.

During maintenance, advanced techniques enabling bearings to be evaluated in real-time like vibration analysis and thermal imaging should be employed to assist people in recording bearings work goals within their set deadlines while enabling them to foresee arising issues. Doing so drastically reduces idle time rectifying avoidable technical failures. Following clear technical guidance while keeping meticulous servicing snapshots will allow ball and roller bearings to outlast their set life expectancies.

Common Issues and Troubleshooting Tips

When it comes to ball bearings, several common performance and reliability issues may occur. For example, a common bearing issue associated with increased friction, heating, and ultimately, bearing failure, is improper lubrication.

Another issue is the contamination that occurs when foreign particles such as dirt, moisture, and debris invade the bearing. These harmful substances can damage the surface or cause corrosion which shortens the lifespan of the bearing. This can be solved by ensuring that maintenance and installation are done in a clean environment and using effective sealing methods to avoid contaminant penetration.

Weak alignment is another issue of note that can result in uneven load distribution. This, in turn, is likely to contribute to premature wear or deformation of the bearing. To avoid this issue, proper installation methods and frequent routine alignment checks must be applied in addition to accurate installation. Overloading the bearing is likely to cause deformation or material fatigue.

For regular monitoring of the system, problem detection is essential. Condition monitoring involves integrating various techniques such as analyzing vibrations to check for an imbalance and thermal imaging to check if temperatures are not above or below average. Routine maintenance enables early detection of system failure which helps in reducing outages during operations.

Understanding the common challenges and addressing them in advance goes a long way towards ensuring that ball bearings remain operational for prolonged periods without wear or damage and remain effective when under high levels of stress.

Ensuring Longevity with Proper Lubrication

Appropriate maintenance is crucial to enhance the function and increase the lifespan of ball bearings; the correct lubrication will do just that. Lubrication eliminates friction, aids in temperature regulation, and mitigates wear. For each case and each application, grease or oil, depending on the working temperature, operational speed, and load requirement, needs to be chosen. Inversely correlating with viscosity, lighter oils tend to flow better at high temperatures, so high-speed applications can use them safely. On the other hand, systems that are under heavy load tend to need high-viscosity greases for proper film strength.

To meet the dynamic changes in the environment, operational intensity, and level of contaminants, the pre-set lubrication schedule needs to be customized. The lubricants pose a bigger risk to themselves in the form of dirt, water, and chemicals since these can tend to erode the protective mechanisms over time. These seals can also be used in a much robust external sealing system that can help mitigate these problems.

Sophisticated synthetic oils with specialized additives new in the market offers enhanced thermal stability and longer service life. Self-operating lubrication systems ensure that vital parts receive consistent lubrication with minimum human input, thereby reducing the chances of manual errors common in routine lubrication.

Monitoring the condition of lubricants through methods like spectrographic analysis and particle count testing offers immediate feedback on bearing performance. Operators can mitigate the chances of bearing failure while improving overall equipment reliability and cost efficiency by adopting modern lubrication techniques along with these approaches.

Frequently Asked Questions (FAQs)

Q: How do ball bearings help to reduce friction in moving parts?

A: Ball bearings help to reduce friction by providing a rolling contact instead of a sliding one. This reduces the frictional resistance between the moving parts, allowing for smoother movement and less wear.

Q: Why are ball bearings often used in machinery?

A: Ball bearings are often used in machinery because they are designed to reduce friction between moving parts, improving efficiency and extending the lifespan of the equipment.

Q: What is the difference between ball and roller bearings?

A: The main difference is in the shape of the rolling elements; ball bearings use spherical balls, while roller bearings use cylindrical rollers. Ball bearings are used for lighter loads, while roller bearings are suited for heavier loads.

Q: How does the design of bearing races affect performance?

A: Bearing races are designed to reduce friction between the balls and the races by providing a smooth path for the balls to roll, minimizing friction and wear.

Q: What is the role of the point of contact in ball bearings?

A: The point of contact in ball bearings is crucial as it determines the load distribution. A smaller point of contact, typical in ball bearings, reduces friction and can handle radial and axial loads efficiently.

Q: What are deep groove ball bearings, and when are they used?

A: Deep groove ball bearings are designed to handle both radial and axial loads, making them versatile for various applications where reduced friction and high speed are required.

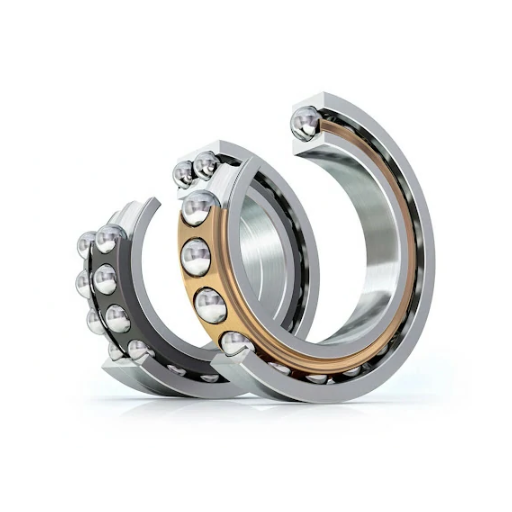

Q: How do angular contact ball bearings differ from other types?

A: Angular contact ball bearings are designed to handle combined loads (axial and radial) due to their angled contact points, making them suitable for applications requiring precision and high-speed performance.

Q: What is meant by sliding friction with rolling friction?

A: Sliding friction occurs when two surfaces slide against each other, while rolling friction involves rolling elements like balls or rollers. Ball bearings reduce friction by converting sliding friction into rolling friction, which requires less force.

Q: Why is a lower coefficient of friction important in bearings?

A: A lower coefficient of friction in bearings is important because it indicates less resistance to motion, leading to reduced energy consumption, less heat generation, and improved efficiency.

Q: How do bearings reduce friction by providing support?

A: Bearings reduce friction by providing support through their rolling elements, which distribute the load evenly across the bearing races, minimizing direct contact and reducing wear and tear.
