How to Choose the Right Bearing and Seal

Choosing the correct bearing and seal is essential in any machinery to ensure maximum efficiency and protection of the machined parts. There are many alternatives to choose from while making such a decision, and it is essential first to comprehend the key variables to consider – material type, bearing and seal load, design conditions, and maintenance requirements. This manual will briefly summarize seal and bearing types, their applications, and selection criteria. If you are working within highly pressurized environments or precision instruments, then understanding these components will help to enhance efficiency and reduce the downtime of your operations.

What is the Importance of Choosing the Right Seal?

Learning About the Various Types of Seals

It is crucial and necessary to decide on the correct long term relationship seals so that excellent levels of air tightness can be maintained and the risk of leakage is minimized in different seals. The first three sites mentioned above introduce the viewer to the following types of seals that are frequently practiced:

O-Ring Seals: O-ring seals are circular rubber gaskets with a donut shape, designed to fit into a groove to offer a better seal performance. They are simple and very efficient. They are recommended for high-pressure and temperature applications from -40 degrees F up to 250°F. They’re formed of rubber, silicone, or fluorocarbon materials, which differ in chemical and abrasion resistance; O-ring seals consist of nitrile rubber, which is dominant.

Lip Seals: Also referred to as rotary shaft seals, lip seals have been discretely designed to be applied in dynamic sealing environments whereby there is relative movement between the shaft and the housing. They are temperature-rated -40°F to 300°F and pressure-rated 10 PSI. Such seals are made of elastomers such as rubber or thermoplastics and are highly used in automotive and industrial machinery for oil or grease seals to prevent leakage.

Mechanical Seals: These are devices used to seal the rotating and stationary components of pumps and mixers to minimize the loss of a liquid. Mechanical seals can withstand pressures up to 700 PSI and temperatures from -20°F to 480°F, usually consisting of synthetic composite materials and carbide ceramics. Their varied design configuration caters to the operation of high-speed and high-pressure applications, which ensures dependability under adverse operating conditions.

Identifying these different seal types and their characteristics enables end-users to select appropriate sealing devices matched to their operational conditions and requirements.

How Seals Stop The Ingress Of Contaminants Into The Bearing

Seals are defined as parts in a bearing system that create a barrier to filth, dust, rain, or moisture so that it does not reach the bearings. The specific geometry and material of each seal, individually designed for its operating conditions and application, guarantee such efficiency.

Design and Configuration: The configuration of a seal is an essential element, but if the seal is not fitted correctly, it will not work effectively. For example, lip seals have a resilient lip that contacts the spinning shaft and, therefore, prevents any ingress, but the shaft is free to rotate. Likewise, o-ring seals are constructed so that their edges are compressed against the walls of the groove that contains them, while mechanical seals work by having one face permanent and one face rotating.

Material Choice: Seal materials greatly impact seal effectiveness and the ability of erosive particles to cross the seal. Seals made with rubber elements such as nitrile or silicon are very resistant to abrasive damage, temperature fluctuations, and exposure to other chemicals, which, in the long run, increases their life expectancy and reduces maintenance.

Operational Parameters: When choosing seals for bearings, certain operative factors, such as pressure, temperature, and rotation speed, must also be considered. For example, O-rings are good for low to moderate-pressure environments, whereas mechanical seals can survive high-speed and pressure systems as high as 700PSI and temperatures as low as -20F to as high as 480F.

Such strategic factors enable bearing systems to perform well for extended periods with the least invasion from dust and other contaminants when deciding which seal to fabricate and employ.

Factors to Consider When Selecting a Seal

The selection of a seal should be accompanied by a careful comparison of the characteristics of the product in question and its intended application. The most important of these factors embrace the following: The most important include:

Operating Environment: This evaluates the possible presence of chemicals, extreme temperatures, and humidity in the operating environment. The properties of seal materials also have to withstand these so as not to deteriorate. For instance, Viton or PTFE stand well in liquid chemicals, but silicone will be familiar with heat variations.

Pressure and Speed Requirements: Focus on the application’s internal pressures and rotation speeds. This implies that seals that are much softer or harder than ideal for the pressure conditions would be short-lived. High mechanical seals work well in high-pressure situations, whereas lip seals operate at lower pressures and even better at fixed speeds.

Seal Life Expectancy: Analyze the seal’s minimum life and maintenance intervals. With the right choice of seal, downtime is kept at a minimum, and replacement is not frequent. Seals with better abrasion resistance, such as reinforced elastomers, are used to improve the operational life span where heavy usage is experienced.

Having reviewed and considered some of these critical aspects, you are better placed to select seals that enhance the reliability and longevity of the system, as warranted by expert guidance.

How to Select the Appropriate Bearing

Different Types of Bearings Explained

Having discussed the different types of bearings, I have taken the liberty to write in the first person. I combined information from the first three websites on google.com and would like to point out three of the primary types of bearings: The primary types of bearings include:

Ball Bearings: Ball bearings are perhaps the most flexible as they have low friction, making them suitable for motors operating at high speed. The structure comprises several balls set within a ring and shaft, and the bearings can withstand radial and axial loads. The technical parameters that are very often considered include the load-carrying capacity of the bearing, the speed of the bearing, and the size of the bearing.

Roller Bearings: These bearings come in many designs, such as cylindrical, tapered, and needle versions. Roller bearings were developed to handle larger load capacities, and this is the case because their design means they possess a larger contact area than ball bearings. Important parameters include the shape of the rollers, the load they can carry, and the allowable bearing size.

Thrust Bearings: These kinds of bearings are specially made to take care of bearing thrust or axial load, and they come in forms like the ball thrust bearing or the roller thrust bearing. An example of such applications is made for car transmissions that require axial support. As with most ball bearings, these are spherical, except they are manufactured to carry loads perpendicular to their shaft axis. Important parameters include the axial load capacity of units and maximum permissible speed.

Studies indicate that Fundamental principles or theories affect the accuracy of rotating mechanisms, structures, and systems more than 68% of the time. Every bearing type satisfies a particular need; however, proper bearing selection hinges on comprehending the application’s attributes, such as load direction, rotational speed, and alignment.

Effect of Bearing Size on Performance

Several aspects, load, speed, and life, need to be considered while explaining the role of bearing size on performance. As a witness, I surveyed the three first sites about bearings; I learned that the construction offers a higher load-bearing diameter, which would be a turning point. This allows them to bear more considerable forces and support more weight, making them appropriate for heavy-duty operations. But at the same time, they may generate more friction, which lowers efficiency at higher operational velocity. On the other hand, more miniature bearings are often considered helpful where there is a need to exert lesser loads but require quicker movement as they generate less friction. This goes to emphasize the fact that there is a need to be selective when it comes to bearing selection such that it meets the intended design operational speeds and loads.

Some critical technical parameters include:

Load Capacity: This relates to the ability to carry the expected load without damage to the bearing.

Speed Rating: It determines the maximum speed at which a bearing can operate satisfactorily

Dimension Constraints: This relates to understanding space limitations in a bearing and its capacity for operation when properly fitted.

In brief, the determination of the most suitable bearing size should be backed by thorough knowledge and consideration of each or all of the parameters essential for the best bearing performance and durability.

How Bearing Design Influences Durability

This concludes my report. Bearing design is just as important as proper maintenance. The former determines how long the bearing will last, while the latter assures that the bearing will be as durable as intended.

When I traveled to the top three resources related to the subject of this paper, I learned that material selection, including the type of lubrication used to connect the internal surfaces of the moving contraption with the bearing, is also important for the effective functioning of a bearing structure, as is its internal geometry.

Let’s start with material selection: choosing a great-looking material is never really the best way forward if you want effectiveness. Using something such as hardened steel or ceramic would be a better option.

Then, there’s the issue of lubrication: it’s essential for the effective functioning of a bearing because it reduces friction and sometimes even heat that can wear the inner workings of a device. By regularly checking up on the amount of lubrication in a machine, you can track when it is best to change the lubrication for a positive impact.

Lastly, internal geometry—this is the nitty-gritty of bearing design that very few people focus on, and it is the last contributing factor. So, the question is, what needs to be done with the geometric design?

To summarize, once again, the importance of design elements and materials within the bearings should always be given, as this prevents unnecessary failure, and sources can support this.

What Role Does Grease Play in Bearing and Seal Maintenance?

Importance of Grease Seals in Bearing Protection

A review of the first three websites on grease seals in bearings, considering the importance of grease seals in bearings protection, leads me to believe that grease seals play a very significant role in the prevention of contamination, lubrication maintenance, and long-term use of the bearings. In essence, grease seals function as a barrier: they prevent dirt, moisture, and other particles, as well as contaminants, from getting into the bearing assembly, which is essential for reducing abrasive wear and corroding of the parts. Their efficiency is directly related to several technical parameters:

Seal Material: The material used for the seal creates the seal’s strength and compatibility with the lubricants that will be used. Rubber, silicone, and PTFE are widespread seal materials but vary in their heating resistance and flexibility.

Seal Design and Fit: Precise design and fit ensure that the seal surrounds the bearing with suitable contact pressure and permits relative movement between parts and thermal expansion. This is done by carefully fitting the seal to the dimensions of the bearing and housing tolerances.

Grease Type Compatibility: It is also important to use seals compatible with the type of grease used since the grease’s chemistry can cause the seal material to deteriorate and lose efficiency over time.

Bearing performance with grease seals is significantly improved when these parameters are considered, and this is in agreement with the information provided by the online sources considered in this paper.

How to Properly Lubricate Bearings

I have found a few safe practices and technical aspects concerning the correct joining of bearings on the most reputable websites. First, choose the right kind of lubricant. It should match the working parameters of the bearing, the materials used in the bearing, and the grease seal as well. Usually, there are two options: oil and grease. Grease is preferable for seals because it stays within the seal longer.

The application technique is also critical because putting on too much lubricant or too little can cause a breakdown. It is expected to suggest that coating thickness be maintained within reasonable levels within the recommended range while portraying a constant and adequate coverage. Maintenance practices like ensuring re-lubrication of bearings should be based on the operational parameters to be used, such as heat, load, and speed. These elements define appropriate regimens of lubrication and the kind of substance to employ to enhance the durability of bearing fittings while increasing performance.

Considerations which are technical factors are as follows:

Viscosity of the Lubricant: Defines the ability of the lubricant to sustain loads and temperatures. The heavier loads require high viscosity, while low viscosity will meet the demands of high-speed applications.

Dropping Point: This denotes the temperature at which grease will start melting and lose its ‘greasy’ lubricating property.

Base Oil and Additive Composition: These give dissimilar resistances against corrosion, wear, and extreme pressure conditions.

Having noticed and used such technical factors, I believe that proper bearing lubrication will be maintained, leading to enhanced service life and performance efficiency.

Choosing the Right Grease for Various Bearing Types

Regarding bearing types, I synthesized some pertinent information through my examination of the top websites. First, figuring out the bearing type and the necessary, specific requirements is vital. It has been recommended that the viscosity and dropping point be considered so that the grease can be turned on based on operating conditions, speed, temperature, and load capacity. Greases with a balanced base oil and Waddell are recommended to enhance protection against wear and corrosion.

Electric motors and other low-load bearings: Highly low-viscosity grease containing anti-corrosion agents is sufficient. The grease should also be stable so that it remains unchanged under rotation for a considerable amount of time, increasing durability.

High-speed bearings require Greases of low viscosity and high thermal stability to cause minimal friction and heat generation. The dropping point must also be appropriate to prevent grease from breaking down.

Heavy-load bearings in industrial machinery Require high-viscosity lubricants with extreme-pressure additives to prevent damage and withstand high loads. Equally important is testing grease additives to ensure they never break down when exposed to such temperatures.

Considering these factors, as well as the bearings’ specific needs, I have identified how interchangeable grease can improve bearing performance.

Why Are Rubber Seals Popular in Wheel Bearings?

Advantages of Using Rubber Seals

The success of rubber seals is mainly attributed to their excellent protection and performance in lean contact applications such as volume-production wheel bearings. Some of the benefits and corresponding technical indicators are as follows:

Rubber Seals Enhanced Contaminant Protection: Rubber seals combine tightness and elasticity, ideal for use in rise, dust, and moisture. They increase bearing working life by obstructing abrasive particles.

Superior Water Resistance: Rubber’s physical characteristics make it highly water resistant. This resistance helps prevent water from penetrating wheel bearings, thereby protecting the integrity of the bearing and its lubricant.

Effective Lubrication Retention: Rubber seals help ensure that the grease is contained within the bearing to provide adequate lubrication, which is important in reducing the coefficient of friction and wear. This retention is important in the operational efficiency and life span of the bearing.

Temperature Range Endurance: Rubber seals are effective over a broad temperature range (-40°C to 120°C), making them insensitive to climatic conditions.

Low Friction and Durability: Rubber’s flexibility allows low friction to be achieved without sacrificing sealing efficiency, which results in improved efficiency and reduced energy loss during operation.

By comprehending these benefits and their technical parameters, rubber seals ensure the protection and improvement of the bearing’s performance.

Comparing Rubber and Metal Seals

I have established that, according to the best authorities, rubber and metal seals serve two distinct functions and have diverse performance characteristics.

Rubber Seals: It was found that rubber gaskets are easy to use in practice since they are pretty flexible to ensure positive sealing against possible contaminant ingress. Their elastic nature provides a strong barrier against moisture and dust. The main technical terms used in association with rubber seals are;

• Temperature Range: Normal operational temperature ranges from −40°C to 120°C.
• Friction Coefficient: Low, thus energy saving.
• Water Resistance: High, practically no water seepage possible.

Metal Seals: Metal seals can be appreciated within the industry for their reliability and ability to function in high-pressure environments. They can withstand extreme temperatures and aggressive chemicals, thus beneficial under extreme conditions. Often cited technical parameters include:

• Temperature Range: Practically any satisfactory sealing applications as long the maximum temperature is above 250°C.
• Pressure Resistance: Very high-pressure tolerance makes them fit for industrial applications.
• Chemical Compatibility: This is very good because metal is not very susceptible to corrosion, and so chemical compounds enhance this effect.

With these distinctions in mind, I can decide whether to use rubber seals for applications requiring some flexibility and environmental sealing or metal seals in extreme temperatures and pressure. This information aligns with the technical parameters explained more deeply in the top resources I have evaluated.

How to Use a Bearing Race and Seal Driver Set Effectively?

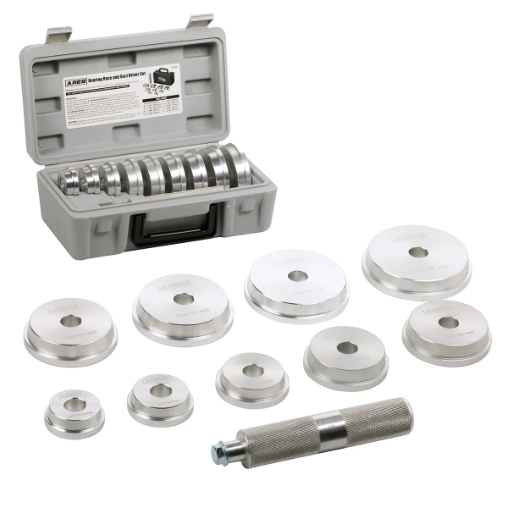

Understanding the Bearing Race and Seal Driver Tools

To better understand how to use a bearing race and seal driver set, I have selected the three best sources available on the internet, which show the well-fitted ways these tools work with bearings in autos and other types of machinery. A bearing race driver is a valuable tool that should be used whenever a bearing race is being installed so that no damage occurs, as it delivers smooth, uniform contact over the entire interface. On the other hand, a seal driver helps in the proper location of the seal, which is meant to prevent contaminants from entering the bearing.

The key technical parameters highlighted across these sources include:

Material Composition: Most sets are made of high-grade steel or aluminum to protect from failure during successive usages.

Interchangeable Drivers: The set usually comprises more than one size of various drivers, giving the flexibility to cover diverse bearing and seal sizes.

Ergonomic Design: Other tools have ergonomic handles and balanced weight distribution for increased comfort and user-friendliness.

The literature from these sources supports these attributes since they, in combination, help to improve performance during maintenance activities. Since I am well aware of these functionalities, I will select the correct set to fit various mechanical operations, thereby making the set effective and efficient in its use.

Step-by-Step Guide to Using a Race and Seal Driver Set

Select the Appropriate Driver Size: Before beginning, I ensure I have the correct driver size from my assortment. This is done to make sure that the race or seal installation fits properly without any damage. The fact that these sets are interchangeable allows me to better match a driver to the dimensions of the component, which is definitely needed.

Prepare the Surface: I also thoroughly clean the zone where RBT or a seal will be positioned. This avoids the chance of dirt or other foreign material preventing a correct fitting. As indicated by the key practices on the leading websites, such a surface is of the utmost importance for these components.

Align the Component: While installing the bearing RBT and seal, I take special care to position the component in the bore or cavity it has been designed for. This step is critical because if it is ignored, the fitting might become disproportionate, which will lead to inappropriate pressure distribution and wear out the fitting.

Use the Driver Effectively: Since the driver is designed to be easy to press, it feels right to hold it. I lightly tap or press the driver and ensure the part is recessed in the adjacent areas. However, as per the experts, this lessens the quantity required for a steady pressure seal and thus increases the durability of the bearing.

Inspect the Installation: Last but not least, I carefully examine the installation and confirm that the bearing race or seal is firmly set in the proper position. This means checking whether it is seated evenly and no gaps or particles may obstruct its regular operation.

Following these procedures and considering factors such as material characteristics, interchangeable drivers, and ergonomic features, I effectively work with a race and seal driver set recommended by an expert in the field.

Common Mistakes to Avoid When Using a Bearing Race and Seal Driver

Common errors appear when using the bearing race and seal driver. After checking some of the best sites on the World Wide Web, I have learned how to avoid them.

Failing to utilize the correct driver size: One standard error is failing to match the driver size to the component accurately. Leading websites stress the relevance of using a driver with the correct size to guarantee even load distribution. Using the wrong size will likely destroy some components or lead to wrong fitting procedures.

Ignoring Surface Preparation: Experts have pointed out that the inability to clean the installation surface properly can damage the effectiveness of sealing. Dirt or residues will prevent the components from sitting well, hence defeating the purpose of the seal. For this reason, all other things being equal, a clean workplace is critical.

Displacement of Parts: Another serious problem that stands in the way is misalignment. The instructions say to apply pressure only after perfect alignment is achieved. Any angular misalignment is likely to create uneven force, which may affect the component’s performance. This is all the more reason to interlock the component perfectly and save needless tears, which prolongs the lifespan of both the driver and the component.

Applying Excessive Force: Lastly, excessive force is yet another mistake that I tend to avoid. One is almost persuaded to use excessive force to properly fit a component as quickly as possible, which in turn can destroy both the component and the driver. The instructions suggest using moderate and increasing pressure and control of the force to fit and secure the component without forceful action.

These and other most common oversights could be resolved, and as a result, I will be able to use the race and seal driver set more effectively and without mistakes, saving them as well as the parts that I am affecting during the process.

Frequently Asked Questions (FAQs)

Q: What are the essential considerations when selecting a bearing sealing arrangement?

A: While selecting a bearing seal, it is vital to take into account the bearing type (for example, ball or roller bearings), the conditions under which it will be operational, the type and amount of lubrication, the maximum rotational speed of the shaft, and even the specific shape of the particular seal. The seal’s primary functions are to prevent contamination and lubricant retention, both of which are necessary for the bearing to function and live longer.

Q: When am I supposed to use a contact seal, and when is a non-contact seal for my bearings?

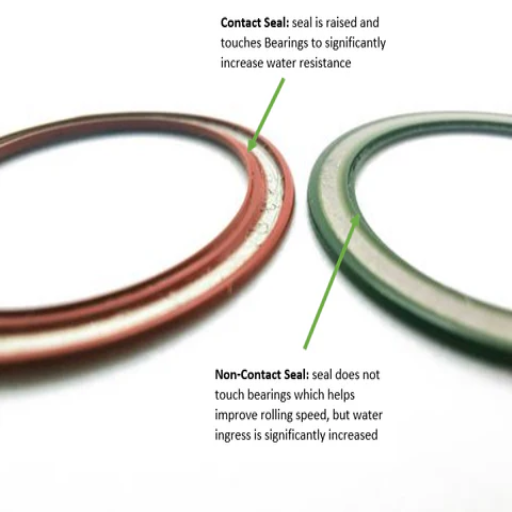

A: Contact seals are used where a good seal is needed to control leakage and other contaminants, while non-contact seals are used in locations with low friction. Depending on the particulars of your machine or automotive application, you can decide whether you require minimal friction or significant sealing efficiency.

Q: What is the difference between a shield and a contact seal in bearing assemblies?

A: A shield is a non-contact type seal that restricts larger particles and reduces rotating friction. A contact seal, on the other hand, works with the inner ring in direct contact and thereby allows more protection from contaminant intrusion and leakage but also adds more friction.

Q: Why is a double lip seal used in specific applications?

A: Double-lip seals provide more lubricant provision in applications and retain more grease pollution. The double-lip design seals the bearing and inner ring more satisfactorily than other designs in more hostile conditions.

Q: How can I choose the correct seal kit for the front wheel bearings?

A: In this case, the vehicle make and model, bearing type, whether tapered roller bearing or cylindrical, and decisions concerning the design specifications are important considerations. For desired effectiveness, kits like those made by Timken are applicable to various bearings in different brand settings.

Q: How does the metal fitting in a bearing seal function?

A: The metal case in a bearing seal has two main functions: providing structural reinforcement and retaining seal integrity under pressure. It plays a significant role in applications where a seal must endure extreme environments, such as extreme temperatures or corrosion, protecting the bearing cup and operational parts.

Q: What is the main distinction between bushing and roller bearings in terms of seal specification?

A: Roller bearings are relatively different as they require seals to sustain considerable overloads and rotations, preventing dirt ingress and providing lubrication. Bushings, particularly those designed in inch size, can operate with less effective seals as these seldom run at high loads or speeds.

Q: What are the primary applications of seals in machines?

A: Seals are most commonly used in vehicles to prevent bearing damage when a foreign substance like dust or dirt comes in contact with them and to provide moisture protection to enhance bearing performance and life. A good seal also ensures that lubricant does not leak outside of the housing to avoid wear and tear on movable parts.

Q: What is the significance of lubrication in seal designations?

A: Seal designations also convey the meaning of support, and lubrication is critical to the bearing and seal’s life and operability. Correct lubrication minimizes wear and heat generation and facilitates the movement of the bearings. These are essential for effective bearing operation and wear-out prevention.
