How to Prevent Motor Bearing Failure in Systems

Several mechanical and electrical devices employ motor bearings. These components are directly related to the system’s performance, efficiency, and durability. Improper maintenance, on the other hand, is a precursor to bearing failures, which in turn can result in expensive repairs, unnecessary interruptions, and loss of system reliability. In this context, the present paper assesses motor bearing failure mechanisms and offers suggestions for failure prevention. The paper aims to assist technicians and operators in understanding the different bearing wear, damage stress, and operating factors in maintaining, monitoring, and optimizing the systems. In this case, the objective is to mitigate the risk of unexpected breakdowns while extending the life of the motor bearings to improve the operating efficiency of motor systems. These cutting-edge insights offered here help plan maintenance activities in the complete control of large industrial machines and smaller mechanical units.

What Are the Common Causes of Motor Bearing Failure?

Causes of Motor Bearing Failure Primarily

Motor bearing failures can arise due to many issues, but some of the most common include the following:

Lubrication issues: One of the most notable factors causing bearing failure is inefficient or incorrect lubrication. Bearings need a specific amount and type of lubricating hair to operate effectively. On the contrary, over-lubrication can lead to a condition referred to as grease churning, while under-lubrication will increase wear and tear due to friction. For bearings to work efficiently, applying lubrication of proper viscosity and quantity at adequate intervals is crucial.

” Contamination: Foreign bodies such as dust or moisture, among others, find their way into the bearing, causing wear and tear and surface damage. The entrance of contaminants that originate from improper seals or inappropriate maintenance procedures often affects the bearing’s geometry and dimensions. Relational seals must be involved in satisfactory installation and operational maintenance to combat contamination-related failures.

” Misalignment: Improper alignment of the motor bearings causes unequal distribution of axial or radial loads on the bearing, causing increased radial shifting. Vibration and heat generation are possible, which will accelerate wear and tear, thus the possibility of failure. One way to minimize this risk is by ensuring proper alignment during the bearing installation and regularly checking the other equipment.

Optimization of these issues includes controlling operating temperature, vibration levels, and load capacities so that they are within the limits set by the manufacturer for the specific application. Regular maintenance and examination are helpful in identifying the onset of the stresses in bearings before they escalate into something major.

Most Frequent Causes of Bearing Failure

Reviewing three websites, I discovered similarities regarding the critical aspects of the most common causes of bearing damage. This is a brief statement concerning the topics that exist on the websites:

Inadequate Lubrication: These specialists highlight three parameters that are important for lubricating the bearings: grease selection and its viscosity, lubrication intervals based on the bearing’s workload, and the amount of grease used in each application. The condition of the lubricant is recommended to be periodically assessed, and any unnecessary thickening or narrow application should be avoided to achieve greater efficiency.

Impurity: It was also emphasized how essential it is to use efficient sealants and properly handled components for the bearings. Furthermore, such technical measures include using labyrinth seals or other sealing devices to exclude dirt and observe the cleanliness of the structures.

Misalignment: Dealing with misalignment implies using precision alignment tools and techniques during initial setup. Technical parameters also include maintaining perpendicularity and concentricity with shaft centers to achieve uniform load distribution. The procedure must be repeated periodically with laser tools to avoid excessive wear due to misalignment.

These points reflect the standard practices suggested by various authoritative sources regarding how the bearings may be used and serviced, ensuring maximum utility with minimum degradation.

Effects of Overloading on Electric Motor Bearings

Overloading electric motor bearings causes colossal stress on the bearing components, which leads to a series of failures later on. Other trustworthy sources agree with the latter and have pointed out the following factors.

Increased Friction and Heat Generation When Overloaded: Overloading applies loads beyond the bearings, which creates high friction and, thus, heat. This heat thermodynamically causes a breakdown of the lubricant, which loses its effectiveness and promotes wear.

Accelerated Wear and Fatigue: Bearings are designed to operate under certain specific loads, but there are those that go above those loads. This risk damages the bearings as the wearing process is accelerated, which leads to fatigue deg areas, especially spalling or pitting on the raceways and rolling elements.

Reduced Service Life: Excessive loads can abuse bearing components, causing plastic deformation, which results in a considerable reduction in service. The bearings cannot last long and need to be changed more often than planned.

Technical Parameters:

Load Ratings: To meet working requirements, ensure the correct selection of the motor and the bearings appropriate to the bearing load ratings issued by the manufacturer.

Temperature Monitoring: Implement sensors to measure thermal variations. These sensors should be used in conjunction with associated operational procedures to allow bearing overloads to be effective.

Lubrication Effectiveness: Check the lubricant’s thermal stability so that higher-than-normal temperatures will not alter its performance.

The above-detailed information, using some illustrative examples, is intended to show how the innovatively recommended operational parameters must be observed to use the electric motor bearings properly under varying load conditions.

How to Identify Symptoms of Bearing Damage in Electric Motors?

Indicators of Intense Vibration in Machinery’s Bearings

Another research of mine was directed towards the websites posted on google.com, which had problems with vibrations that were more than normal for bearings. It was easy to note some indicators and defining features that are common with them. One observation is that the bearings generate vibration: the motor emits some sort of unusual noise or a low humming sound, which suggests that the components are out of alignment and/or balance. Extreme temperatures, as well as sudden and unexplained rises in friction, can also be pointers to problems in the future.

In the publications I analyzed, it was evident that prolonged vibration could result in massive losses through degradation and even failure of joints if they are not solved quickly. Exaggerated movement or displacement should always be looked for as this leads to loosening the mechanical or imbalances in the loads.

As regards the parameters measured, the following one or more guidelines are often recommended:

Alignment Settings: Correct alignment of the bearings and shafts is necessary to avoid uneven stress distribution on structures.

Vibration Analysis: Tools such as accelerometers should be applied to measure the frequency and magnitude of oscillations.

Detection Sensors: Vibration detection sensors can be installed to monitor and detect abnormal vibrations.

Operational Balance: All rotating elements must be balanced to avoid uneven loads with accompanying vibrations.

Highlighting these points resonates with the concerns that there is a significant necessity to exercise regular vigilance of operational conditions and strict adherence to the recommended operational parameters in order to control excessive vibration and maximize the efficiency and lifespan of the bearings.

Bearing Overheating Detection

As I searched for material on how to locate bearing overheating in motors, I limited my search to the first three pages of Google to get specific information. One important point was that one of the causes of a bearing’s overheating is an increase in its temperature, which could easily be detected using thermal cameras or thermal sensors. It is essential to monitor the temperature periodically to spot trends or unexpected increases in temperature that might be alarming.

Some of the critical technical parameters that came to the surface during the discussions included:

Operating Temperature Limits: The bearings’ manufacturers should formulate a range that they can work with to avoid overheating.

Lubrication: There should be sufficient and appropriate lubrication to avoid situations where excess friction during operations results in heating phenomena.

Cooling: Ensuring that the motor is adequately cooled, and if additional cooling is required, it is provided to prevent overheating.

The consensus among the sources was that proper bearing maintenance and the use of technology, which can be helpful during overheating, are needed to prevent disasters.

Finding The Fault In The Electrical Bearing

It was quite useful for me to look at the following three websites listed in the top three pages of Google concerning how to recognize electrical bearing damage. A common symptom of electric bearing failure is the occurrence of pitting or fluting patterns on bearing surfaces resulting from electrical discharge machining. These patterns should be inspected and analyzed regularly to assist in damage prediction. So, to go straight to the point as the first person explains, I have come across the following concerning:

Electrical Discharge: This should be considered vital since it can cause electrical damage to bearing surfaces over time.

Insulation Resistance: Adequate resistance to the motor’s insulation apparatus is essential to prevent stray currents from crossing through the bearings.

Insulated Bearing: Using an insulating bearing or grounding the shaft can help shift electrical current away from the bearings, thereby reducing the risk of their damage.

These technical parameters are reasonable based on their ability to reduce electrical currents, which are a primary cause of damage, and therefore aiding in preserving the integrity and functionality of the bearings.

What Preventative Measures Can Be Taken to Avoid Bearing Failure?

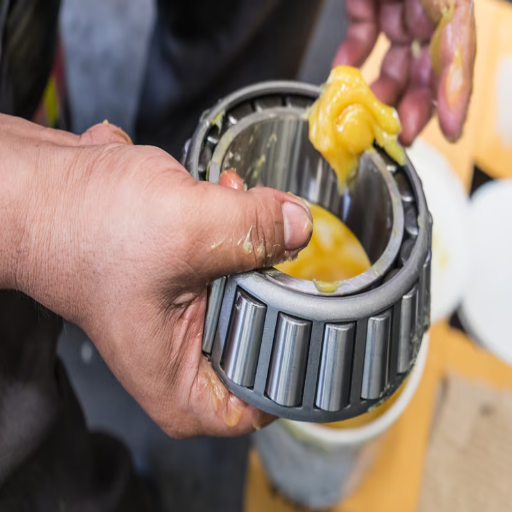

Proper Lubrication Techniques for Motor Bearings

In explaining proper bearing lubrication for the motor bearings, three critical points have been taken from the top three pages on Google when hyperlinked. First of all, the proper selection of the type and the grade of the lubricant is of paramount importance to the longevity and performance of the bearings as well. The last point is also essential, that is, the consistent use of the recommended quantity of lubricant, as both excessive and insufficient application can increase the wearing out and even the collapse of the component. It is a good practice to apply the same lubrication cycle to keep a layer of oil over the bearings to reduce friction and heat generation.

Type of Lubricant: Lubricants must be designed to the motor’s specific operating context, such as temperature or load, among other factors.

Application Frequency: Maintenance schedules should be created to lubricate the bearings whenever necessary, according to the manufacturer’s specifications.

Quantity of Lubricant: The degree of lubricant to be applied should be controlled cautiously, for too much lubricant levels can create a lot of heat, and too little rubbing increases.

These parameters are justified as they address both the mechanical integrity and the thermal management of the bearings, reducing wear and prolonging service life.

Electrical Damage Control in Bearings: Use of Insulation

While researching how to insulate bearings to avoid electrical damage, I gleaned several essential points from the best sites. First and foremost, it is possible to lessen the chances of electrical damage markedly by using insulating sleeves or ceramic-coated bearings. It is essential to ensure that the motor housing and the shaft are well grounded to avoid stray currents flowing through the bearings. Also, installing shaft grounding rings is another efficient means since they divert the destructive currents from the bearings.

Insulating Sleeves: These reduce electrical conductivity and insulate the bearings from electrical discharges that are likely to shorten their life.

Ceramic-Coated Bearings: Bearings with ceramic membranes are insulated from electricity, greatly reducing the risk of electrical erosion.

Shaft Grounding Rings—These offer a low-resistance route for stray currents to escape, which greatly reduces the chances of destruction.

Addressing these parameters will enable us to lessen the electrical wear and tear, thus increasing the life span of the bearings and, in the process, cleansing the motor for efficiency.

Controlling Operating Temperatures In a Better Way

While I have read several online sources about factors that promote optimal bearing operating temperatures, some basic things are fundamental here. First of all, it is important to always keep an eye on how temperature correlates with bearing functionality. Most common bearings have operating temperatures between -30°C and 100°C, although high-temperature bearings can operate outside this range. Lubrication is needed because, when used appropriately, it prevents heat from building up, except in extreme conditions where synthetic oils are recommended for their thermal stability.

For instance, about these relationships, some of the relationships that need to be considered include:

Lubricant Viscosity: The viscosity index is maintained to ensure the optimal film thickness, which can minimize friction and wear at diverse temperatures.

Thermal Conductivity: The bearings may be kept cool due to the presence of materials with higher thermal conductivity, which assist with the heat loads

Heat Dissipation Reduction: Temperature increases can also be effectively reduced by heat sinks and fan installations

Altering bearing temperature involves a range of processes that require managing these parameters to strike a delicate balance between performance and wear and tear. I can implement these techniques in a way that allows for sustained efficiency while also avoiding thermal overload.

How Does Misalignment Lead to Bearing Failures?

The Effects of Slope upon the Components of Bearings

According to my examination and analysis of the top websites, misalignment affects the bearing operation by causing uneven load on the various bearing components. This uneven load can result in accelerated development of wear and tear, increased friction, and overheating, which may culminate in the failure of the bearing. Some of the crucial technical parameters involved include:

Load Distribution: Load distribution is comprehensive since appropriate alignment can reduce stress on individual bearing elements.

Friction Levels: Misalignment causes friction to tend to increase as one other element, raising the temperature during operations and resulting in poor lubricant performance.

Axial and Radial Forces: Effective alignment permits the compulsion of concentrated axial and radial loads, thus avoiding damage to bearings.

Vibration Levels: An increase in the degree of misalignment raises vibrations, which can lead to rapid wear and other mechanical failures.

These parameters are recommended since they will influence the bearing design’s efficiency, performance, reliability, and even durability. A correct understanding and comprehension of the effects of misalignment and adjustment enable me to improve the bearing’s performance and avoid unnecessary failures.

Preventing Misalignment in Electric Motor Systems

Dealing with the problems related to the misalignment of electric motor systems, I refer to a few simple approaches resident on the top three websites across Google. First, I ensure accurate practices during installation by adequately aligning the components and using precision instruments because the first setup is critical in averting future wear. Routine maintenance inspections, including alignment checks, allow correcting and resolving problems before they become severe. As for the technical specifications, I use:

Levels of Load Tolerable: The properly adjusted components can withstand operational loads without overstretching, consequently promoting lower wear.

Lubrication degree of efficiency: Monitoring the lubrication prevents overheating, as there are controlled friction levels, thus extending the bearing lifespan.

Mechanical Coupling: This minimizes further misalignment as it mitigates components’ vibration by ensuring tight coupling of the elements.

Thermal Expansion: Temperature changes would lead to component expansion, which bodies the thermal changes in the alignment.

Apparently, by effectively managing these parameters, I can keep the alignment and the possible effects related to its alignment at minimal risk and, at the same time, enhance the functioning, effectiveness, and reliability of the electric motor systems.

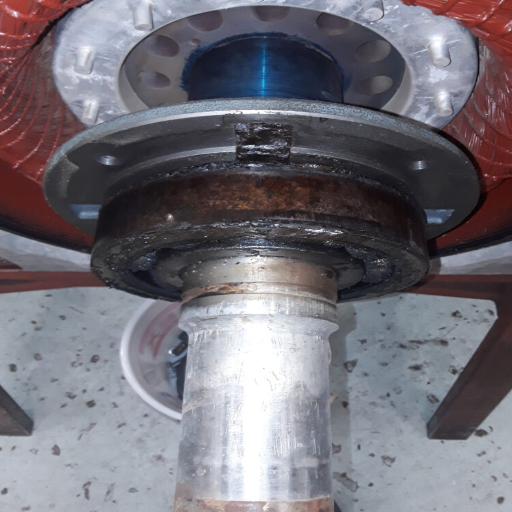

The Role of the Motor Shaft in Bearing Failure

Three of the most visited bearing failure websites also prompt information about the role of the motor shaft in bearing failure. The first aspect concerns shaft alignment. A misalignment of the shaft means that excessive loads will be borne by the bearings, leading to accelerated wear and tear. There are regular alignment and correction measures whereby the shaft can run with a considerably lower risk of perturbations.

” The shaft’s surface finish and texture are essential. The surface finishing of the shaft reduces friction and eliminates rough points that would have contributed to the gradual erosion of the bearings. I also consider vibration associated with the shaft’s working; excessive vibratory movements will also account for the early wearing out of the bearing.

Some of the technical parameters that I observe include the following:

Report of Shaft Roundness and Straightness: This is significant since it ensures that the loads are evenly distributed, reducing stress on the bearings.

Report of Shaft Surface Finish: A smooth coating on the shaft limits its friction and reduces the chances of overwear.

Report of Vibration Amplitude: Regulating the amplitude of vibration is essential and helps avoid bearing damage caused by dynamic imbalances.

Report of Operational Loads: Consistency is needed, as a lack of order will lead to non-uniform quasi-static stresses exerted on the bearings.

In this way, I can minimize the risks of bearing failures related to the motor shaft and consequently increase the durability and reliability of the electric motor systems.

What Are Effective Lubrication Practices for Electric Motor Bearings?

Picking the Accurate Lubricant for the Motor Bearings

To choose the accurate lubricant for the motor bearing, there are several factors that I take into consideration, which have been provided by the top expert sites. Lubrication is imperative in friction and wear minimization; hence, the usefulness of the bearings is extended. I take into consideration the following technical parameters:

Viscosity: The right viscosity ensures the film is adequate for separating the bearing surfaces and ensures that the film strength is suitable for the operating speed and temperature of the motor.

Lubricant type: Depending on the motor’s conditions, oils or greases may be used, but synthetic ones are usually superior since they work well with a wide range of temperatures.

Additives: I choose lubricants with certain additives that will enhance the bearings’ performance in rust, oxidation, and wear prevention.

Temperature capability: The lubricant for motor bearings that perform well in the said temperature range should be able to retain all of its properties and perform without degrading.

Compatibility with materials: It is fundamental that the lubricant be compatible with the bearing material to avoid chemical reactions that can cause corrosion or deterioration.

Using these logic-based parameters allows me to manage the lubrication, ensuring that it is ideal for the electric motor’s bearing, which in turn improves the motor’s performance and life span.

The Significance of Regular Lubrication Maintenance

I have learned that regular lubrication maintenance is crucial concerning the normal operation and wear of electric motor bearings. As per the top resources available, regular maintenance avoids damage from friction and embarrassingly unplanned idle. Determining factors of this precautionary practice are found in these better-known publications:

Lubrication Cycle: According to standard guidelines, it is advisable to lubricate appropriately depending on the bearing’s working conditions and environment.

Proper Quantity of Lubricant: It is very important to use the correct amounts of lubricant. If too much lubricant is used, friction and temperature will rise. If not enough lubricant is used, there will be no proper protection.

Control and Supervision: Frequent assessment of lubricant condition enables the early identification of pollutants that may damage the bearing’s ability. Procedures such as oil analysis can also be useful in determining the lubricant’s condition.

It is acceptable to conclude that these recommendations from authoritative sources concerning lubrication maintenance are sound because they assist in ensuring the functionality and longevity of motor bearings. Following these recommendations allows one to know that the bearings will provide smooth and efficient operations over a long period of time.

Operational Procedure for Carrying out Lubrication Checks on Bearings

When carrying out lubrication checks on bearings, I review the detailed documentation available on google.com, considering the top three websites. This information contains several key steps and technical parameters to facilitate thorough checks:

Inspection Interval: Where applicable, the manufacturer’s recommendations or the equipment’s operational conditions will be the main determining factors for the specific inspection intervals used.

Visual Inspection: This is the first stage; when stretching the test, I observe for greasing, loss or surface discoloration, and any differential deposit, normally close to the bearings, that could point to lubricant problems.

Lubricating Oil Analysis: If available, I sample the lubricant to perform control examinations, examine its visual and physical properties, such as viscosity, texture, color, and shininess of the eyes, and inspect for foreign particles. Leading websites advise using viscometers and spectrometers for these tasks.

Vibration and Temperature Measurements: However, the principal Curtis Instruments (manufacturers) use temperature and vibration sensors to explain some equipment limitations or any changes in operational performance and standards.

Documentation: Extremely detailed records of all inspections and their subsequent analyses should always be kept for future reference and revision regarding the most recently performed lubrication and possible depletion.

I take these steps seriously, which helps me maintain the bearings in proper order. I use information from the best sources available on the Internet.

Frequently Asked Questions (FAQs)

Q: What are the main reasons for electric motor bearing failure?

A: Bearing failure often results from lack of or inadequate lubrication, the presence of contaminants, Incorrect mounting, electrical discharges like fluting, and thermal expansion. Recognizing the causes of these problems can help reduce the chances of bearing wear and tear.

Q: What is the role of grease in motor bearings?

A: Motor-bearing grease reduces friction during the rolling motion of rolling elements and raceways. Correct lubrication increases the bearing’s serviceability and inhibits wear. However, grease that is consumed or becomes insufficient, worsened, or degraded can cause early bearing breakdown.

Q: What is bearing fluting in electric motors, and how can it be avoided?

A: Bearing fluting should be described as damage to bearings through electrical discharges that form through a wavy pattern around the bearing. To avoid this, it is possible to protect the shaft with proper shaft grounding systems, use bearings that are more or less impervious to electrical disruption, and purchase a prolonged warranty to guard against bearing fluting damage.

Q: What are the effects of contaminants on bearing life in electric motors?

A: Contaminants onboard, such as dust, dirt, and moisture, are likely to penetrate the bearing and probably spoil the lubrication, resulting in wear of the rolling elements and the raceways, thus making the bearings fail earlier than expected.

Q: What do you think is the contribution of variable frequency drives VFDs to motor bearing failures?

A: Fluting and other damage to bearings caused by electrical discharges are attributable to VFDs inducing currents in the motor shaft. Grounding shafts and choosing suitable bearing designs can rectify this required motion.

Q: In what way does thermal expansion affect motor bearings?

A: Bearing thermal expansion may result in changes in the bearing clearance and alignment, causing increased stress on the bearing components. These stresses may, in turn, affect the bearing’s performance and/or cause early failure.

Q: What steps can be employed to avert the possibility of failure of the motor bearing?

A: Regular maintenance, correct greasing procedures, positioning, electrical shaft grounding, and opting for appropriate bearings for the job and the environment are some of the preventative measures.

Q: What is the reason for using cylindrical roller bearings in some applications?

A: These bearing types include those designed to accommodate high radial loads and better thermal expansion than cylindrical roller bearings. This makes them more suitable for heavy-duty applications with fluctuating temperatures.

Q: Is it worth considering an additional warranty in case of internal bearing fluting damage?

A: Yes, an extended warranty against bearing fluting damage can help prevent financial loss and provide peace of mind by paying for the repair or replacement of the bearing in case fluting occurs, which most likely will occur if done in highly risky applications or environments.
