Navigating Precision: Spherical Thrust Roller Bearings Demystified

1 Introduction



In the world of industrial machinery, where precision is paramount, one component stands out for its remarkable ability to handle axial loads efficiently: Spherical Thrust Roller Bearings.

Definition and Explanation of Spherical Thrust Roller Bearings



Before diving deeper into the subject, let’s establish what spherical thrust roller bearings are. These specialized bearings are meticulously engineered to withstand thrust loads, where axial forces are applied parallel to the shaft’s axis. Unlike their radial counterparts, which primarily support radial loads, spherical thrust roller bearings feature a unique design with tapered rollers arranged spherically, allowing them to excel at accommodating high thrust loads while maintaining precision alignment.



importance of Precision Bearings in Industrial Applications



Precision is the bedrock of smooth and efficient machinery operation, and this is where precision bearings come into play. These bearings, including spherical thrust roller bearings, are the unsung heroes behind the scenes, ensuring that industrial machinery runs seamlessly. Industries such as manufacturing, automotive, aerospace, and more rely on the precision and durability of these bearings to reduce friction, maintain alignment, and extend the lifespan of their equipment.

2 Anatomy of Spherical Thrust Roller Bearings



Understanding their structure, components, key features, and design advantages is crucial to appreciating how they effectively handle thrust loads in various industrial applications.

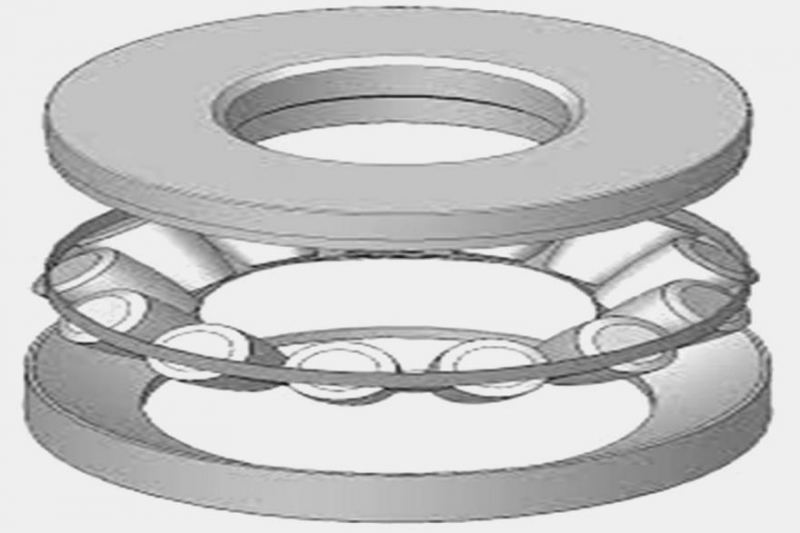

 Structure and Components of Spherical Thrust Roller Bearings



Spherical thrust roller bearings are engineered with precision and complexity, making them versatile components in axial load-bearing scenarios. Their structure consists of several critical components, including:



Raceway Rings	The raceway rings are the outer and inner rings that provide the raceways where the rollers circulate. They are designed to withstand axial loads and maintain the bearings’ alignment.
Spherical Rollers	Spherical thrust roller bearings feature cylindrical rollers that are tapered at both ends, giving them a unique spherical shape. This design allows the rollers to accommodate thrust loads from various directions while maintaining alignment.
Cage	The cage, often made of steel or brass, holds the rollers in place, ensuring proper spacing and distribution. It prevents friction between the rollers and maintains their position during operation.
Lubrication Holes and Grooves	To enhance lubrication and reduce friction, spherical thrust roller bearings are equipped with lubrication holes and grooves strategically placed in the rings and rollers.



Key Features and Design Advantages



The design of spherical thrust roller bearings incorporates several key features and advantages that set them apart:



Axial Load Capacity	Spherical thrust roller bearings excel at handling high axial loads. Their unique shape allows them to distribute these loads evenly, reducing stress on individual components.
Self-Alignment	Thanks to their spherical rollers, these bearings can self-align, compensating for minor misalignments. This self-aligning capability helps maintain precision and extends the bearing’s lifespan.
Minimal Friction	The design minimizes friction, leading to reduced heat generation and increased efficiency. This is especially critical in high-speed applications.
Wide Range of Applications	Spherical thrust roller bearings find applications in a multitude of industries, including mining, construction, automotive, and more, where axial loads are prevalent.

How They Handle Thrust Loads Effectively



The effectiveness of spherical thrust roller bearings in handling thrust loads lies in their unique design. When axial forces are applied, the tapered rollers align themselves with the raceway rings, distributing the load evenly across the bearing. This prevents any single point from bearing excessive stress, resulting in efficient load-bearing capacity and prolonged bearing life.



In summary, the anatomy of spherical thrust roller bearings is a testament to precision engineering. Their structure and design advantages make them indispensable in industrial machinery, where the efficient handling of axial loads is a prerequisite for reliable operation.

3 Types and Variations



In the world of spherical thrust roller bearings, there exists a diverse range of types and variations, each designed to cater to specific industrial applications and requirements.



Overview of Different Types



1. Single-Direction Spherical Thrust Roller Bearings

Single-direction spherical thrust roller bearings are designed to accommodate thrust loads in one direction only. They consist of a spherical-shaped rolling element raceway and a housing washer with a flat seating surface. This design allows for efficient axial load transfer in one direction, making them suitable for applications where unidirectional thrust is prevalent.



2. Double-Direction Spherical Thrust Roller Bearings

Double-direction spherical thrust roller bearings are engineered to handle thrust loads in both axial directions. They feature two spherical raceways on the shaft washer and two matching raceways on the housing washer. This symmetrical design enables bidirectional thrust load support, making them ideal for applications with reversing axial forces.



3. Spherical Plain Thrust Bearings

Spherical plain thrust bearings are a specialized variant of spherical thrust roller bearings. They are characterized by their simplicity, consisting of a spherical inner ring and a convex outer ring. These bearings are self-aligning and can accommodate angular misalignment, making them suitable for applications where alignment flexibility is required.



4. Customized Bearings for Specific Needs

In addition to the standard types mentioned above, manufacturers offer customized spherical thrust roller bearings to meet specific industrial demands. These tailored solutions may involve variations in material composition, cage design, and lubrication, allowing for precise optimization for a particular application.



Characteristics and Applications of Each Type



Single-Direction Spherical Thrust Roller Bearings

These bearings excel in applications where thrust loads act predominantly in one direction. Common applications include conveyor systems, automotive transmissions, and one-way clutches.



Double-Direction Spherical Thrust Roller Bearings

Double-direction bearings find their place in industries requiring bidirectional thrust load handling, such as heavy-duty machinery, marine propulsion systems, and wind turbine gearboxes.



Spherical Plain Thrust Bearings

Spherical plain thrust bearings are employed in applications where misalignment tolerance is vital, such as agricultural equipment, hydraulic cylinders, and construction machinery.



Customized Bearings for Specific Needs

Tailored bearings cater to unique industrial scenarios, ranging from aerospace and robotics to medical devices and semiconductor manufacturing.



Selection Criteria for Specific Needs



Selecting the right type of spherical thrust roller bearing is crucial for optimal performance and longevity in industrial applications. Several factors should be considered during the selection process:



– Thrust Load Direction: Determine whether the application requires unidirectional or bidirectional thrust load support.

– Load Magnitude: Calculate the magnitude of the thrust load to ensure the chosen bearing can handle it comfortably.

– Operating Conditions: Consider factors like speed, temperature, and environmental conditions that may impact bearing performance.

– Alignment Requirements: evaluate whether the application demands self-aligning capabilities.

– Customization Needs: If the application is unique, explore the option of customized bearings to meet specific requirements.



In conclusion, understanding the various types and variations of spherical thrust roller bearings is essential for making informed decisions in industrial applications. Each type offers distinct advantages and is tailored to specific needs, ensuring precise load handling and reliable operation.

4 Installation and Maintenance



Proper installation and regular maintenance are vital aspects of ensuring the optimal performance and longevity of spherical thrust roller bearings.

Proper Mounting Procedures for Spherical Thrust Roller Bearings



1. Cleanliness is Crucial

Before installation, ensure that the mounting area and components are clean and free of contaminants. Any debris or foreign particles can lead to premature bearing wear and reduced efficiency.



2. Correct Fit

Verify that the shaft and housing have the correct dimensions and tolerances to ensure a proper fit. Incorrect fits can result in misalignment and increased stress on the bearings.



3. Apply Even Pressure

When mounting the bearing, distribute the load evenly across the bearing’s raceways. This prevents localized stress concentrations and uneven wear.



4. Use Proper Tools

Utilize suitable tools and equipment for the installation process. Over-tightening or applying excessive force can damage the bearing or its components.



5. Temperature Considerations

Pay attention to temperature differentials during installation. Avoid heating or cooling the bearing excessively, as extreme temperature changes can affect the bearing’s fit and performance.



Lubrication Best Practices for Longevity



1. Select the Right Lubricant

Choose a lubricant that is compatible with the bearing’s material and operating conditions. Consult the manufacturer’s recommendations for lubricant type and quantity.



2. Proper Lubrication Interval

Establish a regular lubrication schedule based on the bearing’s operating conditions. Under-lubrication or over-lubrication can lead to premature wear and failure.



3. Lubrication Distribution

Ensure that the lubricant is evenly distributed across the bearing’s rolling elements and raceways. This can be achieved through manual or automated lubrication systems.



4. Monitor Lubricant Condition

Regularly check the condition of the lubricant for contamination, deterioration, or depletion. Replace or replenish the lubricant as needed to maintain optimal performance.



Routine Inspection and Maintenance Guidelines



1. Periodic Inspections

Implement a routine inspection schedule to assess the condition of the bearings. Inspect for signs of wear, misalignment, and abnormal operating temperatures.



2. Vibration Analysis

Utilize vibration analysis tools to monitor the bearings’ vibration levels. Unusual vibrations can indicate issues that require attention.



3. Temperature Monitoring

Regularly measure the operating temperature of the bearings. Elevated temperatures can be a sign of excessive friction or insufficient lubrication.



4. Replacement of Worn Bearings

When inspections reveal significant wear or damage, promptly replace the affected bearings. Delaying replacement can lead to costly downtime and further damage.



In conclusion, proper installation and maintenance practices are essential for ensuring the reliable operation of spherical thrust roller bearings. Following correct mounting procedures, adhering to lubrication best practices, and conducting routine inspections will help maximize the lifespan and efficiency of these precision components in various industrial applications.

5 Advantages and Benefits



Spherical thrust roller bearings are revered in various industrial applications for their exceptional advantages and benefits. In this section, we will explore the key advantages of these precision bearings and how they contribute to improved performance and efficiency across diverse industries.



High Load-Carrying Capacity and Precision



Spherical thrust roller bearings are engineered to handle high axial loads with remarkable precision. Their unique design, featuring barrel-shaped rollers, distributes the load evenly, reducing stress concentrations. This characteristic makes them ideal for applications where heavy axial loads need to be accommodated while maintaining system accuracy.



Additionally, these bearings are known for their self-aligning capability, allowing them to compensate for shaft misalignment. This self-aligning feature minimizes wear and extends bearing life, further enhancing their load-carrying capacity.



Low Friction and Minimal Heat Generation



One of the standout features of spherical thrust roller bearings is their low friction operation. This results in reduced energy consumption and minimal heat generation during operation. The combination of precision manufacturing and high-quality materials ensures smooth and efficient movement even under heavy loads.



The ability to operate with reduced friction not only enhances energy efficiency but also contributes to the longevity of the bearing, reducing maintenance requirements and associated downtime.



Applications in Diverse Industries



Spherical thrust roller bearings find applications across a wide spectrum of industries, from heavy machinery to aerospace. Their versatility stems from their ability to withstand axial loads in both directions and adapt to varying operating conditions. Some common sectors where these bearings are extensively used include:



Heavy Machinery	Spherical thrust roller bearings are essential components in heavy machinery such as cranes, excavators, and mining equipment, where they ensure reliable axial load support.
Automotive	In automotive applications, these bearings are employed in steering systems, transmissions, and other critical components that require precise axial load handling.
Aerospace	The aerospace industry benefits from the precision and reliability of spherical thrust roller bearings in critical applications like aircraft landing gear systems.
Manufacturing	In manufacturing environments, these bearings contribute to the smooth operation of conveyor systems, where precise axial load management is essential.

Improved Efficiency and Performance



The utilization of spherical thrust roller bearings often results in improved system efficiency and overall performance. Their load-carrying capacity, low friction characteristics, and adaptability to misalignment contribute to reduced wear and extended equipment lifespan.



By minimizing energy losses and ensuring accurate load distribution, these bearings help enhance the efficiency of various industrial processes, ultimately leading to improved productivity and cost savings.



In conclusion, the advantages and benefits of spherical thrust roller bearings are a driving force behind their widespread adoption in diverse industries. Their ability to handle high axial loads, operate with low friction, and adapt to various conditions makes them a valuable asset in achieving precision, efficiency, and reliability in critical applications.

6 Conclusion



In this comprehensive exploration of spherical thrust roller bearings, we have delved into the intricacies of these precision components that play a pivotal role in various industrial applications. As we conclude this article, let’s recap the key points, emphasize the importance of utilizing spherical thrust roller bearings, and offer some final thoughts on their significance in diverse industries.



Recap of the Key Points



Throughout this article, we’ve highlighted the following key aspects of spherical thrust roller bearings:



– Definition and Structure: We began by defining spherical thrust roller bearings and examining their unique structure, which enables them to handle axial loads with precision.



– Advantages and Benefits: We explored the advantages, including high load-carrying capacity, low friction, and versatility, which make these bearings invaluable in a wide range of industries.



– Types and Variations: We discussed the different types and variations of spherical thrust roller bearings, their characteristics, and applications.



– Installation and Maintenance: Proper installation procedures, lubrication best practices, and routine maintenance guidelines were covered to ensure the longevity and reliability of these bearings.



Encouragement to Utilize Spherical Thrust Roller Bearings for Precision and Reliability



As we conclude, we want to emphasize the importance of considering spherical thrust roller bearings for your industrial applications. These precision bearings offer a unique combination of load-carrying capacity, low friction, and adaptability, making them a reliable choice for critical systems that demand accuracy and longevity.



By incorporating spherical thrust roller bearings into your machinery and equipment, you can significantly enhance precision, reduce maintenance requirements, and improve overall efficiency. Their ability to handle axial loads with ease and operate smoothly under various conditions makes them an asset in achieving optimal performance.



Final Thoughts on Their Significance in Various Industries



In the world of industrial machinery and equipment, precision and reliability are paramount. Spherical thrust roller bearings have proven themselves time and again as essential components that contribute to the seamless operation of critical systems. Their significance spans across diverse industries, including heavy machinery, automotive, aerospace, and manufacturing.



As technology advances and industries evolve, the demand for precision components like spherical thrust roller bearings continues to grow. These bearings are not merely components but enablers of efficiency, accuracy, and longevity in the industrial landscape.



In conclusion, understanding and harnessing the capabilities of spherical thrust roller bearings can lead to enhanced performance, reduced downtime, and increased productivity. By demystifying these precision components, we hope to inspire you to explore their potential and consider them a valuable addition to your industrial endeavors.

7 FAQs: Common Questions about Spherical Thrust Roller Bearings



In this section, we will address some frequently asked questions about spherical thrust roller bearings to provide you with a comprehensive understanding of these precision components.



1. What Are Spherical Thrust Roller Bearings?



Spherical thrust roller bearings are specialized roller bearings designed to accommodate axial loads in a single direction. They consist of a spherical-shaped rolling element, typically a barrel-shaped roller, housed within a spherical inner and outer raceway. This unique design allows them to handle high axial loads while compensating for misalignment.



2. What Are the Key Advantages of Using Spherical Thrust Roller Bearings?



Spherical thrust roller bearings offer several advantages:



– High Load-Carrying Capacity: They can support heavy axial loads, making them suitable for applications with substantial thrust forces.



– Self-Aligning Capability: Their spherical design allows for some misalignment, ensuring proper load distribution even in less-than-ideal mounting conditions.



– Low Friction: These bearings are designed for minimal friction, reducing energy consumption and heat generation.



3. Where Are Spherical Thrust Roller Bearings Commonly Used?



These precision bearings find applications in various industries, including:



– Automotive: Used in transmissions and vehicle axles to handle thrust loads.



– Aerospace: Employed in aircraft landing gear systems.



– Heavy Machinery: Utilized in construction and mining equipment.



– Industrial Machinery: Applied in gearboxes and conveyor systems.



4. How Do I Properly Mount Spherical Thrust Roller Bearings?



When installing spherical thrust roller bearings, follow these steps for optimal performance:



– Ensure proper alignment of the bearing and shaft.



– Use appropriate tools and equipment to prevent damage during installation.



– Lubricate the bearing according to manufacturer recommendations.



– Check for any axial clearance adjustments required.



5. What Maintenance Practices Should Be Followed for These Bearings?



Regular maintenance is essential to extend the lifespan of spherical thrust roller bearings:



– Conduct routine inspections to detect signs of wear, such as pitting or discoloration.



– Ensure adequate lubrication based on operational conditions.



– Replace bearings if any significant damage or wear is detected.



By addressing these common questions, we hope to have demystified spherical thrust roller bearings, providing you with valuable insights into their design, applications, and maintenance requirements. These precision components play a crucial role in various industries, offering high load-carrying capacity, self-aligning capabilities, and low friction characteristics. Proper installation and maintenance are key to ensuring their long-term reliability in demanding applications.
