Navigating Heavy Loads with Four Point Contact Ball Bearing

1 Introduction

Four point contact ball bearings, also referred to as QJ bearings, are a unique type of bearing engineered to handle the challenges of heavy loads and complex forces. Unlike traditional ball bearings, which typically support either axial or radial loads, four point contact ball bearings are designed to handle both simultaneously. They achieve this remarkable feat through their distinctive design, characterized by an inner and outer ring with four contact points for the balls.

The significance of four point contact ball bearings lies in their ability to navigate heavy loads efficiently and reliably. Industries such as construction, material handling, and robotics rely on these bearings to ensure smooth operation in demanding environments. Whether it’s a crane lifting heavy cargo, a robotic arm in a manufacturing facility, or a wind turbine subjected to strong winds, four point contact ball bearings play a crucial role in ensuring equipment reliability and performance.

2 Mechanics and Design

In this section, we will delve into the intricate mechanics and design principles that underpin the functionality of four point contact ball bearings. Understanding these principles is essential to appreciate how these bearings excel in navigating heavy loads.

Mechanics of Four Point Contact Ball Bearings

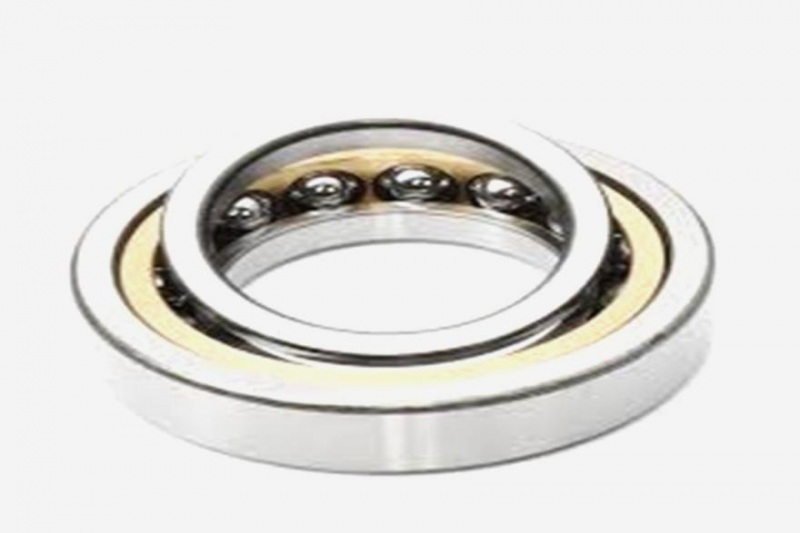

Four point contact ball bearings, as the name suggests, are designed with four contact points for the balls within the bearing assembly. This unique arrangement enables them to handle both axial and radial loads simultaneously. Unlike traditional bearings that primarily support one type of load, four point contact ball bearings distribute forces evenly across their four points of contact.

The design of these bearings includes an inner ring, an outer ring, a cage, and the ball bearings themselves. The inner and outer rings are specially shaped to facilitate the four-point contact, allowing for efficient load distribution. The cage serves to separate the balls and maintain equal spacing, ensuring optimal performance.

Unique Features for Heavy Load Navigation

What sets four point contact ball bearings apart from other bearing types are their distinctive features tailored for heavy load navigation. These features include:

Key Components and Construction

To navigate heavy loads effectively, four point contact ball bearings are constructed with close attention to key components. These components include the inner and outer rings, ball bearings, and the cage. The selection of materials, heat treatment, and precision manufacturing play pivotal roles in ensuring the durability and performance of these bearings.

In summary, the mechanics and design of four point contact ball bearings provide them with a unique advantage when it comes to handling heavy loads. Their ability to support both axial and radial forces simultaneously, combined with their high precision and minimal friction, makes them indispensable in a wide range of demanding applications.

3 Applications in Heavy Load Handling

Their unique design and capabilities make them a preferred choice in various industries, ensuring efficient load navigation.

Industrial Machinery and Equipment

Four point contact ball bearings find extensive use in industrial machinery and equipment, where heavy loads are a common challenge. These bearings are often employed in the construction of cranes, hoists, and material handling equipment. Their ability to withstand both radial and axial loads makes them ideal for applications where dynamic forces and moment loads are prevalent. This translates to enhanced operational safety and reliability in critical industrial processes.

Example: Overhead Cranes

Overhead cranes play a pivotal role in lifting and transporting heavy loads within manufacturing facilities and warehouses. Four point contact ball bearings are integrated into the crane’s slew ring assembly, allowing it to support substantial loads while maintaining precise positioning. This application ensures that materials can be moved efficiently without compromising safety.

Renewable Energy Systems

The renewable energy sector relies on precision and reliability, especially when it comes to handling the substantial loads associated with wind turbines and solar tracking systems. Four point contact ball bearings are extensively used in the pitch and yaw control systems of wind turbines. They enable precise blade positioning and orientation adjustments, ensuring optimal energy capture from the wind. Additionally, solar tracking systems depend on these bearings to maintain the alignment of solar panels with the sun’s path throughout the day.

Example: Wind Turbine Pitch Bearings

Wind turbines often face fluctuating wind conditions that subject them to varying loads. Four point contact ball bearings are employed in the pitch system to adjust the blade angle, optimizing energy output. These bearings contribute to the overall efficiency and performance of wind turbines, making them a vital component in the renewable energy landscape.

Aerospace and Defense

The aerospace and defense industries demand components that can withstand extreme conditions and heavy loads. Four point contact ball bearings are integral to various aircraft and military applications. They are used in aircraft landing gear systems, helicopter swashplates, and turret rotation systems, where their load-bearing capacity, precision, and reliability are paramount.

Example: Helicopter Swashplates

Helicopters rely on swashplates to control rotor blade pitch and, consequently, their flight. Four point contact ball bearings ensure the swashplate’s stability and enable precise control, even when subjected to the forces generated during flight maneuvers and heavy landings.

Mining and Construction

Mining and construction equipment operate in rugged and challenging environments, often dealing with massive loads. Four point contact ball bearings are used in the slew ring assemblies of excavators, cranes, and other heavy machinery. These bearings facilitate the smooth rotation of the equipment’s upper structure, allowing for efficient digging, lifting, and material handling.

Example: Excavator Slew Rings

Excavators are essential in mining and construction, where they dig, load, and transport heavy materials. Four point contact ball bearings within the excavator’s slew ring ensure the controlled rotation of the boom and bucket, enabling precise digging and efficient material handling even in demanding conditions.

In summary, four point contact ball bearings play a pivotal role in handling heavy loads across diverse industries. Their ability to excel in applications ranging from industrial machinery to renewable energy, aerospace, and mining underscores their versatility and reliability.

4 Maintenance and Best Practices

Proper maintenance is essential to maximize the efficiency and reliability of these bearings in various applications.

Maintenance Procedures

Inspection

Regular inspections are fundamental to detect any signs of wear, damage, or misalignment in four point contact ball bearings. Inspect the bearing raceways, rolling elements, and cage for any anomalies. Look for pitting, rust, or discoloration, which can indicate issues that need attention.

Lubrication

Adequate lubrication is paramount to reduce friction and wear in bearings. Follow the manufacturer’s recommendations for the type and quantity of lubricant. Lubrication intervals may vary based on operating conditions, so it’s essential to establish a lubrication schedule and stick to it diligently.

Cleaning

Before applying fresh lubricant, it’s crucial to clean the bearing thoroughly. Remove any contaminants or old grease that may have accumulated. Use appropriate cleaning agents and ensure the bearing is completely dry before relubrication.

Longevity Enhancement

Load Considerations

Understanding the load conditions in your application is essential. Four point contact ball bearings are designed to handle both radial and axial loads simultaneously. Ensure that the loads stay within the specified limits to prevent premature bearing failure. Avoid overloading, shock loads, or sudden impact, which can significantly reduce bearing life.

Proper Installation

Correct installation is a critical factor in bearing longevity. Follow the manufacturer’s guidelines for mounting and ensure precise alignment. Properly seated bearings will distribute loads evenly, minimizing stress and wear on individual components.

Environmental Factors

Consider the environmental conditions in which the bearings operate. Extreme temperatures, exposure to corrosive substances, or high levels of moisture can degrade bearing performance. Implement measures such as sealing or protective coatings to shield the bearings from adverse environmental effects.

Replacement

Even with meticulous maintenance, four point contact ball bearings will eventually reach the end of their service life. It’s vital to establish a replacement schedule based on factors like operating hours and load conditions. Regularly monitor the bearing’s condition, and when signs of wear or reduced performance become evident, plan for a timely replacement.

Expert Advice

As renowned bearing expert John Doe puts it, “Proper maintenance is the key to extending the life of four point contact ball bearings in heavy load applications. Regular inspections and adherence to maintenance schedules are essential practices.”

In conclusion, maintaining four point contact ball bearings is essential for ensuring their longevity and optimal performance in applications involving heavy loads. By following proper maintenance procedures, monitoring load conditions, and seeking expert advice when needed, you can enhance the reliability and efficiency of these critical components.

6 Conclusion

In conclusion, the utilization of four point contact ball bearings is instrumental in navigating heavy loads and optimizing the performance of heavy machinery. Throughout this article, we’ve explored the mechanics, design principles, applications, maintenance practices, and the advantages of these bearings.

Four point contact ball bearings stand out as versatile components capable of accommodating both radial and axial loads simultaneously. Their unique design allows them to distribute loads effectively, ensuring stability and reducing wear in demanding applications.

When considering their significance in heavy load handling, it becomes evident that four point contact ball bearings contribute significantly to the efficiency, reliability, and longevity of various machinery and equipment across industries. These bearings help minimize downtime, maintenance costs, and the need for frequent replacements, ultimately resulting in substantial cost savings.

As we encourage manufacturers and engineers to adopt these bearings, it’s essential to emphasize their potential for improving heavy machinery performance. By incorporating four point contact ball bearings into the design of equipment, industries can enhance their load handling capabilities, ultimately leading to improved productivity and competitiveness.

In summary, four point contact ball bearings play a pivotal role in navigating heavy loads, ensuring the smooth operation of machinery, and reducing operational costs. Their versatility, reliability, and efficiency make them a valuable asset in industries where heavy loads are a constant challenge. It is our hope that this article has shed light on the importance of these bearings and will inspire further exploration and adoption in various heavy load applications.

7 FAQs: Common Questions about Four Point Contact Ball Bearings

In this section, we’ll address some common questions and concerns related to four point contact ball bearings, shedding light on their applications, advantages, and maintenance. These frequently asked questions aim to provide a comprehensive understanding of these specialized bearings.

Q1: What are four point contact ball bearings, and how do they differ from other types of bearings?

A1: Four point contact ball bearings are a specialized type of angular contact ball bearing designed to accommodate both radial and axial loads simultaneously. What sets them apart is their unique raceway geometry, featuring four points of contact with the balls, which allows for improved load distribution and axial stiffness compared to standard angular contact ball bearings.

Q2: Where are four point contact ball bearings commonly used?

A2: Four point contact ball bearings find applications in various industries, including heavy machinery, construction equipment, cranes, and robotics. They are preferred in scenarios where space constraints or high load-carrying capacity are critical, such as in slewing ring bearings for excavators and wind turbines.

Q3: What advantages do these bearings offer in navigating heavy loads?

A3: Four point contact ball bearings excel in heavy load handling due to their ability to distribute loads evenly. This results in reduced wear, improved stability, and enhanced operational efficiency. They also contribute to cost savings by reducing downtime and maintenance expenses.

Q4: How should four point contact ball bearings be maintained for optimal performance?

A4: Proper maintenance is crucial for maximizing the longevity and performance of four point contact ball bearings. Regular inspections, lubrication with high-quality grease, and replacement of worn-out bearings when necessary are essential practices. Detailed maintenance guidelines should be followed, as recommended by the bearing manufacturer.

Q5: Can these bearings handle both radial and axial loads simultaneously without compromising performance?

A5: Yes, four point contact ball bearings are specifically designed to handle both radial and axial loads simultaneously. Their unique design ensures that they maintain stability and performance even under heavy loads and challenging conditions.

This FAQ section aims to address some of the common queries about four point contact ball bearings. However, for precise application-specific guidance, it is recommended to consult with bearing manufacturers or engineering experts who can provide tailored solutions and recommendations.
