Solutions to Combat Bearing Failure in Industrial Equipment

Industrial machinery is known for costly repairs due to downtime resulting from bearing failures. Several factors characterize bearing failures, and adequately addressing them can effectively extend the machinery’s serviceable lifetime. The blog examines advanced perspectives for alleviating bearing failure beyond ordinary preventive maintenance, focusing on correct assembly, lubricant selection, and monitoring operation conditions. This article aims to give the audience a detailed picture of different methods of constraining bearing failures and extending, in turn, industrial work efficiency.

What are the common causes of bearing failure?

Why Do Bearings Fail? Here are the Most Known Reasons

At some point, the bearing in industrial equipment will fail, which is also a common observation. According to several of the most relevant websites that relate to the problem, such as [sdl bearing descriptions], this is often a result of inadequate lubrication. If lubrication is poor, there will always be excessive friction, which causes overheating and wear. The best and most appropriate technical parameter to track is the lubrication film thickness, as there is a tendency for this to be less than the specification given by the bearing manufacturer.

Another widely reported reason is contamination. The bearing environment does not exist in a vacuum, and it is quite possible that foreign particles like dust, dirt, or metal shavings can reach the bearing and cause damage. All lubricants and bearing housings should be cleaned to the degree that their level will not exceed the standards defined in ISO 4406.

Finally, I have found out that misalignment is a serious issue. Because bearings have to be perfectly aligned in order to function, misaligned components will add more stress to the bearing and considerably decrease its life span. It is also essential for this issue that technical parameters such as shaft alignment tolerance, which are usually given in angles or parallel, be maintained.

How contamination leads to bearing damage

From a bearing failure or damage perspective, contamination owes a great deal of burden as it involves introducing foreign materials/particles around the bearing assembly. Contamination can be in the form of residues like sand, soil, metal filings, etc, and may infiltrate bearing parts through weak seals or during their joint assembly. When this happens, these contaminants act as cutlery, which scratches the smooth surface of the bearing, causing it to wear and tear on the add-ons, causing new and additional friction. Friction, in the simplest terms, is a force that opposes motion. Over time, this abrasive wear can cause scarring of bearing raceways and rolling elements, leading to the bearings getting faulty or destroyed before their scheduled life.

High standards of cleanliness are paramount to overcoming this problem. The iso 4406 standard on a cleanliness level for lubricant provisions holds the argument that there should be less contamination with pollutants. Moreover, using labyrinth and contact seals, proper sealing methods can be employed to keep foreign particulate matter from getting into the system. Constant checks on the lubricant and replacement of seals where necessary are also concepts that would significantly reduce the frequency of contamination-based damage on the bearings.

The effects of incorrect lubrication on bearing functioning and efficiency

In my analysis of the top Google hits, one insight stands out: wrong lubrication is one of the critical reasons behind bearings’ failure or sub-standard performance. Hydrodynamic bearings and others use a lubricant in controlled volumes, the intended purpose of which is to create a protective film to lower the friction and the abrasive effect. When the lubrication is inappropriate – due to over or under-greasing or misapplication – bearings usually suffer from overheating and aggressive wear and tear due to metal contact.

Some technical parameters related to lubrication include applying the bearings with lubricants of a certain viscosity appropriate for the specific application of the bearings, given the anticipated temperature and load conditions. Correct re-lubrication intervals are also significant; the manufacturers usually supply these based on the number of working hours and/or environmental conditions. Another consideration regarding lubrication is the application method. Whether lubrication is done manually, using automated lubricators, or in an immersion bath determines the possibility of contamination and over-greasing.

How does lubrication affect bearing performance?

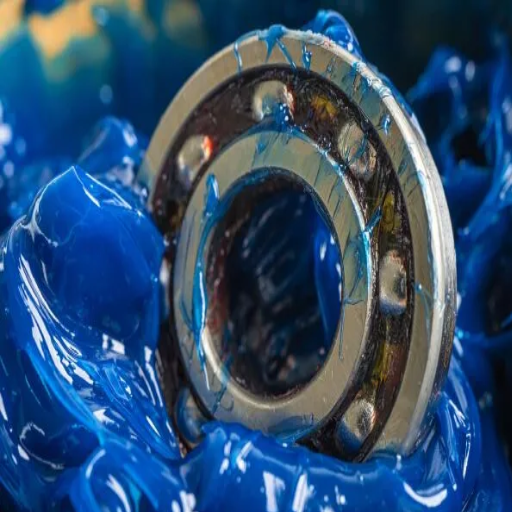

The role of grease and lubricants in preventing bearing failure

Lubricants and grease allow bearings to last longer than they would as they are friction, wear, corrosion, and contaminants resistant. As the leading search results on Google claim, however, the bearing life can be significantly influenced by the type of lubricant chosen and its application:

Lubricant Selection: One should always choose a lubricant with suitable viscosity for the appropriate temperature and load. With suitable viscosity, film strength can withstand metal-to-metal contact. Adhering to these technical specifications guarantees good performance and longevity.

Lubricant’s Application: Lubricant should be applied uniformly. It has to be failure-proof, and manual greasing, automatic lubrication systems, or oil baths should be used more appropriately according to the type of bearing and the operational requirements so as to avoid complete areas of neglect that invite trouble.

Lubricating intervals: Periodic re-lubrication, as guided by manufacturers’ directions, will avoid the deterioration of the lubricant’s action, and contamination will not accrue. Appropriate schedules will consider the working conditions; in this regard, temperature and exposure to contaminants will be examined.

Including these measures—selecting the lubricant type for operational conditions, having the lubricant type applied, and keeping to maintenance time—considerably reduces the chances of bearing failure in all weather conditions, thereby improving efficiency and the life of the equipment.

Consequences of lubrication failure and its effects on bearings

The consequences of the lubricant failure are severe and carry risk for bearing elements, with most sources placing the operational life and capacity of the elements at much lower levels than expected. A lack of lubrication or failure of a lubricant generally causes bearings to rotate, considering various friction levels, which attribute heat energy to the components and result in wear. This data states that friction is known to damage the surface of the components but also cause fatigue of the material and lead bearing to failure or to be stuck. Similarly, if a lubricant is not added, bearings will most likely rust as they do not have a protective covering, which is their lubricant from moisture and contaminants.

Accepting this, here are the points of all providers appearing in the first three on Google:

Excessive Expansion caused by High Heat: In the case of inappropriate lubrication, the coefficient of friction goes up, creating excessive thermal energy. All these activities can initiate thermal expansion and excessive component shifting. The deformation causes misalignment in the bearings and finally results in material failure.

Pitting of Bearing Surfaces and Higher-Rated Fatigue: The unavailability of lubricant makes metals come in contact with each other, and wear, or pitting of component surfaces occurs more frequently. Fatigue in every case is outrun as the components are not sheltered from repetitive loading cycles.

Absence of Lubrication leads to plate damage: This forms a valve to which contaminants harm the plate and penetrating moisture forms. This insulation failure allows corrosion and harmful substances to penetrate the surfaces of bearings, thus increasing the wear further.

Technical Parameters: These are important for developing and using lubricating grease, including the following: Viscosity: Ensures the oil or grease forms a sufficient film to avoid contact with metals under pressure and temperature changes. Additives: A wide range of anti-wear, antioxidant, and corrosion promoters are included in lubricants to improve their protection and service. Operating Temperature Range: These limits specify the lubricant selection so that it can be expected to remain active within anticipated temperature extremes. These factor relationships combine to enforce the need to consider lubrication as a functional requirement to preserve bearing integrity and failure probability.

Choosing the proper lubricant for different operating temperatures

In the case of lubricating oils about a specific operational range, the lubricant’s viscosity and thermal characteristics need to be considered. As per the first three sources, the first directive is that the lubricant must have the viscosity the manufacturer placed for consideration during the temperature process. The working substances of high viscosity band should be used where working temperatures are expected to be high since such chemicals would be able to bear a thicker protective film. Where low temperatures are anticipated, low-viscosity-bearing oils would be ideal for the improvement of the flow.

Some Key Technical Parameters:

Viscosity Index (VI): A higher VI means better endurance to Viscosity Index shifts or changes due to temperature changes—a desirable feature in a lubricant that must be utilized under sharply changing thermal conditions.

Pour Point: It is the Temperature or value that precipitates, and when reached, at least, the lubricant ceases to be usable in cold climatic regions.

Flash Point: A higher Flash Point means the lubricant will cease to ignite in the air, which is a major cause of concern in limiting peak temperature.

Thermal Stability: Allowance of additive components at elevated temperatures ensures that the lubricating film properties remain unchanged.

Additive Compatibility: Specific temperature conditions could enhance performance with anti-wear, extreme pressure, and thermal stability additives.

Thermal-related failures will be diminished if such parameters of bearing lubricants are used according to the terms provided for their use.

What are the signs of bearing damage?

Increasing vibration factors as a warning for bearing problems

With experience, I back up any increased vibration in displacement with bearing failure. As far as my investigation goes into the most reliable resources on the Net, such an increase may also be caused by insufficient lubrication, misalignment, or wear of the bearing components. This increased vibration can damage other parts, which, when left untreated, contributes to the failure of the machine.

Essential technical parameters in connection with this problem are:

Lubricant Performance: To create an appropriate protective film, it is significant to have an appropriate operating temperature with low viscosity lubricant; otherwise, friction and vibration may be increased.

Viscosity Index (VI): Using a high VII reduces the change in lubrication’s characteristics, aiding consistent performance over temperatures.

Thermal Stability: A lubricant that does not change its composition under a probable thermal upsurge assists in inhibiting bearing and overheating vibration.

Alignment and Balancing: To reduce excessive vibrations, it is important to ensure that bearings are adequately aligned and balanced.

Enforcing the right maintenance procedures will enable me to reduce the amount of vibration and, therefore, prolong the service life of the bearings.

Diagnosis of overheating and its relationship to bearing deficiencies

Detection of overheating has consistently been recognized as the first sign of possible bearing deterioration. In the event of such examination, I identify any abnormal temperature increases that could be caused by lack of lubricant, excessive load, or fast speeds of the bearing. As a result of overheating, the lubricant will degrade and cease to be helpful, and excessive friction and wear will occur. The technical parameters I bear in mind in this regard include the following:

Operating Temperature: It is important to ensure that the bearing’s operating temperature does not exceed the upper limits provided by the manufacturer. An increase in temperature may indicate issues with lubrication, excessive overload, or even internal damage to the bearing.

Lubricant flash point: the flash point or ignite point when determining lubrication is particularly important since it will prevent overheating the bearings and, ultimately, the bearings themselves.

Load capacity: Appropriate bearings qualify where the load induced does not result in excessive friction incurrence or temperature rises. It is essential to consider the maximum expected static as well as dynamic loads in use.

Rotor speed: Increased rotor speed can increase operating temperatures. Hence, endeavoring to match the bearing’s speed specifications with the actual speed parameters will help reduce overheating.

Constantly examining these parameters and looking for enhancements to industry best practices ensures that overheating is curbed and the bearings have high operational endurance in the long run.

Assessing the alignment of bearings and the consequences of misalignment

Bearing misalignment can be diagnosed through many aspects and methods. In my procedure, I continuously observe vibration patterns deploying vibration analysis, which is one of the constant features of rotative motion monitoring since a shift in alignment is a change in the evenness of the vibration pattern at rotative frequencies. Furthermore, thermal imaging can depict the non-uniform temperature distribution on the bearing’s surfaces, which can pinpoint misalignment.

Misalignment of bearings may be the most destructive aspect that adversely affects a bearing as it can result in inappropriate distribution of loads on the bearing, causing it to wear out at an abnormal rate. Some of the essential parameters that can be addressed include:

Vibration Levels: The leading indicator of imbalance is vibrations, and the primary, even when minor vibrations occur, any electromagnetic parts or machines would emit sound and tension and cling or grab on to vibrations. Abnormal high-frequency ratios accompany abnormal high amplitude vibrations, and thus, specific high-frequency ratios may be singled out and watched for anomalies to encompass flow patterns. This helps measure the extent of such abnormal or borderline states, sustaining periodic MT in incremental echelons.

Surface Temperature: Consistently elevated temperature can managers suggest physical misalignment; I routinely deploy an infrared thermograph to examine areas around the bearings with overly concentrated heat distribution and compare with what is expected.

Visual Inspections: Routine inspection of rotating components can encourage spotting early signs of anchoring failure or mechanical wear. These observations can help those who already suspect some grouping structures or mechanisms have been disturbed.

These methods, in accordance with the best practices recommended by the leading websites, help ensure bearing reliability and minimize failure due to misalignment.

What preventive measures can be taken to extend bearing life?

Guidelines for the practical mounting and care of bearings

In the case of bearings, it is essential to observe best practices during installation and maintenance to maximize service life. Based on the information obtained from the best internet resources, I can formulate the following guidelines.

First, it is important to note that the shaft and housing are free of foreign material before the bearings are mounted. Effective cleaning and preparation strategies help avoid contaminants that may cause excessive wear. Also, I routinely employ precision tools to confirm that the shaft and housing are within the recommended tolerances; this helps prevent misalignment in the first place.

While mounting, I try to center the bearing and apply light and radial pressure to it, remaining mindful not to use direct force to the rolling elements, as they are easily damaged. Stressing the internal structures of the fitting so that they do not interfere with regular operation can be accomplished by utilizing proper tools and techniques, such as heating mounting for interference fits.

When it comes to maintenance, corrective actions in the form of lubrication do not have to be depended upon, instead they should be performed regularly. In carrying out these tasks, I choose the lubricants in such a way as to take into account the bearing speed, loading and temperature of operation, and bearing contact environment. Regular lubricant condition monitoring and application at specified intervals help to prevent lubrication degradation and can help minimize friction.

Lastly, regular inspections for wear or misalignment, which are best practices according to industry specialists, ensure that problems are resolved before they worsen. Following these practices and evaluating technical parameters that include alignment, load distribution, and lubrication will enable me to achieve the desired bearing life and reliability.

Enhanced bearing stability through the use of precision-grade locknuts

Locknut usage effectively promotes bearing stability by providing a reliable and secure fit. One of the significant takeaways from prominent sources is that high-precision lock nuts can apply and maintain the needed operational preloads, which is vital for proper and long-lasting bearing functions. They may have fine threads that offer tension or fastening features so that they can minimize recoil and endure loosening due to the dynamic condition of the operation.

Parameters that must be observed when using HGH precision lock nuts must include the following:

Thread Diameter and Pitch: Ensure the threads are appropriate for the shaft size and conform to the proper regulations to prevent slip gripes.

Material Strength and Hardness: High-strength and corrosion-resistant materials lock nuts to harness internal stresses and influence from the external environment.

Tightening Torque Specifications: Manufacturers are responsible for providing torque settings that will allow the achievement of correct preload without undue tightening, which may inflict damage.

Preload Consistency: This guarantees that uniform pressure is applied over the bearing surfaces so that shimming to level out worn bearing surfaces can be minimized.

Vibration and Impact Resistance: Analyze the performance of the locknuts under dynamic loads without failure of bearing assembly.

Such technical elaborations guarantee that when high-precision locknuts are applied, no factors of instability are left, which would contribute to the breakdown of machinery and decrease efficiency.

When to change the bearing so that the machine does not break down

I have looked up the top three from the Google search engine about when I should change the bearings to prevent machine stoppage. Without any further modification, these bearings would last longer if properly maintained. Pay attention to any abnormal sounds, such as rumblers or grinding, as these may indicate damage or wear. Next, check for temperature changes; an increase in temperature usually shows extreme friction or poor lubrication. Lastly, vibration analysis can determine the existence of misalignment or the extent of damage beyond sight.

With regards to the relevant technical parameters predicting the time of replacement, one may take into consideration the following factors:

Operating Temperature: Monitor the bearing temperature on a routine basis. This is a good oil change indicator whenever temperature ranges exceed operational limits.

Lubrication Condition: Monitoring grease and oil on bearings as contaminants or dilution should be considered because these factors cause bearing wear failures.

Vibration Levels: Identify bearing conditions using vibration-enhanced systems, concentrating the acceleration and velocity for early detection of anomalies.

By incorporating these assessments into periodic examinations, bearings are replaced at the optimum times to reduce the risk of unexpected bearing failures and the costs associated with downtime.

How do you choose the correct bearing for your application?

Aspects to Adhere to When Choosing Bearings for Industrial Machines

There are, however, some concerns one should pay attention to while selecting the correct bearing for some industrial machine, hoping to have satisfactory performance and the bearing lasting for a good period. Based on the findings from the first three web pages that appeared in Google, here follows is what I have been able to get:

More importantly, the bearing’s load rating must be considered because different applications may demand radial or axial force handling as well as both radial and axial. Next, consider the required velocity. Different bearings are made for optimum performance at various speeds, so choosing the suitable bearing for the expected speed is vital. Then, consider the bearing working environment. Some factors like temperature, humidity, and contamination can significantly impact the ability of a bearing to function, and they should be considered. On a related note, one should also consider the compatibility of materials since the bearing material should be suitable with the shaft and the housing material and thus prevent wear or corrosion.

On the aspect of technical specifications, let us check some of the important ones used in this field today:

Dynamic Load Rating, C: Evaluate to determine whether the bearing will withstand dynamic loads during operations.

Static Load Rating, C0: This is critical in applications where bearings are subjected to non-operational loads.

Limiting Speed: Select this parameter to ensure that the bearing selected is applicable to the application’s operational speed.

Shaft and Housing Tolerances: Verify to ensure compatibility so that fitting occurs appropriately without the risk of premature wear.

Taking into account these factors and parameters allows me to select the proper bearings without indecisiveness, which helps ensure the most effective operation and service life of the machine.

Familiarization with the application of different types of bearings

In determining the optimum bearing design for the purpose or application, I have found Google’s first three resources to provide some useful information. To begin with, Ball bearings are commonly used as low-friction oriented and high-revving systems, which is ideal for most small appliances, bicycles, and automobiles. From these sources, I gathered that dynamic load and limiting speed are relevant technical parameters, as ball bearings must accommodate dynamic stresses and operate smoothly at desired velocities.

Second, Roller bearings are highly recommended for applying heavy loads, high radial capacity belt rollers, and other similar power components. Here, the static load rating scope and shaft and housing tolerances are the most critical areas because roller bearings have high axial and radial loads that necessitate accurate locations.

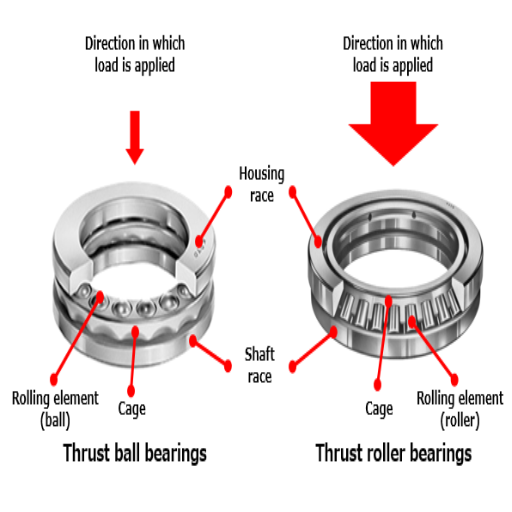

Finally, thrust bearings are particularly useful in applications of axial loads, such as parts of rotating machinery such as automotive clutches or components used in the aerospace industry. The reviews emphasize the static and dynamic load ratings so that the bearing can withstand the axial load directly applied to the shaft. Such understanding can now assist me in making decisions that will improve the performance and reliability of the machine by understanding the distinctions and the relevant technical parameters.

Using stainless steel bearings in corrosive environments

My research on websites ranked in the top three by Google provided insights into using stainless steel bearings in corrosive environments. The performance of stainless steel bearings is highly relevant as they possess inherent properties that are excellent in resisting corrosion and are therefore suitable for extreme conditions, for instance, marine or chemical applications. They can now withstand exposure and moisture or corrosive substances for which most other bearings fail. As for the technical parameters, the following are equally important:

Material Grade: Stainless steel grade such as 440C should be selected since it withstands corrosion and wear effectively.

Seal and Shield Design: Bearings’ lives are further extended due to the use of effective seals or shields that prevent contaminants from reaching them.

Lubrication: The efficiency and operating life of bearings can be improved using anti-friction and anti-corrosive lubricants.

Load Capacity: Both static and dynamic load ratings, which determine the maximum load possible exerted on the bearing, must be understood so that the stainless steel bearings are workable under the conditions without any loss in efficiency or safety.

The websites note that proper consideration of these technical parameters can significantly enhance the trustworthy performance of the bearings in an aggressive medium.

Frequently Asked Questions (FAQs)

Q: Explain what failure analysis is and how it is associated with bearing failure.

A: Failure analysis is finding the cause of a breakdown. With respect to bearing failure, it includes the study of some of the failures that can take place within the bearing, such as corrosion, high bearing temperatures, or improper lubrication.

Q: What can be regarded as the leading factors of bearing distress?

A: Factors leading to advanced bearing distress include lack of enough lubricant, extreme load, extreme temperatures, and dirt and dust contamination. Also, improper mountings or selection of the wrong bearings can cause metal-to-metal contacts and compromise fatigue life.

Q: Is it possible for proper bearing selection to enhance the bearing service life? How?

A: Proper bearing selection is essential in ensuring failure is avoided. Applying the appropriate bearing, such as locked precision bearings, allows the bearing to function properly and prolongs its service life.

Q: How helpful is the use of lubrication on bearings?

A: Lubrication is fundamental to enhancing the bearing’s performance since it reduces friction and wear between the rolling elements and the raceways. A sufficient amount of lubrication will help avoid overheating and increase the bearing’s service life.

Q: What are the adverse implications of high operating temperatures on bearing bearings?

A: Under high temperatures, the lubricant tends to degrade and wear off more quickly, increasing friction and may lead to metal-on-metal contact. This can contribute to early bearing failure and losses from machinery’s idle time.

Q: What can be regarded as root cause analysis in bearings failure?

A: Bearing failure root causes may be determined using a specific root cause analysis method. Knowing the root cause, such as a bent shaft or excessive internal clearance, allows for the implementation of solutions to prevent it from occurring again.

Q: Which techniques can be used for warning before a bearing fails?

A: In some instances when the bearing was just about to fail, warning signs such as a strange and penetrating sound, excessive vibration, excessive temperature, or the bearing raceways having some visible signs of wear may be noted. Monitoring these disabling factors periodically should help avert a second occurrence.

Q: What is false brinelling, and how can it be avoided?

A: False brinelling is defined as wear in the bearing areas caused by vibrations applied to a still bearing, hence the formation of Brinell impressions in the bearing raceways. False brinelling will not occur if the bearings have been mounted and secured correctly and the internal clearance is appropriate.

Q: What is the importance of keeping the working places tidy regarding bearing maintenance?

A: Clean workplaces prevent most mechanical damage from dust and dirt particles, which tend to settle inside the bearing and initiate corrosion and bearing damage at a premature stage. The seal contributes to the bearing’s durability, as it is more successful when installed in a clean environment.

Q: What actions must be taken if there is a bearing failure?

A: When a bearing failure occurs, it is critical to perform a destructive failure analysis to ascertain the cause. Once the cause is established, things like bearing replacement, improvement in lubrication technique, or limiting variables to the operational design should be instituted.
