Thrust Bearing vs Journal Bearing: Which Bearing Reduces Friction and Supports Axial Loads Best?

Bearings play a critical role in the operation of machinery, facilitating smooth motion while reducing friction between moving parts. Among the various types of bearings, thrust bearings, and journal bearings are often compared due to their distinct functions and engineering applications. Thrust bearings are specifically designed to handle axial loads—forces parallel to the axis of rotation—while journal bearings excel in supporting radial loads and enabling rotational movement through fluid lubrication. This article aims to explore the differences between these two bearing types, identify their strengths and limitations, and assess their suitability for specific mechanical requirements.

When should you use a thrust bearing instead of a journal bearing?

What applications are ideal for thrust bearings?

Thrust bearings apply best where the principal load is axial, which means that the direction of force is parallel to the shaft’s axis. I most commonly apply thrust bearings in high-load environments, for example, in automotive gearboxes, aerospace propulsion systems, or in heavy industry turbines and compressors.

• Axial Load Capacity: Thrust bearings are particularly suited to applications where large axial forces must be sustained, which is critical for vertical pumps or helicopter rotors that experience predominately axial loads.
• Speed Limitations: Regardless of the large loads thrust bearings can endure, their speed ratings differ because of the materials used. For instance, there are ball thrust bearings for intermediate speeds, while tapered roller thrust bearings are designed for use at lower speeds but with greater thrust loads.
• Lubrication Needs: To prevent and minimize abrasion and friction among other elements in a system, especially in high speeds or high temperatures, appropriate lubrication is needed.

From these factors, it is possible to understand if a thrust bearing corresponds to the mechanical requirements of the customer’s particular system.

In which scenarios do journal bearings outperform thrust bearings?

In many cases, Journal bearings outperform thrust bearings in applications that require high radial loading and very low rotational speed. In my view, journal bearings are quite useful for systems that operate with smooth and vibration-free rotation like turbines, compressors, and large rotating machinery.

• Radial Load Capacity: Journal bearings have a very large contact area and are, therefore, able to sustain substantially high radial loads because of the design features of the bearing.
• Lubrication Efficiency: The shaft rotation creates a hydrodynamic lubrication film at the junction of the shaft and bearing surface that significantly reduces wear and guarantees component life in high, consistent radial load applications.
• Rotational Speed: These bearings are quite effective in ranges of low to moderate rotational speeds because their configuration reduces energy loss from the system compared to rolling-element bearings.
• Durability in High-Temperature Environments: Journal bearings, which are made of materials with high thermal stability, perform well when used at elevated operating temperatures.

It is obvious that when proper axial loading capacity and shock absorbing capacity, along with effective radial and thermal energy dissipation are the most important factors for the system, these requirements are best met with the use of journal bearings for all the previously mentioned reasons.

How do load capacities compare between thrust bearings and journal bearings?

What factors affect the load capacity of thrust bearings?

These identifiers are crucial in determining the ability of bearings to sustain excessive axial forces in addition to their effectiveness without risking severe damage or excess wear.

• Material Properties: A bearing’s strength and hardness influence its overall load capacity. The presence of high-strength materials like hardened steel or advanced composites enhances the ability to resist deformation or heavy loads.
• Lubrication Quality: Effortless lubrication diminishes friction and the parts and components the bearing sits on. To maintain load-carrying capacity, the viscosity, film thickness, and thermal stability of the lubricant are of critical significance.
• Contact Area: Bigger load-bearing surfaces allow for higher load capacity. For example, the geometry of the thrust bearing such as raceway curvature and contact angle. Surface finish and precision: To prevent premature failure, a better surface finish ought to be smoothened and concentration stress broadened. Non-uniform load distribution at contact areas can be facilitated by high-precision manufacturing.
• Rotational Speed: Higher rotational speed causes excessive heat generation, which over time can result in lower coolant effectiveness, and stiffness, therefore lessening the overall load capacity.
• Operating Temperature: High temperatures result in the softening of material and the degradation of the lubricant, thus requiring the use of temperature-resistant materials and high-grade lubricants.
• Axial Load Distribution: Not very well-distributed loads inflict damage on the bearing by increasing stress concentration in localized areas thereby lowering overall load capability. System design and alignment corrections can reduce such problems.
• Residual Stresses: The processes of machining or heat treatment may introduce residual stresses which will have an impact on the fatigue life of the bearing as well as the load it can support.

If these factors are adjusted optimally, the performance of thrust bearings can be maximized for both static and dynamic load conditions.

How do journal bearings support radial and axial loads?

Journal bearings utilize hydrodynamic lubrication concepts, supporting both radial and axial loads by sustaining a layer of oil between the bearing surface and the rotating shaft. The distribution of forces around the shaft is achieved by the shape and position of the bearing which Radial loads are managed. Specific design features such as thrust faces or separate axial bearings can be utilized to manage axial loads which are not as frequently considered.

• Lubricant Viscosity: The lubricant used must be able to provide sufficient viscosity to handle the chamber where film strategies are utilized under different conditions without the surfaces having direct contact.
• Bearing Clearance: Efficiency of the oil film and allowance for thermal expansion for the operation will take both, oil temperature and bearing clearance to ideal values.
• Load Capacity: The bearing materials and dimensions have to be selected to accommodate the maximum anticipated radial or axial loads to be endured without any structural changes.
• Surface Finish: Smoother finishes will minimize friction and wearing along with enhancing the oil film’s stability, thus providing superior surfaces for lubrication film adsorption.
• Rotational Speed: Load bearing ability of the lubricating film is dependent on the shaft rotation speed since it has a direct relation with hydrodynamic pressure.

When these factors are carefully calculated and monitored, the bearings in journals can easily cope with radial and axial loads simultaneously in the majority of applications.

What are the advantages of journal bearings over thrust bearings?

How do journal bearings perform in high-speed applications?

With sufficient lubrication, journal bearings can withstand a lot of friction and high wear, allowing them to work effectively with minimal damage.

• Hydrodynamic Pressure: Rapid rotation of the shaft leads to the production of a high level of hydrodynamic pressure. This pressure makes sure that a lubricating film is formed, ensuring the separation of the two surfaces and therefore, minimizing wear.
• Viscosity of Lubricant: The integrative viscosity of the lubricant oil is also significant in preserving the film’s status. For high-speed operations, the viscosity ranges of the lubricants need to be optimally set to aid in the increase of film without excess drag.
• Load Carrying Capacity: Journal bearings are effective listeners to radial loads, however, maximum efficiency is reached when there is an analysis of the load allocation. Supporting surfaces of the bearing should be designed to handle greater centrifugal loads at higher speeds of rotation.
• Thermal Management: A rotational liquid system moves heat due to friction of the fluid. Fluid friction creates heat which must be offset with effective cooling systems while maintaining a circulation system to keep the temperature at an acceptable point.

Like other bearings, journal bearings are bound to some specific metrics. When these metrics are optimized, journal bearings perform with maximum effectiveness, achieving the set goals even in hostile, high-speed environments.

What makes journal bearings suitable for certain automotive uses?

Journal bearings, owing to their ability to lift excessive loads, maintain speeds, and be used in extreme conditions, are ideal for selected automotive functions.

• Load-Carrying Capacity: Journal bearings can lift significant radial loads due to hydrodynamic lubrication which is very important in transmission and engine.
• Friction Reduction: Because of the fluid film, metal-to-metal contact is reduced which lowers friction and wear and improves reliability in the long run.
• Thermal Dissipation: Journal bearings sustain operating temperatures by dissipating the heat generated.
• Compact Design: These types of bearings make the best use of space which is a major requirement for performance engines where components cannot be exceedingly large.
• Cost Efficiency: Compared to rolling-element bearings, their simpler construction, lower manufacturing, and servicing expenses are needed.

Due to precise operation, high strength, and great efficiency, journal bearings are the most preferred bearings in the automotive industry.

How do thrust bearings support rotating shafts differently from journal bearings?

What role do thrust bearings play in handling axial forces?

Thrust bearings are made for specific purposes; their main task is to withstand axial forces, which act parallel to the shaft’s rotating axis. It is my understanding that these components are very important for the support and stabilization of rotating parts during axial load conditions. These bearings tend to offset propulsive forces from mechanical phenomena, for instance, the propulsive are produced by helical gears and even by propellers.

• Axial Load Capacity: Thrust bearings are designed to accommodate certain restrictions on levels of axial force which, if exceeded, will put great stress and wear on associated components.
• Rotational Speed Compatibility: A special profile of the bearing and materials used allows for a certain level of speed to be enjoyed without having an overheating or deformation problem.
• Friction Coefficient: Material and lubrication selection is optimized to avoid energy loss and heat generation.
• Temperature Tolerance: Bearing tolerance under extremely hot climate conditions is usually required due to heavy loads on the bearings constantly along with axial strain.

Thrust bearings serve as essential parts of high-performance systems that ensure optimum support and effective load distribution all through the appropriate specifications for axial load and operating conditions.

How do journal bearings provide support for radial loads on shafts?

Journal bearings support radial loads on the shafts with the aid of a film of lubricating fluid to avoid direct bearing contact. This lubrication develops hydrodynamic wedges in the shaft journal which distributes the radial load across the bearing surface and decreases friction.

• Load Capacity: The strength of the bearing materials plus the addition of hydrodynamic lubrication is sufficient to allow bearings to withstand very high radial loads.
• Lubricant Viscosity: The lubricant has to have proper viscosity to maintain the film layer and hydrodynamic effect to support loads effectively.
• Bearing Clearance: The positive ring hole dimensions permit the formation of sufficient oil film and ensure stability.
• Operating Speed: Rotational speed affects the development of the hydrodynamic film, optimum speeds are needed to distribute the load without causing excessive wear.
• Temperature Range: Sufficient thermal tolerance makes sure the lubricant keeps its properties as well as prevents the thermal expansion of the bearings.

These guidelines help journal bearings handle radial loads without losing efficiency when making routine turns on a machine shaft.

What types of thrust bearings and journal bearings are commonly used in industry?

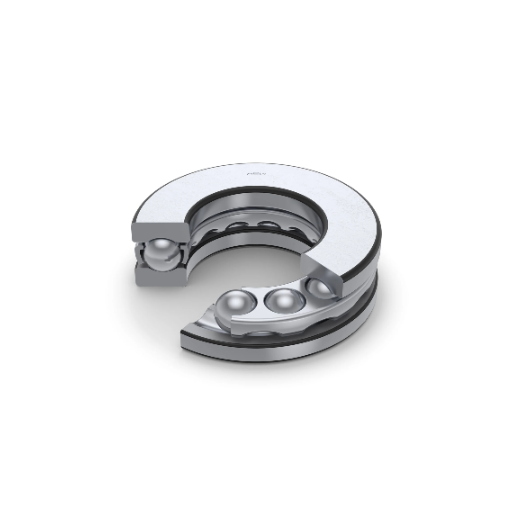

How do roller thrust bearings compare to ball thrust bearings?

I have come to note while comparing ball thrust and roller thrust bearings that both of them have their unique advantages, depending on the specific needs of their application. Due to the larger size of the conjunction area between the rolling elements and the raceways, roller thrust bearings can withstand higher axial loads as compared to ball thrust bearings. Hence, roller thrust bearings are most suited for heavy-duty equipment and high axle load scenarios. Conversely, ball thrust bearings are best for applications with moderate axial load as they can work at greater rotational speeds with lesser friction, thanks to the balls’ point contact.

• Load Capacity: Roller thrusts tend to take the lead in terms of the maximum axial loads they can handle thanks to their line contact design. However, ball bearings support moderate loads due to their point contact configuration.
• Rotational Speed: Among the two, ball thrust bearings have a higher rating of the rotational speed since point contact with the ball reduces friction in comparison to roller thrust bearings which have line contact.
• Friction and Heat Generation: Whereas roller thrust bearings are more prone to friction and heat build-up during operation because of the larger area of contact, ball thrust bearings tend to have reduced friction for smoother performance.
• Durability and Wear: Roller thrust bearings are more durable for heavy loads but are less suited for excessive bearings, while ball thrust bearings are more vulnerable to excessive wear.

To achieve efficiency and dependability in industrial operations, the decision regarding roller thrust and ball thrust bearings should be based on the load capacities, speed requirements, and operating conditions of each specific case.

What are the most popular types of journal bearings and their applications?

Journal Bearings are crucial in several mechanical systems as they help in smooth, low-friction rotating of shafts under a load. Different types of journal bearings are constructed for specific requirements of different operations:

• Plain Journal Bearings: This is the most basic type of journal bearing which is composed of a rotating shaft with a cylindrical sleeve surrounding it. Due to its ease of maintenance, it is used widely in turbines and electric motors which involve moderate loads as they are also very cost-efficient.
• Hydrodynamic Journal Bearings: This type of bearing uses a thin lubricant film which forms a pressure wedge as the shaft rotates, minimizing contact, and allowing for metal-to-metal bearing. Hydrodynamic Bearings are common in the frames of large turbines, pumps, compressors, and other high-speed equipment that involve high loads, as these bearings allow for efficient and durable functioning.
• Hydrostatic Journal Bearings: Hydrostatic bearings employ a pressurized lubricant that is fed through an external pump rather than being supplied by the internal rotation of the shaft, like in the dynamic type. Because of this, they offer shaft support when the device is idle or starting up. These types of bearings are particularly utilized in high-precision spindles and machine tools which require an ultra-high level of accuracy with stability.
• Tilting-Pad Journal Bearings: This bearing type is composed of split, tilting pads that follow the shaft’s rotation position that helps balance loads, and minimize vibration. This type is best suited for steam and gas turbines and other turbomachinery which need dynamic stability at different operating levels.
• Sleeve Bearings: These bearings are a type of plain journal bearing made from different materials such as bronze, Babbitt, and composite materials. They are mostly used in engines, blowers, and fans which require moderate effectiveness and dependability.

All different types of journal bearings described serve an important purpose concerning the efficiency, reliability, and aging of mechanical systems, their choice is made based on load capacity, operational speed, surrounding conditions, and accuracy needed.

Frequently Asked Questions (FAQs)

Q: What are the main differences between journal bearings and thrust bearings?

A: The main differences between journal bearings and thrust bearings lie in their design and load-bearing capabilities. Journal bearings are primarily used to support radial loads and allow rotational movement, while thrust bearings are designed to support axial loads and reduce friction in the direction parallel to the shaft axis. Thrust bearings are typically used in applications where heavy axial loads need to be supported, such as in automotive transmissions and marine propulsion systems.

Q: In what applications are journal bearings and thrust bearings used?

A: Journal bearings are used in applications that require support for radial loads and rotational movements, such as engines, turbines, and pumps. Thrust bearings are used in applications where axial loads need to be supported, including automotive transmissions, marine propulsion systems, and industrial machinery. Both types of bearings offer smooth operation and are crucial for various mechanical systems.

Q: What are the design considerations for thrust bearings?

A: Design considerations for thrust bearings include load capacity, operating speed, lubrication requirements, and material selection. Thrust bearings are typically designed to handle high axial loads while minimizing friction and wear. Factors such as temperature resistance, corrosion resistance, and overall durability are also important when designing thrust bearings for specific applications.

Q: How do journal bearings and thrust bearings differ in terms of load support?

A: Journal bearings are primarily designed to support radial loads perpendicular to the shaft axis, while thrust bearings are specifically engineered to support axial loads parallel to the shaft axis. This fundamental difference in load support capability makes each type of bearing suitable for different applications and loading conditions.

Q: Which type of bearing is more effective at reducing friction?

A: Both journal bearings and thrust bearings are designed to reduce friction, but thrust bearings are generally more effective at reducing friction for axial loads. Thrust bearings, especially rolling element types like ball or roller thrust bearings, offer lower friction coefficients compared to journal bearings when dealing with axial loads. This makes thrust bearings ideal for applications where minimizing friction in the axial direction is crucial for efficiency and performance.

Q: What are the common materials used in manufacturing journal bearings and thrust bearings?

A: Common materials used in bearing manufacturing include steel alloys, bronze, brass, and various plastics. For journal bearings, materials like babbitt metal, bronze, and polymers are often used. Thrust bearings are typically made from hardened steel, ceramic materials, or high-performance plastics, depending on the specific application requirements and load conditions.

Q: How do journal bearings and thrust bearings compare in terms of load capacity?

A: Journal bearings generally have higher radial load capacity compared to thrust bearings, making them suitable for applications with significant radial loads. Thrust bearings, on the other hand, excel in supporting axial loads and can handle much higher axial forces than journal bearings. The choice between the two depends on the predominant load direction in the application.

Q: Are there hybrid designs that combine features of both journal and thrust bearings?

A: Yes, there are hybrid bearing designs that incorporate features of both journal and thrust bearings. These combination bearings are used in applications where both radial and axial loads need to be supported simultaneously. Examples include angular contact ball bearings and tapered roller bearings, which can handle both types of loads effectively, offering versatility in various mechanical systems.
