Ultimate Guide to Female Rod Ends: Choosing the Perfect Heim Joint with Jam Nut Included

Female rod ends, often referred to as heim joints, are critical components used in a wide range of mechanical and engineering applications. These spherical bearings are designed to accommodate oscillating movements under varying load conditions, providing high strength and flexibility in equipment or machinery. Whether used in automotive suspension systems, industrial machinery, or aerospace engineering, selecting the right female rod end is essential for ensuring optimal performance and durability. This guide explores the key factors to consider when choosing the perfect heim joint, with a detailed focus on compatibility with jam nuts, material selection, load capacity, and design specifications. By understanding the nuances of female rod ends, readers will gain the technical insights needed to make informed decisions tailored to their specific applications.

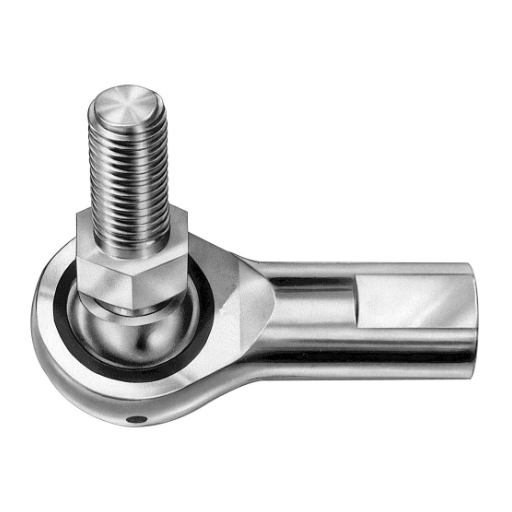

What are female rod ends and how do they work?

Understanding the basics of rod end bearings

Rod end bearings, also known as heim joints, are mechanical articulating joints that act as connectors for different parts and permit rotation or angular movement. These components have a sphere bearing that is enclosed in a cylindrical body. This design offers a great degree of flexibility without compromising on strength. Female rod ends, in particular, have internal threads that allow them to be combined with external threaded shafts or studs.

• Thread Size and Type： This is measured in inches (UNC/UNF) or millimeters (metric). It specifies their compatibility with the shafts with threads.
• Load Capacity： It is the radial static load capacity which is usually rated in Pounds or Kilo newtons and should always be greater than the anticipated operational load. Example figures vary from 2,000 lbs to even 20,000 lbs depending on the material and dimensions.
• Material Composition： Common materials include carbon steel (for strength), stainless steel (for corrosion resistance and strength), and coated alloys (for particularly demanding settings).
• Ball and Liner Material： The ball is often constructed from hardened steel or stainless steel, and optional liners such as PTFE will self-lubricate, reducing wear and tear.
• Angular Misalignment： The extent to which the bearing permits angular movement, which is often defined in degrees, for example ±15°.

With these factors defined and justified, female rod ends stand as essential components in mechanical systems that require precise alignment as well as flexibility whilst ensuring durability under load.

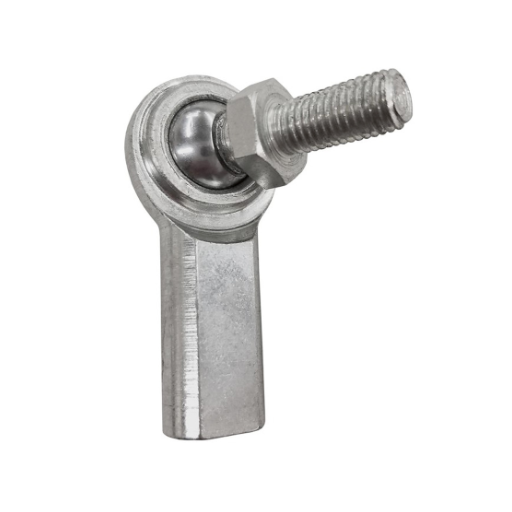

The difference between female and male rod ends

The major difference between female and male rod ends is regarding the mounting system design and system integration. Female thread rod ends have inner threading which allows them to screw onto a shaft or stud, while male thread rod ends have outer threads, and can be inserted into any component or system with internal threading.

• Mounting Space: Female rod ends are often favored for compact designs as their internal threads facilitate easy mounting, which requires less axial space.
• Thread Type and Size: Rod ends, male and female, have common thread sizes from M4 to M30 with an ISO standard unless instructed otherwise.
• Load Capacity: While both types exhibit similar lift capacities from the same material, the male design is reasonably more stable while engaging in external threads during some axial loading conditions.
• Ease of Assembly: Where there are no space restrictions, male rod ends are often easier to install into the female threaded components.

Selecting the best type in either design requires complete knowledge of mechanical limitations such as static and dynamic load capacities and permissible angular misalignment, which ranges approximately from ±10° to ±20° depending on configuration. Overall, all types exhibit high strength and flexibility when made out of fiberglass, carbon steel, stainless steel, or even with PTFE liners.

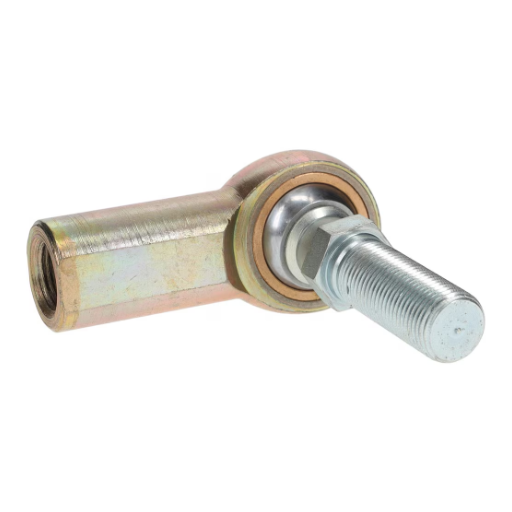

How to choose the right female rod end for your project?

Considering thread size and type (metric vs. imperial)

Selecting the thread size and type for a female rod end requires an understanding of the project’s needs in design and functionality. Threads are also categorized in terms of imperial and metric systems where metric threads are used for applications centered on international standards like ISO or DIN. Whereas, imperial systems which are common in North American applications following SAE or ANSI standards use threads measured in inches.

• Thread Diameter and Size: Identify the thread pitch nominal diameter and check offset compatibility with the other part as well.
• Load Ratings: Identify static and dynamic load ratings to verify that forces applied to the rod end will not fail the system.
• Material Specifications: Factor in the degree of corrosion resistance and mechanical strength when considering materials like stainless steel, carbon steel, or specialty alloys for high-demand situations.
• Tightening Torque: Refer to the assembly floating torque values to determine secure attachment without thread damage.
• Application Standards: Best practices (ISO 261 for metric threads or ASME B1.1 for imperial threads) should be made to ensure accuracy and reliability with known standards.

The uphill task of choosing the proper type of threading includes taking into account the environmental, mechanical, and dimensional components of the particular project including all relevant standards.

Selecting the appropriate material: stainless steel vs. other options

When selecting materials for threading applications, it is crucial to consider the strength, resistance to corrosion, thermal properties, and environmental conditions. Stainless steel excels in being durable and corrosion resistant, making it well-suited for extreme conditions where moisture, chemicals, and temperature are a factor.

• Tensile Strength: Mechanical performance for stainless steel grades 304 and 316 is relatively high with tensile strengths of ~515 – 565 MPa.
• Corrosion Resistance: Passive oxide layer formation which helps resist oxidation is present due to chromium content forming in stainless steel grade 304 (contains molybdenum) and grade 316. The chromium percentage is typically 16 to 18%.
• Thermal Stability: Some stainless steels maintain structural integrity (for some grades) up to elevated temperatures above 800°F (426°C).

Nonetheless, some applications present specific cost constraints or need to lose a certain amount of weight whereas alternative options like aluminum or titanium are more advantageous. Despite having a lower density than stainless steel (~2.7 g/cm³), aluminum is also far weaker in tensile strength (anodized) with corrosion resistance. Alternatively, titanium also is strong with a very favorable strength-to-weight ratio and great resistance, although more expensive.

Determining the required load capacity and range of motion

To calculate the necessary load capacity, consider the maximum force or weight that needs to be supported by the system throughout its operational lifecycle. This will include static loads, dynamic forces, and the requisite safety factors. Important calculations to make include the following:

• Maximum load: Determine the maximum load to be supported in newtons (N) or pounds-force (lbf).
• Load distribution: Establish whether the load is perfectly concentrated or evenly spread out because this will affect the level of stress concentration in the various parts of the assembly.
• Safety factor: Allow for a safety margin, e.g. 1.5x or 2x the maximum load to cater for unforeseen circumstances and material fatigue.

By clearly defining these factors, the design can be optimized to meet operational demands while ensuring structural integrity and functionality.

What are the benefits of using female rod ends with jam nuts included?

Simplifying installation and adjustment processes

Female rod ends with jam nuts streamline the installation and adjustment processes by eliminating the need for additional components, thus minimizing complexity. The incorporated nuts enable positioning that is both reliable and precise, ensuring stability at operational loads. This design makes alignment and readjustment effortless without risking structural strength.

• Thread Size Compatibility: The rod end’s thread size must match the mating components like M6, M8, or imperial units for a secure fit.
• Material Strength: These are usually made from carbon steel or stainless steel, suitably coated for corrosion resistance ensuring durability under different conditions.
• Load Rating: Determine the static and dynamic load limits according to the application to prevent excessive loading, for example, a static axial load rating of 10,000 N for normal applications.
• Adjustment Torque: Stipulate the torque range of the jam nuts that will enable proper locking without over-tightening, such as 15-30 Nm, depending on size.

The combination of these components enables precision, reliability, and ease of use in mechanical systems, thus improving performance and extending their lifetime.

Ensuring secure connections in high-stress applications

1. Static Load Capacity: Ensure to calculate the total expected load that needs to be endured before erecting the components. In comparison, a static axial load rating of about 10,000 N would suffice for most basic uses in terms of applications without the worry of the component getting deformed or failing.
2. Adjustment Torque Range: As a means to confirm reliable locking, I would check that the jam nuts have an adjustment torque that falls within 15 – 30 Nm, which is most common for the majority of parts. This would ‘help’ get a good lock without over-rotating the nut and spoiling the joint.
3. Material Selection: When it comes to resisting deformation and fatigue from repetitive strain, myself and my peers always preferred the use of high-strength materials such as alloy steel or hardened stainless steel, especially in dynamic and high-impact environments.
4. Thread Locking Mechanisms: The application of some form of a locking mechanism such as nylon inserts or chemical thread lockers can help promote stability of the connection in places where there are high levels of vibrations and variations in temperature.

By these measures, all the major factors should be double-checked during assembly, and, if so, secure and durable connections can be achieved in demanding operational conditions.

Improving overall system performance and longevity

To further extend the life and performance of the system as a whole, I would optimize several important parts of the design, choose the right materials, and establish maintenance protocols. First, I would investigate the operational environment of the system, such as temperature ranges vibration levels, and load conditions to ensure all components are specified properly. For example, materials that are high in tensile strength and stainless steel or titanium alloys are considered. Furthermore, adequate lubrication and regular inspections can assist in greatly alleviating wear and friction-related failures.

• Operating Temperature Range: Components must be capable of withstanding both minimum and maximum ambient temperatures without degrading (for example, certain alloys from -40°F to 300°F).
• Load Capacity: Static and dynamic load-bearing structural components should exceed the maximum load with a safety margin of 1.5–2x.
• Vibration Resistance: High-frequency operational vibration-damping materials or fasteners should be tested above 20 Hz.
• Lubrication Intervals: Maintenance-free machinery should use lubrication schedules recommended by the manufacturer (500-hour rotations under standard usage for rotating machinery).

By tackling these issues in-depth, maximum reliability as well as service lifetime of the system can be achieved alongside goals of operational efficiency and compliance with industry standards.

How to properly install and maintain female rod end bearings?

Tips for regular maintenance and lubrication

1. Cleanliness: Verify that every female rod end bearing is washed regularly to eliminate dust, debris, and contaminants. A cleaning solvent that does not damage bearing material can be used. This is very important in dirty or moist areas.
2. Inspection: The bearings should be inspected visually often to check for wear, corrosion, damage,e or deformations. Pay more attention to unusual play in the bearing or issues with the movement of the spherical ball as these are indicators of a failure about to happen.
3. Lubrication Frequency: Lubrication should be done as per recommendations so there is minimum friction or wear. When operating under standard conditions, consider applying it with a high wear-resistant lubricant once every 250- 500 operational hours. For higher loads or temperatures, lubricant should be applied constantly.
4. Lubricant Selection: The lubricant should match the bearing material and operational environment. Heavy-duty applications are suited best with synthetic greases that have high load-bearing properties while lower-load environments might be fine with lighter oils.
5. We are housing the bearings: Be sure to coat the noted bearings’ surface with grease to preserve the integrity of the bearing. If not in use, cap the bearings off with care in a dry, temperature-controlled environment to mitigate rust or damage.
6. Replace: Be sure to replace any overloaded bearing at once before it leads to compromising the larger machine. Components that are neglected tend to preach a cascade of failures which could result in troublesome downtimes.

The aforementioned suggestions are made for improving the performance and durability of female rod end bearings used in different conditions. Adjusting to these guidelines is bound to enhance reliability.

Troubleshooting common issues with rod end bearings

Understanding the failure modes and causes of rod end bearings is important to guarantee the reliability of a system. Bearings with rod ends encounter the following problems during their operation, their probable objectives, and corrective actions:

• Overuse: This is often due to poor lubrication, stray contamination, or misalignment. Examine the bearing for galling, pitting, or other physical damage, ensure alignment, and replace damaged parts. If contamination issues are frequent, it is best to switch to seals or shields.
• Rust: Rust may result from as a result of contamination, and is often used for exposure to severe atmosphere. Ensure that proper corrosion-resistant features are provided on the bearing and that the surrounding area is not highly humid. If needed, use lubricants that are not prone to rust.
• Settling or Free Space: These issues may stem from the fact that either the assembly is misaligned the bearings have been improperly installed or they have worn down over time. Make sure to retighten the bolts’ post-overriding torque specifications so that the bearings can support the load of the application. Components with excessive depletion must be changed.
• Sticking or Jamming: retardation often stems from the contamination exceeding lubrication levels or the bearing itself to be damaged. It is best to clean the area where the problem persists, lubricate the parts as per guidelines, and change the bearings if things do not improve.
• Cracking or Fracture: A fractured rod end bearing typically indicates overloading, material end fatigue, or inadequate installation procedures. Make sure that the load requirements of the application are compatible with the selected bearing. Take proper care in handling the bearing to avoid damage during assembly.

These efforts in this systematic manner increase operational efficiency and safety while prolonging the lifespan of the rod end bearings.

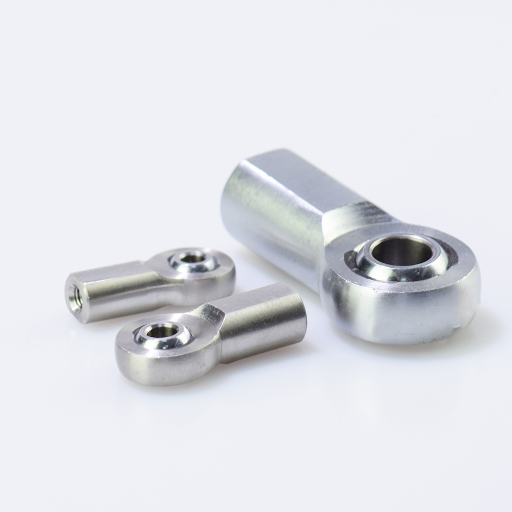

What are the most common applications for female rod ends?

Use in automotive suspension and steering systems

Female rod ends are key parts in the construction of automobile suspension and steering systems due to the freedom they give in angular movement and the precision in alignment that they provide. They are mostly applied towards linkages, control arms, and tie rods where there is a need for compliant joints.

• Load Capacity: The rod end has to possess the requisite dynamic and static load ratings to cover operational forces during movement.
• Material Composition: High-strength steel or stainless steel is quite ideal for its durability and resistance to harsh environmental factors.
• Thread Dimensions: Male and female threads do have to be of the correct size for appropriate fastening.
• Bearing Type: Self-lubricating or standard versions are to be chosen based on maintenance expectations and operating conditions.
• Angular Motion Range: There should be enough angular allowance in the bearing to avoid binding the system.

By following these guidelines, female rod ends can achieve performance maximization, reduction of wear, and increased safety in-vehicle applications.

Applications in industrial machinery and equipment

Female rod ends are important for the functioning of different industrial machines and equipment as they facilitate misalignment and support dynamic loads. They are widely used in broad applications such as actuators, hydraulic cylinders, and linkage controls. These joints are specially designed for use in heavy equipment such as cranes, excavators, and conveyor systems which require accuracy and high durability.

• Material requirements: High-yielding steel is best suited for high-load applications while stainless steel is best suited for highly corrosive environments due to its oxidation resistance.
• Load requirements: Check that the selected rod ends have appropriate dynamic load ratings. For example, use a rod end that is rated for 1.5 times the expected dynamic load for added safety.
• Threading: The system’s requirement will determine whether metric or imperial standards will apply. For example, M12 thread dimensions or 1/2-20 UNF is typical for industrial use as a function of class of load and type of fastening.
• Bearing type: If maintenance is hard to access, self-lubricating variants are best, otherwise, standard designs are acceptable for self-maintaining applications.
• Angular range of motion: Rod ends must allow at least 15 to 25 degrees of transverse angular movement depending on the range of the mechanical linkage.

The integration and cost accounting of female rod ends with industrial machines is thus enhanced in terms of productivity and value life performance of the machines.

Frequently Asked Questions (FAQs)

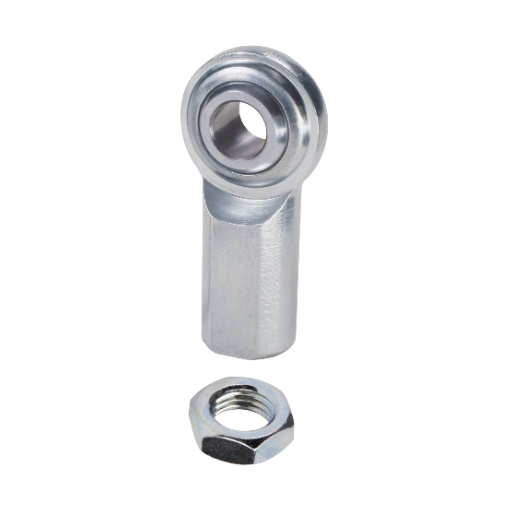

Q: What is a female rod end bearing with jam nut included?

A: A female rod end bearing with a jam nut included, also called a heim joint, is a type of spherical rod end bearing that comes with a pre-attached jam nut. It consists of a female-threaded body, a spherical ball insert, and a jam nut for secure locking. These components are commonly used in various mechanical applications for flexible, pivoting connections.

Q: What are the advantages of choosing a heim joint rod end with a jam nut included?

A: Selecting a heim joint rod end with a jam nut included offers several benefits: 1) Convenience, as the jam nut is already attached, saving time during installation. 2) Ensures proper fit, as the included nut is designed specifically for the rod end. 3) Reduces the risk of losing or mismatching parts. 4) Simplifies ordering and inventory management for customers.

Q: How do I determine if I need a right-hand thread heim joint with jam nut?

A: To determine if you need a right-hand thread heim joint with a jam nut, consider the following: 1) Check the threading direction of the mating part or housing. 2) Right-hand threads tighten clockwise and loosen counterclockwise. 3) Most standard applications use right-hand threads. 4) Review your product details or engineering specifications to confirm the required thread direction.

Q: What are the key factors to consider when choosing a female economy right-hand rod end bearing?

A: When selecting a female economy right-hand rod end bearing, consider these factors: 1) Load capacity. 2) Thread size and pitch. 3) Ball material (chrome steel, stainless steel, etc.). 4) Housing material. 5) Operating temperature range. 6) Corrosion resistance requirements. 7) Radial and axial play specifications. 8) Cost-effectiveness for your application.

Q: What are the common applications for heim joints or spherical rod end bearings?

A: Heim joints or spherical rod end bearings are widely used in various applications, including: 1) Automotive suspension and steering systems. 2) Agricultural machinery. 3) Industrial equipment and robotics. 4) Aerospace and aviation controls. 5) Marine steering mechanisms. 6) Fitness equipment. 7) Racing and high-performance vehicles. 8) General mechanical linkages and adjustable connections.

Q: How do I properly install a female rod end bearing with a jam nut included?

A: To properly install a female rod end bearing with jam nut included, follow these steps: 1) Thread the rod end onto the mating part. 2) Adjust to the desired position. 3) Tighten the jam nut against the mating part to lock the rod end in place. 4) Ensure the ball can still move freely after installation. 5) Double-check all connections and tightness. 6) Refer to the product description or manufacturer’s instructions for specific torque recommendations.

Q: What maintenance is required for heim joint rod end bearings?

A: Maintenance for heim joint rod end bearings typically includes: 1) Regular inspection for wear, corrosion, or damage. 2) Cleaning to remove dirt and debris. 3) Lubrication if specified by the manufacturer (some are pre-lubricated or self-lubricating). 4) Checking for proper tightness of the jam nut. 5) Replacement if excessive play or wear is detected. Always refer to the product details and manufacturer’s recommendations for specific maintenance guidelines.
