Ultimate Guide to Oil Seals for Heavy Vehicles: Mechanical Seals Explained

Oil seals, also known as rotary shaft seals or radial lip seals, play a critical role in the performance and operational reliability of heavy vehicles. These components are designed to prevent the leakage of lubricating oil while simultaneously protecting machinery from external contaminants such as dirt, moisture, and debris. This guide aims to provide a comprehensive understanding of oil seals, placing particular emphasis on their mechanical functionality, design features, and applications within the demanding framework of heavy vehicle operations. By exploring the fundamental principles behind oil seals and discussing their role in minimizing wear and tear, this guide equips readers with the technical expertise necessary to evaluate and select the correct seals for their specific needs.

What are oil seals, and why are they crucial for heavy vehicles?

How oil seals protect against contaminants and leakage

Heavy vehicles require oil seals, also referred to as rotary shaft seals; they stop dirt, water, and debris from entering the internal components that are sensitive and at the same time, retain lubricants within a system.

The main elements of an oil seal consist of: sealing lip for contact with the shaft; metal casing for structural strength; and spring (if equipped), which applies a constant pressure on the lip.

• Material Composition: General resistance to oil and temperature is built through the use of materials like nitrile rubber (NBR), while fluoroelastomers (FKM) guarantee toughness under high-temperature conditions up to 400°F/200°C.
• Lip Design and Contact Pressure: Good sealing is achieved by optimized lip geometry that ensures uniform contact with the shaft while reducing friction wear. This can be expressed in terms of radial load and surface roughness (typically Ra 0.2-0.8 µm for optimal performance).
• Operating Speed and Shaft Compatibility: Most modern oil seals have speeds up to 10 meters per second, although some special models meet requirements of higher RPM applications.
• Temperature and Pressure Ratings: Heavy-duty oil seals are usually designed to be able to withstand pressures of up to 0.3 MPa (3 bar) under dynamic conditions and a wider range of temperatures from -40°F to 400°F (-40°C to 200°C), depending on the materials used.

This technical solution helps achieve operational reliability in oil seal applications, which reduces machine downtime and extends heavy vehicle systems’ life expectancy. These seals’ aptitude for preserving lubrication whilst keeping contamination at bay is highly significant for both the efficiency and safety of a vehicle’s operation.

The importance of oil seals in maintaining machinery durability

Seals and gaskets have the specific function of patterns withstanding the operating temperatures and pressures to be tight enough that the elastomeric material will not let any contaminants inside the machine. They can be broken down into the following categories:

• Selection of Raw Material: Shafts are made of reputed materials like Nitrile Rubber (NBR), Fluoroelastomers (FKM), or Polyacrylate based upon their heat and elastic recovery values. A good example is NBR; its primary working temperature is between -40 to 121 degrees C, which is easily achievable in standard applications. FKM-rated elastomers can take much higher ranges l,ike up to 200C, fitting for more demanding applications.
• Seal Geometry: The lip design and spring tension oil seals rest tighter against the shafts and remain in proper sealing condition, even with movement. Contaminant protection and lubricant retention can be addressed with sealed structures through the use of double-lip designs, where one lip assists in keeping contaminants out while the other does vice versa.
• Depth of Cut on the Work Piece: A surface roughness limit is set at average mean roughness Ra 0.2 µm to 0.8 µm to prevent any excessive wearing on the sealing lip during relative motion.
• Seal Housing and Press Fit: The oil seals require distortion-free material retention, thus ensuring precise tolerances that create an airtight seal. Additionally, radial and axial load distribution have to be observed.

Oil seals ensure that operational wearable parts have reduced usage and prolong the asset life of machinery, all while working under diverse environmental conditions and efficient operational conditions due to the adherence of these oil seals.

What types of oil and grease seals are available for heavy-duty vehicles?

Exploring different oil seal materials: Nitrile, multi-purpose, and more

Nitrile oil seals – usually made from acrylonitrile-butadiene rubber (NBR) – rank among the most common and adaptable types of oil seals. It is common knowledge that NBR has an outstanding resistance to petroleum oils and fuels and performs well in temperatures from -40°F to 250°F (-40°C to 121°C). Furthermore, NBR is highly resistant to abrasion, tearing, and physical degradation. However, it is not suitable for prolonged use in an environment with ozone or high concentrations of heat.

Multi-purpose oil seals, like those for hydrogenated nitrile (HNBR) and fluoroelastomers (FKM), have a wider application range. The enhanced chemical resistance and thermal stability of HNBR seals enable it to withstand temperatures of -30°F to 325°F (-34°C to 163°C). On the other end, fluoroelastomers withstand high temperatures and have a performance range of up to 400°F (204°C). Furthermore, these materials boast resistance to a wide array of fluids, such as synthetic lubricating oils and aggressive chemicals; thus, they are a heavy-duty operations prerequisite.

In all cases, the choice of materials is determined by specific operating conditions such as temperature, chemical exposure, pressure, and rotational speed.

Comparing axle seals, wheel seals, and hub seals for specific applications

As with axle, wheels, and hubs, seals serve different purposes in vehicle assembly but at the same time, overlap in terms of how they seal and their durability. Their suitability selection relies on the application or operating conditions.

• Axle Seals： Lubricant leakage and the entry of external contaminants such as dirt and water into the axle assembly are common issues that axle seals solve. These seals are subject to moderate rotational speed and temperature across a wide range, from -40 degrees to 300 degrees Fahrenheit, depending on the lubricant used. These seals experience a combination of friction and variable pressure, which makes their reliability under these conditions critical alongside being resistant to gear oils.
• Wheel Seals： Compared to axle seals, wheel seals operate under higher rotational speed. They also have to work in a temperature range of -40 degrees to 400 degrees in high-performance vehicles. As such, they are prone to being damaged or weakened under high dynamic pressure, which makes resistance to wear and compatibility with its surroundings and other synthetic greases crucial to these seals. Wheel seals protect the wheel bearing assembly by retaining grease or oil and repelling external debris.

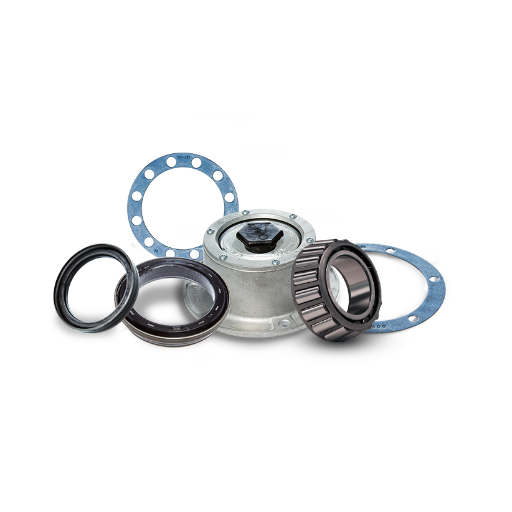

• Hub Seals： Hub seals are designed to withstand harsh environmental conditions and excessive physical stress in heavy-duty applications like trucks and trailers. Such seals have to function at extreme temperatures of −40⁰F to 400⁰F (−40⁰C to 204⁰C), operational pressures, and mud, snow, and chemical contamination. They also need to be constructed in a robust manner using steel rings and advanced rubbers, allowing for high-performance sealing under prolonged use.

In consideration of these seals, it is important to select temperature limits, rotational speed, the chemical and lubricant tolerance of the material, and mechanical pressure load.

How do I choose the right oil seal for my heavy vehicle?

Selecting the appropriate seal lip design for optimal performance

In choosing the perfect lip seal design, I bear in mind the operational needs of the vehicle and different environments.

• Seal Lip Material： I take into account materials like natural rubber (NR) used in secondary activities because of its affinity with oil and grease or Viton (FKM) for best performance in corrosive and high environments. This makes sure that lubricants and other operating conditions are optimal.
• Rotational Speed： The seal lip design must ensure that the deflection of the shaft does not exceed the set tolerance. In high-speed uses, there are increased needs for protection that can be offered by hydrodynamic or spiral lips that reduce heat and friction.
• Pressure Tolerance： I consider a maximum positive gap without water at the set pressure of the two fluid cavities. In constructions subjected to high pressure, there is a need to select pressure withstanding seal lips that offer resistance to mechanical loads without deformation and leakage.
• Temperature Limits： I ensure that the seal lip material retains its functionality within the given temperature scope and that operational and ambient temperatures are evaluated. For instance, FKM works well at 400°F (204°C).
• Environment and Contaminants： For vehicles operated in dirty and abrasive environments, dual or multi-lip designs are appropriate since they stand up to moisture and dirt contamination.

Through diligent matching of those factors with the vehicle’s specifications, I have ensured the application of the oil seal to be durable and efficient.

Matching oil seals to specific heavy-duty and agricultural machinery needs

To complete heavy-duty and agricultural machinery segments with the right oil seals, I first assess the specific application needs and operating circumstances. This includes classifying the type of machinery (tractors, harvesters, loaders, etc.) and determining key operational variables such as rotational speed, pressure, and contamination levels.

• Rotational speed： At high speeds, I select seals produced from NBR or FKM due to their capacity to withstand centrifugal forces and retain their structure during extended operations.
• Pressure levels： I set high-pressure oil seals with incorporated reinforced rubber or metal inserts to seal systems that exceed 1 Mpa. The seals can tolerate the pressures of such systems.
• Temperature range： To resist extreme temperatures, I select materials that provide flexibility with the range of operability. NBR works quite well from minus forty degrees centigrade to a hundred degrees centigrade (-40°F to 212°F), and  FKM can handle up to 204°C (400°F).
• Contaminant resistance： In areas where the ingress of dirt, water, or mud is a concern, I would suggest the use of dual-lip or multi-lip seals. This construction actively protects the seal against wear and increases its lifespan.

By tackling these salient technical issues and matching them to the salient requirements of heavy duty or agricultural machinery, I am in a position to choose oil seals that optimize performance and reliability and enhance service life.

What are the best practices for oil seal installation and maintenance?

Tips for extending the lifespan of oil seals in heavy vehicles

To prolong the life of oil seals in heavy vehicles, I practice the following best practices:

• Installation： There are many different ways to improperly install seals. Using the provided tools to fit the seal ends onto the shafts ensures there is no change in the shape or size of the oil seal. Also, check whether the shaft has dirt and rough surfaces. The shaft should be smooth. The optimal roughness value is a Ra between 0.2 to 0.8 µm.
• Material Selection： Under specific operating environments, the seals need to be made from different materials.
• Lubrication： Ensure any chosen grease does not speed up oil seal degradation by contaminating seal material. Be sure the lubricant chosen does not have any unwanted particles; oil seals that have foreign materials can speed up seal destruction.
• Monitoring Environment： Ensure the piece does not get blocked by mud, dirt, or any other type of dust. Seals with multi-lip or dual-lip oil seal types can be used to improve seal life where dirt exposure is a problem.
• Periodic Maintenance： Routine maintenance will help with spotting pieces that are worn out or damaged. Make sure that pieces showing signs of wear, such as odd patterns or leakage, are changed out so other components will not suffer consequential damage.

Implementing these helps meet the set operational of the vehicle and aids the seals to function under the expected conditions and optimally long lifespan.

Common issues and troubleshooting for oil seal failures

1. Excessive Leakage： Such a malfunction can arise from incorrect seal installation, deterioration, or the use of seal materials that are unsuitable for the working conditions or lubricant used. To correct this, I make certain that the seal is placed under the correct conditions, where the lip is facing the lubricant, and also check that the material used is right for both the temperature and chemical nature of the lubricant. Nitrile rubber (NBR) is good for up to 100 degrees Celsius, and the higher temperature resistant FKM fluorocarbon does well in heat up to 200 degrees Celsius and in high-stress environments.
2. Premature Wear： These often stem from lack of cleanliness, improper lubrication, or high roughness of the shaft surface. I combat this by making certain that the shaft surface finish is done between 0.2 to 0.8 micrometers Ra, as most seal applications recommend, to ensure that the seals used in such locations do with more dust work well. Unsurprisingly, lubricating and cleaning also help reduce the speed of breakage of the seal.
3. Seal Hardening or Cracking： This problem is caused by continuous exposure to high temperatures or the use of unsuitable lubricants. I always ensure that for different materials, the operating temperatures do not exceed the limits for the material, and I also use more thermally resistant materials like FKM or PTFE for high-heat applications.
4. Shaft Misalignment： Regardless of type, misalignment leads to a reduction in the seal’s integrity, which might result in leakage or wear. I try to keep an eye on the precision alignment of the shaft during installation as it involves maximally permissible radial eccentricity of 0.05 mm (based on the specifications) and use a flexible seal or one that can tolerate misalignment in such cases.
5. Inadequate Lubrication： The application of too much or the wrong lubricants leads to the seal’s degradation due to excessive friction and a rise in temperature. Hence, the lubricant selected has to be of the right viscosity to comply with the operational conditions and provide adequate film strength for the seal and the rotating parts. For example, high-speed applications need lubricants with greater stability to increased shear.

Using this systematic, driven approach improves the oil seal’s performance in different conditions. The components’ life is also enhanced with proper maintenance and adherence to stipulated technical restrictions.

How do oil seals compare to other sealing solutions like O-rings and gaskets?

Comparing the pros and cons of oil seals vs. O-rings

Both oil seals and O-rings have unique benefits and limitations based on how they will be used. Through my personal experience, I have come to learn that oil seals tend to be more useful in applications with rotating shafts. They are also very efficient in preventing fluid from escaping the system while preventing environmental contaminants from entering. This capability is a result of the lip profile, which incorporates a spring-loaded mechanism for constant contact, which is best suited for systems with rotational speeds of up to 30 m/s, depending on seal material and lubrication.

In contrast, O-rings are more flexible and can be used for both dynamic and static sealing. However, in static scenarios, O-rings do tend to outperform their rivals due to the risk of extrusion or wear in systems with high levels of movement. With the aid of suitable support from backup rings, O-rings in a static position can tolerate pressures of 1,500 PSI. O-rings do have the upper hand over many sealing methods because of their ease of installation and cost effectiveness, so they can be used safely in low-demand configurations.

Although oil seals experience great functionality and efficiency in rotational sealing under highly challenging conditions, the complex process of installation and expensive manufacturing costs may make them unsuitable for some use cases. In contrast, O-rings are simple but are not ideal in self-lubricating low-speed or high-friction environments owing to excessive shaft misalignment. Hence, for the particular application, the conditions of operation, such as speed, pressure, temperature, and the kind of media in the sealing must be considered.

When to use oil seals instead of static gaskets

The workings of a mechanical entity that possesses rotating shafts or instruments require oil seals as they are built for dynamic situations. Static gaskets are more suitable for applications that do not have movement since the components are fixed in position. To determine whether oil seals are to be preferred over static gaskets, the following criteria has to be assessed:

• Temperature Range: For most rubber compounds such as nitrile or fluorocarbon materials, oil seals routinely function between the temperatures of -40 to 400 degrees Fahrenheit (-40 to 204 degrees Celcius). While Static gaskets may have similar or broader ranges, they lack the dynamic sealing ability that is fortuitously required in the scenario presented above.
• Media Compatibility: Oil seals are specially optimized to seal lubricating fluids, oils, and greases. Moreover, fine media such as Viton and PTFE offer static gaskets the versatility they require, but static gaskets cannot harness the fine media because of the dynamic tolerances that are essential in rotating instruments.
• Alignment: Oil seals can cater to minor shifts or deflections of the shaft within a certain tolerance (generally up to 0.005 inches for standard shapes) . Static gaskets, on the other hand, do not suspend movement and do not permit any form of misalignment.

Taking all of these factors into account, oil seals are appropriate in scenarios containing dynamic sealing under the conditions of rotation, varying temperatures, and limited pressure.

Frequently Asked Questions (FAQs)

Q: What are oil seals, and why are they important in heavy vehicles?

A: Oil seals are crucial components in heavy vehicles that seal close spaces between stationary and moving components in mechanical equipment. They prevent lubricants from leaking and keep contaminants out, ensuring the longevity and efficiency of automotive systems such as transmissions, wheel bearings, and power steering seals.

Q: How do I choose the right oil seal for my heavy vehicle?

A: To find the right oil seal, consider factors such as shaft size, operating temperature, pressure, and chemical compatibility. Consult with a reputable seal manufacturer or supplier who can provide expert advice on selecting the appropriate seal products for your specific application, whether it’s for commercial vehicles or other heavy-duty equipment.

Q: What materials are commonly used in oil seals for heavy vehicles?

A: Common materials for oil seals include Buna (Nitrile), which offers good oil resistance, silicone for high-temperature applications, and fluoroelastomers for chemical compatibility. The choice of material depends on factors such as operating conditions, fluid type, and temperature range. Multi-purpose seals made from materials with high tensile strength are also available for various applications.

Q: How can I prevent premature seal failure in heavy vehicle applications?

A: To prevent premature seal failure, ensure proper installation, maintain correct alignment of shafts and bearings, use appropriate lubricants, and avoid contamination. Regular inspection and maintenance of seals are crucial. If you’re unsure about best practices, please contact your oil seal manufacturer or supplier for guidance.

Q: What are the differences between single-lip and double-lip oil seals?

A: Single lip oil seals are designed for low-pressure applications and provide effective sealing in one direction. Double lip seals offer additional protection against contamination and are suitable for applications where bidirectional sealing is required. The choice between single and double lip seals depends on the specific requirements of your heavy vehicle’s mechanical systems.

Q: Are there industry standards for oil seals in heavy vehicles?

A: Yes, many oil seals are manufactured to meet ISO standards and other industry-specific requirements. When selecting seals, look for products that comply with relevant standards for your application. Reputable automotive seal manufacturers will provide documentation on their products’ compliance with industry standards.

Q: How do I determine the correct size for an oil seal in a heavy vehicle application?

A: To determine the correct size, measure the shaft diameter, housing bore, and seal width. Oil seals are typically specified by their inner diameter (ID), outer diameter (OD), and width. Many suppliers offer both imperial and metric sizes. When in doubt, consult with a seal supplier or refer to your vehicle’s manual for the exact specifications.

Q: Can oil seals be used in high-pressure hydraulic systems in heavy vehicles?

A: While traditional oil seals are designed for low-pressure applications, there are specialized hydraulic seals available for high-pressure systems in heavy vehicles. These seals are engineered to withstand the extreme pressures found in hydraulic systems. Consult with a seals manufacturer to find the right seals for your specific hydraulic application.
