Understanding Bearing Cage Types: The Key to Optimal Bearing Performance

Bearings play an essential role in countless industrial and mechanical systems, where their smooth operation directly impacts efficiency, durability, and reliability. At the core of these vital components is the bearing cage, a seemingly simple yet critical element that affects bearing functionality. This article provides a comprehensive overview of different bearing cage types, exploring their designs, materials, and applications. By understanding the unique features and advantages of each type, engineers and professionals can make informed decisions to optimize bearing performance for specific operational requirements. Whether you’re designing high-speed machinery or heavy-load systems, selecting the right bearing cage is a key step toward achieving higher operational reliability.

What are the main types of bearing cages?

Materials used in bearing cage construction

I examine several factors regarding bearing cage materials, such as load capacity, operating temperature, speed, and environmental conditions. Common materials include:

• Steel: Steel cages are predominantly used for systems experiencing high loads or high speeds, due to their excellent strength and wear resistance. Steel has the capability to withstand heavy-duty systems temperatures up to approximately 300°C.

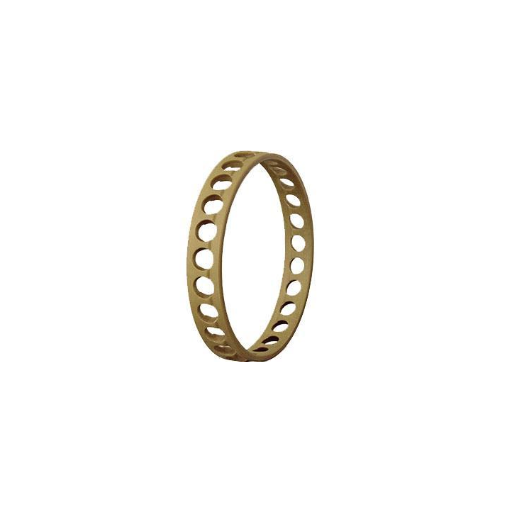

• Brass: Able to endure temperatures of up to 250°C, brass cages are exceptionally high speed and lubrication environment resistant due to their corrosion resistance properties.
• Polyamide (Nylon): These cages are lightweight, low friction, and suitable for moderate speeds and temperatures usually below 120°C. In addition to their capabilities, Polyamide is also known to dampen vibrations which can enhance operational stability.

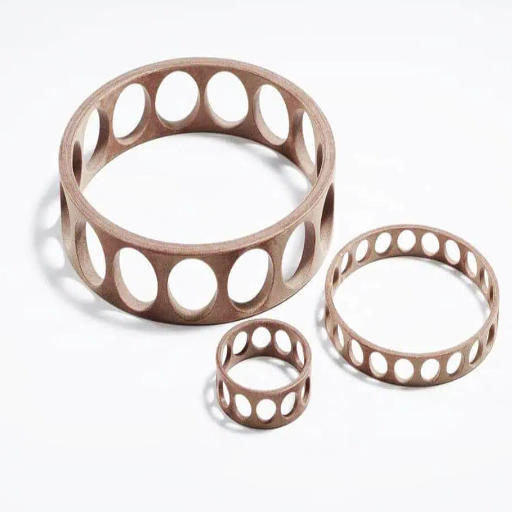

• Phenolic resin or composites: These materials are less common, but are applicable in high-speed systems which require low weight and great dimensional stability at elevated forms.

The specific choice of material depends on operational constraints. For instance, in environments with excessive moisture or chemicals, corrosion-resistant materials like brass or certain composites may be justified. Similarly, for extreme speeds, weight-sensitive machinery often benefits from polyamide or phenolic resin cages. Every material offers unique trade-offs in performance and durability.

Cage designs for specific bearing applications

Selecting the appropriate cage design for specific bearing applications is critical, as it directly affects bearing performance, service life, and reliability.

• Cylindrical Roller Bearing Cages: These have a wider scope and are commonly found in applications employing a high radial load capacity and greater rigidity. The materials for the cage such as bronze and polyamide are chosen according to the speed and temperature requirements of the applications. For example, where the temperature is not higher than 250 °C bronze cage units can be employed. On the other hand, polyamide is recommended at temperatures not higher than 120 °C due to its thermal limits.
• Deep Groove Ball Bearing Cages: As for these multi-purpose bearings, the cage design ought to be coordinated with operational speed and temperature. Steel cage bearing assemblies are best suited when they have to endure heavy radial and axial loads whereas polyamide cages of lower grade bearing assemblies are used since they are lightweight and make less noise as well. The best justification is having a good blend of performance parameters which are typically speed handling up to 12,000, while tolerating temperature around 150 °C for steel ones.
• Angular Contact Ball Bearing Cages: These cages have been designed with the intention of use in fast rotating systems that are subject to net axial and radial loads. In cases of high-speed applications such as turbine engines where mass and thermal performance are priorities, Phenolic resin cages are common. Design thinking accounts for balanced dimensional accuracy with the ability to operate above 25000 RPM at 200 degrees Celsius and below.

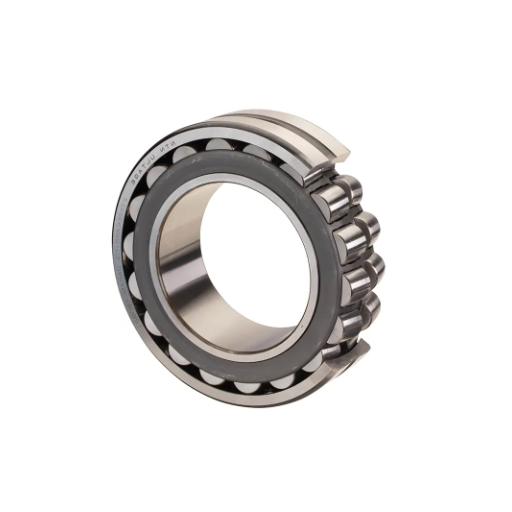

• Spherical Roller Bearing Cages: These cages are designed for industries where rotary components require an allowance for misalignment as well as significant load bearing such as the mining or paper industry. Under these conditions, a brass or a machined steel cage maintains stiffness and stability. Load capacity is set between 1200 kN and operating speed approximately 1000 RPM correlating with the size and structure of the bearings.
• Thrust Bearing Cages: Generally used in axial load applications, thrust bearing cages are usually made from solid brass or laminated phenolic which increases resistance to high axial forces. They thwart excellent shock resistance also. Operating speeds for thrust bearing cages are usually between 3000 to 10000 RPM depending on tolerances.

The appropriate cage design ensures optimal performance by aligning material properties and geometric arrangements with the operational demands of the bearing system. This careful selection is vital to achieving system efficiency, longevity, and reliability.

How do different cage types affect bearing operation?

Influence on torque and friction

Various types of cages have an impact on the turning moment, as well as the friction in the bearing. Such contact interactions of the rolling elements that determine the performance of the bearing are directly related to the design and material of the cage. Take, for instance, the drag of the lubricant in the system which is caused by a rotating cage is minimized by a well-ventilated cage design and consequently, the friction is lower.

• Cage Material: The lightweight harvesting material, such as polyamides, increases the inertia and aids in lowering the torque. On the other hand, less flexible materials like brass or steel are better suited for higher-load applications where slight increases in friction can be tolerated.
• Lubrication Compatibility: To mitigate other forms of resistance, the cage should be compatible with the lubricant used. Oil-based lubrication, for example, aids in reducing shear friction while operating at elevated, high speeds.
• Clearance and Fit: Internal friction is the result of rolling elements being restricted from free rotation because the clearance is not accurate. The cage causing excess torque should be avoided by keeping the tolerances loose.
• Operating Speed Range: Optimized kind of low-friction cage construction such as pocketed or chamfered designs is required to reduce centrifugal force and torque growth at high speed.

All of these factors are accepted due to their bearing impact on the bearing dynamics and operational efficiency.

Impact on lubricant distribution

Lubricant distribution is critical to maintaining optimal performance and reducing wear in bearings. From my perspective, the effective distribution of lubricants depends on several interrelated factors:

• The Range of Operating Temperatures: High temperatures can reduce lubricant viscosity and impair the ability of the lubricant to adequately coat surfaces.
• Clearance of Bearings: Adequate clearances allow for unrestricted movement of the lubricant. For example, low clearances may impede movement and require lower-viscosity oils, whereas big clearances may need high-viscosity oils to maintain effective film thickness.
• Cage Construction: Low-friction cages that have an optimized design will enable better distribution of the lubricants because they obstruct movement less. The same applies to chamfered or pocketed cages that improve the dynamics of fluids in the bearing assembly.
• Speed of Operation: Breakaway speeds can result in centrifugal forces that displace lubricants. Incompatibility between the centrifugal stability of the lubricant and the operational speeds results in dry areas on critical contact parts.

Each technical requirement is crucial because improper lubricant distribution can lead to increased friction, heat generation, and ultimately, bearing failure. Maintaining precise control over these variables ensures efficiency and longevity in bearing systems.

Effects on Bearing Speed Capabilities

The speed performance qualities of a bearing depend on the designed lubrication system, heat dissipation mechanisms, and material used. Lubricant de-stabilization may occur due to high-speed operations which consist of significant centrifugal forces, leading to negative lubrication effects at contact points. Because of this, there is always a speed limit guarantee so that damage to the bearing does not happen.

• Operation Speed Limit: For example, determining bearing speed factor is achieved by using R pm ÷ n: pitch diameters, dm must be lower than the thermal limits of the lubricant such as synthetic performance oils with 1,000,000 mm·RPM.
• Lubricant Viscosity at Operating Temperature: For high-speed applications, the design of the bearing optimally specifies the lubricant’s kinematic viscosity to be between 12 cSt and 40 cSt at 40 degrees Celsius.
• Heat Enthalpy Dissipation Efficiency: With high-performance ceramics rolling elements, better-designed housings can lessen thermal build-up and increase speed limits.

By balancing out these factors, the overheating and lubrication deficiency risks can be countered while at the same time ensuring the bearing works at higher efficiencies.

Which cage types are suitable for high-speed applications?

Cage designs for high-speed bearings

While looking at cage designs for high-speed bearings, I try to prioritize options that can offer minimal friction, high durability, and efficient heat management. Two very common designs for high-speed usage are:

• Machined Brass Cages: These are very durable with very good heat tolerant capacity. They can be used in places with fast rotational speeds without risk of failure. Brass allows for lower rates of wear and aids in increased product life in high-stress applications.
• Polyamide Resin Cages: Glass-Fiber Reinforced: These are lightweight and self-lubricating, thus, very desirable for ultra-high-speed applications. Their low inertia and effective sliding properties aid in the reduction of operational friction. For these cages, the only caveat is that they are not suitable for operational environments above 120°C, as their material properties will degrade in extreme heat.

To justify the choice of cage, factors such as maximum continuous rotational speed, temperature limits, and lubricant compatibility must be considered. For instance, brass cages are better suited for demanding applications with speeds exceeding 1.5 million dN, where durability outweighs the need for lower weight. Meanwhile, polyamide resin cages perform exceptionally well in applications requiring lighter materials and reduced friction at moderate operating temperatures.

Material considerations for high-speed cages

While picking materials for the construction of the high-speed cages, I make sure that the selection is made according to the technical requirements of the application. For example:

• Maximum Continuous Rotational Speed: The application of speed greater than 1.5 million dN can easily be carried out with the aid of brass cages as they possess strength, thermal stability, and the ability to maintain structural stability under stress.
• Temperature Limits: Polyamide resin is not appropriate for environments where the operating temperature exceeds 150°C, therefore, at 150 degrees Celsius or above, I turn to materials such as brass or other high-temperature alloys.
• Lubricant Compatibility: If synthetic lubricants or highly viscous greases are used, the suitability of materials must be ensured to avoid chemical degradation. While brass shows excellent chemical resistance, polyamide is only usable in lighter applications and with ordinary lubricants.
• Weight and Friction: For applications that require lightweight engineering components, polyamide resin is suitable for high friction environments and even when the operating temperature is under 120 degrees Celsius.

All materials selected shall be validated against these factors, to ensure that reliable performance is achieved in high-speed applications.

Balancing cage strength and weight for speed

When balancing cage strength and weight for high-speed applications, the goal is to optimize performance without compromising structural integrity. I approach this by considering both the operational demands and material properties. For instance:

• Strength Requirements: When expecting high axial or radial loads, I always choose materials with great mechanical strength and fatigue resistance such as steel or brass. Materials of this nature can withstand dynamic stresses.
• Weight Considerations: Polyamide or other lightweight composites can be used in applications where lowering the inertial force is critical. These materials offer enough structural support and decrease the overall system mass.
• Operational Speed: The allowable limits on rotational speed dictate the material selection. Polyamide cages are good for medium speeds up to 30, 000 RPM while brass cages excel at extreme speed.
• Temperature Constraints: Non-metallic materials may become unstable in settings exceeding 120 degrees c.

These factors amongst others can easily be evaluated to optimize balance on strength, weight, and operation.

How do cage types vary for different bearing styles?

Cages for deep groove ball bearings

Deep groove ball-bearing cages are specially made to create movement with minimum effort in varying conditions. Three types of cages come to mind for these kinds of bearings:

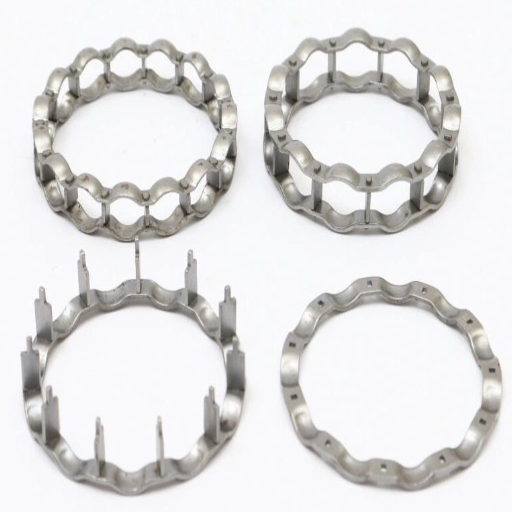

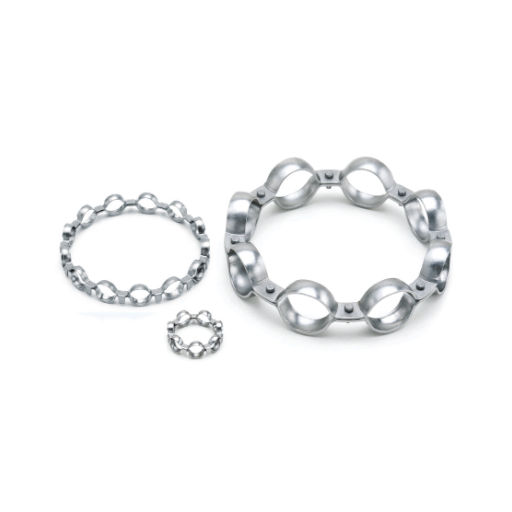

• Pressed Steel Cages: They are multifunctional and approved for most applications like moderate temperatures and speeds. They have superb operational strength and therefore eliminate friction.
• Polyamide Cages: These are fantastic for applications involving very high speeds. These are light and have low inertia; unfortunately, they are limited to a maximum temperature of 120 degrees Celsius, otherwise, they will start to break down, which is problematic in high-temperature settings.
• Machined Brass Cages: They are extremely useful in harsh areas, for example where rotational speeds are higher than 30,000 revolutions per minute or where the temperature is more than 120 degrees Celsius. Due to their construction, they are very reliable and provide resistance to high thermal deformation.

Cages such as the ones mentioned above make higher operational efficiency, durability, and performance possible for every unique application.

Cylindrical and spherical roller bearing cages

The need to support substantial loads and mitigate friction during operations involving high radial stresses makes cylindrical and spherical roller-bearing cages suitable for these particular functions. Furthermore, these cages find the bulk of their usage in industrial machinery, power generators, and other heavy-duty equipment that require simultaneous application of axial and radial forces.

• Cylindrical Roller Bearings Cages: These are most appropriate for uses where high radial load and strength are required. These types have cages that allow the rollers to be kept at optimum spacing and alignment to reduce friction and resultant wear. In parallel with fine rollers, these can support rotational speeds of up to 10,000 RPM, and well within the temperature range of -40° to 150 °C depending on the materials used.
• Spherical Roller Bearings Cages: Such cages are designed to accommodate heavy radial loads and moderate axial loads simultaneously. Their raceway is curved which allows for shaft misalignment tolerance, and is therefore appropriate for use in vibrating machinery or applications with angular misalignment. Typical, but not exclusively, spherical roller bearing cages have rotational speed limitations of 5000 RPM, while high-grade brass or steel enables them to withstand operating temperatures of 200 °C.

In addition to enhancing reliability, these cages guarantee excellent functioning even in harsh conditions due to better load balancing as well as improved thermal performance.

What factors should be considered in cage selection?

Load and speed requirements

When selecting bearing cages, the requirements for both load and speed must be evaluated in detail to ensure optimal performance and longevity. For load considerations, the type and magnitude of load—radial, axial, or a combination—should be matched with the cage’s load-carrying capacity. For instance, spherical roller bearings effectively handle heavy radial loads while supporting moderate axial loads, making them suitable for vibrating machinery applications.

• Polyamide cages: Normally recommended for speeds up to 10,000 RPM. For low-friction operational environments with moderate speeds, these are the most suitable.
• Steel or brass cages: Capable of operating to an upper limit of 5,000 RPM, deal with much higher loads and temperature up to 200 ° C thus more applicable under severe conditions.

Avoiding containment failure entails careful attention tothe  control of operational speed and expected load versus constant geometry and quality. These hence set the limits beyond which the material is expected to experience increased deterioration, heat, and ultimately breakdown.

Environmental Factors Affecting Cage Choice

The environment of operations is an essential factor in selecting appropriate material or designing the cage. It is also important to consider the temperature, lubrication, contamination, and corrosion exposure factors as well:

• Temperature: Expansion and weakening of the material can result due to high operating temperatures. Polyamide cages would normally be expected to operate below 120ºC, while steel or brass cages can be used in high-temperature surroundings of up to 200ºC.
• Lubrication: Poor or Missing lubrication enhances friction and heat generation, resulting in accelerated wear of polyamide. Under thin-film lubrication or marginal conditions, steel, and brass cages perform better because they tend to endure rougher use.
• Contamination: Environments with high particulate or abrasive contamination require cages with better wear resistance. Whereas, polyamide cages would wear quicker in this respect compared to steel which is more resistant to abrasion.
• Corrosion resistance: exposure to oil, moisture, or chemicals requires a corrosion-resistant coating on the steel or other composites. Brass cages can withstand mild corrosion, but further treatment is necessary for survival in adverse environments.

Justifying these technical requirements ensures the operational longevity and structural integrity of the cage material under specific environmental constraints.

Frequently Asked Questions (FAQs)

Q: What is a bearing cage and why is it important for bearing performance?

A: A bearing cage, also known as a retainer or separator, is a crucial component in a ball bearing that separates the balls and maintains their proper spacing. It’s important for bearing performance as it reduces friction between the balls, prevents them from colliding, and helps distribute the lubricant evenly, thus enhancing the bearing’s efficiency and lifespan.

Q: What are the main types of bearing cages?

A: The main types of bearing cages include one-piece pressed steel cages, two-piece riveted steel cages, machined cages (brass or bronze), polymer cages (such as molded nylon cages), and ribbon retainers. Each type has its advantages and is suitable for different applications based on factors like speed, load, and operating temperature range.

Q: How do cages affect the operating temperature range of bearings?

A: Different cage materials have varying thermal properties, which affect the bearing’s operating temperature range. For example, steel cages can withstand higher temperatures than polymer cages. Molded nylon cages typically have a lower maximum operating temperature compared to steel or brass cages. It’s crucial to choose a cage material that can withstand the expected operating temperatures of your application.

Q: What are the advantages of using a molded nylon cage in bearings?

A: Molded nylon cages offer several advantages, including lightweight construction, low friction, and excellent performance in low-torque applications. They are also corrosion-resistant, can be vacuum-impregnated with oil for improved lubrication, and are suitable for high speeds. Nylon cages are often used in miniature and instrument bearings due to their low mass and smooth operation.

Q: How do cages impact the speed capabilities of bearings?

A: The cage design and material significantly influence a bearing’s speed capabilities. Lightweight cages, such as those made from polymers or pressed steel, are generally suitable for higher-speed applications. The cage design also affects how it’s guided within the bearing – whether by the balls, inner ring, or outer ring – which can impact speed performance. For instance, ball-guided cages are often used in high-speed applications.

Q: What is the difference between inner ring-guided and outer ring-guided cages?

A: In inner ring-guided cages, the cage is guided by the inner ring of the bearing, which is suitable for high-speed applications and helps maintain proper ball spacing. Outer ring-guided cages are guided by the outer ring and are often used in lower-speed applications or where radial loads are predominant. The choice between inner and outer ring guidance depends on the specific application requirements and bearing type.

Q: How do machined cages differ from pressed steel cages?

A: Machined cages, typically made from brass or bronze, offer higher precision and are suitable for larger bearings or high-performance applications. They can withstand higher loads and speeds compared to pressed steel cages. Pressed steel cages, on the other hand, are more economical, lightweight, and often used in standard bearings. Pressed steel cages can be either one-piece designs or two-piece riveted constructions.

Q: What are coined ball pockets, and why are they important?

A: Coined ball pockets are specially formed pockets in the cage that closely match the curvature of the balls. These pockets are created through a coining process, which improves the contact between the balls and the cage. Coined ball pockets are important because they reduce friction, improve lubricant retention, and help maintain proper ball spacing, all of which contribute to better-bearing performance and longevity.

Q: Are there bearings without cages, and when are they used?

A: Yes, there are bearings without cages, known as full complement bearings. These bearings have no cage and contain the maximum number of rolling elements possible. They are used in applications requiring high load capacity and where speed is not a critical factor. However, bearings without cages generally have higher friction and are not suitable for high-speed operations.

Q: How do cages affect the lubrication of bearings?

A: Cages play a crucial role in bearing lubrication. They help distribute the bearing lubricant evenly among the rolling elements and raceways. Some cage materials, like certain polymers, can be vacuum-impregnated with oil to provide additional lubrication. The design of the cage, including features like ball pockets and lubricant reservoirs, can also influence how effectively the lubricant is retained and distributed within the bearing.
