Understanding Bearing Purpose: How Different Types of Bearings Reduce Friction

Bearings are an essential component in countless machines and mechanisms, enabling smooth and efficient motion by minimizing friction between moving parts. Whether in industrial machinery, automotive applications, or everyday devices, their role in reducing wear, enhancing performance, and extending equipment lifespan is unparalleled. This article dives into the critical purpose of bearings and explores how different types—such as ball bearings, roller bearings, and thrust bearings—are uniquely designed to tackle various challenges of friction reduction. By the end, you’ll gain a comprehensive understanding of how these ingenious inventions contribute to the reliability and functionality of modern technology.

What is the main purpose of bearings in mechanical systems?

How bearings reduce friction between moving parts

Bearings are used to balance two or more parts that are in motion relative to each other and try to apply force, which rotates or shifts one part to another. Their construction suggests that rolling balls or cylindrical rollers are used. In today’s world, bearings are made with better materials like steel, high-grade steel, or even ceramics because, over time, they face some wear and tear from impact bearing and changing conditions of load and speed.

In addition, the use of oil or grease on the bearings reduces the friction drastically. With the aid of special oils and grease, the thin film is created, becoming free from one surface so contact can not be made. Accessories such as oil also help in ways to cut down metal filaments, which can damage the device, but it uniformly paves the way on the bearings, which aids in holding the device stably.

The incorporation of new developments, such as low-friction polymer cages, adaptive materials, and nanotechnology coatings, has led to advanced research being conducted on bearing technology. For instance, research indicates that hybrid ceramic bearings are used more in high-speed and high-precision applications like aerospace and medical devices due to their 40% reduction in friction compared to traditional steel bearings. Regardless, these advancements preserve the bearing’s stature as an essential part for the efficiency, reliability, and lifetime of machinery systems.

Why are bearings essential for supporting loads and allowing rotation

Bearings are very important in any mechanical machinery because they help support the load and allow smooth rotation with the least amount of friction. Contact between moving parts is minimized by bearings, allowing machinery to function at peak performance with regard to energy expenditure and wear and tear. This is critical in high-precision and reliability-demanding environments. Bearings shift radial, axial, or a combination load from one part to the other while ensuring balanced load distribution to aid in reducing strain and improving the life span and operational performance of the systems.

Bearings balance load and enable smooth rotation. This is made possible by the intricate design and composition of the materials that make them up. Current machinery uses high-grade steel or modern ceramics for the construction of modern bearings because they need higher performance under more extreme conditions. As an example, ceramic bearings are more suitable for harsh conditions like chemical processing and aerospace sectors due to their high corrosion resistance, thermal stability, and other factors. Also, advancements in solid lubricants used in varying temperature and load conditions ensure dependable outcomes without added maintenance. Not only do these advancements enhance the performance of the system, but they also decrease the system maintenance and downtime.

Moreover, the implementation of intelligent technologies has transformed the use of bearings in modern machinery. Advanced machinery components include sensors that track values like temperature, vibration, and rotational speed of equipment in real time. Such information enables timely maintenance, avoiding the dangers presented by sudden failures and prolonging the life of the part. For instance, the renewables sector uses condition-monitoring bearings to guarantee optimal wind turbine operation. Through mechanical support and operational intelligence, bearings remain essential to industrial performance across a broad range of applications.

The role of bearings in extending the service life of machinery

Bearings are essential components of machinery. They are used to carry loads while enabling rotational or linear movement and minimizing friction at the same time. The major function of a bearing is to reduce friction efficiently. Efficient bearings minimize component wear and enhance performance. This improved performance results in a lower cost of operating these systems. In turn, it brings new life into machinery, as bearings significantly extend machinery operational cycles by safeguarding critical components from excessive heat, vibration, or stress.

With advancements in technology, the role of bearings is vastly improved in extending machinery life cycle. For example, hybrid ceramic bearings are composed of rolling elements made of ceramic with steel races. They are best suited for extreme conditions as they can withstand a lot of wear, corrosion, and damage, particularly in high-speed machinery and electric motors.

Moreover, bearings with incorporated real-time sensors for condition monitoring are now available. Such sensors are able to monitor changes in temperature, vibration, and quality of lubrication. These insights provide dependable foresight on potential failures, permitting actionable preemptive steps to be made. Because of this, costly downtimes are reduced, enhancing overall equipment lifetime. Choosing the right bearing type, material, and lubrication system for specific operating conditions can enhance the efficiency of machinery and save money in the long run.

What are the different types of bearings and their specific purposes?

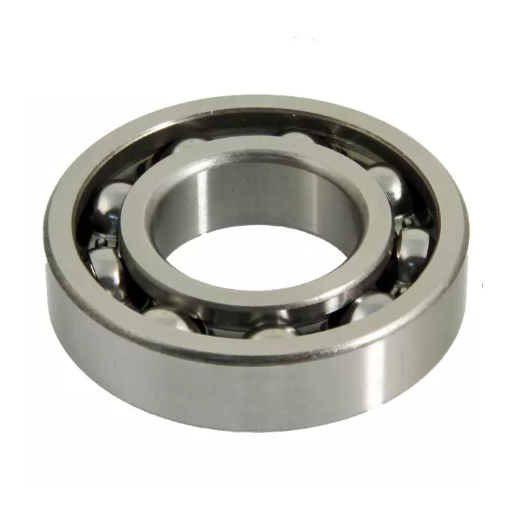

Ball bearings: Purpose and applications in low to medium loads

Due to their effectiveness at managing both radial and axial loads, ball bearings are one of the most widely used bearing types. Their primary design comprises a set of spherical balls, or bearings, that are separated by an inner and outer ring, or races. Their structure permits one to grind with less friction as compared to the rings, which makes ball bearings best suited for applications involving moderate speeds and loads.

Due to their characteristics, electric motors, industrial fans, and conveyor belts make use of ball bearings. These machines require high rotational precision, often working at low to medium loads. Furthermore, another key advantage of ball bearings is their wide range of operation, which enables them to work efficiently even at differing speeds. In addition to these features, ball bearings easily support single direction and combined load scenarios, making them useful in various sectors such as automobile, airspace, and industrial manufacturing.

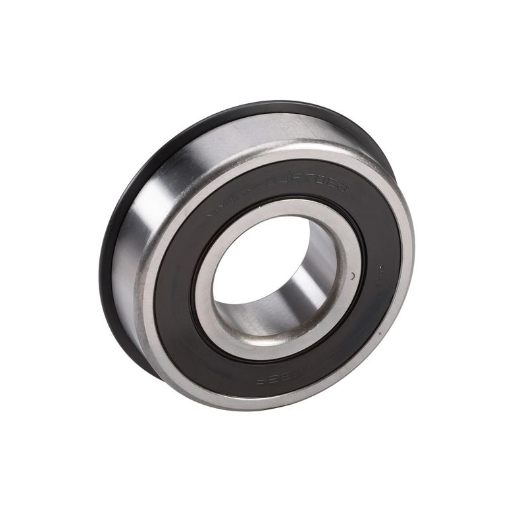

Sealed designs, ceramic balls, and modern coverings have increased the ball bearing’s durability, which results in less maintenance and optimization of performance in demanding environments.

Roller bearings: When to use cylindrical, tapered, and spherical designs

Roller bearings have different designs to accommodate specific load requirements and applications, such as taper, sphere, or cylindrical. Because of the low friction and well alignment characteristics of cylindrical roller bearings, they are most suitable for high rotating speed and radial load applications like electric motors, gear boxes, and turbines that do not have significant axial loads.

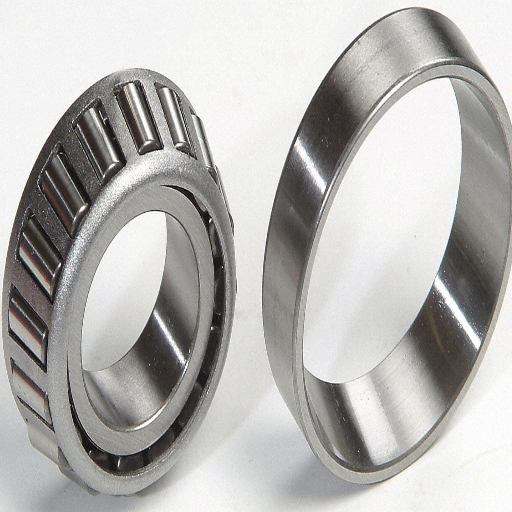

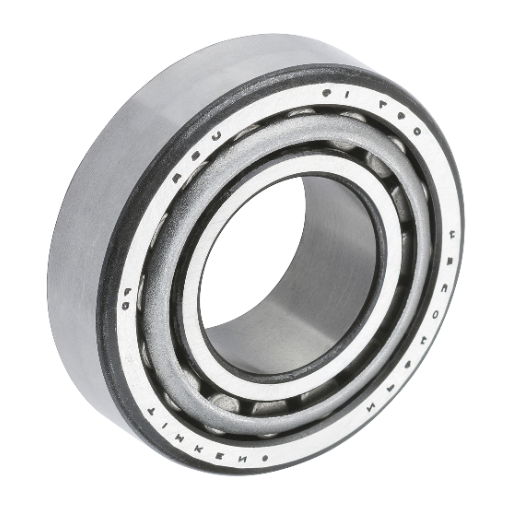

As the name suggests, tapered roller bearings have a tapered design, which helps widen the distribution of load forces. The unique geometry of these bearings is what makes them perfect for accommodating both radial and axial forces. Tapered bearings are useful in automotive wheel hubs and heavy industrial machines that operate under thrusting axial and radial forces.

Due to the commendable self-aligning properties of spherical roller bearings, they are uniquely capable of withstanding large radial forces and misalignment. In non-vertical wind turbine shafts, mining, or other metals processes, spherical roller bearings help relieve stress caused by shaft deflection or misalignment. These self-aligned bearings provide strength, adaptability, and, above all, reliability.

Plain bearings: Benefits of sleeve bearings in simple applications

Plain and plain bearings, and more specifically, sleeve bearings, are the most technologically straightforward solutions to cater to the critical criteria of simplicity, dependability, and cost. Sleeve bearings are recognized as sliding contact journal bearings and serve the sole function of supporting an assembly by rotating or sliding over another to minimize friction between two surfaces in relative motion to one another. The design is fundamentally strong because there are no moving parts, thus enhancing the overall durability and lifespan of the component while dramatically reducing maintenance needs.

Manufacturers chiefly utilize sleeve bearings because of their general performance capability, especially when subjected to moderate loads and low to medium speeds. Common applications include driving conveyors and agricultural machinery, as well as small electric motors. They are highly effective in places where careful control of lubrication manages wear and friction. Bearing grades undergo harsh tribological conditions, so materials like bronze, composite polymers, and sintered metals, which offer a good balance of strength, thermal resistance, and very low friction, are typically employed.

Moreover, sleeve bearings perform remarkably well in applications where noise reduction is particularly important because smooth surfaces enable quieter operation compared to other bearing types like ball or roller bearings. This property is advantageous for commercial HVAC systems and other machines with low-noise design requirements. The simplicity of their structure results in lower total expenditure, in both immediate outlay and sustained upkeep, making them a vital element in economically restricted and productivity-focused situations.

How do rolling element bearings differ from plain bearings?

Comparing friction reduction methods between bearing types

While plain bearings and rolling element bearings reduce friction in different ways, both have pros and cons. Plain bearings utilize a lubricating film, usually oil or grease, that separates two sliding surfaces to limit friction. This form of hydrodynamic or boundary lubrication minimizes wear and heat generation but, by nature, depends on the maintenance of sufficient lubrication conditions. This lack of rolling elements simplifies construction but can result in high friction coefficients when starting from rest or experiencing inadequate lubrication.

Rolling element bearings, in contrast, incorporate the use of balls or rollers that roll along the raceways as a means of contact, greatly decreasing friction. This is possible as a rolling motion inherently has a lower resistance than sliding. The efficacy of rolling element bearings is further improved by new technologies in materials such as heat-treated alloys and ceramic balls, which are precision-engineered, as these reduce deformation and energy loss due to high load. On the other hand, they can be prone to misalignment or contamination, which requires precise installation and regular maintenance.

Both bearing types serve unique purposes: plain bearings perform best in cases with high contamination and shock loads, while rolling element bearings dominate in situations that are highly efficient, requiring lower operational friction. Selecting the appropriate type of bearing requires consideration of the operating environment, load demands, and expenses to attain the desired performance for the system.

Load capacity differences between rolling and plain bearings

Significant differences appear in the comparison of the load capacity of rolling element bearings with plain bearings due to their design and mechanism of actions. As rolling element bearings with balls or rollers are traversing motions, they are primarily restricted by the contact stress and the material strength of the rolling elements and raceways. This restricts the rolling elements to withstand very high static or shock loads, especially when misalignment and uneven load distribution is encountered. Regardless, they perform well under static loads. While dynamic loads are within their forte, they retain proper functioning by minimizing friction as well as ensuring uniform distribution of load over time.

On the other hand, due to their full surface contact design, plain bearings can better handle heavy static loads and shock forces. Because of the greater load surface, plain bearings can endure large forces without suffering stress fractures, which result from stress concentrations within the material. Moreover, they are less affected by contamination, misalignment, or non-uniform pressure that may damage rolling bearings operating within similar conditions.

In the end, deciding whether to use rolling element bearings or plain bearings requires analyzing the given load conditions as plain bearings win in case of extreme load situations, and rolling bearings excel in precision, efficiency, and under more refined wear metrics attributed to dynamic operational demands.

How bearing design affects performance and application suitability

The structure of each bearing usually has varying cutting and lubrication needs, which impact its usability, efficiency, and dependability. For example, rolling element bearings are equipped with grease or oil lubrication systems to minimize power usage, service life and increase efficiency during high-speed functions. Other advanced lubrication methods like sealed or pre-lubricated bearings serve to reduce maintenance needs as well as contamination in difficult regions.

On the other hand, plain bearings operate using hydrodynamic lubrication along their movement shaft or even with self-lubricating materials such as PTFE composites. These soothing materials help to endure a lot of force and allow smooth movement in high-stress and long-duration situations. This missing external lubricant shifts the comfort breaks down to minimize the need for constant external self-lubrication in industrial-based applications. The rolling element may be absent, which leads to an increase in sliding friction, but it becomes easier to tackle with the right materials, specific surface treatments, and proper choosing to resist the highest amount of force while increasing the overall stress-bearing capability.

Lubrication type, bearings geometry, and the wear their victim to has stark contrasts but the assets of using them is sure to save expenses along sure to save many operational expenses as well. Engineering style methods make sure that bearing types and lubrication selections cater to the efficiency in operations, enable them to work mobile machinery, aerospace, automotive devices, and other heavy vehicles while maintaining their cost effectiveness and cross industry suitability in design.

How do fluid bearings work compared to traditional bearings?

The unique friction-reducing properties of fluid bearings

The operation of fluid bearings is based on maintaining a thin pressurized layer of either liquid or gas between the rotating or sliding surfaces of the bearing parts. This thin layer replaces direct component contact, thereby removing friction, wear, and heat generation. Like hydrodynamic or hydrostatic bearings, fluid bearings support an agitated rotor with minimal friction; engaging it allows rotating or sliding surfaces of the bearing to shift, thereby losing their contact with other components.

Hydrodynamic and hydrostatic bearings perform even better when dealing with high-speed rotation and heavy load applications since there is no risk of mechanical wear and tear. Because the fluid layer redistributes dynamic loads, these bearings provide an overall stable operating environment, which results in better vibration suppression. Moreover, fluid bearings enable ultra-smooth motion of devices in the semiconductor and precision manufacturing industries, which, when compared to traditional rolling contact bearings, require high levels of precision due to the extreme precision grade rolling contact bearings are rudimentary outperformed.

Energy efficiency, along with lifespan optimization, is achieved due to reduced friction; however, in the design and implementation of fluid bearings, neglecting fluid viscosity, fluid contamination control, operating pressures, and even bearing reliability will affect functionality in broader industrial applications.

Applications where fluid bearings outperform rolling element bearings

Fluid bearings are particularly useful in high-speed operations, extremely loaded conditions, or noisy environments. One primary use is in turbomachinery, like turbines and compressors, where the absence of metal-to-metal contact allows rotating parts to operate at wear-free, noise-damped, and low-vibration speeds. In addition, precision instrument fluid bearings, such as those in high-speed gyroscopes, rely on their ability to sustain accurate rotational axes due to low mechanical vibrations during high-speed rotations.

Fluid bearings also provide benefits in heavy industrial machinery, such as large pumps and marine propulsion systems, where considerable radial and axial loads are sustained for long durations. The lubrication of fluid bearings enables the sustainment of surface-fatigue reduction under heavy loading, which makes them advantageous in operational lifespan and maintenance intervals. In addition, fluid bearings are advantageous in environments where contamination is undesirable, such as semiconductor manufacturing and medical imaging systems, as they do not produce wear particles like mechanical bearings.

Finally, fluid bearings provide an advantage in more demanding aerospace systems and advanced power generation machinery, as these require power components to have high reliability and stability in temperature control. Here, fluid bearings demonstrate exceptional performance working in harsh conditions, which would be challenging for traditional rolling element bearings.

What determines the life of a bearing in various applications?

Critical factors affecting bearing life and performance

Bearing operational life involves numerous dependent concepts that influence performance and longevity. Some key elements include:

• Load and Stress Conditions: Bearings can only function under defined limits of a radial, axial, or combined load. Extreme stress from forces like misalignment, poor installation, or changing loads can cause premature fatigue and deformation, damaging the bearing parts and reducing their life span.
• Lubrication and Contamination: A Correct lubrication strategy must be followed because it greatly diminishes friction and wear on contacting surfaces. Lubricant selection needs to be made based on the type of bearing, its speed, and its working temperature. Particles like dust, dirt, or water can greatly contaminate lubricant, making it worsen wear and surface defects.
• Operating Environment: These include factors like relative humidity, exposure to highly corrosive materials, and temperature extremes, which greatly influence bearing performance. High temperature worsens lubrication while corrosive moisture damages bearing parts over time.
• Material Selection and Heat Treatment: Effective heat treatment coupled with advanced alloys greatly improves bearing material quality by enhancing strength, abrasion resistance, and life span. Additionally, optimized surface treatment combined with other composites also boosts bearing life under harsh conditions.
• Speed and vibration: Bearings subjected to high rotational speeds must be precision-engineered to manage factors like heat generation, centrifugal forces, and dynamic imbalances. Persistent vibrations, if not mitigated, can cause surface fatigue, noise, and eventual bearing failure.
• Maintenance Precautions: Bearing presetting requires ongoing oversight, including periodic inspections, refilling lubricants, and replacing broken parts. Such advancements capture wear and tear before they have an account effect ultrasonic vibrations and thermal imaging techniques provides a broader vision to solve problems even before they arise.

By tackling factors step-by-step, reliability can be improved, downtime reduced, and performance optimized in various industrial applications.

Maintenance practices to extend the life of different bearing types

To fully leverage the functionality of a bearing, its operational life span, and reliability while reducing failure risks, effective maintenance practices are essential. From achieving precise installation to regularly lubricating it, all practices are critical for complete ball bearing performance. Automatic, computer-controlled machine tools need to be equipped with lubricants made especially for lubrication and bearing systems, ensuring superior performance at different temperatures and load situations. Furthermore, periodic replacement of lubricant allows bearing friction and heat generation to remain at minimal levels, boosting its serviceability. It’s worth noting that optimal alignment bearing installation is vital for even load distribution.

In the case of roller bearings, continuous monitoring of radial and axial loads prevents overloading, which can cause damage to raceways and rollers. Innovative damage identification systems such as vibration analysis and ultrasonic testing, go a step further, catching issues like misalignment or excessive wear before they escalate into something significant. An important notion to keep in mind is keeping the bearing assembly free from moisture, debris, or other contaminants that boost corrosion, as these elements greatly reduce the lifespan.

All bearings, along with needle and spherical bearings, are recommended to be kept devoid of pitting, cracks, and excessive wear signs for effective maintenance. Given the pitting, cracks, or wear-free condition, applying sealers allows the bearing assembly to safeguard against outside contaminants. Under high-stress or high-speed conditions, synthetic oil lubricants ensure the bearing remains durable, stable and renders a longer life.

The use of modern bearing diagnostic tools, such as IoT sensors and thermal imaging, assists in the immediate gathering of information concerning the operations within an industry, thus allowing engineers to pinpoint issues well in advance and enable repairs or replacements only as needed. Following such in-depth maintenance tactics can significantly enhance the life span and efficiency of bearing types while also reducing unanticipated halts in productivity as well as overall expenditure.

Frequently Asked Questions (FAQs)

Q: What is the primary purpose of bearings in machinery?

A: Bearings are designed to reduce friction between moving parts in machinery, allowing the bearing to rotate smoothly and efficiently.

Q: How do angular contact ball bearings function?

A: Angular contact ball bearings are designed to handle both radial and axial loads, with one or more rows of balls arranged at an angle to the bearing surface, which allows the bearings to support combined loads effectively.

Q: What are thrust bearings and their typical applications?

A: Thrust bearings are specifically designed to handle axial loads and are commonly used in automotive, marine, and aerospace applications where axial load support is crucial.

Q: How do needle roller bearings differ from other types of bearings?

A: Needle roller bearings use long, thin rollers that allow them to handle high radial loads in a compact design, making them ideal for applications with limited space.

Q: What factors should be considered to select the right bearing for an application?

A: To select the right bearing, consider the load type and size, speed requirements, operating environment, and desired service life of the bearing. Consulting with a bearing manufacturer can guide the best choice.

Q: How do ball and roller bearings work?

A: Ball and roller bearings reduce friction by allowing smooth rotation between the bearing surfaces. The rolling elements (balls or rollers) minimize friction compared to sliding motion, improving efficiency and prolonging the life of the bearing.

Q: What are the benefits of using active magnetic bearings?

A: Active magnetic bearings use magnetic fields to support the load without physical contact, eliminating friction and wear. They are ideal for high-speed applications and environments requiring precision and cleanliness.

Q: How does a bearing manufacturer ensure the quality and longevity of their products?

A: A bearing manufacturer uses advanced materials, precision engineering, and rigorous testing to ensure their bearings meet performance standards and have a long service life under specified conditions.

Q: What role do wire race bearings play in bearing technology?

A: Wire race bearings are a type of rolling-element bearing that uses wires as raceways. They offer high precision and load capacity, making them suitable for demanding applications.

Q: Why are bearings essential in mechanical systems?

A: Bearings play a critical role in mechanical systems by reducing friction, supporting loads, and enabling the smooth rotation of components, which enhances performance and extends the life of the machinery.
