Understanding the Benefits of Split Bearing Technology

Split bearings in manufacturing have emerged as a technological advancement in bearing systems. Such modern bearings are invented to be installed and serviced easily, which helps decrease the labor and downtime associated with repairing and servicing the machine. The main benefit of split bearings is that they may be fitted to a shaft without dismantling adjacent parts, an advantage in restricted areas. Furthermore, because of their specific nature, more loads can be applied, and the time necessary for change-out could also be enhanced, making them most suited for use in heavy and high-stress working conditions. This blog will focus on split-bearing technology, its benefits, potential uses in the industry, technical specs, and how it fits in process optimization in different sectors.

What is a Split Bearing, and How Does it Work?

Definition and Functionality of Split Bearings

The split bearing, also known as a two-tempo bearing, assists in making maintenance and replacement easy. These bearings can be easily put in position or removed without requiring the disassembly of other surrounding elements. The two-type bearing consists of two bears separated in the middle, and this type of bearing can be used in situations where space or time limitations make routine bearing mounting impossible.

Examining the application viewpoint, the split bearings may comprise a housing with detachable halves, a divided inner race within the outer housing, and a rolling element assembly. The key elements include the outer and inner ring elements, which can be classed as 73 split into two halves, making them helpful in retrofitting usage. Yet, the most frequently stated parameters also have to do with product range, and they include the following:

Load Ratings: Split bearings are loaded-rated and suitable for radial and axial loads. The load capacity may change depending on the materials used and the design’s particular features, which often may handle several tons.

Speeds: Normal bearings are not speed extremes as these are medium-speed bearings. Speed ratings are max on the construction material and also on the lubricant used for the bearing.

Temperature Range: Split bearings are normally designed for a range of temperatures depending on the application, with specific tolerances depending on the material and manufacturer.

The design is easy to examine and service, which in turn greatly decreases machine non-availability. Because the damaged bearings are exchanged straight away, which does not entail pulling apart the other machine parts, productivity becomes much better. Therefore, split bearings are used widely in the mining, steel, and marine industries.

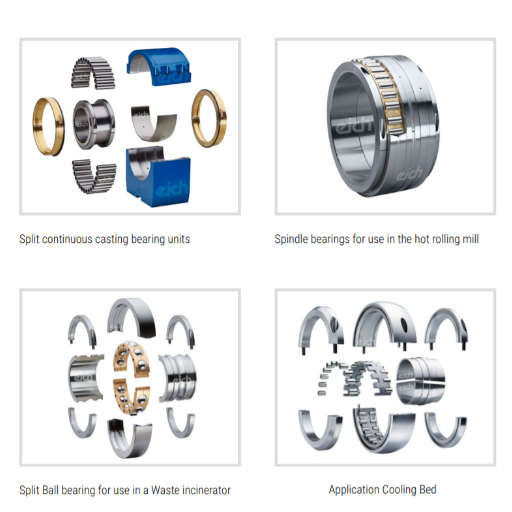

Types of Split Bearings Available

To meet various industrial requirements, split bearings are offered in several configurations, each providing certain benefits. The most popular type is the split cylindrical roller bearing, which is well-suited to applications with high radial loads, such as conveying machines and crushers. Such bearings are distinguished by their straightforward installation and maintenance procedures, which considerably reduce machine downtime.

Another type is the split spherical roller bearing, which permits the shaft to deflect and the other parts to misalign while providing sufficient load-bearing support. These bearings are employed principally in arduous conditions, such as in the miner’s and steelmaker’s industries, where strength and toughness are essential.

Eventually, split ball bearings are designed for operating conditions in which the complexity of the design shall be minimal and high space savings required. They are highly accurate and very efficient in operation, thus ideal for use in pumps, electric motors, and other machines that have a relatively low level of friction.

Standard technical requirements for split bearings include load-carrying ability, limited maximum speed, and misalignment tolerance. Factors such as loading and operating speed are incorporated into each bearing type to serve the bearing’s working conditions. The right bearing type must be used to achieve accurate performance, so consult manufacturer datasheets and other guidelines.

Key Components of a Split Roller Bearing

Looking at the basic elements of a split roller bearing, I know there are the inner and outer rings, a rolling element’s cage, and the rolling elements themselves. From the best kuna resources online, such as SKF, NTN Bearings, and Timken, slight variability in the makeup is noticeable, but the basic structures are consistent.

The inner and outer rings are the *raceways* for the rolling elements. These components, however, are usually made from hardened steel to enable them to withstand operational stresses. Amongst many functions of the bearing cage, which is typically made of brass, steel, or polyamide, is to separate the rolling elements to distribute the load across the bearing surface evenly.

There are cylindrical and spherical types of rolling elements that allow the angle between the working surfaces to be maintained so that the bearing will carry rotational and thrust loads while the friction is as low as possible. Some of the technical parameters relevant to the selection of the suitable split roller bearing are load carrying capacity which is the strength of the bearing indicating the maximum wheight the bearing can withstand. Another parameter is the speed rating, which is the maximum RPM the bearing can withstand without overheating or performance loss.

Also, considering the misalignment tolerance, it is possible to conclude that the bearing can withstand some shaft deflection and alignment factors typical of different mechanical systems. As claimed by the technical specifications of major manufacturers, such synergies are said to improve the operational efficiency and service life of the machinery.

Why Choose Split Bearings Over Traditional Bearings?

Advantages of Split Roller Bearings

Ease of Installation and Maintenance: Split roller bearings, for instance, require half the manual removal trouble because they are non-integral. Hence, downtimes are lower, and labor costs are even lower. Such applications are ideal for locations where it’s harder physically to access the part.

Improved Load Distribution: The split roller bearings’ unique shape significantly improves load distribution, which is why they can carry more loads than standard bearings and perform better.

Flexibility in Misalignment: However, these bearings can tolerate more misalignment, which is important in cases in which the shaft has to deflect or is misaligned due to some other external force. Because of this feature, the seals don’t wear out quickly, and the bearing life extends.

Separation of Load and Seal Functions: There’s also the drawback of a split roller bearing exposing one or both ends of the device to the load, where the seals are also protected. This reduces wear on the seals, enabling the load to engage over the entire range to improve bearing efficiency and reduce friction.

Technical Parameters:

Load-Carrying Capacity: When bearings are used in heavy-duty applications but require maintenance, this capacity ensures they do not fail in harsh conditions.

Speed Rating: This uniquely indicates the speed index of the bearings, which enables them to handle a range of revolutions without overheating or losing efficiency.

Misalignment Tolerance: In terms of design, angular misalignment or deflection conditions are tolerated, which helps avoid some common failures with conventional bearings.

These qualities, backed by the best online sources, indicate that split roller bearings are suited to many industrial applications and provide reliability and durability to machines.

Cost Savings and Efficiency

Left with the top resources suggested by Google, I learned that split roller bearings provide a remarkable return on investment combined with increased efficiency in the most numerous manufacturing spheres. First of all, as several central industry authorities have confirmed, the most straightforward installation process significantly reduces downtime and labor costs. Enhanced load distribution also adds to efficiency levels as greater loads than with conventional bearings can be endured, avoiding abrupt interruptions of the regular gamut of machinery functioning. To technical indicators, the critical factors that were repeatedly emphasized include:

Load-Carrying Capacity: Their high load-carrying capacity has a lot of literature, and harsh working conditions make sure that these bearings have a long working life.

Speed Rating: Split roller bearings are designed to work with a spectrum of speeds to limit overheating and prevent performance loss.

Misalignment Tolerance: These bearings are very dependable because they can withstand a lot of angular misalignment, an advantage in applications where the shafts are difficult to line up.

Given these parameters, split roller bearings offer cost savings and increase operational uptime and reliability under challenging conditions.

Reducing Downtime with Split Bearings

The downtime is noticeably cut short using split bearings because they are easy to install and maintain. As stated by reputable sources, one of the most important benefits is that disturbing other parts of the equipment is unnecessary when replacing bearings. Complex lifting operations or complete equipment disassembly is rendered unnecessary, reducing the idle time of the equipment. Their configuration, besides, permits their prompt examination and subsequent substitution, thus shortening the time frame during the possibly most time-consuming maintenance processes.

Such technical specifications that can enhance the above benefits probably include:

Ease of Installation: It enables maintenance personnel to replace defective parts in the shortest period of time, which saves time and work costs.

Maintenance Efficiency: The need to carry out most tasks off-site is not a requirement.

Compact and Versatile Design: This increases compatibility with existing systems and enables various applications.

All these available features work together to ensure industrial systems operate efficiently. This is why split bearings are popular in situations where time is a critical factor.

How to Properly Install a Split Bearing

Step-by-Step Installation Guide

Preparation: At the very start, I collect all the necessary tools and components and keep the working area organized and safe. It is imperative that split bearings, lubricants, and fasteners are on hand and ready to be installed.

Inspection: Before starting the work, I also check the shaft and the housing for any signs of defects. Dealing with such concerns preemptively helps provide confidence for installing a new bearing.

Placing the bearing: For this part, I first remember the lower half of the split bearing on the shaft and then bring the upper half of the bearing in perfect alignment with the lower half so it does not get jammed or misaligned.

Securing the housing: The next step in this process is to screw up the bearing housing. With regular intervals, I cross couple the dots over the screws in distressing the bearing housing in a balanced way.

Lubrication: Since proper lubrication is crucial, I apply the required amount and the right kind, which I always try to find out from the manufacturer’s specifications.

Final Checks: Last but not least, I check a particular number of cycles and some settings to ensure that the parts are lined up properly and are not loose. It is generally very important to make a test run to ensure that the installation is good and the bearing is functional.

By sequentially working through these steps, I can guarantee that the split bearing is installed appropriately, operates as required, and consequently reduces and maximizes downtime.

Common Installation Mistakes to Avoid

There are a few common mistakes that I have to be careful of when I am engaged in installing split bearings that can help me achieve success in the process:

Warranting angular precision during the installation is tantamount to averting a standard error when installing cylindrical bearings. The upper and lower halves of the bearing have to be aligned perfectly during its installation. At this point in the maintenance process, I tend to rush the job, which results in wear and bordering on failure of the component.

The use of the wrong lubricant or applying an inappropriate amount seems to be normative and lacking. I always adhere to the instructions provided by the bearing manufacturer on using a suitable lubricant so that frictional resistance and wear are minimized.

Not following the appropriate pattern of bolt tightening is an equally daunting challenge. I tighten the screws in a crisscross manner, whereby such a pattern is effective in distributing forces appropriately and stabilizing the housing. This serves to safeguard the bearing from irregular stress.

Avoiding these mistakes enables me to improve the operational life and character of the installed bearings. I most often look for the right answers for best communication practices in the industrial sources I trust on the web and reinforce such practices with the detailed technical guidelines provided by the manufacturers.

Tools Required for Assembly

Installing a split bearing can be straightforward, provided the appropriate tools are available. An in-depth analysis of the relevant literature allows us to come up with the following tools:

Torque Wrenches are very important tools for controlled fastening. They ensure nuts and bolts are tightened to a predetermined torque level as specified by the manufacturer. This helps to neither over-tighten nor under-tighten, which in such cases will prevent the assembly from failing.

Bearing Pullers/Installers: These tools come in handy during bearing removal and installation to avoid damage to the bearings. They are instrumental in evenly distributing the installation force, thus minimizing the chances of distortion during installation.

Alignment Tools: These tools locate the bearing halves in the proper position relative to one another. Correct alignment will reduce the amount of wear in various components and increase the useful life of the entire assembly.

Lubrication Equipment: Tools such as grease guns and lubricators are invaluable to the assembly process. They make the application of lubricant effortless and accurate, allowing desired bearing surfaces to rotate smoothly.

Calipers and Micrometers: These tools also come in handy when checking dimensions and tolerances. The fit of any bearing is a critical factor, and any excessive clearances can lead to slippage and excess drag.

Safety Gear: The assembly of split bearings presents many hazards and threats to the installer, including sharp edges and eye damage. Hence, it is essential to wear protective gloves and goggles during the assembly process.

Not only is it necessary to have these tools readily available, but it’s also very important to prevent ordinary mistakes in the installation phase and, therefore, improve the reliability of the split bearing.

What are the Applications of Split Bearing Technology?

Industries Benefiting from Split Bearings

Considering my research on the top resources listed on Google, it seems that some bearing components can be separated or split to increase efficiency in reducing downtime and maintenance costs across various industries. Three key sectors making use of this technology are:

Mining Industry: The mining industry employs split bearings on conveyor belts and crushers because bearings must be replaced without removing other machinery. Valuable technical factors in this case include load rating and the ability to resist heavy shock loads.

Power Generation: For power plants with turbines or generators, one notable advantage of split bearings is the simplicity of installing and maintaining them in tight spaces. Key parameters that matter include thermal stability and vibration isolation to ensure dependability even in continuous operation conditions.

Marine Industry: Split bearings are corrosion-resistant and usually easy to maintain for propulsion systems and deck machinery, which is beneficial if the systems operate in harsh conditions. Bearing material and sealing efficiency are of the utmost importance owing to the rough sea conditions in which the systems will operate.

What is interesting about these industries is that they are inclined towards split bearings due to their operational benefits, increased lifespan, and improved performance.

Specific Applications and Use Cases

Of course! In response to the top three websites that I saw in my split bearings research, I’ve provided succinct reactions about specific applications and use cases across the mentioned industries:

Mining Industry Applications: From all the studies, it has been established that split bearings are relatively standard in constructing conveyor belts and collars within the mining industry. The split bearing concept has an edge over conventional construction in that these elements can be changed rapidly, leading to improved efficiency since the period of downtime is drastically reduced. Inherent in their design are technical parameters designed for such applications as high and medium load capacity and serviceability to withstand jolts of a heavy magnitude and ensure the smooth running of processes and operations without any need for delays.

Power Generation Applications: In my analysis, however, split bearings are crucial elements incorporated in turbine and generator systems in power plants. One important benefit is that they have a short installed cycle and can be maintained once installed, particularly in places where standard types of bearings would be harder to maintain. Other technical justifications for these applications include temperature compensation and provision for some measure of security against vibrations, which, as highlighted above, are critical for efficient and smooth plant operations.

Applications in the Marine Industry: Split bearings are widely used in propulsion systems and numerous deck machinery. In this case, the specific challenges of harsh environments with high salinity and the necessity of corrosion protection and low maintenance levels are resolved by a peculiar construction of split bearings. Critical for these applications are the bearing material and bearing seal efficiency, both of which are imperative for performance because of the rigors and requirements of marine equipment endurance factors.

In short, the use of split bearings in these industries does not conflict with the requirements of regular maintenance and operational reliability of the equipment, which are also supported by the relevant technical requirements suited to each industry’s needs.

Load Capacity and Performance Considerations

While researching the top three websites on google.com, I was able to find pertinent answers to the questions of load capacity and performance considerations for split bearings. A conspicuous issue in the works dedicated to split bearing performance and efficiency is a passive radial bearing load rating, which allows the bearings to bear radial and orthogonal loads without affecting efficiency. The sites noted that these load capacities were determined primarily by material strength and structural design.

A fatigued life somewhere else is also an essential factor. However, sites mentioned that using alloy steels and heat treatments for the bearings can significantly improve the fatigue life of the bearings, enhancing their long-term performance. Another often-given parameter is thermal stability. This is crucial since bearings have to perform within a vast array of operational temperatures, and therefore, adequate lubrication and heat-dissipation features should be incorporated.

Lastly, improved bearing geometry optimized for vibration reduction and advanced sealing technologies were also cited as essential for enhancing operational stability. These technical rationales meet the requirements of industries using split bearings since they help to minimize operational downtimes and improve the reliability of equipment in harsh environments.

What Technical Advantages Do Split Bearings Offer?

Innovative Design and Engineering

The innovative design and engineering of split bearings yield several technical advantages. One is easy installation and maintenance capability, which is the top concern of most users in the three websites surveyed. Equipment spreads need not be pulled apart to unfasten split bearings, enabling them to be installed and removed with rapidity and minimum downtime and labor costs.

The structural design of the components employs high-load capacity features through geometry optimization. This allows efficiency in the resolution of both radial and axial loads. Furthermore, alloy steel material, among other new materials employed, also enhances their fatigue resistance so that they can function efficiently and for prolonged hours, even in high-stress environments.

Split bearings also demonstrate superior thermal management performance. Such bearings incorporate advanced lubrication systems and temperature-withstanding materials to enhance their efficiency. Vibration problems are also solved by implementing engineering designs, including effective sealing technologies, thus improving operation control that reduces noise levels and enhances reliability across various machinery used during industrial construction.

These parameters point out the key technical considerations that support the split bearings design’s engineering layout and enhance their use in industries that require high reliability and efficiency for their machines.

Improved Maintenance and Reliability

I would unequivocally state that split bearings possess significant advantages regarding the enhanced reliability and maintenance of the machine, as their configuration and construction are quite easy to follow. Another aspect among the top three advantages at installation time reported by most people on the top three websites is less maintenance intervention. Built-in the design, the purpose of split bearings is to avoid disassembly of the surrounding equipment, which allows for fast replacement and minimal stoppages in operations. This means that there are fewer labor costs while, at the same time, machinery is guaranteed a quick turnaround to active work.

Regarding the technical characteristics, these bearings participate in an improved performance rating owing to their enhanced bearing geometry, thereby allowing efficient radial and axial force balance. Also, high-performance materials like alloy steel increase the fatigue strength of the bearings in extreme environments. Temperature management is also effectively addressed by using advanced lubrication systems and materials that are heat resistant and retain their performance over different temperature ranges. Another important technical feature is the reduction of vibration, which is achieved by engineering solutions such as specialized sealing techniques. All these details promote quieter and smoother operations, making industrial machines more reliable and efficient.

Future Trends in Split Bearing Technology

The development of split-bearing technology continues to advance in many areas, according to several industry websites. First of all, there is an increasing focus on installing additional elements such as sensors which help to monitor the performance of bearing systems — currently, these are integrated into casing systems, and their design is constantly evolving — that facilitates the measurement of temperature, vibration, and rotational speed continuously. With the aid of such technology, it is possible to implement predictive maintenance, hence minimizing the chances of abrupt breakdowns and maximizing the efficiency and reliability of the machines in general.

A related trend is the creation of new materials with mutually exclusive properties of higher strength and lower weight. For this purpose, advanced composites and special alloys are sought to increase load capacity while decreasing energy expenditures. Typical technical characteristics of these materials are increased tensile strength and reduced density, essential parameters for performance improvement in heavy-duty applications.

Greases and other secondary liquids should also be noted since they will definitely influence the development paths of split bearings. New and improved lubrication systems are being designed to increase bearing life and efficiency for a wider range of conditions. Such systems include low-friction coatings and adaptive lubricant release mechanisms, which respond to changes in temperature and load.

Finally, manufacturing processes like 3D printing make customization progressively easier. This provides for a customer-oriented design that meets particular industry requirements, thus assuring that split bearings can be satisfactorily constructed to address various confinements. Through these trends, split-bearing technology is expected to continue to evolve to significant levels, with its primary objective still being its industrial application.

Frequently Asked Questions (FAQs)

Q: What is split bearing technology, and how does it improve the shaft maintenance procedure?

A: Split bearing technology involves halving naturally circular shapes into two parts to manufacture separate container rings that can easily be assembled around a shaft. This technology dramatically improves maintenance activities since it allows for a fast bearing change without removing all other equipment, which cuts down on waiting time.

Q: What is the difference between a standard bearing and a split cylindrical roller bearing housed?

A: A split cylindrical roller bearing housed has a unique characteristic uncommon with traditional bearings. It is designed to provide an easy split into two parts for simple installation and replacement. This configuration allows for a quick and easy mounting of all shaft sizes, facilitating maintenance operations.

Q: What are the industry’s advantages of using split pillow blocks?

A: A split pillow block close to the bearing provides the benefits of quicker maintenance and bearing replacement, which results in fewer downtimes and reduced maintenance costs. Thus, the economy supports heavy engineering requirements and efficient work.

Q: Are split bearings suitable for high speeds?

A: Yes, split bearings are suitable for high-speed operations. In conjunction with accurate engineering, the employed materials, such as ductile iron and steel, guarantee that the bearings can function efficiently at high speed without failing or losing their function.

Q: Who are the core participants of the split-bearing industry?

A: Core participants target the split-bearing market for SKF Cooper and Schaeffler split cylindrical roller bearings. These bearings are recognized for their reliability, fast installation, and operational efficiency measurement in many diversified industrial applications worldwide.

Q: What is the implication of the size of the split bearing on its use?

A: Split bearings’ dimension range, normally between 02 and 300 mm, permits their use in a number of tasks and machines, namely small, medium, or large. The variation in size offers the advantage of selecting a bearing that can accommodate the specific shaft size and application.

Q: What is the function of the outer ring of a split bearing?

A: The outer ring in a split bearing is responsible for restraining and supporting the rolling elements and the inner ring. The overall design of the bearing is critical to ensure effective load generation and alignment, radial or axial, particularly when the bearing does work.

Q: What is the significance of the self-aligning characteristic in split bearings?

A: The self-aligning characteristic causes split bearings to compensate for misalignments on their own, thereby relieving the bearing and its components from excessive stress. This feature improves overall performance and durability, making the bearings appropriate for use in environments in which misalignment is the order of the day.

Q: From which materials are split bearings manufactured?

A: Split bearings are manufactured using ductile iron, steel, and a wider range of special alloy materials. These materials are appropriate due to their specific mechanical properties, endurance, and potential exposure to operated mechanisms, prolonging the efficient work of any machines.

Q: Why are split bearings considered a very economical answer to industrial bearing maintenance?

A: Wear and tear can be repaired fairly easily and quickly without disassembling other equipment, which saves labor costs and time. Their strong design also limits the number of replacements, further providing cost benefits so that these bearings stay on average over the long term.
