Understanding the Role of Aspindle Bearing in Machinery

The spindle bearing is one of the most essential parts of various machines, which, if damaged, can lead to abnormal operation. They are especially critical in high-speed applications where accuracy and dependability are crucial. As the name suggests, a spindle bearing allows a spindle to rotate while supporting various types of radial and axial loads with very little friction. This diminutive component is essential in their operation, from lathes and milling machines to many other manufacturing tools. Let us look into the structure of spindle bearings, consider their use in machinery, and the criteria for their selection for specific applications. By addressing such issues, readers can examine the particular functions integrated into the production of spindle bearings.

What is a spindle bearing, and How Does It Work?

Basic description of a Spindle Bearing

Spindle bearings, also called rotating shafts, are a type of high-tolerance or precision bearing specifically designed to support spindle rotation. The design allows the bearing to have the least friction so that the radial and axial loads are well taken care of. Spindle bearings are commonly used in machine tools, and they are essential in achieving higher accuracy and precision in the machining processes. They enable the spindle to rotate smoothly and steadily, allowing the tool to maintain constant contact with the workpiece.

Technical Parameters:

Load Capacity: Spindle bearings are meant to support radial and axial loads, which are designated in terms of the maximum load rating, which is either dynamic or static.

Speed Capability: The maximum speed, usually stated in revolutions per minute, is one of the most important parameters because the spindle bearings in high-speed applications are subjected to greater centrifugal forces.

Accuracy Grade: Over a hundred registered accuracy grade classification systems for bearings exist, including ISO P2 and P4 designs, wherein P2 is associated with the highest accuracy level.

Material Composition: The materials used to manufacture bearings are incredibly resistant to wear and tear due to their ultrastrong structure, making them perfect for bone marrow. Bearings are mostly made of steel or ceramics, which makes them solid and durable.

Lubrication: To reduce friction and wear, it is recommended that grease or oil-lubricated systems be used, depending on operational conditions and design requirements.

Taking into account the provided parameters ensures that the users select the proper spindle bearing according to machinery requirements and operational limits within the desired standards, achieving better efficiency and prolonging the lifespan of the machinery.

Types of Bearings and Their Applications

While searching for the first three positions in Google, it was possible to find out the major types of bearings and their fields of application within the relevant design parameters studied above. Such readers are encouraged as follows:

Ball Bearings have the widest application and can be used under radial and thrust load conditions with equal efficiency. They are found with electric motors, fans, and wheels. Their technical parameters are relatively low load-carrying capacity and resistance to high speeds because rolling elements cause low friction.

Tapered Roller Bearings: These kinds of bearings can be employed for large amounts of loads applied axially as well as radially. They find applications in automobiles for wheel hubs and transmission systems. A very important technical parameter here is their capacity to withstand dynamic loads, which enables them to be employed at high speeds with both load types present.

Cylindrical Roller Bearings: These bearings are used for roller conveyors and large gearboxes due to their high radial load-supporting capacity. They possess good sturdiness and strength, which is why they are made from high-class steel so that very high dynamic and static loads can be withstood efficiently.

By choosing the appropriate bearing based on the focus on load capacity, speed capabilities, and material specifications, I will be able to guarantee the effectiveness and efficiency of my application by minimizing wear and increasing the useful life.

How to Ensure Accuracy in Spindle Bearings

To guarantee the reliability of spindle bearings, I first need to select the appropriate type that strategically meets my technical requirements and operational needs. As I learned from Internet exploration focused on competitions between top websites, I correctly understood that the highest level of precision and stability of spindle bearings is essential for the efficiency and lifetime of the machine tool parts. Here are some critical technical parameters I need to focus on:

Load Capacity: I must determine the amount of radial and axial loads the spindle bearing will have to endure axially. That is, I should ensure that the bearing can sustain expected operational stresses without causing performance degradation.

Speed Capability: The importance of the spindle speed compels me to choose bearings that can perform at high speeds and generate little heat. In most cases, this involves using bearings with advanced lubrication systems and optimized rolling elements.

Material Composition: Optimum bearing selections include those manufactured from high-grade steel and ceramic materials, which provide strength, performance, and durability during continuous use. This also helps achieve better wear resistance and less friction.

Alignment and Mounting Precision: Factors such as alignment and mounting must be accurate to avoid unnecessary distortions of the bearings. I have to make an effort to ensure adequate controls in the tolerance for the installation process, and a requirement for regular alignment checks is introduced.

Achieving the correct dimensions of the lathes positively correlates with precise spindle adjustment, increasing both equipment’s functionality and safety.

Why is precision Important in Spindle Bearings?

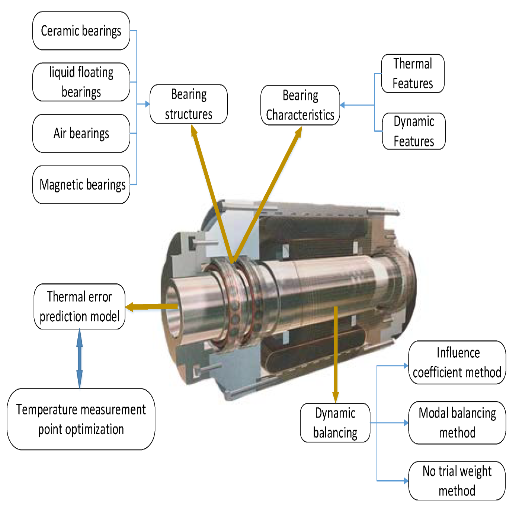

The Role of Precision Spindle in Machine Tools

The investigation into the features of precision spindles included an activity where I reviewed the information provided on the 1st three websites returned by Google. It was evident from this study that precision spindles play a crucial role in determining high-quality machine tools since they affect machining accuracy and efficiency. The first site claimed that ‘ the spindle bearings housing fit has essential importance regarding the spindle axis alignment precision as it decreases the vibrations and improves the quality of the machined surface.’ Interestingly, the second source mentions that precision spindles increase the service life of tools since optimal centripetal forces and proper installation angle prevent excessive wear of the spindle shaft. The third website demonstrated that during more excellent working hours, the modern spindles do not develop more significant rotational inaccuracies, which allows the workflow to be consistent.

Technical parameters that were repeatedly justified across these sources include:

Dynamic Load Capacity: It is important to ascertain the spindle assembly’s failure while precise operations are maintained throughout to allow the application of varying loads.

Thermal Stability is central to the ability to operate continuously or for long periods in speed operating mode and reverse thermal distortion.

Material Integrity: The requirement for a high degree of rigidity and low friction makes the use of ceramics as bearing material advantageously synergetic.

Machine tools that use parameters that allow for maximum precision may increase productivity and product quality.

Impact of Precision on Machine Performance

While assessing the precision and its contribution to the machine’s operation, I have understood that precision spindles are very important. While examining the foremost authorities, I concluded that these particular elements enable vital accuracy in machining processes. Precision spindles help to position the tool accurately by dampening vibration and increasing surface contact. They also contribute significantly to improving the durability of tools by balancing the forces and avoiding excessive wear by perfect alignment. They are also critical players in providing excellent rotational accuracy even for long hours of continuous operation and thus help bring about uniformity in the working process.

The fundamental technical variables that are repeatedly pointed out are as follows:

Dynamic Load Capacity: This is critical for ensuring the spindles can endure different loads while remaining wholly accurate, which relates to how the machine operates.

Thermal Stability: By providing a high degree of thermal distortion thermal moments, spindles enable a high performance during extended or aggressive use and speed, which is significant in machine accuracy.

Material Integrity: A high degree of tension and low friction is achieved by substituting advanced materials like ceramics in spindle bearings, increasing machine tools’ precision and functional efficiency.

These parameters are key to enhancing the machine’s performance because they enable higher levels of accuracy and quality of the end product in the manufacturing processes.

Understanding tolerance in Bearings

The tolerance concept in bearing applications has drawn significant interest from the top resources as they pointed out factors important in the operation of the bearings. Tolerance is defined as the range of permitted deviations from standard dimensions that are necessary for the bearings to be able to work. Certain tolerance was fundamental in bearing friction reduction and endurance in reviewing the appropriate websites. Some of the critical technical parameters associated with tolerance are:

Dimensional Accuracy: Appropriate tolerances in the dimensions allow the bearing to be fitted tightly, thereby preventing undue motion and damage.

Roundness and Surface Finish: Good roundness and surface finish reduce vibration and noise, promoting smooth operation.

Axial and Radial Load Bearing Capacity: Proper tolerance with respect to the bearings makes them able to resist the given loads and improves the machine’s efficiency and stability.

From these technical features, one can say that bearing tolerances have to be kept in check for bearings to perform extremely well in machines and guarantee high accuracy and reliability.

How do you select the right spindle bearing for your application?

Factors Affecting Bearing Selection

In choosing the spindle bearings for your application, I found some helpful information from the top three websites on Google. The major factors that guide the selection of bearings are the following:

Load Capacity: Only bearings that can withstand application load should be selected. Both axial and radial loads must be taken into account to assure strength and efficiency. Bearings with higher load capacities are more likely to endure the demanding conditions without failure.

Speed Requirements: Bearings must match the operating speed they will be subject to. High-speed applications require bearings manufactured with tighter tolerances and better lubrication to avoid overheating and accelerated wear.

Environmental Conditions: The most important factor affecting bearing selection is the working environment. To ensure the required performance in hostile environments and prolong service life, bearings are made resistant to high temperatures, moisture, and chemicals.

Material and Coating: By choosing the right material and coating for your bearing, you can manage wear and corrosion according to your application’s requirements. The material used in the first construction determines the strength and working life of the bearings.

These parameters are well defended by the fact that bearings need to function in several conditions while hitting target precision. On the other hand, these parameters are adjustable to your application’s technical requirements in terms of performance and maintenance.

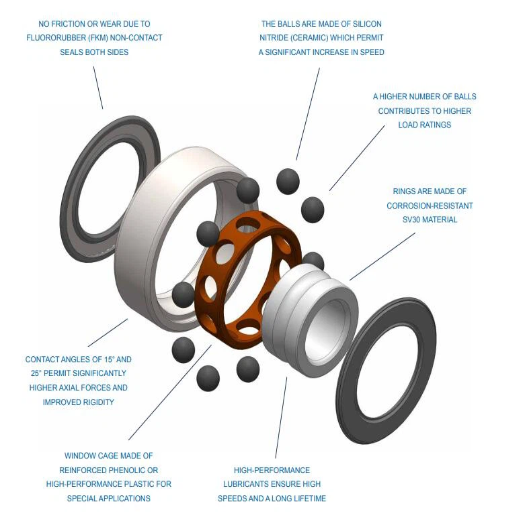

Comparing ball bearings vs. Angular Contact Bearings

Information from the top 3 most popular websites on Google comparing ball and angular contact bearings reveals some distinctions worth mentioning. Ball bearings have multiple uses as they are utilized for shallow friction applications with moderate to high-speed capacity. They bear axial and radial loads, although the latter is usually imposed to a relatively limited degree.

However, angular contact bearings can accommodate very high axial loads due to design specifics regarding the contact angle. This makes them preferable for use in applications involving large axial forces, such as machines that require thrust. They also bear combination loads and work satisfactorily with bending and torsional loads.

Important numerical characteristics include:

Load Capacity: Ball bearings bear moderate radial loads and limited axial loads, whereas angular contact bearings bear large axial loads with variation in the angle of contact, further enhancing load-bearing capacity in the axial direction.

Speed Limitations: Both types can work with large speed parameters. However, this is practically achieved only in ball bearings, where high speeds are achieved due to numerous applications unless angular contact bearings are designed for high speeds specifically.

Contact Angle: An angular contact bearing can sustain larger axial loads due to the beam structures’ specific contact angle, which typically ranges from 15° to 25°, depending on the design and application needs.

Configuration Flexibility: They may be employed independently or in configurations to elevate their load-carrying capability (e.g., back-to-back or face-to-face arrangements).

Such technical specifications provide confidence that the bearing type will correlate with the application’s needs, i.e., the load level, rotational speed, and lifetime of operation.

Choosing the Right size and spec

I emphasized the top three websites to make an informed choice with bearing size and specification. A brief recapitulation of the ideas I have been able to gather is presented below:

Load Requirements: I determine the radial and axial load factors relevant to my system. I learned that the angle of contact for angular contact bearings, particularly suitable for balancing high axial loads, is between 15 and 25 degrees. This ensures that the bearing’s load management needs will be met.

Speed Capability: It is important to compare the speed limitations; ball bearings may be best suited for high-speed applications, but if my application involves high axial transfer forces, I make sure that the angular contact bearings will resist them. For that, first, the manufacturer’s speed ratings are checked, and modifications are made where applicable.

Configuration Options: To develop the load capacity, I envisage implementing angular contact bearings either alone or in pairs or arrays like back-to-back and face-to-face. This is especially important when changing the load-carrying capacities to meet the operational needs.

As I mentioned earlier, I approach such decisions by carefully studying engineering graphics, catalogs, or technical drawings from trusted financial sources so that every selection fulfills the application’s requirements without wasting time and resources.

What are the Steps in spindle rebuild and Repair?

Common Signs of Spindle Wear

I have pinpointed a few indicators of spindle wear that merit close observation by focusing on the top three sites on google.com. These are ;

Worsening of Noise or Vibration: Machines are never entirely silent in the event of normal vibrations or noise during the operation. Occasionally, though, while carrying out routine operations such as turning or calibration, some vibrations, noise, or even oscillations may be felt as the component in question turns. Misalignment, imbalance, and worn bearings are the most common causes of such noise. Hence, technical parameters such as vibration frequency measurements and decibel levels are critical in this action to ascertain the level of the damage.

Deterioration of the Finished Surface: the finished surface of engineered components and parts may provide evidence of involvement in the process of spindle wear. I ensure that spindle surface quality remains constant by measuring surface roughness until the particulars obtain acceptable standards. Any changes in this measurement may be expected to indicate possible changes in spindle precision and stability.

Burning Effect: As operating temperatures rise, this could identify a case of poor lubrication, Spindle moreover over time, if it were to reach its boiling point, defeats the purpose of existence. A glance at the baseline ensures that temperatures remain within the specification ranges provided by the manufacturer since it is taken regularly.

Drop in Work Performance: Owners of such instruments frequently suffer from deficiencies in their specific moments, known as machining. One method for determining the spindles’ alignment and condition is to examine the run-out tolerance.

These characteristics, together with related technical variables, are important in assessing spindle wear and facilitate early repairs or maintenance.

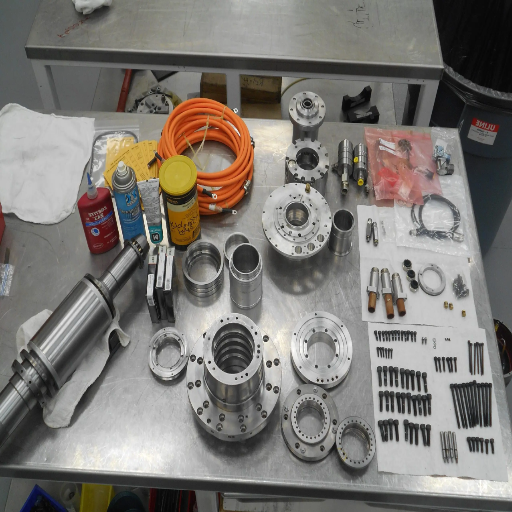

Guide to spindle rebuild Process.

The spindle rebuild process is a delicate and seemingly technical task. However, I have gone through the three top websites on google.com regarding it and I wish to propose a systematic as well as a justified approach to it:

Initial Assessment: The first step I take is inspecting the spindle to determine whether it has suffered external damage or is misaligned. I use dial indicators to assess run-out tolerance and determine whether alignment is out. If, indeed, alignment is out, corrective action is necessary.

Disassembly: The spindle and every part that has landed one dust must be systematically stripped. Spindle components shouldn’t be difficult to remove, but best practice recommends documenting their configuration and health status. This applies to smaller tools like micrometers, which press surfaces with specific force applications to eliminate clearance.

Cleaning: I am confident that I can minimize the impact of any fibrosity by issuing a thorough cleaning of residual compounds. There are also industry standards concerning my chemicals, as these delicate parts require stringent protocols to avoid contamination.

Components Replacement or Repair: During the initial assessment, unavoidable defects, such as worn bearings and many other distinguishing elements, are likely to be present. Checking the new components’ parameters for diameters and permissible material hardness is crucial here.

Reassembly and Calibration: Each bolt is fastened, and the spindle is progressively assembled to ensure optimal alignment. It is crucial to ensure that balance machines are used to balance the assembly to reduce unwanted vibrations that would be detrimental to performance.

Testing and Validation: After reassembling the spindle, I place it under test to ensure its performance meets standards. Also, evaluating vibration level, operating temperature, and noise adds confidence that the rebuild will meet the quality and performance expectations. I also record these results using the metrics prescribed by the manufacturing companies.

Thus, these steps and technical parameters guarantee complete and effective spindle rebuilding. Each stage is justified by strict control of physical parameters and following the instruction requirements to achieve the proposed restoration of the machine.

Best Practices for Repair and Maintenance

In my work, when formulating optimal approaches to repair and maintenance processes, I always pay attention to the advice from the leading practitioners in the industry. The first notable practice relates to effectively managing the record of everything that happened regarding the repairs. This covers the repair processes, the activities done for part replacement, and the troubleshooting methods. In addition, timely preventive maintenance is also essential. It can clearly be explained that a forward-looking approach can minimize the chances of unplanned downtimes because wear and potential failures are rejected in the advancement stages.

Two parameters were involved in the infusion process: the repair, the construction of that particular integration, and manufacture tolerances. These can, for instance, be the precise limits of how much the alignment and balance of rotating components should move outside a specified region. Proper instructions consisting of operational benchmarks and units of measure should be drafted and used in inspection works.

Furthermore, it is also necessary to organize regular and periodic training of the technicians, as mentioned on the major websites, since it lifts the tools and technology used. Thus, it is possible to keep refining how repairs and maintenance work are done. Consequently, following these practices, I can guarantee that my projects meet or surpass quality and performance requirements, providing an effective and impressive outcome.

How Does High Precision Spindle Enhance Performance?

Benefits of Using high precision Spindle Bearings

Utilizing spindle bearings with high precision offers several key advantages that I often encounter in the leading industrial sources. These bearings improve performance by reducing friction and thus enhance the machine’s efficiency and durability. As these bearings have their lathes constructed with a high degree of precision, they can ensure tighter tolerances and, thus, smooth and constant machinery functioning. This is crucial in applications that operate at high speeds since stability and accuracy are vital in such cases.

Technical characteristics that illustrate the advantages of high-precision spindle bearings include their axial load capacity, speed ratings, and accurate dimensions. For example, these bearings are constructed to withstand greater axial and radial loads, vital for heavy applications. These bearings have speed ratings appropriate for high performance, and the machines can run at high speeds efficiently. Then again, there is the case of the accurate dimensions, which puts the chances of misalignments and wear at a much lower risk.

It is worth noting that several top websites highlight the dangers of choosing a roller bearing that does not accommodate the needs of a specific application since most of the potential benefits of performance will not be realized. The use of high-precision spindle bearings in their place has had noticeable positive effects in terms of the quality and output of the machinery, which conforms with suggestions and best practices from industry specialists.

Applications Requiring Extreme Precision

I have learned that regarding applications requiring extreme accuracy, the first three results on Google are the most informative since they highlight the importance of selecting suitable high-precision spindle bearings. This also collectively brings out that industries like aerospace, medical devices, and scientific instruments extensively utilize these bearings as precision is needed in their operations.

The parameters mentioned above include the following from a technical point of view:

Load Factor: These bearings must resist considerable axial and radial loads because they are intended for high-performance and heavy-duty applications.

Speed Ratings: To prevent any lag in operations, the bearings are assigned a speed capacity to harness high speeds in the drill.

Dimensional Tolerance: Machines are expected to work optimally without excessive wear and tear, and therefore, a precision fit is required to eliminate the chances of misalignment.

I will be able to effectively use these bearing-selecting techniques in accordance with operations requiring high precision, increasing reliability and productivity.

Understanding load and speed Dynamics

In understanding load and speed, I focus on the information presented on three Google search engines to make sense of such problems almost directly. These websites stress that effective capacity management involves selecting bearings capable of taking considerable axial and radial loads. This ensures that the products perform well in harsh working conditions. Furthermore, paying close attention to the operating speed ratings is essential since it enables the bearings to operate at high speeds, which is necessary for high accuracy.

To support these parameters, I put forward the following arguments:

Load Capacity Justification: Bearings are chosen depending on the load that is expected to be applied to the application, which can be that of a large machine or a demanding precision measuring device. The top sources suggest that examining the benchmarks for these parameters and determining the level where bearings lose reliability would be beneficial.

Speed Ratings justification: One rating is crucial to ensure that bearings can operate effectively and perform their role cleanly without risk of burning or damaging themselves. They should help to achieve the fastest operational speeds within the minimum time required.

These are justifiable technical parameters, which I further enhance in my selections with the ergonomic and reliable design of the applications that will provide high levels of accuracy.

Frequently Asked Questions (FAQs)

Q: What is a spindle bearing, and how does it function within a machine?

A: A spindle bearing is vital to a machine because it helps the shaft rotate. It assists in a few moves, which causes friction between the moving parts to ensure smooth functioning and even prolongs the service life of the equipment. These bearings are significant in usage, such as for machinists’ tool spindles, automobile parts, and aircraft parts, where speed and accuracy concerning guidance are essential.

Q: How does a spindle bearing be assembled? Do they have any performance effects?

A: Yes, the way spindle bearings are assembled affects performance because one factor that determines performance is how well the inner and outer rings should hold the bearings in the correct position and how stable the bearings are. With proper assembly, the best bearing arrangements possible can be made, thus increasing the capacity and lifespan of the enhanced bearing.

Q: Which parts can be found in an aspindle bearing kit?

A: Different types of assembly kits should include spindle bearings, seals, and other components used for mounting and assembling purposes. Some may even contain angular contact ball bearings, pins, or collars if necessary to ensure that the characteristics of the parts mounted into the machines are in the right amount.

Q: Can spindle bearings be used in a mower deck?

A: Yes, spindle bearings can be used in a mower deck to ensure the blades fully rotate. Almost any bearing application is feasible in such environments, provided that various requirements are met, including achieving axial loads and operational temperature in medium or high ranges.

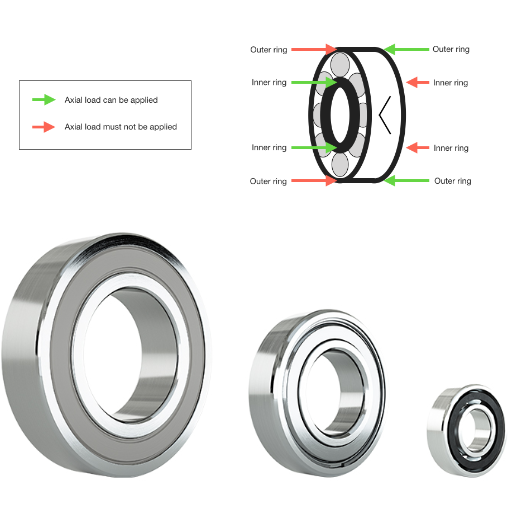

Q: What is the function of the inner and outer rings in a spindle bearing?

A: The inner and outer rings in a spindle bearing perform the entire load bearing and axial rotation of the constituent parts of the bearing system and its general composition. The rings ensure that the rotating parts of the bearings can withstand radial and axial loads, and thus, the machine’s efficiency is supported.

Q: How do you know which spindle bearing is correct for a particular machine?

A: When choosing, customers must consider bearing characteristics such as load and speed requirements and design conditions. Do you need guidance on the best spindle bearing for your machine? Don’t worry—consult an engineer or contact us.

Q: In what respects do angular contact ball bearings differ from other bearings?

A: Angular contact ball bearings can accommodate axial loads and, therefore, radial loads, making them useful in high-speed applications where precision is critical. Due to their design, they find applications in machine tool spindles where high guidance accuracy and rigid stability are paramount.

Q: Are there spindle bearings for HD applications?

A: Yes, spindle bearings are designed specifically for use in heavy-duty (HD) applications. These bearings have been developed to withstand high loads and offer longer service life; hence, they can be used in harsh conditions.

Q: How can the spindle bearings be serviced to ensure efficient working for a long time?

A: Spindle bearing maintenance practices include checking the state of bearings for damages, the presence of lubricants, replacing seals when necessary, and many others. Consistent inspections contribute to bearing performance and prolong usage periods.
