Ball bearings are a fundamental yet often overlooked component in the world of mechanical engineering, playing a critical role in the performance and reliability of modern vehicles. At their core, ball bearings are designed to reduce friction, enabling the smooth rotation of wheels, axles, and various other components essential to a car’s operation. But how exactly do they work, and why are they so important? This article aims to uncover the science behind ball bearings, explaining their function, design, and the materials that make them capable of withstanding immense stress and high-speed operation. Whether you’re a car enthusiast or simply curious about the mechanics behind your daily commute, this deep dive will provide a comprehensive understanding of this vital automotive technology.
Fractures in bearing systems with one moving part are alarming because the imbalance created by the heavy moving part can make the gears off balance. This problem is solved by the use of “Ball bearings”. Using ball bearings in a vehicle minimizes friction when the wheel rotates which ensures minimal loss of energy. Because spherical elements, usually made out of steel or ceramic, act as balls in the ball bearings systems, it decreases the contact area between the wheel hub and axle which reduces friction. Perfect ball bearings, with no deformities, are capable of allowing the wheel to rotate freely which decreases the energy cost, resulting in economical use of fuel. Some factors that are associated with Ball Bearings are:
These components of ball bearings help provide a balance of extremely light friction while being able to support heavy loads without ever sacrificing the performance or durability of the vehicle.
Considering how the vehicle’s weight is supported by the ball bearings, factors like the load ratings and properties of the bearing material need to be analyzed. Ball bearings can take care of both radial and axial loads.
When in a dynamic state, ball bearings support constant weight by distributing the forces evenly across the rolling elements thus minimizing deformation and wear. This engineering minutia provides precise optimal performance irrespective of the conditions.
Front-wheel bearing assemblies are generally housed in either the rear axle shaft or rear hub assembly. In general, they are made to enable the rotation of the rear wheels while providing adequate support during turns. These are usually made as roller or double-row spherical bearings because of their increased radial load capacity that is needed to support the distributed load at the rear axle. Rear wheel bearings always have a load capacity in the range of 20 kN to 25 k and a maximum sustained speed of 8000 RMP due to the needs of most common driving with heavy loads.

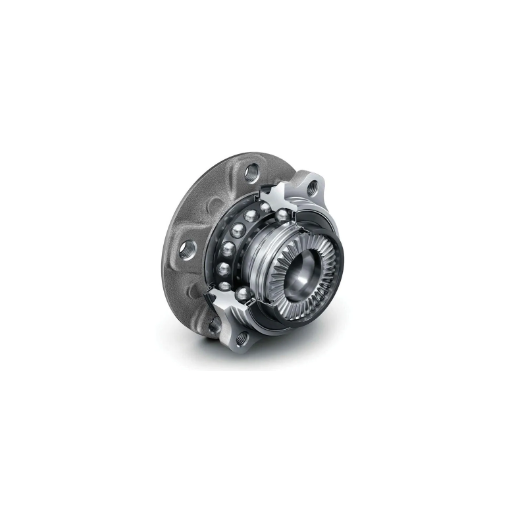

On the other hand, front wheel bearing assemblies are typically placed in the hub assembly which is directly bolted to the steering knuckle. These are outriggers that, support the front axle shaft to rotate freely while driving. Common front wheel bearing parameters include angular contact and double-row ball bearings which by load range are rated between kN. With a front wheel torque load capacity of 15 – 20 kN, it is common for the bearings to be able to sustain speeds up to ten thousand revolutions per minute.
Serving a major purpose for the driver throughout these automotive parts, both front and rear assemblies have high-end seals to keep any contamination from getting in finger and lubrication oil so that they can perform their functions throughout their designed service life.
Precision-grade ball bearings are essential for electric motors, which have electric components that rotate at very high speeds. Electric motors along with other components such as turbines, gearboxes, and turbine shafts move a lot so they rely on ball bearings to minimize friction.
Bearings are crucial when it comes to the transmission of torque in gearboxes. They have an optimized load-bearing capacity of up to 200 Kilonewtons which is necessary for a proper torque transmission in variants of radial and axial loads.
High-speed ball bearings are attached to turbine shafts to enable better temperature resistance and rotational dynamics. Ball bearings are also fitted with advanced lubrication systems, like oil-air mist lubrication, that allow them to perform excellently in high temperatures, approximately 150 degrees Celsius, for a long time without compromising performance.
An unusual sound from a wheel bearing can be classified as wear or failure and the symptoms can be diagnosed through particular characteristics like vibrations, where a constant grind is evidence of bearing lubrication degradation. While steering the car, more vibrations can be felt, especially during acceleration or cornering, correlating with the metal parts stuck rotating giving imbalance.
The state of the bearings helps evaluate what is defective and provides reasoning as to whether fixing or replacing is more efficient.
Problems related to steering and handling portray concerns of a mechanical nature within the system which enables the functioning of the vehicle and could greatly influence the performance and safety of the vehicle. The most important indicators are the following:
In terms of tackling these matters, I would seek to diagnose these issues in the order of visual inspection followed by specific technical measurements to capture the operation of the system in question.
Some important elements play a role in the lifespan of car bearings, which I will explain further.
A standard set of bearings can last anywhere between 85,000 to 100,000 miles under ideal circumstances. This figure can increase or decrease significantly depending on the factors mentioned above. Regular servicing and paying attention to the technical details will go a long way in helping maintain their functionality over time.
Based on my experience, the expected mileage for wheel bearings can be up to 100,000 miles but it lies between 85,000 to 100,000 under normal driving conditions. Nonetheless, several factors can influence this range. The most important element is maintenance – following policy during installation and paying heed to environmental factors also play a major role.
It is possible to extend the dependable operational lifecycle of wheel bearings beyond the allowable mileage range by implementing maintenance measures and addressing these factors.
Some signals propose the need to repair your wheel bearing. They are described below:
By identifying these symptoms early and understanding their technical basis, I can ensure timely replacement and maintain optimal vehicle performance.
Maintaining a timely schedule facilitates the preservation of safety and performance efficiency as well as the longevity of the vehicle’s parts. If any signs of wear or malfunction show up, the problem should be addressed upfront to prevent consequential malfunctioning in areas like the hub assembly, suspension system, tires, etc. For instance, letting a bearing with excessive play (greater than 0.005 inches) be used is bound to create worse issues like misalignment or excessive tire wear that lowers vehicle maneuverability. Also, taking, with an infrared thermometer, the operating temperatures are critical as well. If the range goes higher than 150°F to 200°F, then inspecting and replacing is a prerequisite to avoid total bearing failure.
Regular maintenance of these operational factors facilitates the vehicle’s functioning safely and reliably.
A: The most common types of ball bearings used in cars are ball bearings and tapered roller bearings. Ball bearings consist of small metal balls that rotate between inner and outer rings, while tapered roller bearings use conical rollers. Both types are designed to handle different loads and are used in various parts of a car, including the wheel assembly, transmission, and steering system.
A: Bearings are used in numerous parts of a car. They are primarily found in the wheel hub assemblies, allowing the wheels to spin smoothly. Additionally, bearings are used in the transmission, engine, alternator, air conditioning compressor, and steering system. Each bearing plays a crucial role in reducing friction and ensuring proper movement of various car components.
A: On average, car bearings can last between 85,000 to 100,000 miles, depending on driving conditions and maintenance. However, some high-quality bearings can last the entire lifetime of a vehicle. Factors such as road conditions, driving habits, and proper lubrication can affect bearing wear. Regular inspections during routine maintenance can help identify potential issues before they become serious.
A: Signs of a damaged bearing include unusual noises (such as grinding, humming, or rumbling), vibrations in the steering wheel or floorboard, and uneven tire wear. You may also notice your car pulling to one side while driving or a loose or wobbly feeling in the wheel. If you experience any of these symptoms, it’s important to have your vehicle inspected by a professional mechanic as soon as possible.
A: Driving with a failing wheel bearing can be dangerous and lead to more severe problems. It can cause excessive wear on tires, and damage to the wheel hub, CV joint, and even the steering system. In extreme cases, a completely failed bearing can cause the wheel to seize or separate from the vehicle, potentially leading to a serious accident. It’s crucial to address bearing issues promptly to ensure safety and prevent more costly repairs.
A: There’s no set schedule for replacing bearings in a car, as their lifespan can vary greatly depending on factors such as vehicle make, model, and driving conditions. However, it’s recommended to have your bearings inspected during regular maintenance checks, typically every 30,000 to 50,000 miles. If you notice any signs of bearing wear or damage, it’s best to have them replaced immediately to prevent further issues.
A: Replacing a wheel bearing typically involves removing the wheel, brake caliper, and rotor to access the wheel hub assembly. The old bearing is then removed from the hub, and a new one is carefully installed. This process requires specialized tools and knowledge, as improper installation can lead to premature failure. Due to the complexity of the job, it’s usually best to have wheel bearings replaced by a professional mechanic to ensure proper fitment and function.
A: Yes, there are different quality levels of bearings used in cars. Original Equipment Manufacturer (OEM) bearings are typically of high quality and designed specifically for your vehicle. Aftermarket bearings can vary in quality, from budget options to premium alternatives. It’s important to choose the right bearing for your car, considering factors such as driving conditions and vehicle specifications. Using high-quality bearings can often result in better performance and longevity.
