Unlocking the Power of Slewing Bearings: Applications and Innovations

Slewing bearings are critical components in modern engineering, providing the means for rotational motion and load support across a variety of applications. Known for their versatility, these bearings are used in industries such as construction, renewable energy, robotics, and transportation, where precision, durability, and reliability are non-negotiable requirements. They enable machines and systems to operate with smooth rotational movement, even under extreme loads and environmental conditions. This article dives into the fundamental purpose of slewing bearings, explores their expansive range of applications, and highlights the latest innovations that are shaping the industry. Whether you are an engineering professional or simply intrigued by cutting-edge mechanical design, this discussion will equip you with a comprehensive understanding of how slewing bearings are unlocking new possibilities in technology and infrastructure.

Where are slewing bearings commonly used?

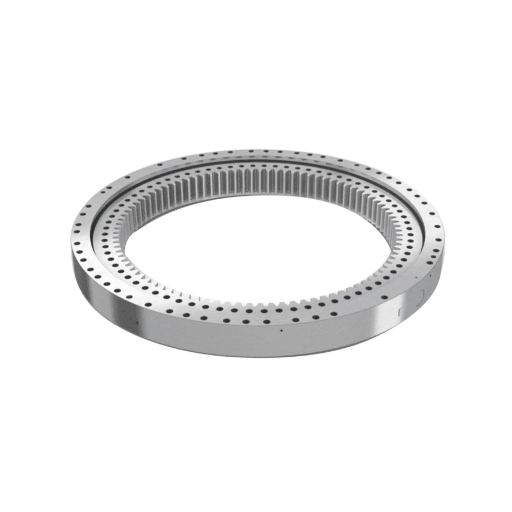

Applications in cranes and excavators

In cranes and excavators, slewing bearings are used most often for maintenance purposes since these devices require a rotational degree of freedom for their slewing movements. Slewing bearings have a specific construction for heavy lifting and digging bearing radial, axial, and moment loads. Cranes use single-row and double-row ball or roller slewing bearings with inner gear because those bearings have a combination of high precision and high load capacity that is very important during construction work both indoors and outdoors.

Meanwhile, various designs of excavators may have either three-row roller slewing or cross-roller bearings, depending on the design and load-sustaining capacity. For instance, large excavators are usually equipped with three-row roller bearings, which are preferred for their ability to sustain high axial and moment loads.

• Outer Diameter: ranges from 500 mm to 5000 mm depending on the machine’s type and use.
• Load Capacity: for axial loads can reach up to 300 tons with moment capacities being dependent of design and gear proportions.
• Material: Under such high demands as these, high strength alloy steels, e.g., 42CrMo4, are commonly used for their exceptional durability under severe stresses.

Such bearings are required in construction, mining, and logistics industries as they feature high performance, require low maintenance, and greatly improve overall mechanical efficiency.Their adaptability and durability guarantees that they operate flawlessly under the extreme working conditions.

Slewing bearings in wind turbines and renewable energy

Because of the complex design natures of a wind turbine, some parts, such as the yaw and blade pitch system, as well as the main rotor shaft, generate combined loads due to the high velocity of wind and motion of the blades. These parts are equipped with powerful slewing bearings that achieve deep groove shapes to capture the favorable imbalance ranges.

• Blade pitch system: When utilizing other bearing types which include three row roller bearings and cross roller bearings with great operational ranges rotational speed and torques, it is critical to incorporate control over the angle of blades with respect to the wind’s movement in order to maximize the wind’s energy value. When combined this allows fulfilling wide operational scope and great effiencency of the entire wind turbine system.
• Yaw system: Single-row, four-point contact ball slewing bearings accomplish the yaw reflex of a horizontal face with great outcome at lower energy performance reliability. Using high-moment loads, the turbine nacelle receives direct horizontal torque, causing it to yaw in conjunction with the wind direction. To obtain great efficiency in the constant exposure to this demand, bearing must come with great reliability features against wear.
• Main rotor shaft: Shaft mounted double row slewing bearings receive combined loads in the same time achieving support to wide horizontal blades torsional effectiveness along with great depth available to execute in performed exercises. The scope capture gravity with radiant torque when the blades are not in use but during use supports positive wind pressure along side huge gravitational forces.

The latest developments in slewing bearings technology enables enhanced operational efficiency, durability and performance of renewable energy systems, thereby meeting the sophisticated requirements of contemporary wind energy generation.

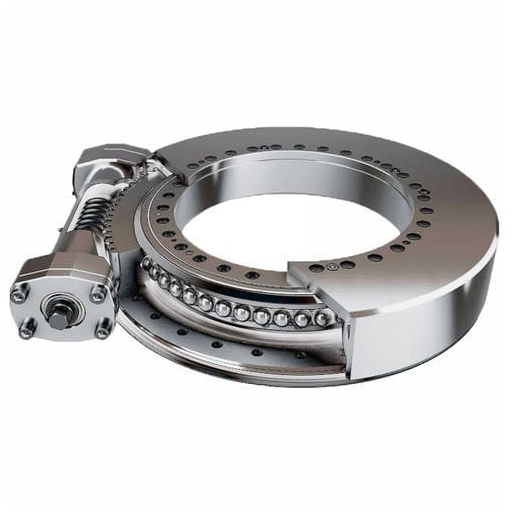

Use in robotics and precision machinery

Like all other components in robotics and precision machinery, slewing bearings have an equally vital function: high load bearing, compact-structured, and combined load handling with exceptional measurement accuracy. Elbow joints, rotary joints, and indexing tables that need highend positioning, repeatability, and rotational accuracy make use of these bearings.

• Bearing Inclinations: In robotics, slewing bearings will often encounter combied radial, axial and moment loads, which support stability while executing elaborate movements. For instance, standard bearings might support axial load figures of around 50 kN and a radial load figure of 30 kN, both depending on grade and composition of the bearing.
• Rotational Precision: Slewing rotary bearings ultra-verstehen-grade quality that’s manufactured with an unreasonable tolerance of ±0.01mm, implying that consistent and exact positioning accuracy is achieved with ease during movements.
• Material Composition: In construction manufacture most of the bearing, use of high grade wear resistant steels or alloyed material is opted in order to withstand high cycles in applications.
• Lubrication and Friction: Loss of energy and lifespan is minimized in highly optimized conditions, with working hours beyond 20000 under perfect conditions, thanks to new grease or oil deep designs with minimum energy loss.
• Compact Design: As a preferred feature in robotics, these bearings have low bodies, which helps with the integration of systems with higher compactness.

The attributes of slewing bearings enables them to improve the accuracy, dependability, and efficiency of robotic systems and other sophisticated machines. They are critical components of modern technological systems due to their design and functionality.

What types of slewing bearings are available?

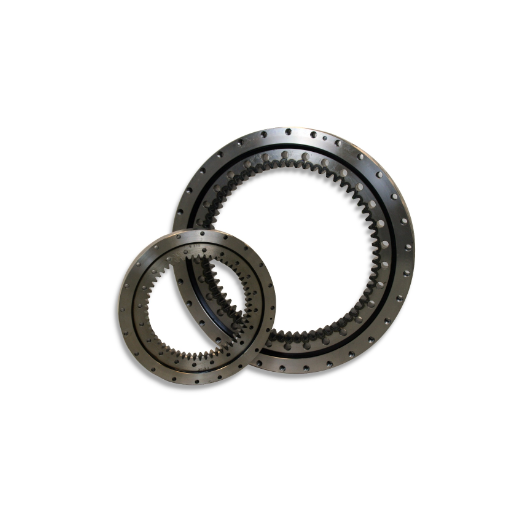

Four-point contact ball slewing bearings

A four-point ball slewing bearing allows efficient handling of axial, radial, and moment loads at the same time due to its unique construction. This bearing has an integrated inner and outer ring raceway with a single row of rolling elements in the shape of steel balls. The marked uniqueness of these bearings is that each of them makes four contact points with the raceways, hence, they are capable of sustaining a considerable amount of load with better stability.

• Load Capacity: This type of bearing is best suited for heavy axial and radial loads, in addition to tilting moments. Depending on the design, different sized bearings have varying load capacities; for instance, the diameter can reach up to 300mm-4000 mm and more.
• Clearance and Preload: Generally, bearings of this type are built with either controlled clearance or a preloaded condition that allows for greater accuracy and rigidity.
• Materials: 50Mn or 42CrMo steel is used in the production of the rings, which offer substantial strength and solid resistance to both abrasion and wear. Hardened steel balls with high durability form the rolling elements of the bearing.
• Lubrication: Service life is enhanced by the use of grease lubrication because it decreases friction. However, this type of lubrication requires regular maintenance.

These bearings are frequently used in rotary applications such as cranes, excavators, industrial robots, and wind turbines due to their compact design and effective load-handling capabilities.

Eight-point contact ball slewing bearings

Uses that involve the combination of axial, radial, and moment loads are best served by eight-point contact ball slewing highly specialized bearings. These bearings have one row of balls that have the potential to contact the raceway at 8 different points at the same time, exhibiting very high stability and rigidity under varying loads.

• Load Capacity: Because of the increase contact load it is very useful in minimizing stress concentration on the raceways which allows eight- point bearings to accommodate high dynamic and static axial loads without issue.
• Friction Reduction: The rolling resistance is greatly diminished due to the ball and raceway design which results in smooth rotation and energy efficiency.
• Rotational Precision: It is very beneficial in applications that require precision movement like radar systems and precision machinery due their high accuracy of rotation.
• Materials and Durability: The raceways and the balls being made from hardened steel or alloy steel makes them excel in resisting wear and increases their operational life.
• Lubrication Requirements: In order to minimize the chance of contamination and efficient functioning over a long period, the recommended standard is grease lubrication.
• Outer Diameter Range: From 300mm to over 5,000 mm is the most common dimensions range, this is of course dependent on application requirements.

Some industries that routinely use these bearings are aerospace, heavy-duty construction machinery, and high-accuracy automation. They are a good solution for difficult engineering problems since they offer stable and effective working under high loads.

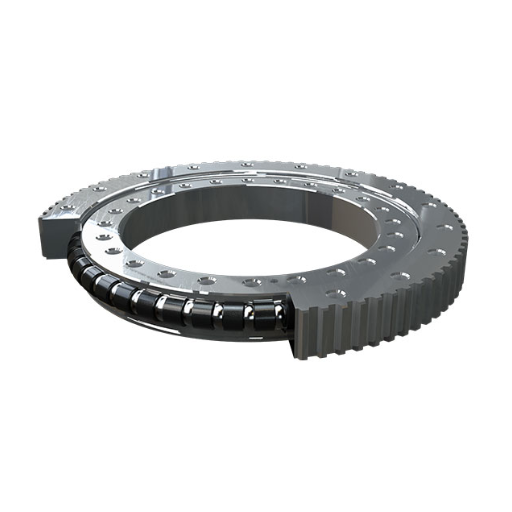

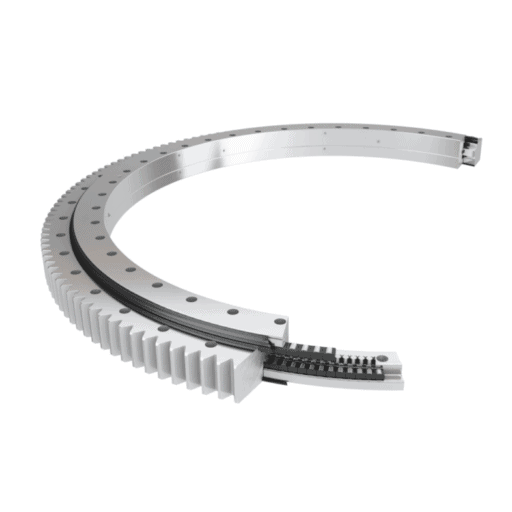

Crossed cylindrical roller slewing bearings

Crossed cylindrical roller slewing bearings are built to support extreme capacities because of their ability to simultaneously manage axial, radial, and tilting moment loads. Slewing bearings consist of a single raceway groove in which efficiently load distributing cylindrical rollers are arranged perpendicularly, producing great stability under extreme conditions.

• Outer Diameter Range: Standard sizes range anywhere from 300 mm depending on the application, all the way to over 5,000mm.
• Load Capacity: Optimal for supporting high axial and radial loads due to their unique structural arrangement.
• Rotation Precision: Often meets strict industrial tolerances because of the enhanced accuracy their crossed roller design provides.
• Lubrication Type: Mainly supports grease lubrication, which provides long operational use with minimized maintenance.
• Material Composition: The use of high-grade bearing steel such as 50Mn or 42CrMo, ensures long-lasting durability and resilience in harsh environments.

This type of bearing is widely used across virtually every industry from aerospace and robotics to construction machinery and precision automation. Their straightforward yet effective designs allow them to serve complex engineering challenges that involve high operational loads, limited mounting space, and precise rotational requirements.

How do you choose the right slewing bearing for your application?

Factors to consider in slewing bearing selection

In the first instance, my concern rests on the loading conditions, which ranges from axial, radial, and moment loads. This means estimating the maximum loads the bearing is to endure, and making sure that the bearing is capable of enduring the said loads. As an example, cross-roller slewing bearings are used when there is high precision, and moderate to heavier radial loads are to be handled. In the same way, four-point contact ball slewing bearings are used when moderate radial and axial loads are to be taken.

Both the direction of temperature, the amount and type of contaminant, as well as the space available for mounting goes a long way in forming the choice of materials, seals, and lubrication. Also, it may be necessary to use corrosion-resistant materials, or coatings for outdoor and harsh environments.

In robotics and other high-precision work, such bearings are required to have tighter tolerances and lesser backlash or shimmy. Other than that, I look at whether the application requires single, double, or triple row to satisfy the structural and durability requirements for the application. Now, with all the factors considered, I can arrive at the solution that provides the required application along with long-lasting longevity and efficiency.

Assessing load requirements and rotational needs

Radial load is defined as the force acting perpendicular to the axis of rotation, while axial load is the force that acts parallel to the axis.

• Load Ratings (Static and Dynamic): Identify the static load capacity which caters for maximum stationary loads and dynamic load capacity which caters for loads during motion. These factors guarantee that for operational stress, the bearing would not undergo deformation or failure.
• Rotational Speed (RPM): Establish the maximum rotational speed at which the bearing must operate, beyond which the bearing would overheat or undergo undue wear. This value should be within the boundary values established by the manufacturer for the component.
• Service Life (L10): Determine the L10 life expectancy so that the bearing would withstand deterioration for the intended conversant loads and speeds.
• Lubrication Requirements: Is the application going to be serviced with grease or oil lubrication depending on the operating temperature, operating speed, and load? Lubrication has a direct impact on the efficiency, longevity, and ultimately the performance of the bearing.
• Bearing Alignment: Allow for shaft deflection or misalignment since failure to do so would, at an appropriate extent, lower operational efficiencies and could lead to unwanted premature failure.

Addressing these factors about the specific application ensures optimal bearing selection, enhancing both performance and reliability.

How do slewing bearings enhance performance in various industries?

Improving efficiency in construction and mining equipment

Slewing bearings integrated into construction and mining equipment increase efficiency. These components increase the smooth rotation of heavy loads, which improves the load-handling capabilities for cranes, excavators, and drill rigs. The integration of high-precision slewing bearings increases:

• Load Capacity: Ensuring that slewing bearings enable effective support of both axial and radial load allows the machinery to function with minimal stress and increased stability during heavy operations.
• Lubrication Systems: Fulfilling lubrication requirements decreases friction and wearing down of the rolling components and raceways due to inadequate lubrication, thus prolonging lifespan and maintaining performance.
• Material and Surface Treatments: Advanced materials and surface coatings increase durability in extreme environments such as dust laden and debris aggressive mining operations.
• Precision in Alignment: Deviation from optimal alignment causes excessive wear along with inefficient functioning of the rotating mechanisms, which severely affects the overall effectiveness and durability.

With these factors, slewing bearings are structurally optimized to enable dependable operational performance, reduced maintenance cycles, and reduced operational costs in equipment-intensive industries.

Enabling precise movements in telescopes and astronomical instruments

Slewing bearings facilitate the precise and stable movements of telescopes and astronomical instruments. The sensitive and delicate nature of celestial tracking makes these operations highly accuracy demanding. Thus, slewing bearings are designed with the following technical specifications:

• Increased Rotational Precision: Minimal angular displacement is imperative while aligning telescopes, making precision micrometer level runout bearings essential for fulfilling this requirement.
• Friction Control: Controlled and smooth motion enhances the ability to track celestial objects without introducing unnecessary vibrations, which is achieved using advanced lubrication systems along with precision engineered surfaces.
• Material Design: Telescope environments experience temperature fluctuations, making the need for materials with low thermal expansion, like heat treated steel alloys, necessary to maintain structural integrity and alignment.
• Load Endurance: Slewing bearings are capable of withstanding large axial and radial loads, which aids in maintaining the stability of telescope structures during heavy dynamic forces created while making adjustments.

The contributions of these particular engineering improvements directly result in greater slewing bearing accuracy, less frequent machinery idle time, longer life spans of tools, all of which set the standard for high precision telescope slewing bearings with sophisticated astronomical engineering requirements.

Enhancing productivity in industrial machinery

Improvements in industrial productivity demand that reliability, efficiency, and accuracy in mechanical design and functioning are markedly enhanced. Improving the most important parts, such as bearings, gears, and hydraulic systems, is crucial for achieving the desired results. Parts optimization aims to enhance energy efficiency and minimize unnecessary downtime.

• Load Capacity: Bearing’s ability to sustain high axial, radial, and moment loads is vital for the application. Allowable ratings are dependent on the size and application of use and vary of about 30 kN to 300 kN for industrial slewing bearings.
• Friction Coefficient: Designs with lower the friction values result in lower energy usage and lesser damage over the course of time. Coefficients for the high performant bearing are over 0.001 up to 0.03.
• Material Properties: The Use of heat-treated steels with a hardness of 58 to 62 HRC will serve resistance to abrasive wear and deformation under load, making these materialsan  optimum choice.
• Lubrication: Adequate provision of sealed grease lubrication or automatic oil lubrication systems aims at enhancing lubrication while reducing maintenance downtime and averting interruptions to operation.
• Precision Tolerances: Tight creating tolerances of ±0.01 mm are usually required in dynamic and highspeed scenarios to prevent misalignment and to ensure smooth operation.

Such arrangements of machinery configurations with reference to these factors, with constant monitoring of performance data, guarantees not only improved productivity but also prolongs equipment life and decreases operational expenses.

What maintenance is required for slewing bearings?

Best practices for slewing bearing maintenance

Establishing a routine workflow for slewing bearing inspection and servicing is essential for ensuring the proper maintenance of these devices. A well-scheduled upkeep routine fails to guarantee advanced functionality and staves off fabricating failures. The best practices recommended include:

• Lubrication Check and Addiction: Regularly assess if lubrication levels and quality meets requirements. Always use lubricants that matched the specifications, which is primarily greases based lubricated lithium, and apply in accordance to the prevailing operating conditions. Check if the lubricant is successfully spreading over the raceway and confirm if excess grease is oozing out near the sealing mechanism.
• Preload Developable Bolts Check: On occasion check the loosening constituent of moving parts with contouring torque. Midpoint attendance moves can cause bolt loosening, which can move the accompanying part out of position or can cause bending within an assembly support structure. Check the bolt for compliance to the tightening torque as provided by the manufacturer, which is usually around 70-80% of the material’s yield strength.
• Rate of Raceway Wear and Damage Assessment: Determine the bearing clearance and assess for wear or damage on the raceways. If wear becomes unprocessible, mechanical vibration or noise would arise from the internal parts of the bearing body and would subsequently lead to a shortened lifespan of the bearing. Utilize tools such as feeler gauges or a dial indicator to analyze if any movement beyond designated tolerable axial or radial displacement exists as prescribed in the original design.
• Seal Inspection: Check for seal degradation and their capability to keep contaminants such as dirt, water, or debris away from the bearing. If there are notable signs of wear or degradation, seal replacement is recommended to maintain bearing integrity.
• Corrosion Prevention: For outdoor or harsh environments, application of approved anti-corrosion coatings to exposed bearing surfaces is essential for preventing rust and pitting from forming.
• Vibration Monitoring and Noise Analysis: During operation, keep track of vibration levels as this aids in detecting potential problems such as misalignment or internal wear. Most problems that lead to excessive mechanical strain are often times masked under excessive vibration.

Operators are able to optimize performance under harsh conditions by following the maintenance procedures specific to the individual slewing bearings. Remember to follow all OEM instructions as these support better performance and reduced wear and tear.

Extending the lifespan of your slewing bearings

Lubricant: Important lubricant non-agreement lubricates must be provided. Apply grease of high quality with an NLGI (National Lubricating Grease Institute) level that is appropriate for the context of operation and the loaded condition. For example, in heavy-duty applications, NLGI grades 2 and 3 are usually utilized. Follow normal re-lubrication periods stated in the manual of the OEM, usually within 50-250 operational hours, depending on the size and application of the bearing.

• Monitoring Load: The dynamic and static load ratings (e.g., axial load, radial load, and tilting moments) of the bearings must never be exceeded.Overloading is one of major causes for main failure in joints and bearings.
• Environmental Protection: Precautions must be actively put in place to stop contaminants. Seals rated IP65 or higher can be applied in order to block dust and moisture. Use bearings regularly treated in baths with anti corrosion coating like zinc plating or surface nitriding when working in corrosive environments.
• Detection and Maintenance Tools: Implement condition monitoring methods using accelerometers to monitor vibration and deploy sensors to diagnose faults at an early stage. Such tools analyze data for misalignment, raceway scratches, or fatigue of rolling elements.
• Preload and Installation Accuracy: When mounting new bearings, the mounting bolts have to be accurately torqued according to the OEM’s instructions, which is normally accomplished with calibrated torque wrenches. If there are any preload settings, they should be adjusted in such a way that there is minimum stress while providing sufficient contact between the rolling elements and raceways.

Steering bearings’ reliability and durability can be effectively enhanced when these processes are integrated with strict compliance to the OEM’s recommendations and the use of sophisticated monitoring systems.

Frequently Asked Questions (FAQs)

Q: What are slewing bearings, and how do they work?

A: Slewing bearings, also known as slewing rings, are large rotational bearings that enable smooth rotation between two structures. They consist of inner and outer rings with raceways for rolling elements (typically balls or rollers). Slewing bearings work by allowing one ring to rotate relative to the other, supporting both axial and radial loads while facilitating precise rotational movement in various applications.

Q: What are the main applications of slewing bearings?

A: Slewing bearings are used in a wide range of applications, including 1. Construction equipment (cranes, excavators) 2. Wind turbines 3. Industrial machinery 4. Medical equipment (CT scanners) 5. Solar tracking systems 6. Aerospace (radar systems, satellite dishes) 7. Marine equipment (ship-to-shore cranes) 8. Mining equipment 9. Robotics and automation These bearings play a key role in enabling rotational movement and supporting heavy loads in various industries.

Q: What is a four-point contact ball bearing, and how does it differ from other slewing bearings?

A: A four-point contact ball bearing is a type of slewing bearing with a unique design that allows it to handle combined loads (axial, radial, and moment loads) more effectively than traditional designs. The four-point contact refers to the four points where each ball touches the raceways of the inner and outer rings. This design provides greater stability and load-carrying capacity compared to conventional two-point contact bearings, making it ideal for applications requiring high precision and reliability.

Q: How are slewing bearings manufactured?

A: Bearing manufacturing for slewing rings involves several steps: 1. Material selection (usually high-grade steel) 2. Forging or casting of rings 3. Machining of raceways and mounting surfaces 4. Heat treatment for improved hardness and durability 5. Grinding and honing of raceways for precision 6. Assembly of rolling elements and seals

Q: What factors should be considered when selecting the right slewing bearing?

A: When selecting a slewing bearing, consider the following factors: 1. Load requirements (axial, radial, and moment loads) 2. Operating speed and frequency 3. Environmental conditions (temperature, contamination) 4. Space constraints and mounting requirements 5. Precision and stiffness requirements 6. Maintenance and lubrication needs

Q: What are the advantages of using a slewing bearing with a crossed cylindrical roller design?

A: A slewing bearing with a crossed cylindrical roller design offers several advantages: 1. Higher load capacity compared to ball bearings 2. Better resistance to shock loads 3. Increased stiffness and reduced deflection 4. Improved wear resistance and longer service life 5. Ability to handle combined loads effectively 6. Suitable for applications with high moment loads 7. Lower friction compared to other roller bearing designs This type of bearing is often used in heavy-duty applications such as construction equipment and wind turbines.
