Tapered Roller Bearings - TS (Tapered Single)

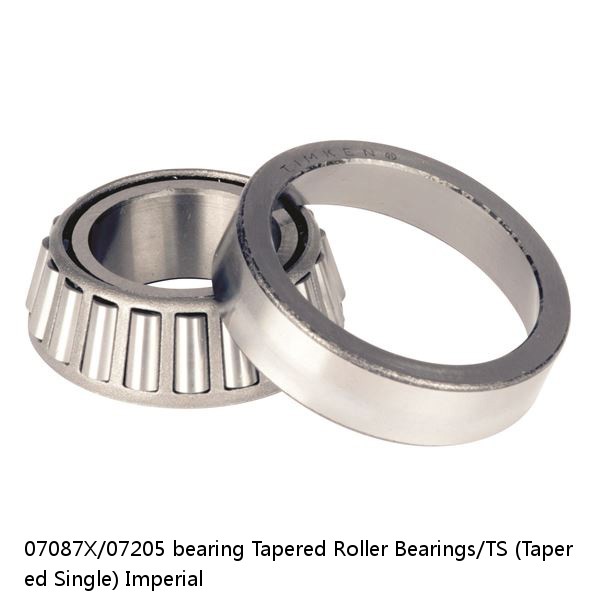

07087X/07205 Bearing | Tapered Roller Bearings/TS (Tapered Single) Imperial

07087X/07205 interchange Timken 07087X/07205
07087X/07205 cross reference Timken 07087X/07205
07087X/07205 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	07087X/07205
d:	1.49
D:	15.011 mm0.5910 in
B:	07000
r(min):	2.03 mm0.08 in
r1(min):	1.520 mm0.06 in
Width:	1.45
Size:	7.07
Series：	7.6
r - Cup Backface "To Clear" Radius²：	0.4
Design Units：	Imperial
Db - Cup Backface Backing Diameter：	44.45 mm1.75 in
da - Cone Frontface Backing Diameter：	28.96 mm1.14 in

Series	07000
Cone Part Number	07087X
Cup Part Number	07205
Design Units	Imperial
Bearing Weight	0.20 Kg0.3 lb
Cage Type	Stamped Steel
d - Bore	22.225 mm0.8750 in
D - Cup Outer Diameter	51.999 mm2.0472 in
B - Cone Width	14.260 mm0.5614 in
C - Cup Width	12.700 mm0.5000 in
T - Bearing Width	15.011 mm0.5910 in
R - Cone Backface "To Clear" Radius¹	1.520 mm0.06 in
r - Cup Backface "To Clear" Radius²	2.03 mm0.08 in
da - Cone Frontface Backing Diameter	26.92 mm1.06 in
db - Cone Backface Backing Diameter	28.96 mm1.14 in
Da - Cup Frontface Backing Diameter	48.51 mm1.91 in
Db - Cup Backface Backing Diameter	44.45 mm1.75 in
Ab - Cage-Cone Frontface Clearance	2 mm0.08 in
Aa - Cage-Cone Backface Clearance	0 mm0 in
a - Effective Center Location³	-2.8 mm-0.11 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	1700 lbf7550 N
C1 - Dynamic Radial Rating (1 million revolutions)⁵	6540 lbf29100 N
C0 - Static Radial Rating	6650 lbf29600 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	1170 lbf5190 N
K - Factor⁷	1.45
e - ISO Factor⁸	0.4
Y - ISO Factor⁹	1.49
G1 - Heat Generation Factor (Roller-Raceway)	7.6
G2 - Heat Generation Factor (Rib-Roller End)	7.07
Cg - Geometry Factor¹⁰	0.0509

No.	Series	r - Cup Backface "To Clear" Radius²	Design Units	Db - Cup Backface Backing Diameter	da - Cone Frontface Backing Diameter	D - Cup Outer Diameter
23048A2X	240	3.0	33.50	2200	1600	360
FIR-10011540-1	100	FIR-10011540-1	0.790	115	-	40
SALA 45 ESX-2LS	200.000	190.000	104.000	45.000	28.000	32.000
24164EJW33W45A	1.73	2.63	1.77	24164CJW33W45A	410	390
6924ZZ	120	1.1	3800	6924ZZ	165	2.50
7218BW	Standard	90	2.0	2.0	7218BW	3400
RNA4926	1.50	RNA4926	2.2100	2700	1800	180
7317DF FY	85	3.0	7317DF FY	4400	3500	180
688	8.0	0.20	688	42000	16	0.020
7026C	130	2.00	2.0	7026C	3220	38.6
