Type E Tapered Roller Bearing Housed Units

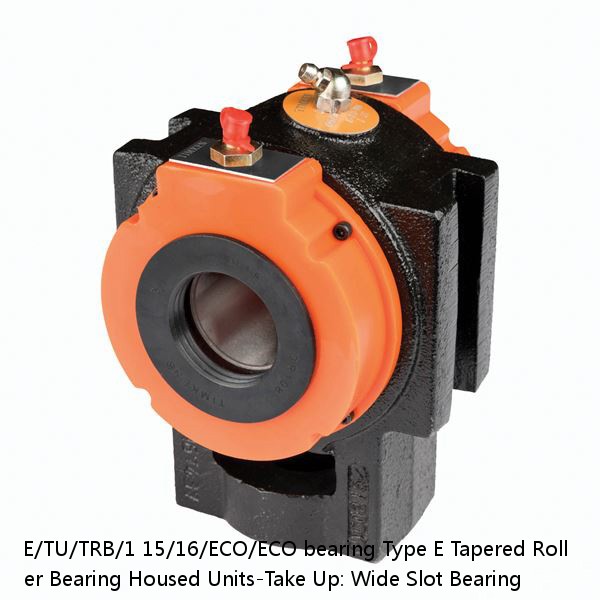

E/TU/TRB/1 15/16/ECO/ECO Bearing | Type E Tapered Roller Bearing Housed Units-Take Up: Wide Slot Bearing

E/TU/TRB/1 15/16/ECO/ECO interchange LOYAL E/TU/TRB/1 15/16/ECO/ECO
E/TU/TRB/1 15/16/ECO/ECO cross reference LOYAL E/TU/TRB/1 15/16/ECO/ECO
E/TU/TRB/1 15/16/ECO/ECO Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	E/TU/TRB/1 15/16/ECO/ECO
d:	3.18
D:	2.64
B:	0.7
r(min):	0.87
r1(min):	12 lb
Width:	0883450509657
Size:	1.9375 in
Weight：	Imperial
Bearing Number：	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load appli
Housing Construction：	3050 rpm
UPC Code：	1.83
Shaft Size Type：	8400 lb

Shaft Size	1.9375 in
Shaft Size Type	Imperial
Weight	12 lb
UPC Code	0883450509657
Type E Open Cover Number	EUDR-1 15/16
Dimension B	3-1/2 in
Dimension L	6-5/16 in
Dimension A₁	11/16 in
Dimension L₃	3-3/4 in
Dimension L₁	3-15/16 in
Dimension N	1-1/8 in
Dimension L₂	15/16 in
Dimension N₁	3/4 in
Dimension H₂	3-5/16 in
Dimension N₂	1-15/16 in
Dimension d₁	3-7/16 in
Dimension H₁	4 in
Dimension H	4-3/4 in
Dimension A₂	2-7/16 in
Dimension A_c	4.6015 in
Dimension d₂	4.196 in
e	0.33
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	2.64
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	3.18
K Factor	1.83
C₉₀ Dynamic Load Rating¹	10300 lb
C₀ Static Load Rating	43000 lb
F_a-max Maximum Permissible Thrust Load²	2590 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	8400 lb
Max. Speed⁴	3050 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
LM 81524 U	One side Seal (U)	Steel	LM 81524 U	Steel	8	-
UCTH204J-150	20 / Normal-Duty (2)	20	Normal-Duty (2)	-	-	-
VB12 - 200H x 7Z	VB12	-	-	-	-	-
4T-32307C	32.75	35	1.5	2.0	4T-32307C	0.80
QVTU16V212S	4.67	3.14	35 lb15.90 Kg	0883450359467 0883450359474 0883450359481 0883450359498 0883450359504 0883450359511 0883450359528 08	0.0020 in0.051 mm	2-3/4 in
K-EUC46	K-EUC46	Single-phase, 200-230 VAC	-	-	-	-
BNF3608-7.5RRG1+136LC0	136.000	BNF3608-7.5	Overall thread lenght is added to the both ends of the stroke 10mm.	There is the groove on both ends of the stroke.	-	-
220RY1683	218.000 mm8.5827 in	218.000 mm8.5827 in	166.300 lb	RY-1	2320 kN522000 lbf	257RYS1683
6413/NR	3.3 Kg	2.100 mm	37.000 mm	160.000 mm	8200 rpm	5700 rpm
7917CDB FY	85	1.1	7917CDB FY	8600	6500	120
