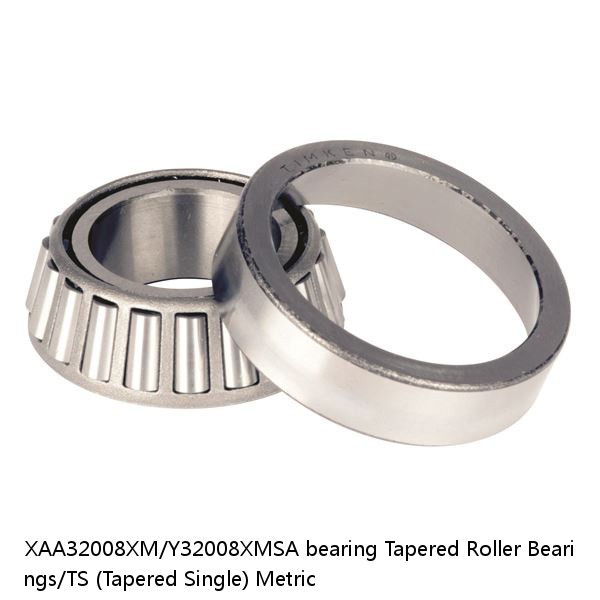

XAA32008XM/Y32008XMSA bearing | Tapered Roller Bearings/TS (Tapered Single) Metric
XAA32008XM/Y32008XMSA PDF download| Price： | enquiry |
| Model Number： | XAA32008XM/Y32008XMSA |
| Series： | 19.000 mm0.7480 in |
| r - Cup Backface "To Clear" Radius2： | 32008XM |
| Design Units： | 1.02 mm0.04 in |
| Db - Cup Backface Backing Diameter： | 3.560 mm0.14 in |
| da - Cone Frontface Backing Diameter： | 23.8 |
| Series | 32008XM |
| Cone Part Number | XAA32008XM |
| Cup Part Number | Y32008XMSA |
| Design Units | METRIC |
| Bearing Weight | 0.30 Kg0.600 lb |
| Cage Type | Stamped Steel |
| d - Bore | 40 mm1.5748 in |
| D - Cup Outer Diameter | 68.000 mm2.6772 in |
| B - Cone Width | 19.000 mm0.7480 in |
| C - Cup Width | 14.500 mm0.5709 in |
| T - Bearing Width | 19.000 mm0.7480 in |
| R - Cone Backface "To Clear" Radius1 | 3.560 mm0.14 in |
| r - Cup Backface "To Clear" Radius2 | 1.02 mm0.04 in |
| da - Cone Frontface Backing Diameter | 45.47 mm1.79 in |
| db - Cone Backface Backing Diameter | 52.07 mm2.05 in |
| Da - Cup Frontface Backing Diameter | 66.00 mm2.60 in |
| Db - Cup Backface Backing Diameter | 60.96 mm2.40 in |
| Ab - Cage-Cone Frontface Clearance | 2.3 mm0.09 in |
| Aa - Cage-Cone Backface Clearance | 0.5 mm0.02 in |
| a - Effective Center Location3 | -3.8 mm-0.15 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 14400 N3240 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 55500 N12500 lbf |
| C0 - Static Radial Rating | 71600 N16100 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 9330 N2100 lbf |
| K - Factor7 | 1.54 |
| e - ISO Factor8 | 0.38 |
| Y - ISO Factor9 | 1.58 |
| G1 - Heat Generation Factor (Roller-Raceway) | 23.8 |
| G2 - Heat Generation Factor (Rib-Roller End) | 16.1 |
| Cg - Geometry Factor10 | 0.0732 |
