- 688TD/672A

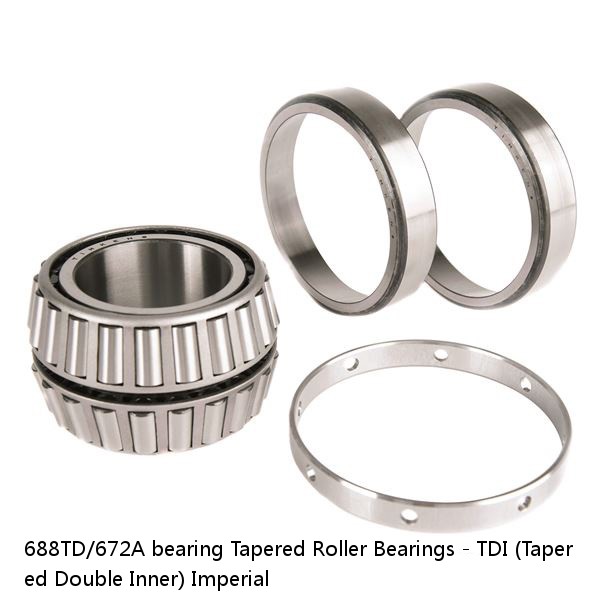

688TD/672A Bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
688TD/672A interchange LOYAL 688TD/672A | |
688TD/672A cross reference LOYAL 688TD/672A | |
688TD/672A Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | 688TD/672A |
d: | 3.7499 in95.247 mm |
D: | 675 |
B: | 0.030 in0.80 mm |
r(min): | Spacer shows standard nominal .01 radii, actual bearing may vary |
r1(min): | Imperial |
Width: | 6.6250 in168.275 mm |
Size: | 3.9453 in100.211 mm |
Series: | 672A |
r - Cup Backface "To Clear" Radius2: | 688TD |
Design Units: | Stamped Steel |
Db - Cup Backface Backing Diameter: | 1.3750 in34.925 mm |
da - Cone Frontface Backing Diameter: | 17.6 lb8 Kg |
Series | 675 |
Cone Part Number | 688TD |
Cup Part Number | 672A |
Design Units | Imperial |
Bearing Weight | 17.6 lb8 Kg |
Cage Type | Stamped Steel |
Aa - Cage-Cone Backface Clearance | 0 in0 mm |
d - Bore | 3.9453 in100.211 mm |
D - Cup Outer Diameter | 6.6250 in168.275 mm |
B - Double Cone Width | 3.7500 in95.250 mm |
C - Cup Width | 1.3750 in34.925 mm |
T - Bearing Width across Cups | 3.7499 in95.247 mm |
R - Cone Frontface "To Clear" Radius1 | 0.030 in0.80 mm |
r - Cup Backface "To Clear" Radius2 | 0.130 in3.3 mm |
Db - Cup Backface Backing Diameter | 5.87 in149.10 mm |
Ab - Cage-Cone Frontface Clearance | 0.12 in3 mm |
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 | 14600 lbf64800 N |
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 | 97800 lbf435000 N |
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 | 25400 lbf113000 N |
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 11700 lbf52200 N |
K - Factor7 | 1.24 |
e - ISO Factor8 | 0.47 |
Y1 - ISO Factor9 | 1.43 |
Y2 - ISO Factor10 | 2.14 |
Cg - Geometry Factor11 | 0.106 |
Note | Spacer shows standard nominal .01 radii, actual bearing may vary |
