- Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
- 94706D/94113A

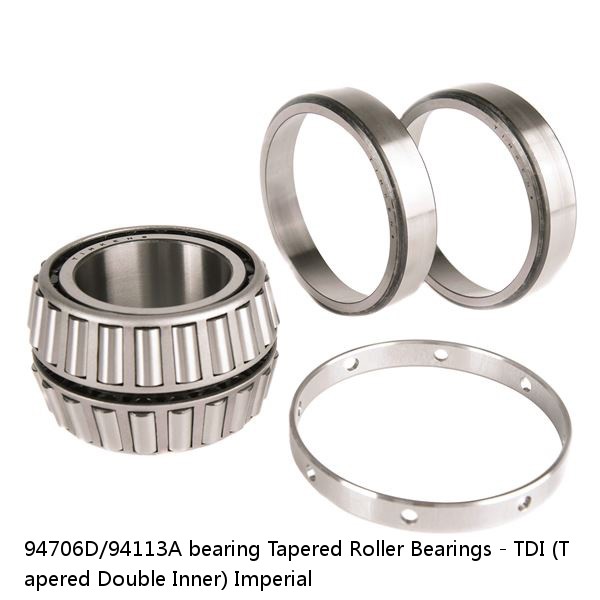

94706D/94113A Bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial
94706D/94113A interchange LOYAL 94706D/94113A | |
94706D/94113A cross reference LOYAL 94706D/94113A | |
94706D/94113A Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | 94706D/94113A |
d: | 4.8750 in123.825 mm |
D: | 94000 |
B: | 0.060 in1.50 mm |
r(min): | Spacer shows standard nominal .01 radii, actual bearing may vary |
r1(min): | Imperial |
Width: | 11.3750 in288.925 mm |
Size: | 7.0000 in177.800 mm |
Series: | 94113A |
r - Cup Backface "To Clear" Radius2: | 94706D |
Design Units: | Stamped Steel |
Db - Cup Backface Backing Diameter: | 1.8750 in47.625 mm |
da - Cone Frontface Backing Diameter: | 66.3 lb30.10 Kg |
Series | 94000 |
Cone Part Number | 94706D |
Cup Part Number | 94113A |
Design Units | Imperial |
Bearing Weight | 66.3 lb30.10 Kg |
Cage Type | Stamped Steel |
Aa - Cage-Cone Backface Clearance | 0 in0 mm |
d - Bore | 7.0000 in177.800 mm |
D - Cup Outer Diameter | 11.3750 in288.925 mm |
B - Double Cone Width | 4.8750 in123.825 mm |
C - Cup Width | 1.8750 in47.625 mm |
T - Bearing Width across Cups | 4.8750 in123.825 mm |
R - Cone Frontface "To Clear" Radius1 | 0.060 in1.50 mm |
r - Cup Backface "To Clear" Radius2 | 0.130 in3.3 mm |
da - Cone Frontface Backing Diameter | 7.68 in195.10 mm |
Db - Cup Backface Backing Diameter | 10.20 in259.10 mm |
Ab - Cage-Cone Frontface Clearance | 0.25 in6.3 mm |
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 | 38500 lbf171000 N |
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 | 258000 lbf1150000 N |
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 | 67000 lbf298000 N |
Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 30800 lbf137000 N |
K - Factor7 | 1.25 |
e - ISO Factor8 | 0.47 |
Y1 - ISO Factor9 | 1.44 |
Y2 - ISO Factor10 | 2.15 |
G1 - Heat Generation Factor (Roller-Raceway)11 | 692 |
G2 - Heat Generation Factor (Rib-Roller End) | 93.8 |
Cg - Geometry Factor12 | 0.129 |
Note | Spacer shows standard nominal .01 radii, actual bearing may vary |
