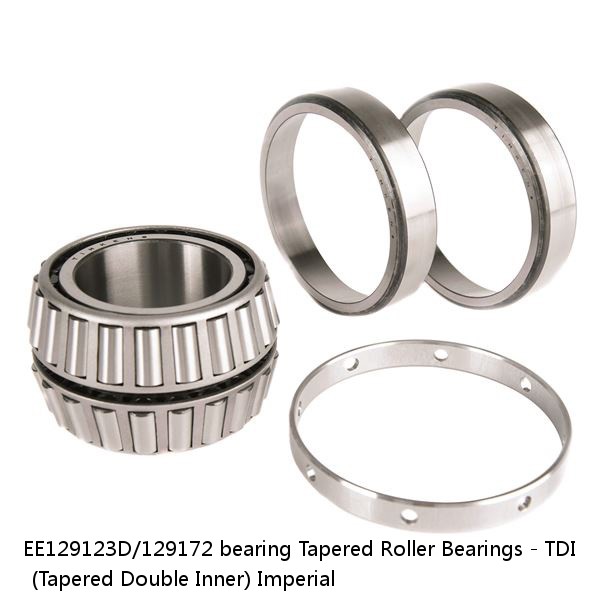

Tapered Roller Bearings - TDI (Tapered Double Inner)

EE129123D/129172 bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	enquiry
Model Number：	EE129123D/129172
Series：	5.2499 in133.347 mm
r - Cup Backface "To Clear" Radius²：	129000
Design Units：	0.130 in3.30 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	129000
Cone Part Number	EE129123D
Cup Part Number	129172
Design Units	Imperial
Bearing Weight	133.80 lb60.70 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	12.0079 in305.001 mm
D - Cup Outer Diameter	17.2460 in438.048 mm
B - Double Cone Width	5.3125 in134.938 mm
C - Cup Width	2.1250 in53.975 mm
T - Bearing Width across Cups	5.2499 in133.347 mm
R - Cone Frontface "To Clear" Radius¹	0.130 in3.30 mm
r - Cup Backface "To Clear" Radius²	0.190 in4.80 mm
da - Cone Frontface Backing Diameter	12.91 in327.90 mm
Db - Cup Backface Backing Diameter	15.98 in405.90 mm
Ab - Cage-Cone Frontface Clearance	-0.02 in-0.5 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	52200 lbf232000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	351000 lbf1560000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	91000 lbf405000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	37200 lbf165000 N
K - Factor⁷	1.4
e - ISO Factor⁸	0.42
Y1 - ISO Factor⁹	1.62
Y2 - ISO Factor¹⁰	2.42
Cg - Geometry Factor¹¹	0.171
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
