Tapered Roller Bearings - TS (Tapered Single)

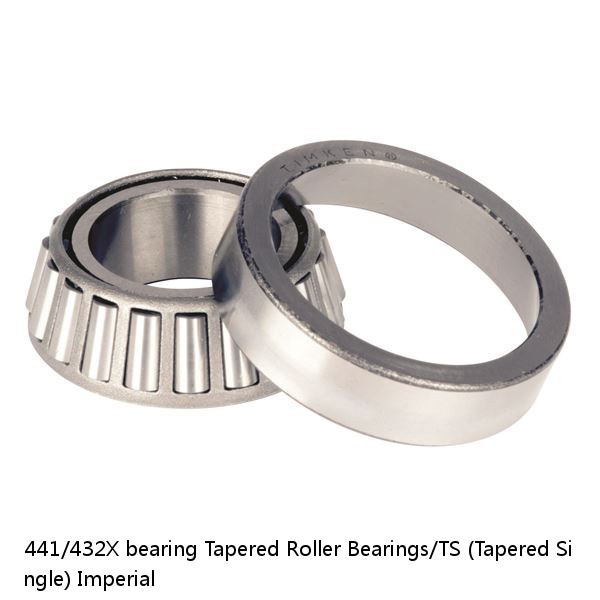

441/432X Bearing | Tapered Roller Bearings/TS (Tapered Single) Imperial

441/432X interchange LOYAL 441/432X
441/432X cross reference LOYAL 441/432X
441/432X Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	441/432X
d:	2.11
D:	31.758 mm1.2503 in
B:	435
r(min):	3.3 mm0.130 in
r1(min):	3.560 mm0.14 in
Width:	2.05
Size:	11.3
Series：	42.5
r - Cup Backface "To Clear" Radius²：	0.28
Design Units：	Imperial
Db - Cup Backface Backing Diameter：	81.03 mm3.19 in
da - Cone Frontface Backing Diameter：	50.04 mm1.97 in

Series	435
Cone Part Number	441
Cup Part Number	432X
Design Units	Imperial
Bearing Weight	1.2 Kg2.5 lb
Cage Type	Stamped Steel
d - Bore	35.001 mm1.3780 in
D - Cup Outer Diameter	95.250 mm3.7500 in
B - Cone Width	29.901 mm1.1772 in
C - Cup Width	26.195 mm1.0313 in
T - Bearing Width	31.758 mm1.2503 in
R - Cone Backface "To Clear" Radius¹	3.560 mm0.14 in
r - Cup Backface "To Clear" Radius²	3.3 mm0.130 in
da - Cone Frontface Backing Diameter	43.43 mm1.71 in
db - Cone Backface Backing Diameter	50.04 mm1.97 in
Da - Cup Frontface Backing Diameter	87.88 mm3.46 in
Db - Cup Backface Backing Diameter	81.03 mm3.19 in
Ab - Cage-Cone Frontface Clearance	1.3 mm0.05 in
Aa - Cage-Cone Backface Clearance	1 mm0.04 in
a - Effective Center Location³	-9.1 mm-0.36 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	7400 lbf32900 N
C1 - Dynamic Radial Rating (1 million revolutions)⁵	28500 lbf127000 N
C0 - Static Radial Rating	32400 lbf144000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	3600 lbf16000 N
K - Factor⁷	2.05
e - ISO Factor⁸	0.28
Y - ISO Factor⁹	2.11
G1 - Heat Generation Factor (Roller-Raceway)	42.5
G2 - Heat Generation Factor (Rib-Roller End)	11.3
Cg - Geometry Factor¹⁰	0.0805
