Type E Tapered Roller Bearing Housed Units

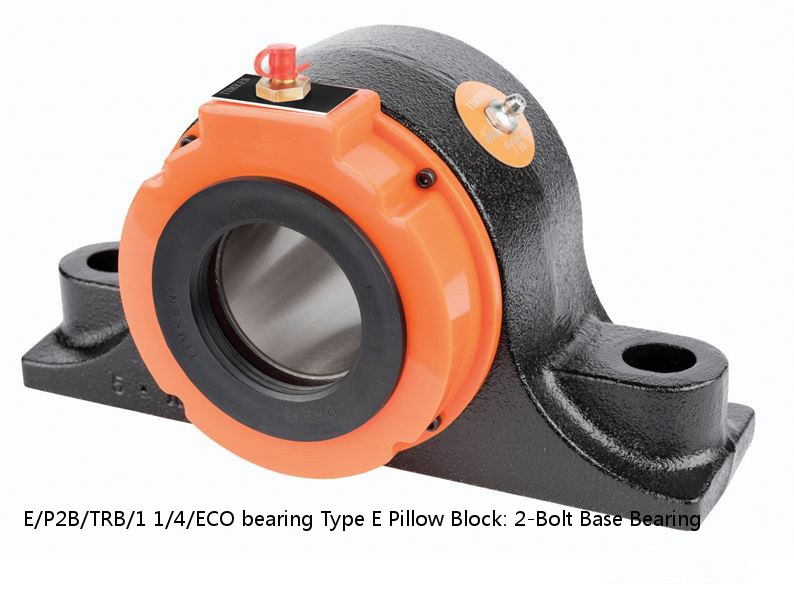

E/P2B/TRB/1 1/4/ECO bearing | Type E Pillow Block: 2-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P2B/TRB/1 1/4/ECO
Weight：	2.14
Bearing Number：	1.77
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	4.0 lb

Shaft Size	1.25 in
Shaft Size Type	Imperial
Weight	4.0 lb
UPC Code	0883450507097 - Assembly is not orderable, contact Customer Service.
Type E Open Cover Number	EUDR-1 1/4
Dimension B	2-3/4 in
Dimension L	6 in
Dimension A	1-7/8 in
Dimension J Min.	4-3/4 in
Dimension J Max.	4-13/16 in
Bolt Diameter	1/2 in
Dimension N	9/16 in
Dimension N₁	19/32 in
Dimension H₁	7/8 in
Dimension H₂	3 in
Dimension d₁	2-1/4 in
Dimension H	1-1/2 in
Dimension A_c	2.97 in
Dimension d₂	2.85 in
e	0.49
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.77
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.14
K Factor	1.23
C₉₀ Dynamic Load Rating¹	3810 lb
C₀ Static Load Rating	15760 lb
F_a-max Maximum Permissible Thrust Load²	2000 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	3100 lb
Max. Speed⁴	4490 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
