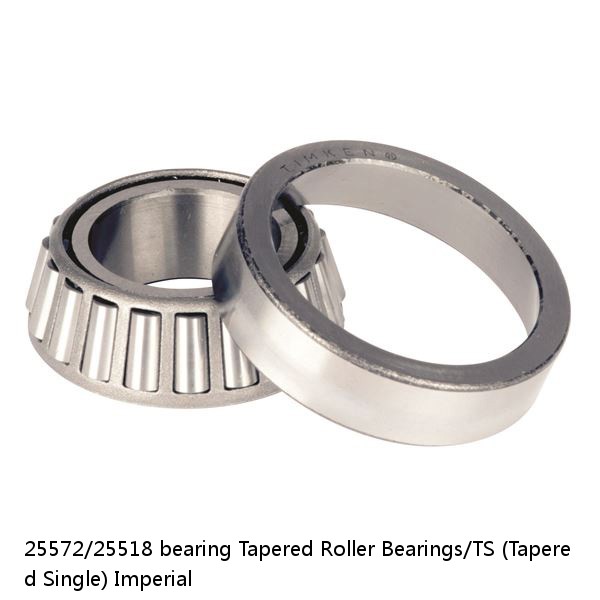

Tapered Roller Bearings - TS (Tapered Single)

25572/25518 Bearing | Tapered Roller Bearings/TS (Tapered Single) Imperial

25572/25518 interchange Timken 25572/25518
25572/25518 cross reference Timken 25572/25518
25572/25518 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	25572/25518
d:	1.79
D:	23.879 mm0.9401 in
B:	25500
r(min):	1.02 mm0.04 in
r1(min):	0.760 mm0.03 in
Width:	1.74
Size:	14.3
Series：	35.2
r - Cup Backface "To Clear" Radius²：	0.33
Design Units：	Imperial
Db - Cup Backface Backing Diameter：	73.91 mm2.91 in
da - Cone Frontface Backing Diameter：	45.97 mm1.81 in

Series	25500
Cone Part Number	25572
Cup Part Number	25518
Design Units	Imperial
Bearing Weight	0.6 Kg1.400 lb
Cage Type	Stamped Steel
d - Bore	38.1 mm1.5 in
D - Cup Outer Diameter	81.973 mm3.2273 in
B - Cone Width	25.400 mm1.0000 in
C - Cup Width	19.114 mm0.7525 in
T - Bearing Width	23.879 mm0.9401 in
R - Cone Backface "To Clear" Radius¹	0.760 mm0.03 in
r - Cup Backface "To Clear" Radius²	1.02 mm0.04 in
da - Cone Frontface Backing Diameter	45.97 mm1.81 in
db - Cone Backface Backing Diameter	45.97 mm1.81 in
Da - Cup Frontface Backing Diameter	77.00 mm3.05 in
Db - Cup Backface Backing Diameter	73.91 mm2.91 in
Ab - Cage-Cone Frontface Clearance	1.5 mm0.06 in
Aa - Cage-Cone Backface Clearance	0.3 mm0.01 in
a - Effective Center Location³	-6.4 mm-0.25 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	5270 lbf23500 N
C1 - Dynamic Radial Rating (1 million revolutions)⁵	20300 lbf90500 N
C0 - Static Radial Rating	24900 lbf111000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	3020 lbf13500 N
K - Factor⁷	1.74
e - ISO Factor⁸	0.33
Y - ISO Factor⁹	1.79
G1 - Heat Generation Factor (Roller-Raceway)	35.2
G2 - Heat Generation Factor (Rib-Roller End)	14.3
Cg - Geometry Factor¹⁰	0.0801
