Spherical Roller Bearing Metric and Inch Accessories
- Push-Type Removable Sleeve, Locknut and Lockwasher
- RN/30/SK/15022/AN/26/W/26

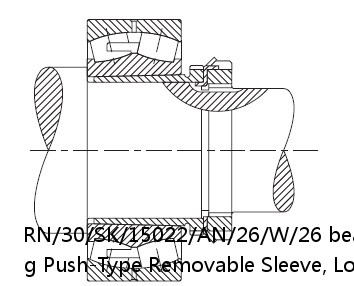

RN/30/SK/15022/AN/26/W/26 Bearing | Push-Type Removable Sleeve, Locknut and Lockwasher
RN/30/SK/15022/AN/26/W/26 interchange LOYAL RN/30/SK/15022/AN/26/W/26 | |
RN/30/SK/15022/AN/26/W/26 cross reference LOYAL RN/30/SK/15022/AN/26/W/26 | |
RN/30/SK/15022/AN/26/W/26 Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | RN/30/SK/15022/AN/26/W/26 |
d: | -0.13 mm-0.005 in |
D: | 1:12 |
B: | 6.80 lb3.08 Kg |
r(min): | SK-15022 |
r1(min): | 222K |
Width: | 211.12 mm8.312 in |
Size: | RN-30 |
Weight: | 163.04 mm6.419 in |
Bearing Number: | W-26 |
Housing Construction: | AN-26 |
UPC Code: | 88.00 mm3.465 in |
Shaft Size Type: | 135 mm5.3150 in |
Series | 222K |
Removal Nut O.D. C | 211.12 mm8.312 in |
Bearing Number | 22230K |
Taper | 1:12 |
Sleeve Weight | 6.80 lb3.08 Kg |
Diameter d | 135 mm5.3150 in |
Tolerance1 | -0.13 mm-0.005 in |
Major Diameter | 163.04 mm6.419 in |
L2 | 88.00 mm3.465 in |
a | 5.00 mm0.197 in |
Removal Nut | RN-30 |
Sleeve | SK-15022 |
Locknut | AN-26 |
Lockwasher and Lockplates | W-26 |
