Spherical Roller Bearing Metric and Inch Accessories
- Push-Type Removable Sleeve, Locknut and Lockwasher
- ARN/22/SK/11023/AN/20/W/20

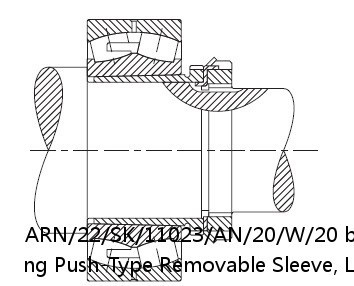

ARN/22/SK/11023/AN/20/W/20 Bearing | Push-Type Removable Sleeve, Locknut and Lockwasher
ARN/22/SK/11023/AN/20/W/20 interchange LOYAL ARN/22/SK/11023/AN/20/W/20 | |
ARN/22/SK/11023/AN/20/W/20 cross reference LOYAL ARN/22/SK/11023/AN/20/W/20 | |
ARN/22/SK/11023/AN/20/W/20 Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | ARN/22/SK/11023/AN/20/W/20 |
d: | -0.10 mm-0.004 in |
D: | 1:12 |
B: | 4.25 lb1.93 Kg |
r(min): | SK-11023 |
r1(min): | 223K |
Width: | 160.32 mm6.312 in |
Size: | ARN-22 |
Weight: | 119.94 mm4.722 in |
Bearing Number: | W-20 |
Housing Construction: | AN-20 |
UPC Code: | 98.00 mm3.858 in |
Shaft Size Type: | 100 mm3.9370 in |
Series | 223K |
Removal Nut O.D. C | 160.32 mm6.312 in |
Bearing Number | 22322K |
Taper | 1:12 |
Sleeve Weight | 4.25 lb1.93 Kg |
Diameter d | 100 mm3.9370 in |
Tolerance1 | -0.10 mm-0.004 in |
Major Diameter | 119.94 mm4.722 in |
L2 | 98.00 mm3.858 in |
a | 4.00 mm0.157 in |
Removal Nut | ARN-22 |
Sleeve | SK-11023 |
Locknut | AN-20 |
Lockwasher and Lockplates | W-20 |
