Spherical Roller Bearing Metric and Inch Accessories

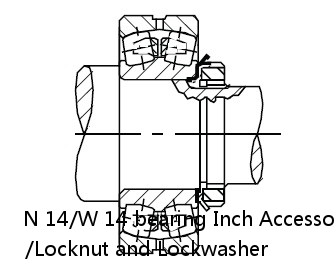

N 14/W 14 Bearing | Inch Accessories/Locknut and Lockwasher

N 14/W 14 interchange LOYAL N 14/W 14
N 14/W 14 cross reference LOYAL N 14/W 14
N 14/W 14 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	N 14/W 14
d:	3.58 mm0.141 in
D:	18
B:	7.92 mm0.312 in
r(min):	7.37 mm0.290 in
r1(min):	67.87 mm2.672 in
Width:	70.89 mm2.791 in
Size:	1.35 mm0.053 in
Weight：	69.88 mm2.751 in
Bearing Number：	6.35 mm0.250 in
Housing Construction：	W 14
UPC Code：	N 14
Shaft Size Type：	13.49 mm0.531 in

Bearing Bore	70 mm
Locknut	N 14
Lockwasher	W 14
Major Diameter	69.88 mm2.751 in
Threads No. per Inch	18
Relief Diameter A	67.87 mm2.672 in
Diameter S-3	66.68 mm2 5/8 in
W¹	3.58 mm0.141 in
L²	13.49 mm0.531 in
H³	3.2 mm0.125 in
S⁴	7.92 mm0.312 in
M⁵	6.35 mm0.250 in
C₁	92.20 mm3.630 in
D	14.60 mm0.573 in
Q	1.35 mm0.053 in
R	70.89 mm2.791 in
B	97.23 mm3.828 in
s	7.37 mm0.290 in
