Tapered Roller Bearings - TDI (Tapered Double Inner)

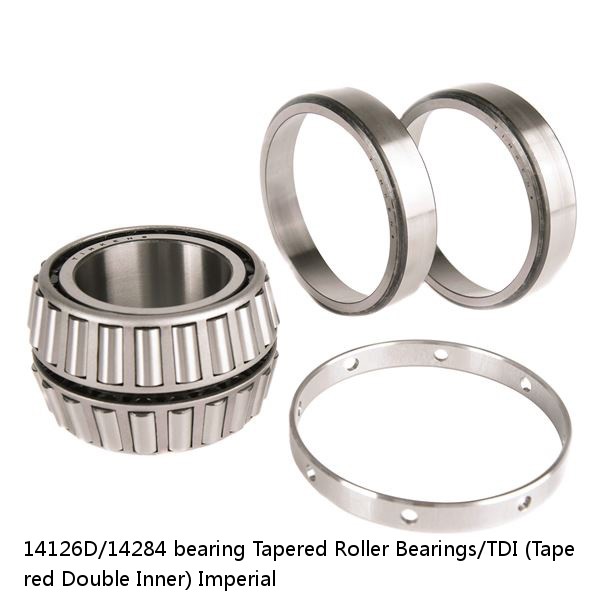

14126D/14284 Bearing | Tapered Roller Bearings/TDI (Tapered Double Inner) Imperial

14126D/14284 interchange LOYAL 14126D/14284
14126D/14284 cross reference LOYAL 14126D/14284
14126D/14284 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	14126D/14284
d:	2.63
D:	1.77
B:	1.7632 in44.785 mm
r(min):	14000
r1(min):	0.090 in2.3 mm
Width:	0.060 in1.50 mm
Size:	Spacer shows standard nominal .01 radii, actual bearing may vary
Series：	1.53
r - Cup Backface "To Clear" Radius²：	0.38
Design Units：	Imperial
Db - Cup Backface Backing Diameter：	2.36 in59.90 mm
da - Cone Frontface Backing Diameter：	1.57 in39.90 mm

Series	14000
Cone Part Number	14126D
Cup Part Number	14284
Design Units	Imperial
Bearing Weight	1.8 lb0.8 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	1.2500 in31.750 mm
D - Cup Outer Diameter	2.8345 in71.996 mm
B - Double Cone Width	1.5426 in39.182 mm
C - Cup Width	0.7250 in18.415 mm
T - Bearing Width across Cups	1.7632 in44.785 mm
R - Cone Frontface "To Clear" Radius¹	0.060 in1.50 mm
r - Cup Backface "To Clear" Radius²	0.090 in2.3 mm
da - Cone Frontface Backing Diameter	1.57 in39.90 mm
Db - Cup Backface Backing Diameter	2.36 in59.90 mm
Ab - Cage-Cone Frontface Clearance	0.07 in1.8 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	3180 lbf14200 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	21400 lbf95100 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	5540 lbf24600 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	2080 lbf9260 N
K - Factor⁷	1.53
e - ISO Factor⁸	0.38
Y1 - ISO Factor⁹	1.77
Y2 - ISO Factor¹⁰	2.63
G1 - Heat Generation Factor (Roller-Raceway)¹¹	18
G2 - Heat Generation Factor (Rib-Roller End)	9.4
Cg - Geometry Factor¹²	0.0668
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
