Cylindrical Roller Bearings

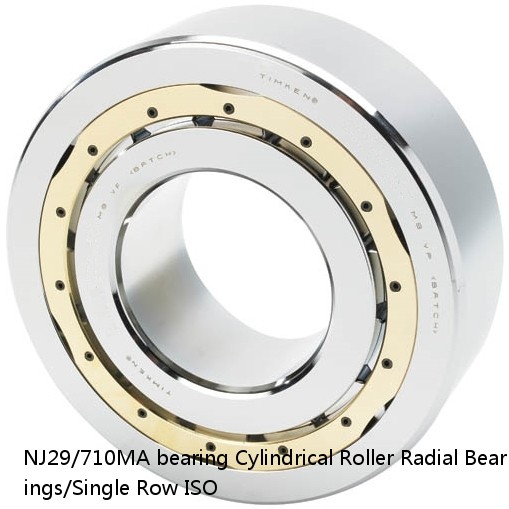

NJ29/710MA Bearing | Cylindrical Roller Radial Bearings/Single Row ISO

NJ29/710MA interchange timken NJ29/710MA
NJ29/710MA cross reference timken NJ29/710MA
NJ29/710MA Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	NJ29/710MA
d:	NJ
D:	N
B:	250
r(min):	220
r1(min):	5.000 mm0.200 in
Width:	5.000 mm0.200 in
Size:	METRIC
Weight：	733.000 mm28.900 in
Chamfer r_smin：	950.000 mm37.4016 in
Static Load Rating C_o：	710.000 mm27.9528 in
Dynamic Load Rating C₁¹：	0.3473
Width B：	8190000 N1840000 lbf

Design Units	METRIC
Bearing Weight	307.000 Kg676.80 lb
Type	NJ
Tapered Bore	N
d - Bore	710.000 mm27.9528 in
D - Outer Diameter	950.000 mm37.4016 in
C - Inner Ring Width	140.000 mm5.5118 in
B - Outer Ring Width	140 mm5.5118 in
C0 - Static Radial Rating	8190000 N1840000 lbf
C - Dynamic Radial Rating¹	4020000 N904000 lbf
Reference Thermal Speed Rating (Grease)	220
Reference Thermal Speed Rating (Oil)²	250
Cg - Geometry Factor³	0.3473
R - Inner Ring "To Clear" Radius⁴	5.000 mm0.200 in
r - Outer Ring "To Clear" Radius⁵	5.000 mm0.200 in
da - Inner Ring Backing Diameter	733.000 mm28.900 in
Da - Outer Ring Backing Diameter	927.000 mm36.500 in
