Split Block - SAF Housed Units
- Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series
- SDAF 22236

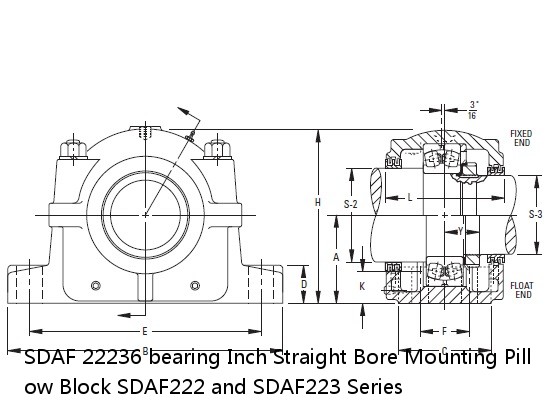

SDAF 22236 Bearing | Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series
SDAF 22236 interchange timken SDAF 22236 | |
SDAF 22236 cross reference timken SDAF 22236 | |
SDAF 22236 Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | SDAF 22236 |
d: | 2.9531 in |
D: | LOR154 |
B: | LOR165 |
r(min): | SR-36-30 |
r1(min): | 1.25 in |
Width: | 2.5625 in |
Size: | 4 |
Weight: | W36 |
Bearing Number: | AN36 |
Housing Construction: | 10.0000 in |
UPC Code: | SDAF236 |
Shaft Size Type: | 15.1875 in |
Bearing Number | 22236 |
Diameter S-2 | 7 13/16 in |
Diameter S-3 | 6 7/8 in |
A | 7.50 in |
B | 26.7500 in |
C | 9.3750 in |
D | 2.7500 in |
E Max. | 23.6250 in |
E Min. | 20.8750 in |
F | 5.875 in |
H1 | 15.1875 in |
Oil Level K | 2.5625 in |
L2 | 10.0000 in |
Y | 2.9531 in |
No. of base Bolts Required | 4 |
Bolt Hole Length | 2.625 in |
Bolt Hole Width | 1.250 in |
Size of base Bolts Required | 1.25 in |
Locknut | AN36 |
Lockwasher | W36 |
Housing Only3 | SDAF236 |
Stabilizing Ring 1 Req’d4 | SR-36-30 |
Triple Seal 2 Req’d at S-2 | LOR165 |
Triple Seal 2 Req’d at S-3 | LOR154 |
Assembly Weight | 335.000 lb |
Full Timken Part Number | SDAF22236 |
