Split Block - SAF Housed Units
- Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series
- SDAF 22320

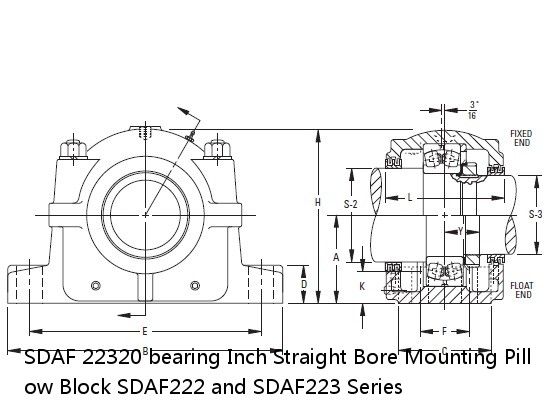

SDAF 22320 Bearing | Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series
SDAF 22320 interchange timken SDAF 22320 | |
SDAF 22320 cross reference timken SDAF 22320 | |
SDAF 22320 Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | SDAF 22320 |
d: | 2.2969 in |
D: | LOR106 |
B: | LOR118 |
r(min): | SR-24-20 |
r1(min): | 0.875 in |
Width: | 2.1250 in |
Size: | 4 |
Weight: | W20 |
Bearing Number: | AN20 |
Housing Construction: | 7.625 in |
UPC Code: | SDAF320 |
Shaft Size Type: | 10.5000 in |
Bearing Number | 22320 |
Diameter S-2 | 4 1/2 in |
Diameter S-3 | 3 13/16 in |
A | 5.2500 in |
B | 16.5 in |
C | 6.8750 in |
D | 2.2500 in |
E Max. | 14.5000 in |
E Min. | 13.2500 in |
F | 4.125 in |
H1 | 10.5000 in |
Oil Level K | 2.1250 in |
L2 | 7.625 in |
Y | 2.2969 in |
No. of base Bolts Required | 4 |
Bolt Hole Length | 1.5 in |
Bolt Hole Width | 0.875 in |
Size of base Bolts Required | 0.875 in |
Locknut | AN20 |
Lockwasher | W20 |
Housing Only3 | SDAF320 |
Stabilizing Ring 1 Req’d4 | SR-24-20 |
Triple Seal 2 Req’d at S-2 | LOR118 |
Triple Seal 2 Req’d at S-3 | LOR106 |
Assembly Weight | 109.0 lb |
Full Timken Part Number | SDAF22320 |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
7015B FY | 75 | 0.600 | 1.100 | 6300 | 4700 | 7015BFY |
7224BDB | 120 | 1.10 | 2.1 | 12.100 | 2500 | 1900 |
23132EJW33 | 2.27 | 3.46 | 2.33 | 23132CJW33 | 1700 | 1500 |
A/5238/WS | 114.300 mm4.5000 in | 107.000 lb | WS | 1100 rpm | 1010 rpm | 2340 kN526000 lbf |
23134EAKD1 | 23134EAKD1 | 20.900 | 14.0 | 170 | 2.1 | 1800 |
408004 | 408004 | 830.000 | 15.000 | 20.000 | 785.000 | 745.000 |
K 81160 M | 850 | 430 | 4400.000 | 850.000 | 0.000 | 25.000 |
69162RS | 80 | 1.0 | 69162RS | 5700 | 110 | 1.25 |
UCSPA207-23H1S6 | A-1/4-28UNF N12 | Normal-duty(2) | UCSPA207-23H1S6 | Standard | 1 7/16 | - |
KT 162120 | 16 | KT 162120 | 13.6 | 16 | 21 | 14700 |
SAF 22320 - Housing units - SKF
SAF 22320 · Ready to mount · Lubricated and sealed bearings · Quick locking on the shaft · Large variety of housing shapes, housing materials, and locking methods ...
Split Block - SAF Housed Units - Split Block ... - Loyal Bearings
SDAF 22340 · 4.0... LOR233, LOR244, SR-0-40 ; SDAF 22338 · 3.8... LOR229, LOR240, SR-44-38 ; SDAF 22336 · 3.7... LOR223, LOR234, SR-0-36 ...
SAF 22320 - TIMKEN | Pillow Block Bearings | BDI Poland
TIMKEN,SAF,22320..,4,Bolt,Pillow,Block;,3.937,Bore;,5-1/4,Base,to,Center,Height;,Shaft,Mount,Mount;,Spherical,Roller,Bearing;,13-1/4,Minimum,Spacing;,14-1/2 ...
Bearing Housings - Schaeffler
Catalogue GK 1, Bearing Housings, describes the range of standard ... in relation to the required bearing arrangement type, lubrication or ... 22320..-K.
SKF-Bearing 22320 E - MRO Supply
Item #:22320 E Item Name:SDAF Series Split Plummer Block Housings for Bearings with a Cylindrical Bore Shaft Diameter da:3.937 in
Part Number SDAF 22320, Inch Straight Bore Mounting ...
SDAF 22320. Each assembly includes the housing cap and base, cap bolts, bearing, locknut and washer, stabilizing ring, and triple ring seals.
