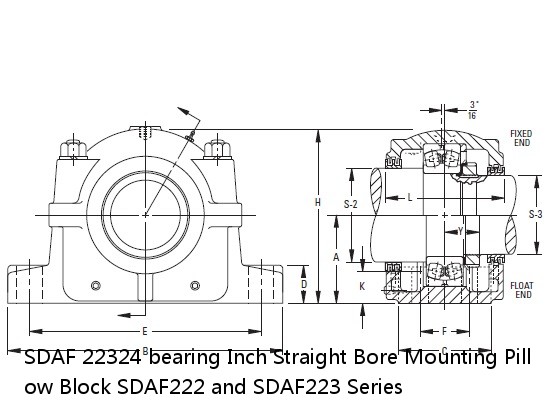

SDAF 22324 Bearing | Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series

SDAF 22324 interchange timken SDAF 22324
SDAF 22324 cross reference timken SDAF 22324
SDAF 22324 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	SDAF 22324
d:	2.6406 in
D:	LOR119
B:	LOR127
r(min):	SR-0-24
r1(min):	1.125 in
Width:	2.5625 in
Size:	4
Weight：	W24
Bearing Number：	AN24
Housing Construction：	8.375 in
UPC Code：	SDAF324
Shaft Size Type：	12.8125 in

Bearing Number	22324
Diameter S-2	5 5/16 in
Diameter S-3	4 9/16 in
A	6.3125 in
B	21.2500 in
C	7.8750 in
D	2.50 in
E Max.	18.2500 in
E Min.	17.0000 in
F	4.75 in
H¹	12.8125 in
Oil Level K	2.5625 in
L²	8.375 in
Y	2.6406 in
No. of base Bolts Required	4
Bolt Hole Length	1.75 in
Bolt Hole Width	1.125 in
Size of base Bolts Required	1.125 in
Locknut	AN24
Lockwasher	W24
Housing Only³	SDAF324
Stabilizing Ring 1 Req’d⁴	SR-0-24
Triple Seal 2 Req’d at S-2	LOR127
Triple Seal 2 Req’d at S-3	LOR119
Assembly Weight	195.000 lb
Full Timken Part Number	SDAF22324
