Split Block - SAF Housed Units
- Inch Straight Bore Mounting Pillow Block SDAF231 and SDAF232 Series
- SDAF 23164

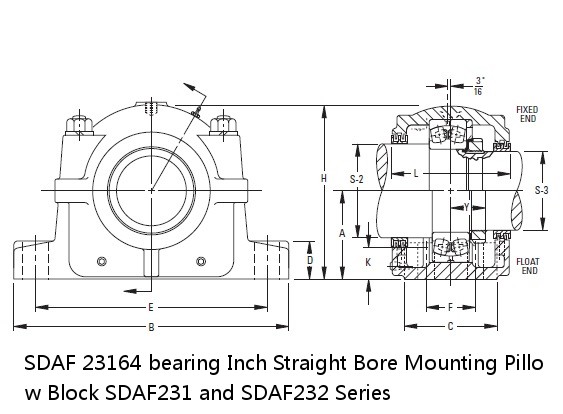

SDAF 23164 Bearing | Inch Straight Bore Mounting Pillow Block SDAF231 and SDAF232 Series
SDAF 23164 interchange timken SDAF 23164 | |
SDAF 23164 cross reference timken SDAF 23164 | |
SDAF 23164 Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | SDAF 23164 |
d: | ER983-1 |
D: | ER876-1 |
B: | 1 3/4 |
r(min): | A8970 |
r1(min): | 4.3750 in |
Width: | NO64 |
Size: | P64 |
Weight: | 16.750 in |
Bearing Number: | SDAF3164 |
Housing Construction: | 25.7500 in |
UPC Code: | SDAF23164 |
Shaft Size Type: | 10.5 in |
Bearing Number | 23164 |
Diameter S-2 | 14 in |
Diameter S-3 | 12 1/4 in |
A | 12.8125 in |
B | 41.7500 in |
C | 15.7500 in |
D | 4.5000 in |
E Max. | 36.5000 in |
E Min. | 35.0000 in |
F | 10.5 in |
H1 | 25.7500 in |
Oil Level K | 4.3750 in |
L2 | 16.750 in |
4 base Bolts Req’d | 1.875 in |
Housing Only3 | SDAF3164 |
Bolt Hole Length | 2.625 in |
Bolt Hole Width | 1.875 in |
Stabilizing Ring 1 Req’d4 | A8970 |
Triple Seal 2 Req’d at S-2 | ER876-1 |
Triple Seal 2 Req’d at S-3 | ER983-1 |
Assembly Weight | 1850.000 lb |
Lock Washer | NO64 |
Lock Plate | P64 |
Tightening Bolt Size | 1 3/4 |
Full Timken Part Number | SDAF23164 |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
4T-H414245/H414210 | 68.260 | 3.3 | 3.5 | 4T-H414245/H414210 | 2.7 | 136.530 |
FSYE-2.3/4-18 | 31.75000 | 3400 | 0.79375 | 4.003 | 92.5230 | 53.379 |
BNF8010-5RRG1+127LC0 | 127.000 | BNF8010-5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
7324BDB FY | 120 | 1.1 | 3.0 | 2400 | 1800 | 7324BDBFY |
4T-28995/28920 | 62.740 | 3.3 | 3.5 | 4T-28995/28920 | 0.76 | 101.600 |
TTU/110/18 | LOR109 | 18 in | 7 in | SR-22-19 | 12.000 in | 1.250 in |
E/4BF/TRB/2 1/4/ECC | 2.63 | 2.17 | 0.7 | 0.87 | 21.0 lb | 0883450503570 |
HJ-607632 + IR-526032 | 2.5 | HJ-607632 + IR-526032 | 2.000 | 4500 | 95.250 | 120.650 |
78251D/78571 | 2.5616 in65.065 mm | 78000 | 0.090 in2.30 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 5.7080 in144.983 mm |
6302NR | 15 | 0.5 | 1.0 | 20000 | 17000 | 1.07 |
