Split Block - SAF Housed Units

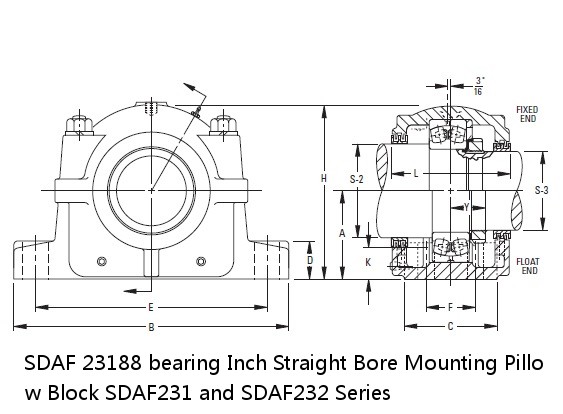

SDAF 23188 Bearing | Inch Straight Bore Mounting Pillow Block SDAF231 and SDAF232 Series

SDAF 23188 interchange timken SDAF 23188
SDAF 23188 cross reference timken SDAF 23188
SDAF 23188 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	SDAF 23188
d:	ER838-1
D:	ER926-1
B:	2 1/2
r(min):	A8976
r1(min):	5.5625 in
Width:	NO88
Size:	P88
Weight：	22.250 in
Bearing Number：	SDAF3188
Housing Construction：	33.7500 in
UPC Code：	SDAF23188
Shaft Size Type：	14.5 in

Bearing Number	23188
Diameter S-2	19 1/2 in
Diameter S-3	17 in
A	17.0000 in
B	52.0000 in
C	21.0000 in
D	5.5000 in
E Max.	46.1250 in
E Min.	44.3750 in
F	14.5 in
H¹	33.7500 in
Oil Level K	5.5625 in
L²	22.250 in
4 base Bolts Req’d	2.25 in
Housing Only³	SDAF3188
Bolt Hole Length	3.125 in
Bolt Hole Width	2.25 in
Stabilizing Ring 1 Req’d⁴	A8976
Triple Seal 2 Req’d at S-2	ER926-1
Triple Seal 2 Req’d at S-3	ER838-1
Assembly Weight	4300.000 lb
Lock Washer	NO88
Lock Plate	P88
Tightening Bolt Size	2 1/2
Full Timken Part Number	SDAF23188
