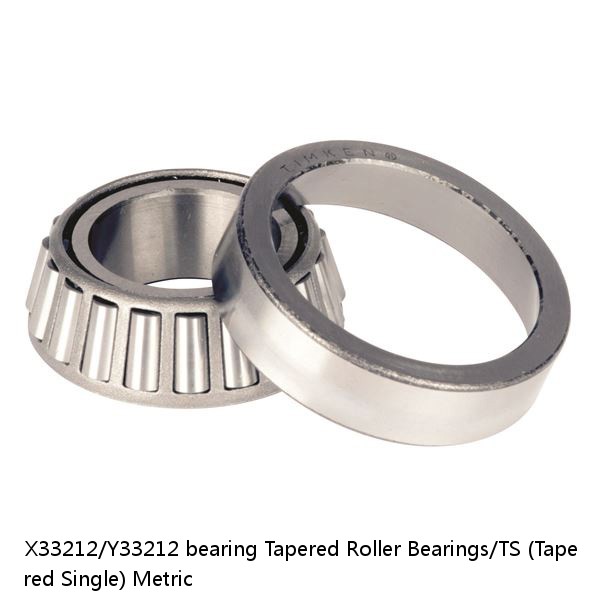

Tapered Roller Bearings - TS (Tapered Single)

X33212/Y33212 Bearing | Tapered Roller Bearings/TS (Tapered Single) Metric

X33212/Y33212 interchange Timken X33212/Y33212
X33212/Y33212 cross reference Timken X33212/Y33212
X33212/Y33212 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	X33212/Y33212
d:	38.000 mm1.4961 in
D:	33212
B:	1.52 mm0.06 in
r(min):	2.030 mm0.080 in
r1(min):	20
Width:	76.2
Size:	METRIC
Series：	98.04 mm3.86 in
r - Cup Backface "To Clear" Radius²：	73.91 mm2.91 in
Design Units：	105.40 mm4.15 in
Db - Cup Backface Backing Diameter：	68.07 mm2.68 in
da - Cone Frontface Backing Diameter：	110.000 mm4.3307 in

Series	33212
Cone Part Number	X33212
Cup Part Number	Y33212
Design Units	METRIC
Bearing Weight	1.5 Kg3.400 lb
Cage Type	Stamped Steel
d - Bore	60.000 mm2.3622 in
D - Cup Outer Diameter	110.000 mm4.3307 in
B - Cone Width	38.000 mm1.4961 in
C - Cup Width	29.000 mm1.1417 in
T - Bearing Width	38.000 mm1.4961 in
R - Cone Backface "To Clear" Radius¹	2.030 mm0.080 in
r - Cup Backface "To Clear" Radius²	1.52 mm0.06 in
da - Cone Frontface Backing Diameter	68.07 mm2.68 in
db - Cone Backface Backing Diameter	73.91 mm2.91 in
Da - Cup Frontface Backing Diameter	105.40 mm4.15 in
Db - Cup Backface Backing Diameter	98.04 mm3.86 in
Ab - Cage-Cone Frontface Clearance	3.3 mm0.13 in
Aa - Cage-Cone Backface Clearance	3.3 mm0.13 in
a - Effective Center Location³	-9.9 mm-0.39 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	60700 N13700 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	234000 N52700 lbf
C0 - Static Radial Rating	253000 N56800 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	42000 N9450 lbf
K - Factor⁷	1.44
e - ISO Factor⁸	0.4
Y - ISO Factor⁹	1.48
G1 - Heat Generation Factor (Roller-Raceway)	76.2
G2 - Heat Generation Factor (Rib-Roller End)	20
Cg - Geometry Factor¹⁰	0.0758
