Split Block - SAF Housed Units
- Inch Tapered Bore Mounting Pillow Block SDAF225 and SDAF226 Series
- SDAF 22538

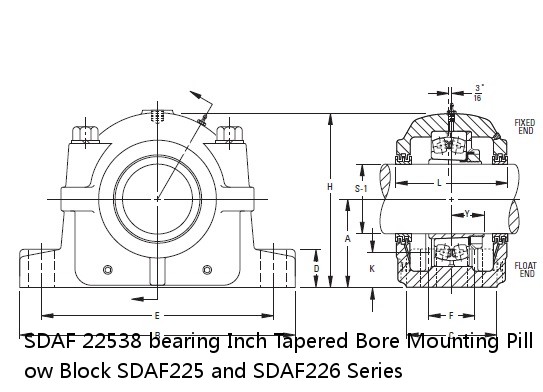

SDAF 22538 Bearing | Inch Tapered Bore Mounting Pillow Block SDAF225 and SDAF226 Series
SDAF 22538 interchange timken SDAF 22538 | |
SDAF 22538 cross reference timken SDAF 22538 | |
SDAF 22538 Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | SDAF 22538 |
d: | 3.1094 in |
D: | LOR 224 |
B: | 0.375 in |
r(min): | 2.6250 in |
r1(min): | 4 |
Width: | 10.6250 in |
Size: | SDAF538 |
Weight: | 16.2500 in |
Bearing Number: | SDAF22538 |
Housing Construction: | 6.25 in |
UPC Code: | 21.5000 in |
Shaft Size Type: | 23.5000 in |
Bearing Number | 22238K |
Diameter S-1 | 6 15/16 in |
A | 7.875 in |
B | 27.6250 in |
C | 10.0000 in |
D | 3.00 in |
E Max. | 23.5000 in |
E Min. | 21.5000 in |
F | 6.25 in |
H1 | 16.2500 in |
Oil Level K | 2.6250 in |
L2 | 10.6250 in |
Y | 3.1094 in |
No. of base Bolts Required | 4 |
Size of base Bolts Required | 0.375 in |
Adapter Assembly Number3 | SNW-38 x 6-15/16 |
Housing Only4 | SDAF538 |
Bolt Hole Length | 2.375 in |
Bolt Hole Width | 1.375 in |
Assembly Weight | 420.000 lb |
Triple Seal 2 Req’d | LOR 224 |
Full Timken Part Number | SDAF22538 |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
6908NR | - | 40 | 0.6 | 0.6 | 6908NR | 0.112 |
QAP13A060S | 4.15 | 2.79 | 22.00 lb10.00 Kg | 0883450330848 0883450330855 0883450330862 0883450330879 0883450330886 0883450330893 0883450330909 08 | 0.0015 in0.038 mm | 60 mm |
YSP 211 SB-2F-69.06 | 100 | 25 | - | 0.000 | 29.000 | 43.600 |
JHM318448/JHM318410 | 44.000 mm1.7323 in | HM318400 | 2.54 mm0.1 in | 3.050 mm0.12 in | 179 | METRIC |
GEZ 010 ES | 65.500 | 21.500 | 6.000 | 15.875 | 26.9880 | 300 |
JLM104945/JLM104910 | 21.500 mm0.8465 in | LM104900 | 0.51 mm0.02 in | 3.050 mm0.12 in | 38.8 | METRIC |
6211/ZZ/NR/C3 | 0.61 Kg | 1.500 mm | 21.000 mm | 100.000 mm | 10000 rpm | 7000 rpm |
684 | 4.0 | 0.15 | 684 | 59000 | 9 | 0.006 |
NNU4096MAW33 | 218.000 mm8.5827 in | 606.000 lb | 350 rpm | 330 rpm | 9730 kN2189000 lbf | 700.000 mm27.5591 in |
24180KYMBW906AC3 | 1.87 | 2.84 | 1.91 | 310 | 290 | 5.000 mm0.200 in |
TIMKEN SDAF 22538 SRB Pillow Block Assembly - MRO Supply
Additional Description ; A, 7.875 in ; Adapter Assembly Number, SNW-38 x 6-15/16 ; Assembly Weight, 420.000 lb ; B · 27.6250 in ; Bearing Number, 22238K.
Part Number SDAF 22538, Inch Tapered Bore Mounting ...
Each assembly includes the housing cap and base, cap bolts, bearing, bearing adapter, locknut and lockwasher, stabilizing ring and triple ring seals.
Split pillow blocks SDAF series including the extended range ...
SDAF housings can accommodate bearings in the 22 and 23 dimension series for shaft diameters ranging from 2 15/16 to 9 9/16 inches. SDAF extended range ...
