Split Block - SAF Housed Units

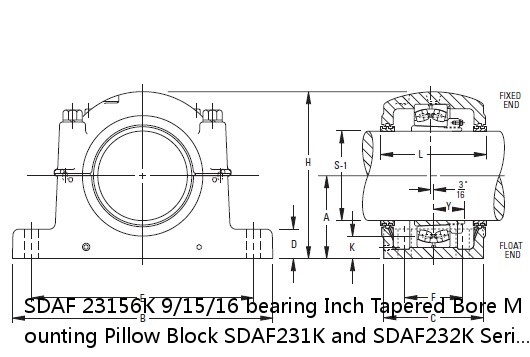

SDAF 23156K 9/15/16 Bearing | Inch Tapered Bore Mounting Pillow Block SDAF231K and SDAF232K Series

SDAF 23156K 9/15/16 interchange LOYAL SDAF 23156K 9/15/16
SDAF 23156K 9/15/16 cross reference LOYAL SDAF 23156K 9/15/16
SDAF 23156K 9/15/16 Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	SDAF 23156K 9/15/16
d:	ER 751-1
D:	A8967
B:	SDAF3156K x 9-15/16
r(min):	20.8750 in
r1(min):	SDAF23156K9-15/16
Width:	8.75 in
Size:	29.0000 in
Weight：	30.5000 in
Bearing Number：	29.7500 in
Housing Construction：	9 15/16 in
UPC Code：	3.7500 in
Shaft Size Type：	13.1250 in

Bearing Number	23156K
Diameter S-1	9 15/16 in
Adapter Assembly Number¹	SNP-3156 x 9-15/16
Housing Only²	SDAF3156K x 9-15/16
A	10.2500 in
B	35.0000 in
C	13.1250 in
D	3.7500 in
E	29.7500 in
E Max.	30.5000 in
E Min.	29.0000 in
F	8.75 in
H	20.8750 in
Bolt Hole Length	2.375 in
Bolt Hole Width	1.625 in
Stabilizing Ring 1 Req'd³	A8967
Triple Seal Req'd	ER 751-1
Assembly Weight	1300.000 lb
Full Timken Part Number	SDAF23156K9-15/16
