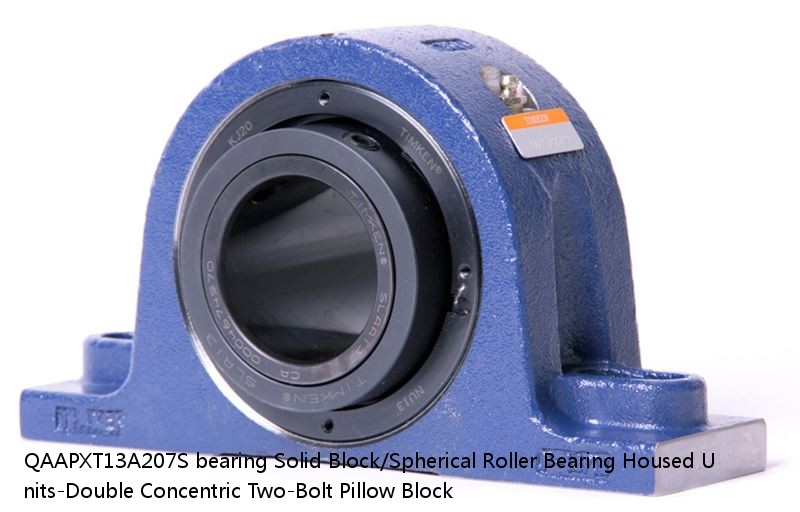

- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
- QAAPXT13A207S
QAAPXT13A207S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
QAAPXT13A207S interchange timken QAAPXT13A207S | |
QAAPXT13A207S cross reference timken QAAPXT13A207S | |
QAAPXT13A207S Equivalent bearing interchange guide: | |
Price: | enquiry |
Model Number: | QAAPXT13A207S |
d: | 4.15 |
D: | 2.79 |
B: | 22.00 lb10.00 Kg |
r(min): | 0883450454605 0883450457477 0883450951524 0883450951531 0883450951548 0883450951555 0883450951562 08 |
r1(min): | 0.0015 in0.038 mm |
Width: | 2-7/16 in |
Size: | Imperial |
Weight: | 0.0016 in0.040 mm |
Bearing Number: | 0.0026 in0.065 mm |
Housing Construction: | 3200 rpm |
UPC Code: | 1800 rpm |
Shaft Size Type: | 1500 rpm |
Engineering Group | Mounted Bearing |
Bearing Number | 22213 |
Shaft Size | 2-7/16 in |
Shaft Size Type | Imperial |
Full Timken Part Number | QAAPXT13A207SB QAAPXT13A207SC QAAPXT13A207SEB QAAPXT13A207SEC QAAPXT13A207SEM QAAPXT13A207SEN QAAPXT13A207SEO QAAPXT13A207SET QAAPXT13A207SM QAAPXT13A207SN QAAPXT13A207SO QAAPXT13A207SOSLA QAAPXT13A20 |
Locking Style | Double Concentric |
Weight | 22.00 lb10.00 Kg |
Housing Construction | Two-Bolt Pillow Block |
UPC Code | 0883450454605 0883450457477 0883450951524 0883450951531 0883450951548 0883450951555 0883450951562 0883450951579 0883450951586 0883450951593 0883450951609 0883450951616 0883450951623 0883450951630 |
Dimension A | 3.00 in76.2 mm |
Dimension B | 6.05 in153.7 mm |
Dimension C | 3.81 in96.8 mm |
Dimension D Max | 8.78 in223.0 mm |
Dimension D Min | 7.66 in194.6 mm |
Dimension F | 11.25 in285.8 mm |
Dimension G | 2.900 in73.70 mm |
Dimension H | 1.38 in35.1 mm |
Dimension J (Bolt Size) | 0.750 in20 mm |
Dimension L | 3.60 in91.4 mm |
Dimension M | 2.15 in54.6 mm |
Dimension RAA | 0.70 in17.8 mm |
Dimension SAA | 4.3 in109.2 mm |
C0 - Static Load | 48600 lb216 kN |
C - Dynamic Load (Basic) | 46400 lb206 kN |
e - Geometry Factor | 0.24 |
Y1 - Geometry Factor | 2.79 |
Y2 - Geometry Factor | 4.15 |
Oil Lubrication - M/N Seal | 1800 rpm |
Oil Lubrication - T Seal | 3200 rpm |
Oil Lubrication - B/C/O Seal | 1500 rpm |
Grease Lubrication - M/N Seal | 1800 rpm |
Grease Lubrication - T Seal | 2800 rpm |
Grease Lubrication - B/C/O Seal | 1500 rpm |
Float | 0.083 in2.108 mm |
Shaft Tolerance | 0.0015 in0.038 mm |
Eng Internal Radial Clearance - Min | 0.0016 |
Eng Internal Radial Clearance - Max | 0.0026 |
Pre Install Clearance Min | 0.0016 in0.040 mm |
Pre Install Clearance Max | 0.0026 in0.065 mm |
No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
---|---|---|---|---|---|---|
4T-368S/362A | 51.590 | 1.3 | 2 | 4T-368S/362A | 0.51 | 88.900 |
46T32213JR/61.5 | 73 | 65 | 0.6 | 2.0 | 46T32213JR/61.5 | 120 |
7334DB | 170 | 1.50 | 4.0 | 7334 | 35.300 | 2 700 |
SL01-4956 | 280 | 2.1 | SL01-4956 | 33.90 | 710 | 360 |
NU314ET7 | Standard | 70 | 2.0 | 2.0 | 2.1 | 2.1 |
23168EJW507C08C4 | 2.17 | 3.3 | 2.22 | 23168CJW507C08C4 | 630 | 570 |
C 30/670 KM + OH 30/670 H | 600 | 430 | OH 30/670 H | 630.000 | 1000.000 | 16300.000 |
E/P2B/TRB/2 1/2/ECO/ECC | 2.63 | 2.17 | 0.7 | 0.87 | 23 lb | 0883450505581 |
NNU 4922 BK/SPW33 | 60006000 | 5300 | 30.000 | 270.000 | 132.000 | NNU 4922 BK/SPW33 |
NU315EM & | HPS | 75 | 2.0 | 2.0 | 2.1 | 2.1 |
