Double Concentric Solid-Block Housed Units

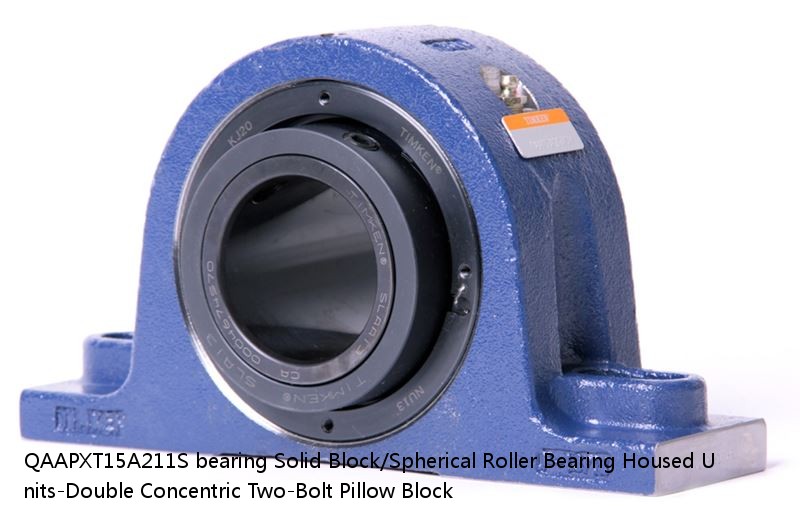

QAAPXT15A211S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block

QAAPXT15A211S interchange timken QAAPXT15A211S
QAAPXT15A211S cross reference timken QAAPXT15A211S
QAAPXT15A211S Equivalent bearing interchange guide：
Price：	enquiry
Model Number：	QAAPXT15A211S
d:	4.67
D:	3.14
B:	28 lb12.7 Kg
r(min):	0883450952002 0883450952019 0883450952026 0883450952033 0883450952040 0883450952057 0883450952064 08
r1(min):	0.0020 in0.051 mm
Width:	2-11/16 in
Size:	Imperial
Weight：	0.0020 in0.050 mm
Bearing Number：	0.0031 in0.080 mm
Housing Construction：	2900 rpm
UPC Code：	1600 rpm
Shaft Size Type：	1300 rpm

Engineering Group	Mounted Bearing
Bearing Number	22215
Shaft Size	2-11/16 in
Shaft Size Type	Imperial
Full Timken Part Number	QAAPXT15A211SB QAAPXT15A211SC QAAPXT15A211SEB QAAPXT15A211SEC QAAPXT15A211SEM QAAPXT15A211SEN QAAPXT15A211SEO QAAPXT15A211SET QAAPXT15A211SM QAAPXT15A211SN QAAPXT15A211SO QAAPXT15A211ST
Locking Style	Double Concentric
Weight	28 lb12.7 Kg
Housing Construction	Two-Bolt Pillow Block
UPC Code	0883450952002 0883450952019 0883450952026 0883450952033 0883450952040 0883450952057 0883450952064 0883450952071 0883450952088 0883450952095 0883450952101 0883450952118
Dimension A	3.50 in88.9 mm
Dimension B	6.84 in173.7 mm
Dimension C	4.29 in109 mm
Dimension D Max	10.44 in265.2 mm
Dimension D Min	9.06 in230.1 mm
Dimension F	13.000 in330.20 mm
Dimension G	2.980 in75.70 mm
Dimension H	1.38 in35.1 mm
Dimension J (Bolt Size)	0.875 in24 mm
Dimension L	3.86 in98.0 mm
Dimension M	2.37 in60.2 mm
Dimension RAA	0.88 in22.4 mm
Dimension SAA	4.74 in120.4 mm
C0 - Static Load	54100 lb240 kN
C - Dynamic Load (Basic)	49900 lb222 kN
e - Geometry Factor	0.22
Y1 - Geometry Factor	3.14
Y2 - Geometry Factor	4.67
Oil Lubrication - M/N Seal	1600 rpm
Oil Lubrication - T Seal	2900 rpm
Oil Lubrication - B/C/O Seal	1300 rpm
Grease Lubrication - M/N Seal	1600 rpm
Grease Lubrication - T Seal	2400 rpm
Grease Lubrication - B/C/O Seal	1300 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0020 in0.051 mm
Eng Internal Radial Clearance - Min	0.0020
Eng Internal Radial Clearance - Max	0.0031
Pre Install Clearance Min	0.0020 in0.050 mm
Pre Install Clearance Max	0.0031 in0.080 mm
