Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Round Flange Block
- QAAFY13A065S

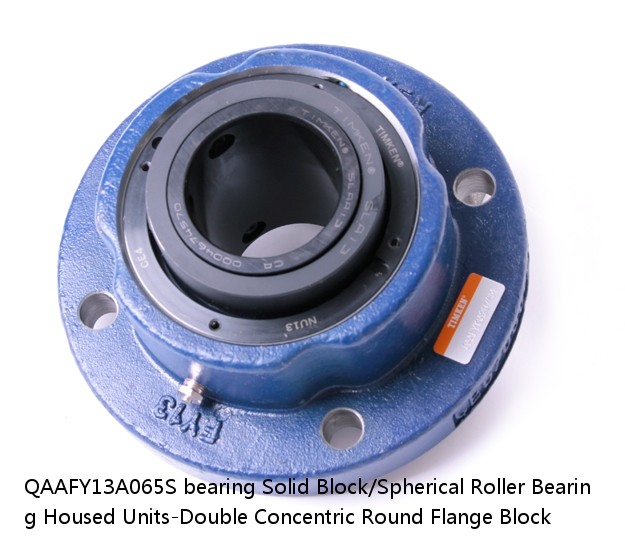

QAAFY13A065S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Round Flange Block
QAAFY13A065S PDF download| QAAFY13A065S interchange timken QAAFY13A065S | |
| QAAFY13A065S cross reference timken QAAFY13A065S | |
| QAAFY13A065S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAAFY13A065S |
| d: | 4.00 |
| D: | 2.69 |
| B: | 19 lb8.6 Kg |
| r(min): | 0883450022200 0883450022217 0883450022231 0883450022248 0883450022255 0883450022262 0883450022279 08 |
| r1(min): | 0.0015 in0.038 mm |
| Width: | 65 mm |
| Size: | Metric |
| Weight： | 0.040 mm0.0016 in |
| Bearing Number： | 0.065 mm0.0026 in |
| Housing Construction： | 3200 rpm |
| UPC Code： | 1800 rpm |
| Shaft Size Type： | 1500 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAAFY13A065SB QAAFY13A065SC QAAFY13A065SEB QAAFY13A065SEC QAAFY13A065SEM QAAFY13A065SEN QAAFY13A065SEO QAAFY13A065SET QAAFY13A065SM QAAFY13A065SN QAAFY13A065SO QAAFY13A065ST |
| Locking Style | Double Concentric |
| Weight | 19 lb8.6 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450022200 0883450022217 0883450022231 0883450022248 0883450022255 0883450022262 0883450022279 0883450022286 0883450192477 0883450192651 0883450269674 0883450269858 |
| Dimension BC | 6.75 in171.5 mm |
| Dimension C | 3.810 in96.80 mm |
| Dimension D | 5.75 in146.1 mm |
| Dimension E | 4.77 in121.2 mm |
| Dimension F | 8.13 in206.5 mm |
| Dimension H | 0.94 in23.9 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L Exp | 3.67 in93.2 mm |
| Dimension L Fix | 3.59 in91.2 mm |
| Dimension M | 2.15 in54.6 mm |
| Dimension N | 2.850 in72.40 mm |
| Dimension R | 0.81 in20.6 mm |
| Dimension S | 4.3 in109.2 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.69 |
| Y2 - Geometry Factor | 4.00 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| P 15 TF | 9500 | 4.75 | 9.56 | P 40 | P 15 TF | YAR 203/15-2F |
| 24056EJW33C3 | 2.2 | 3.35 | 2.25 | 24056CJW33C3 | 860 | 760 |
| 231/710EKW33 | 710 | 9.5 | 1432.00 | 330 | 250 | 1150 |
| HMVC/15 | 12 | 0.197 in | 6.3 in² | 2.933 in | 2.992 in | 4.409 in |
| 23280KYMBW54W507C08C2 | 1.92 | 2.93 | 1.96 | 380 | 350 | 5.000 mm0.200 in |
| 7017ACDF | 85 | 0.60 | 1.1 | 1.920 | 9900 | 7350 |
| QMMC20J311S | 4.24 | 2.85 | 32 lb14.5 Kg | 0.0030 in0.076 mm | 3-11/16 in | Imperial |
| 23188KYMBW833W45A | 2.21 | 3.37 | 2.26 | 450 | 410 | 5.000 mm0.200 in |
| NATV6LL/3AS | 6 | NATV6LL/3AS | 0.027 | 10000 | 10.0 | 14 |
| B-BRS162215 | B-BRS162215 | 15 | 22 | 16 | 0.3 | - |
