Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
- QAATU18A304S

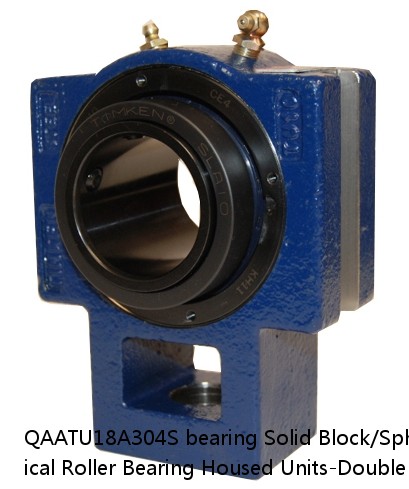

QAATU18A304S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
QAATU18A304S PDF download| QAATU18A304S interchange timken QAATU18A304S | |
| QAATU18A304S cross reference timken QAATU18A304S | |
| QAATU18A304S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAATU18A304S |
| d: | 4.31 |
| D: | 2.90 |
| B: | 44 lb20.00 Kg |
| r(min): | 0883450323581 0883450323598 0883450323604 0883450323611 0883450323628 0883450323635 0883450323642 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 3-1/4 in |
| Size: | Imperial |
| Weight： | 0.060 mm0.0024 in |
| Bearing Number： | 0.100 mm0.0039 in |
| Housing Construction： | 2400 rpm |
| UPC Code： | 1400 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 3-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAATU18A304SB QAATU18A304SC QAATU18A304SEB QAATU18A304SEC QAATU18A304SEM QAATU18A304SEN QAATU18A304SEO QAATU18A304SET QAATU18A304SM QAATU18A304SN QAATU18A304SO QAATU18A304ST |
| Locking Style | Double Concentric |
| Weight | 44 lb20.00 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450323581 0883450323598 0883450323604 0883450323611 0883450323628 0883450323635 0883450323642 0883450323659 0883450323666 0883450323673 0883450323680 0883450323697 |
| Dimension A | 3.63 in92.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 7.63 in193.8 mm |
| Dimension E | 6.81 in173.0 mm |
| Dimension F | 1.81 in46.0 mm |
| Dimension G | 1.88 in47.8 mm |
| Dimension J | 4.88 in124.0 mm |
| Dimension L | 10.12 in257.0 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension N | 4.22 in107.2 mm |
| Dimension P | 6.25 in158.8 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.060 mm0.0024 in |
| Pre Install Clearance Max | 0.100 mm0.0039 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| ZS4FC417-52 | A-1/8 NPT | ZS4FC417-52 | 3 1/4 | - | - | - |
| NKJ90/26A | 90 | 1.0 | NKJ90/26A | 4200 | 100 | 120 |
| SNW-3132X5-7/16 | HMVC 32E | N 032 | SNW-3132X5-7/16 | 190.627 | 138.113 | 160.000 |
| 365/362A | 20.638 | 50.000 | 2.00 | 365/362A | 5800 | 4400 |
| KT 30 A-A 06-005 | KT 30 | Available only in Japan | - | - | - | - |
| UC215/48 | 4.9 lb2.20 Kg | 10858 lbf48300 N | 3 in | 12.00 mm0.472 in | 1.5 mm0.059 in | 32.000 mm1.260 in |
| HR33026J | 0.97 | Standard | 130 | 2.0 | 2.0 | 2.5 |
| NH150074GMN1PCZ1AL+(7) | NH15GM | 7.0 | - | - | - | - |
| HR30319J | 0.96 | Standard | 95 | 3.0 | 3.0 | 4.0 |
| 23072EMDWEW919 | 2.88 | 4.38 | 2.94 | 900 | 770 | 4.000 mm0.160 in |
