Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
- QAATU20A100S

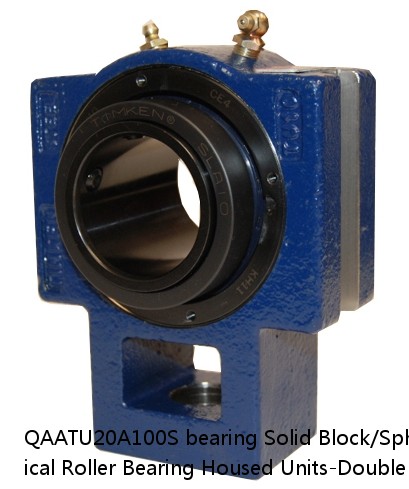

QAATU20A100S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
QAATU20A100S PDF download| QAATU20A100S interchange timken QAATU20A100S | |
| QAATU20A100S cross reference timken QAATU20A100S | |
| QAATU20A100S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QAATU20A100S |
| d: | 4.24 |
| D: | 2.85 |
| B: | 58.0 lb26.3 Kg |
| r(min): | 0883450292313 0883450292320 0883450292337 0883450292344 0883450292351 0883450292368 0883450292375 08 |
| r1(min): | 0.0030 in0.076 mm |
| Width: | 100 mm |
| Size: | Metric |
| Weight： | 0.075 mm0.0030 in |
| Bearing Number： | 0.120 mm0.0047 in |
| Housing Construction： | 2000 rpm |
| UPC Code： | 1200 rpm |
| Shaft Size Type： | Double Concentric |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAATU20A100SB QAATU20A100SC QAATU20A100SEB QAATU20A100SEC QAATU20A100SEM QAATU20A100SEN QAATU20A100SEO QAATU20A100SET QAATU20A100SM QAATU20A100SN QAATU20A100SO QAATU20A100ST |
| Locking Style | Double Concentric |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450292313 0883450292320 0883450292337 0883450292344 0883450292351 0883450292368 0883450292375 0883450292382 0883450292399 0883450292405 0883450292412 0883450292900 |
| Dimension A | 4.13 in104.9 mm |
| Dimension C | 1.13 in28.7 mm |
| Dimension D | 9.44 in239.8 mm |
| Dimension E | 8.63 in219.2 mm |
| Dimension F | 2.13 in54.1 mm |
| Dimension G | 2.06 in52.3 mm |
| Dimension J | 5.63 in143.0 mm |
| Dimension L | 11.69 in296.9 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension N | 4.79 in121.7 mm |
| Dimension P | 7.00 in177.8 mm |
| Dimension S | 2.060 in52.30 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| QAAFY18A304S | 4.31 | 2.90 | 42 lb19.1 Kg | 0883450273817 0883450273824 0883450276887 0883450276894 0883450276900 0883450276917 0883450276924 08 | 0.0030 in0.076 mm | 3-1/4 in |
| UKP317+H2317X | A-PT1/8 | 75 | Heavy-duty (3) | UKP317+H2317X | - | - |
| MUCFC208 | MUCFC208 | - | - | - | - | - |
| HA313 | 0.58 Kg | MB13 | KM13 | 50.00 mm | M65x2 | 85 mm |
| 1986R/32 | 19.050 | 25.400 | 1.20 | 1986R/32 | 9300 | 7000 |
| 7332BDT FY | 160 | 4.0 | 7332BDT FY | 1700 | 1300 | 340 |
| 7007BDB FY | 35 | 1.0 | 7007BDB FY | 9800 | 7300 | 62 |
| 7212 BECBPH | 7500 | 2.12 | 50 | 61 | 7212 BECBPH | 60.000 |
| 22209EJW33C5 | 2.58 | 3.93 | 2.64 | 22209CJW33C5 | 6800 | 5500 |
| 24072EJW906A | 2.19 | 3.33 | 2.24 | 24072CJW906A | 600 | 540 |
